Switches>>>Lights & Lighting
Brand Name Daiertek
Origin CN(Origin)
Certification CE
Current 5A
Features LED Push button switch
Certification ce
Model Number Metal push button switch
Material Copper
Item Type Switches
Warranty 1 Year
Is Smart Device No
Switch Type Push Button Switch
Item 12MM 16MM 19MM 22MM Push button switch
Rating 5A 250VAC 10A 125VAC; 2A 48VDC 10A 12VDC
LED Voltage Push button switch 5V 12V 24V 220V
LED Color Red/ Green/ Yellow/ Blue/ White LED
Sealing/Protection IP65 Waterproof push button Switch

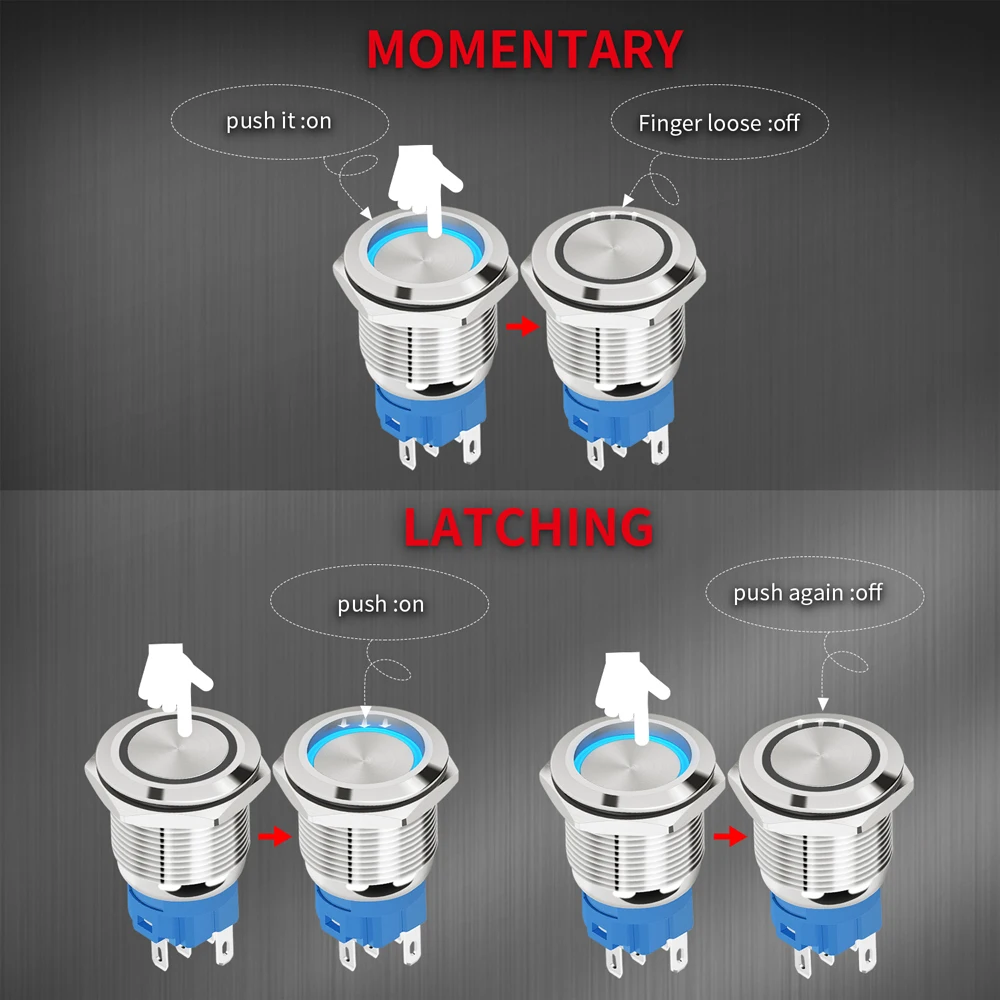

Function Momentary Latching push button switch
Color
Voltage
3-6V
12-24V
100-240V(220V)
Size
12MM
16MM
19MM
22MM
Standard
Momentary Self-reset
Latching Locking

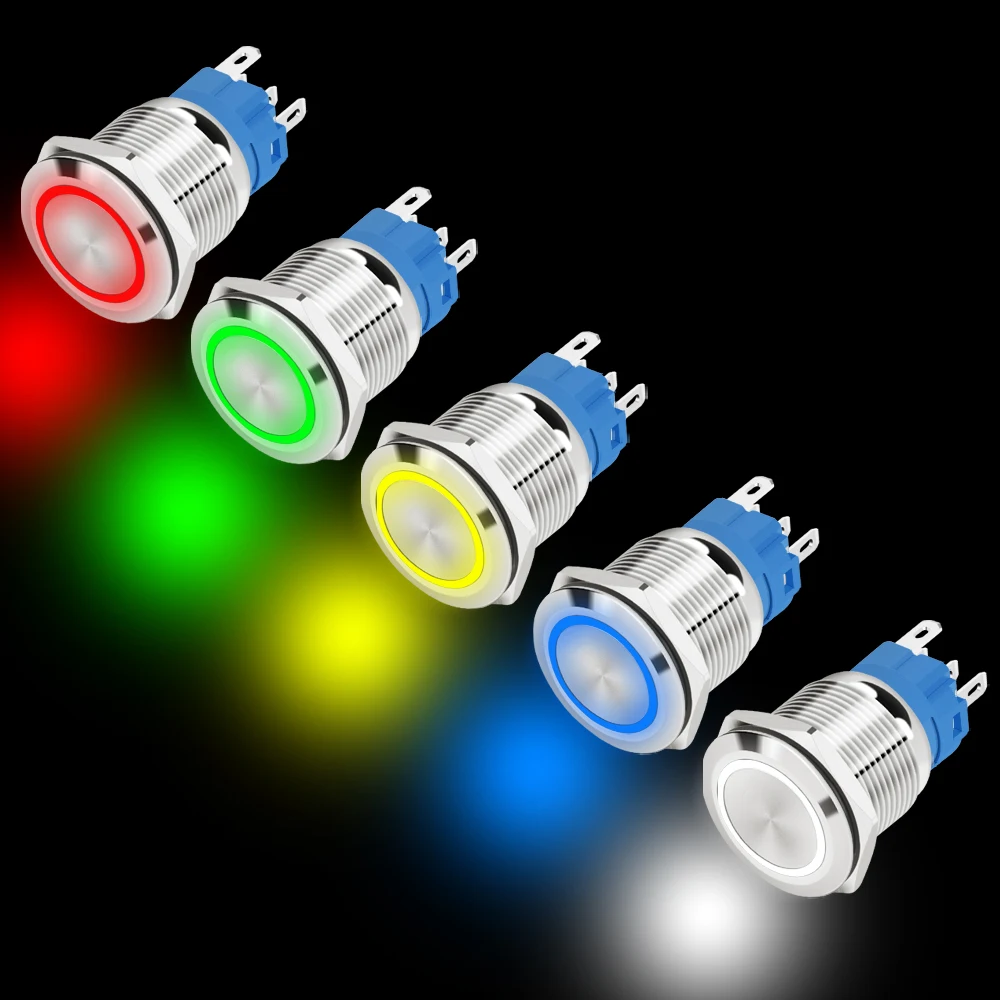

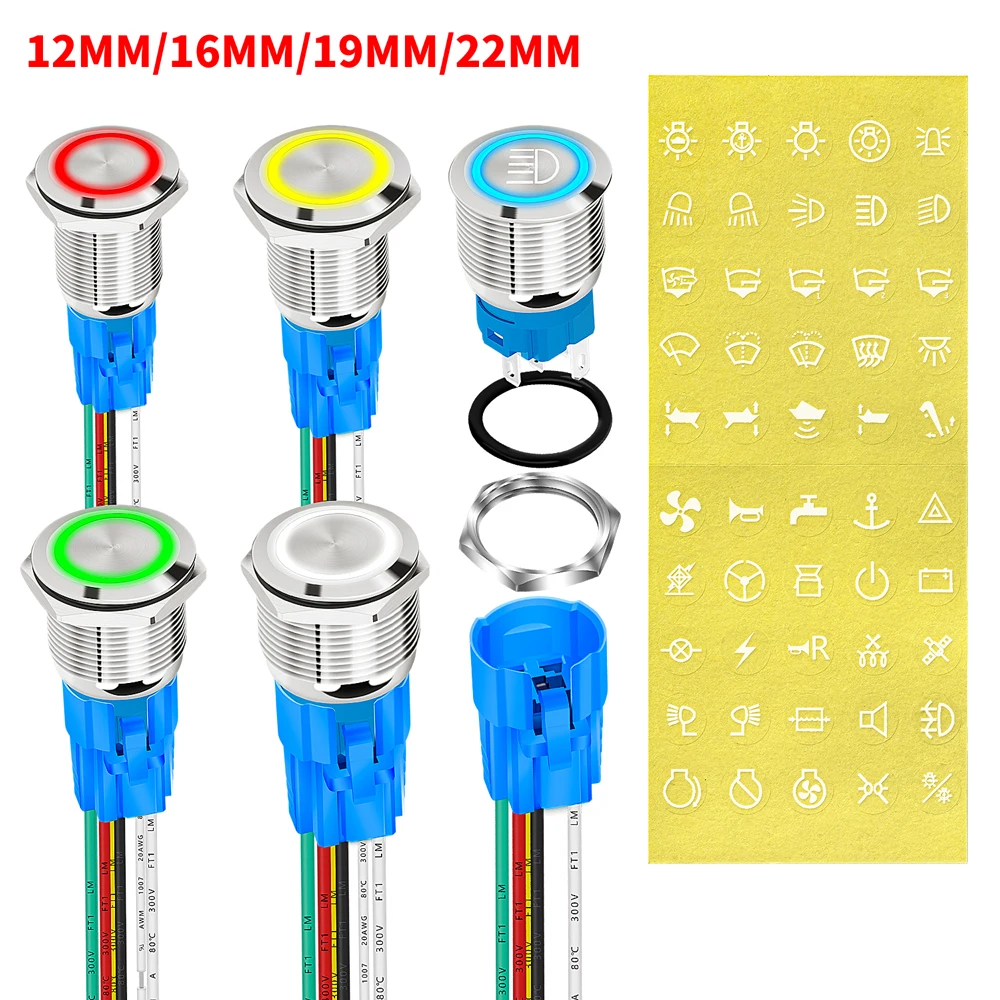

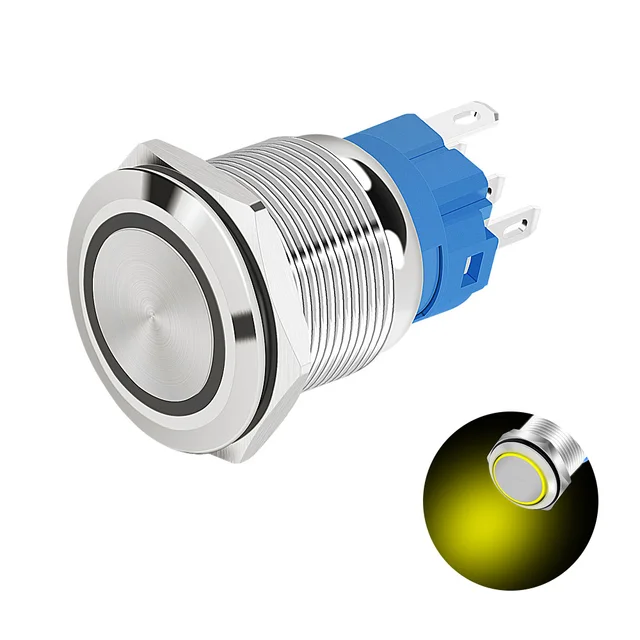

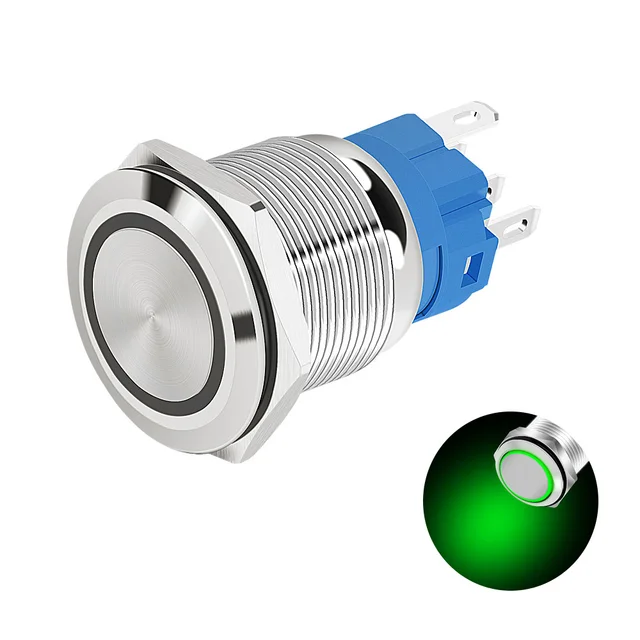

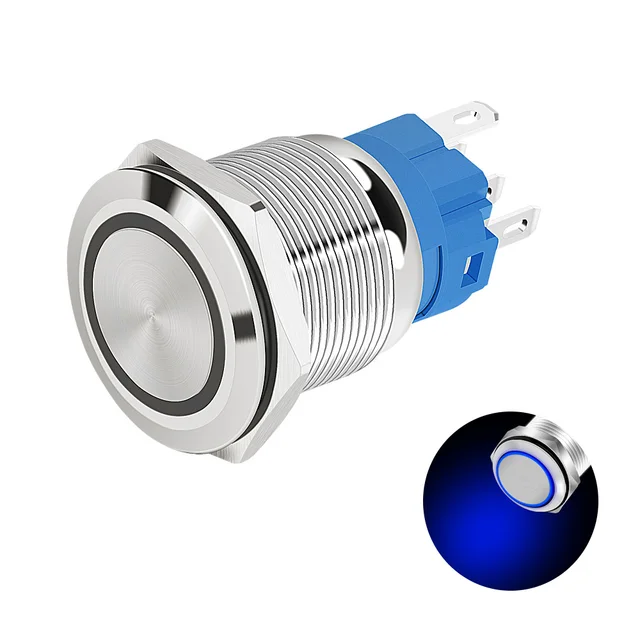

12MM 16MM 19MM 22MM Metal LED Push Button Switch 12V 24V 220V Light Waterproof Latching Momentary Power Pushbutton Illuminated

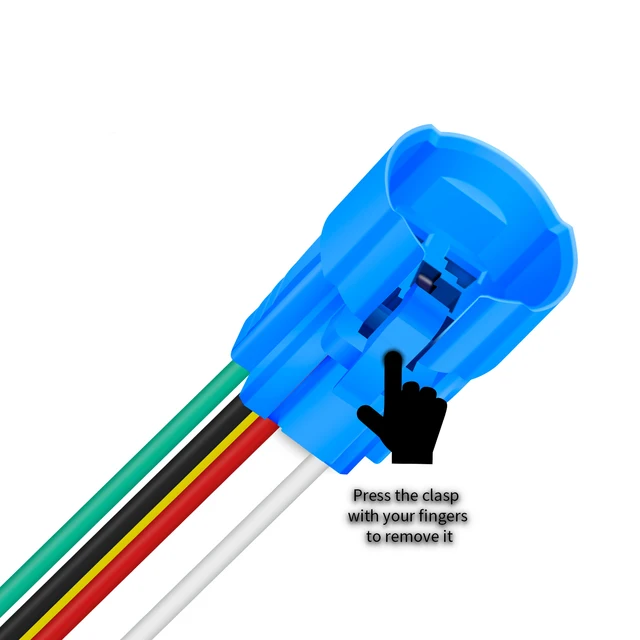

Note: The switch does not include a connector, if you need a connector, you must purchase it separately.
Product Specifications:Item : 12MM 16MM 19MM 22MM Push button switchRating : 5A 250VAC 10A 125VAC; 2A 48VDC 10A 12VDCLED Voltage : LED Push button switch 5V 12V 24V 220VLED Color : Red/ Green/ Yellow/ Blue/ White LEDSealing/Protection : IP65 Waterproof push button SwitchFunction : Momentary Latching push button switchOperating Temperature Range ： -25℃ ~+55℃Contact resistance ： 50mΩ MAX.Insulation resistance ： 100MΩ MIN.Electrical life ： Operating ≥20,000 cycles

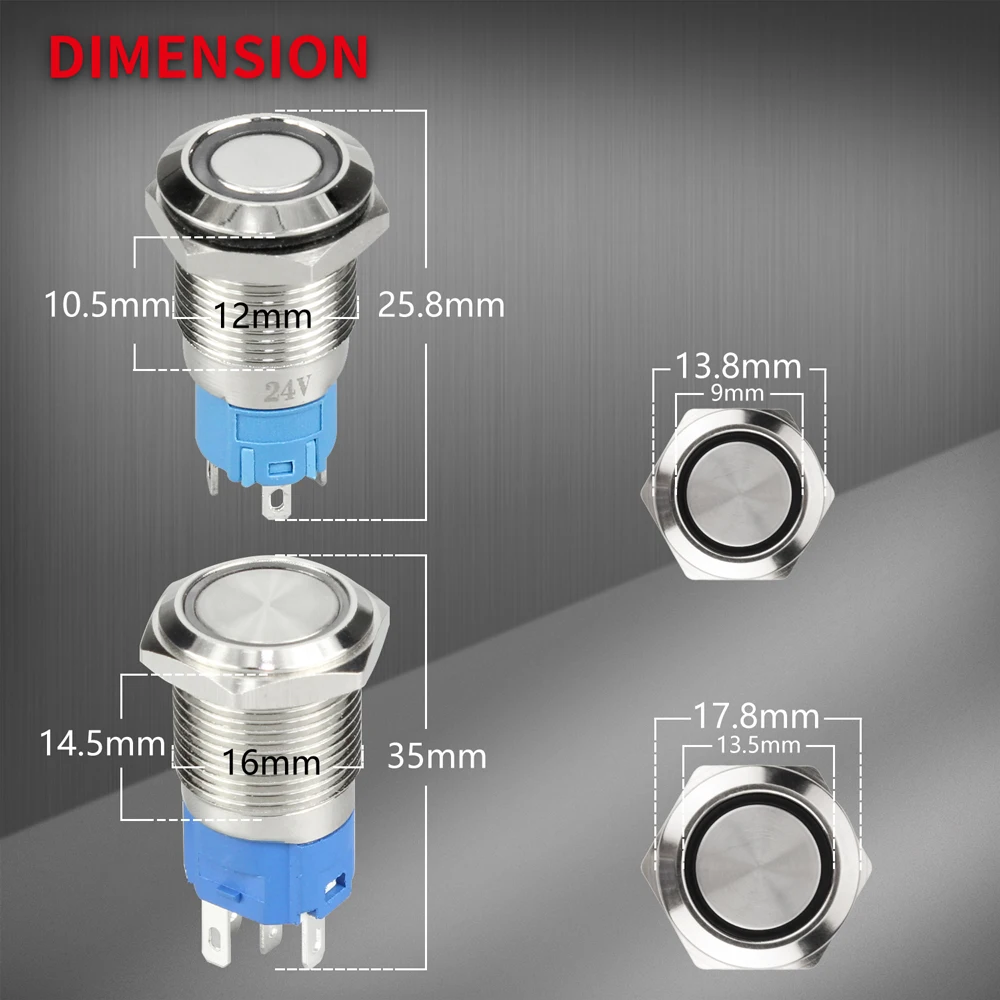

12MM 16MM Push button switch Size:

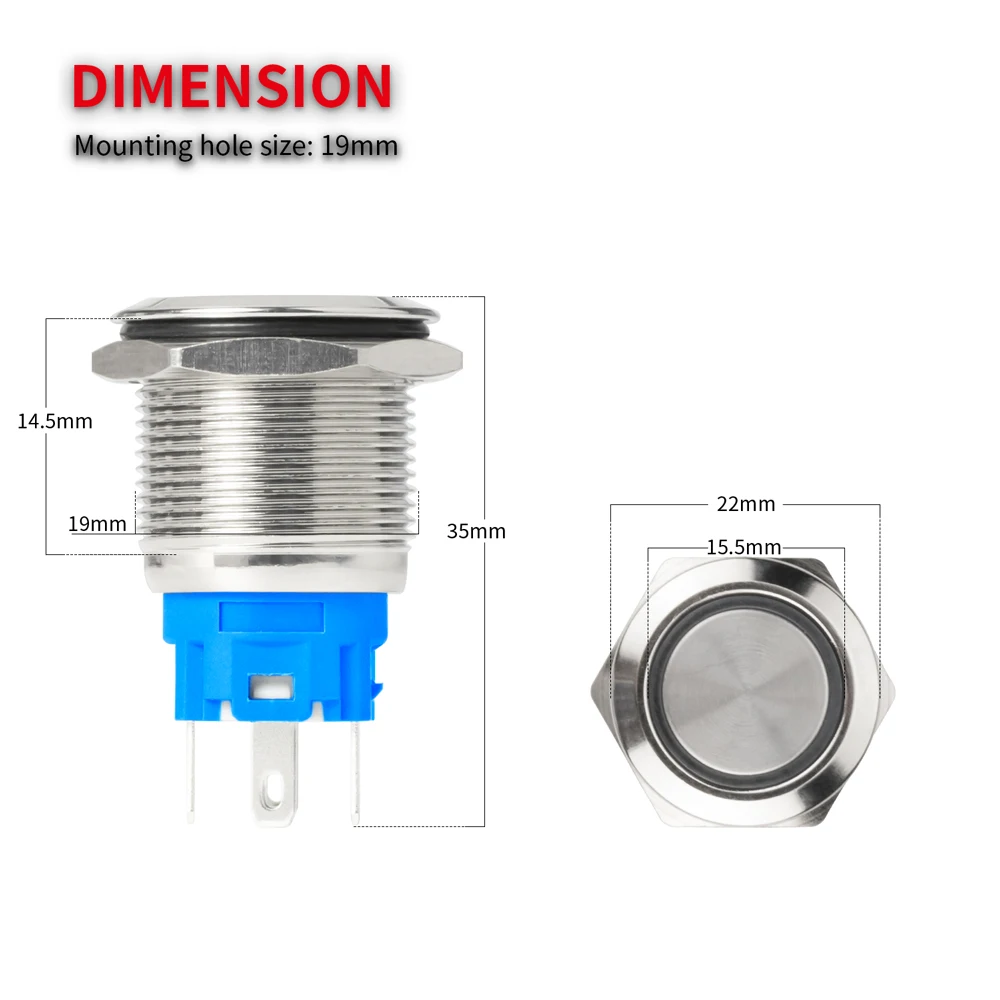

19MM Push button switch Size:

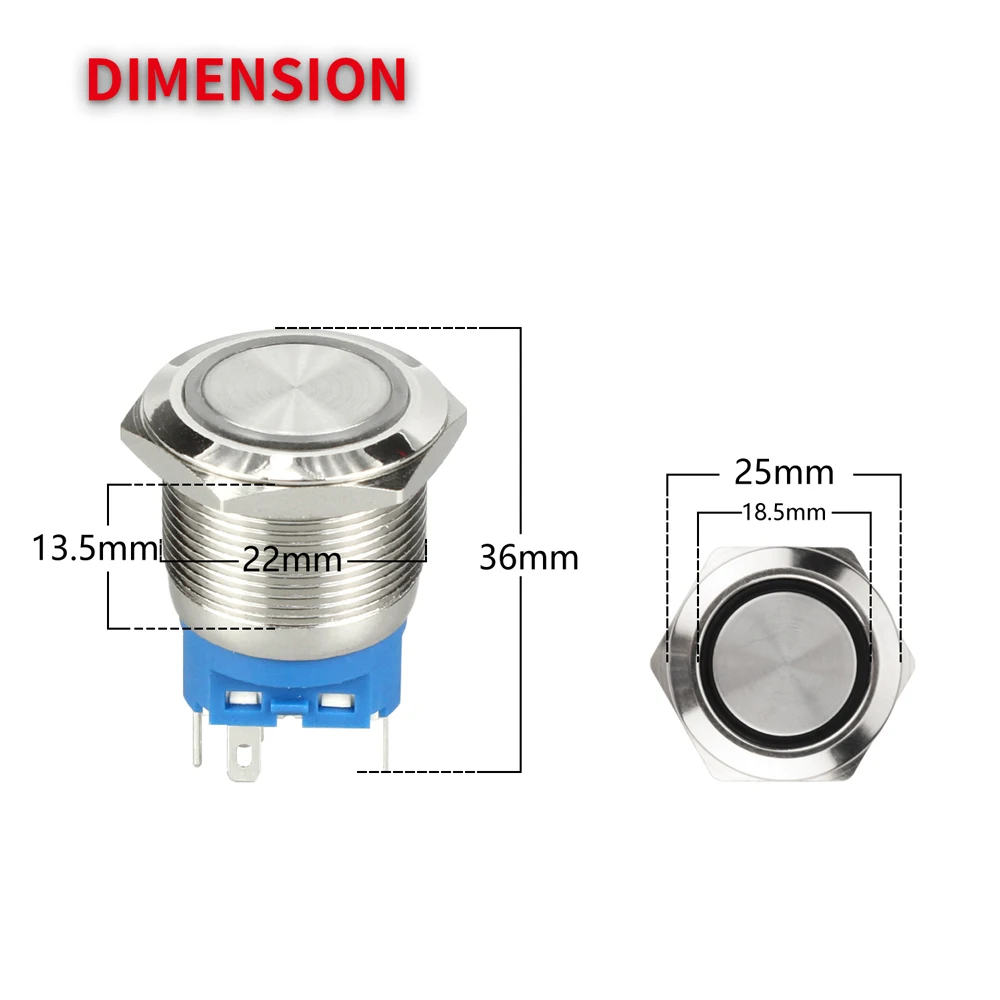

22MM Push button switch Size:

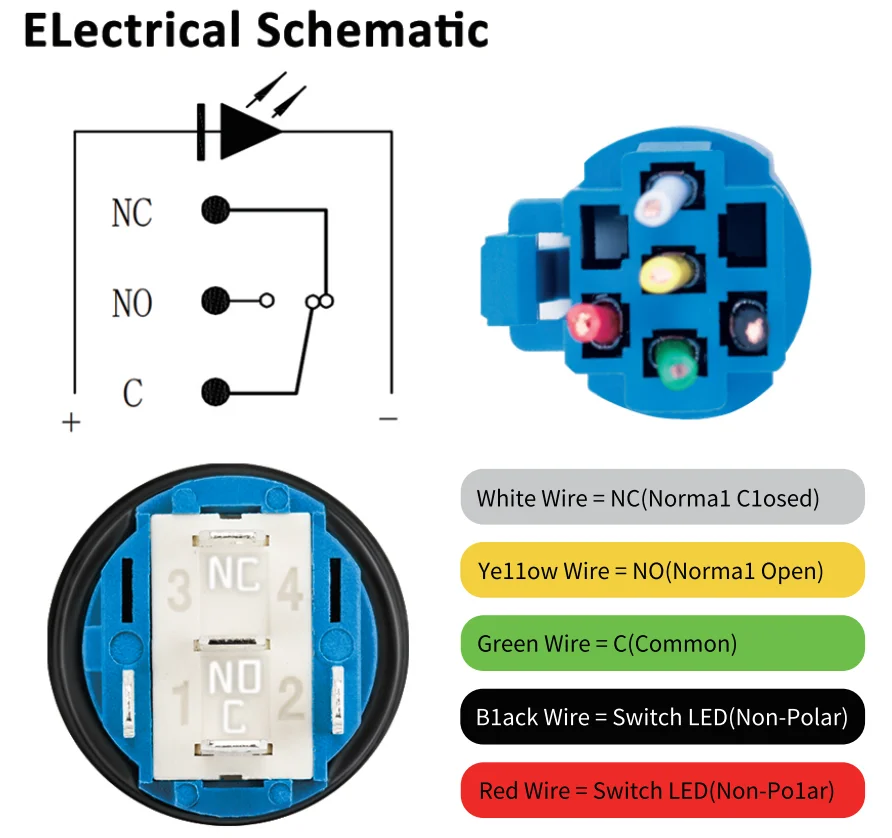

12MM Switch Wiring diagram

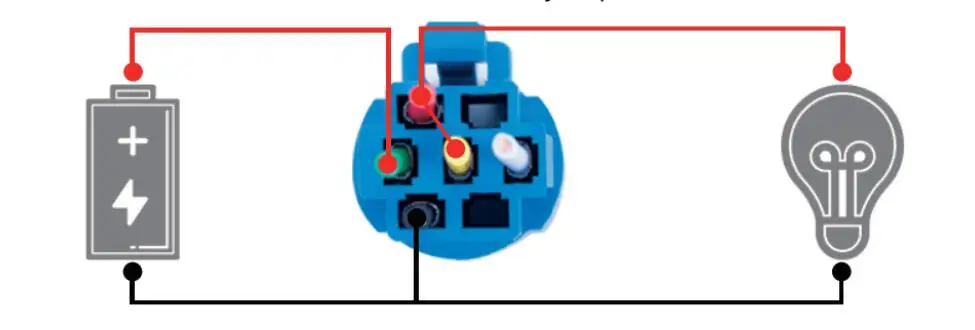

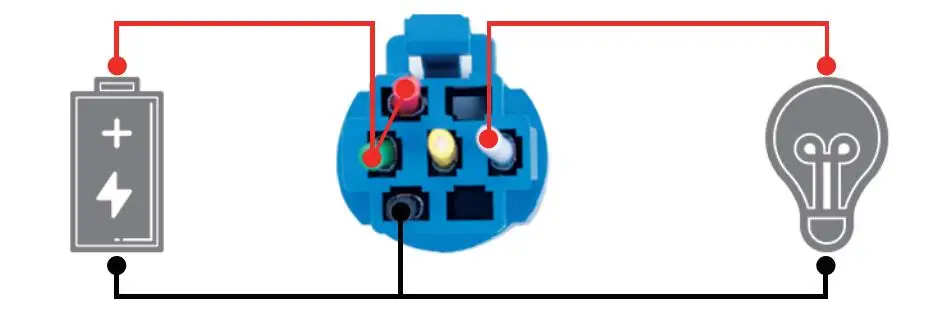

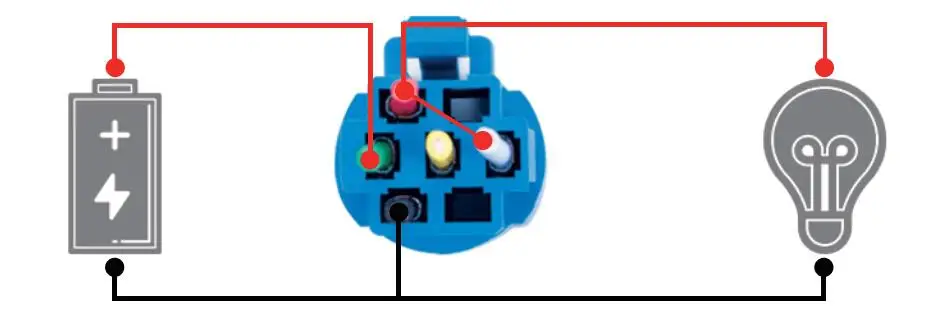

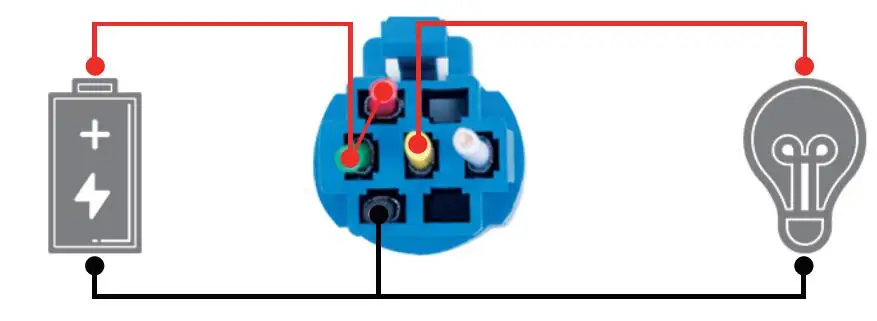

16MM 19MM 22MM Switch Wiring diagram

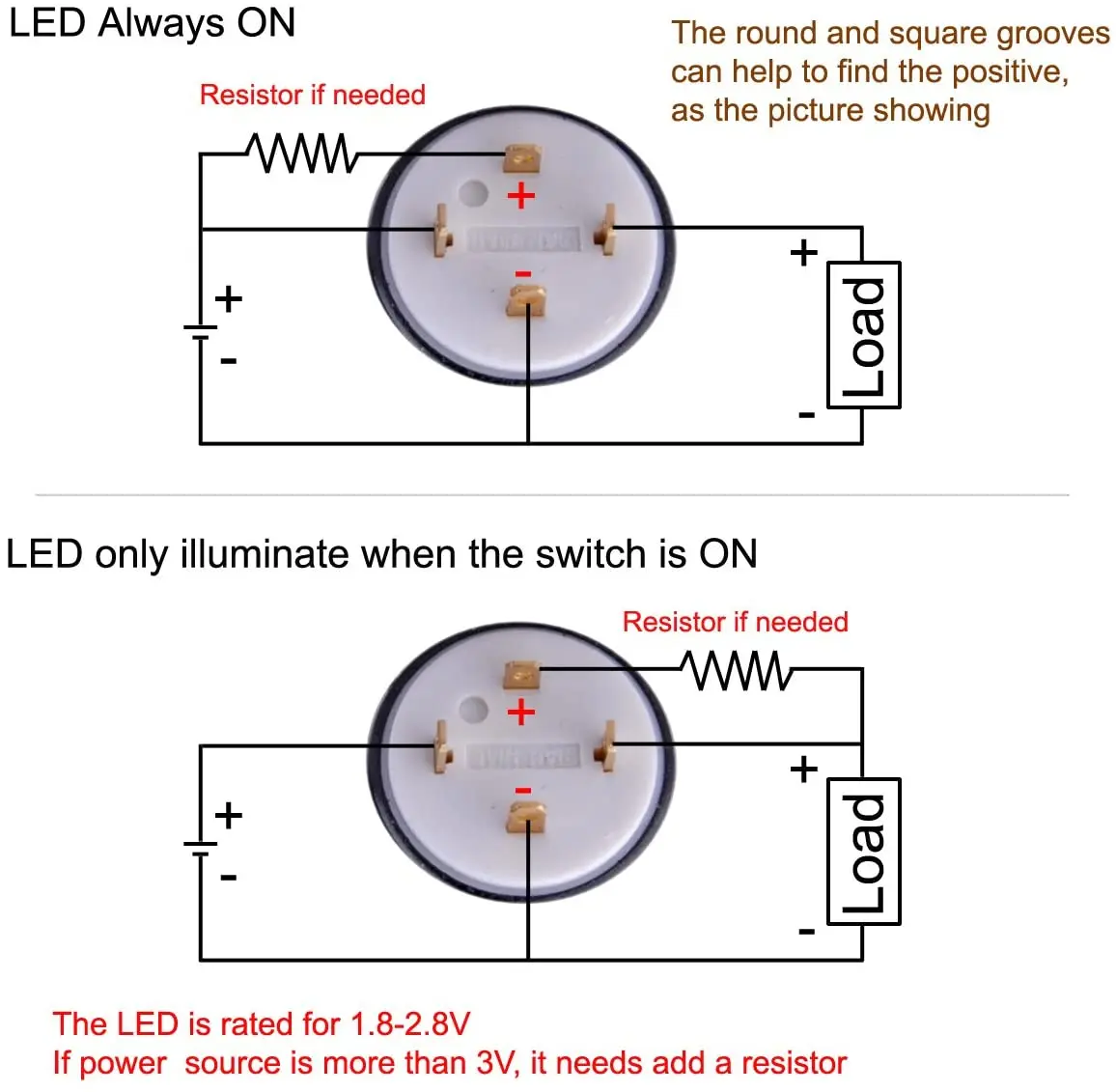

1. LED and Device are both ON when you press the button
2. Device is ON when you press the button; LED is always ON
3. LED and Device are both OFF when you press the button
4. Device is OFF when you press the button; LED is always ON
Use this switch to replace the light switch, horn switch or other control switches in the cars/ boats/ trucks. Bright and comfortable Led and metal appearance make the switch very cool.
Door Bell/ Entrance Guard Push ButtonIt can use as a door bell, entrance guard push button switch in the outdoors. As it is IP65, it can work relatively harsh environment.
Household Applicances ControlIt is also a good choice to use it as a replacement switch of household Appliances. Such as table lamp switch, PC switch, Audio switch.
