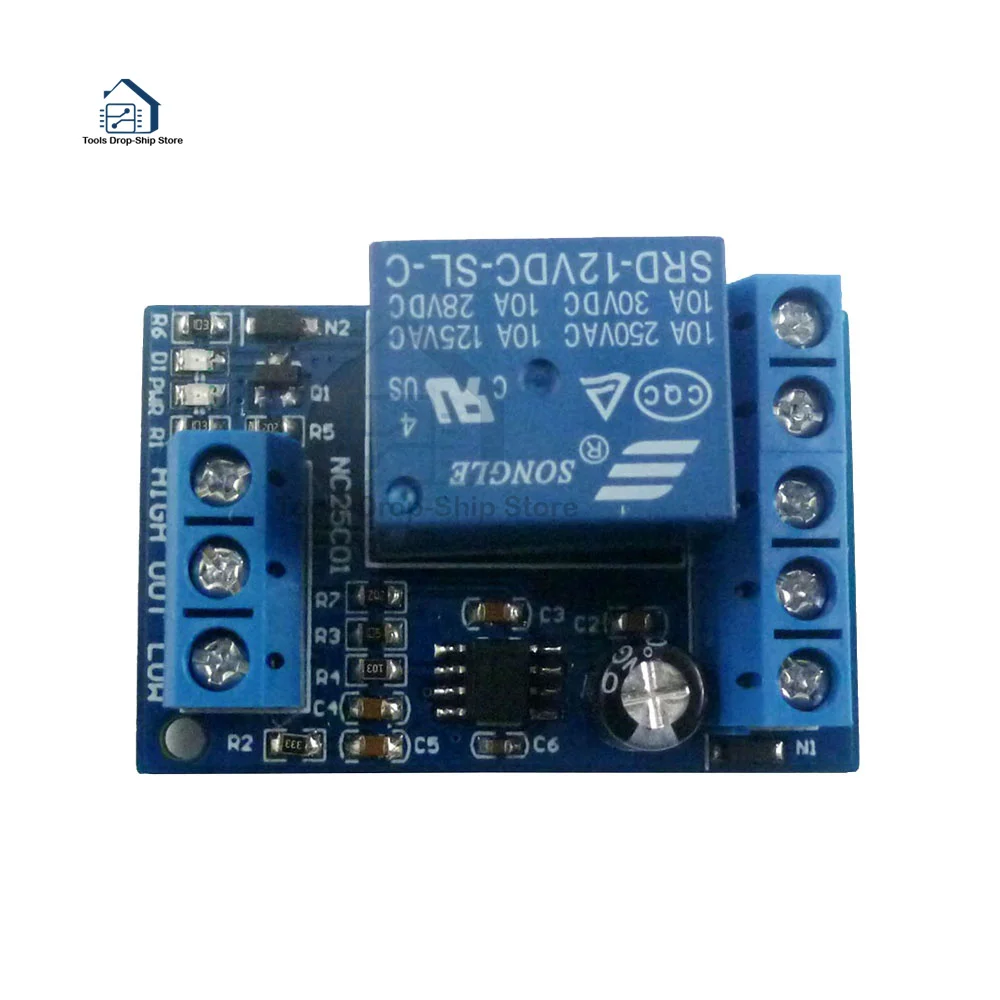

2 in 1 Pump Pour Water Automatic Controller DC 12V Liquid Level Sensor Switch Relay Module for Motor Fish tank Waterhouse Irriga

Flow Measuring Instruments>>>Tools

Brand Name Gaqqee

Origin CN(Origin)

DIY Supplies ELECTRICAL

Model Number water level sensor

Certification CE

application General Purpose

Working voltage DC 12V

Standby current 9MA

Working current 40MA

Ships From

China

Russian Federation

2 in 1 Pump Pour Water Automatic Controller DC 12V Liquid Level Sensor Switch Relay Module for Motor Fish tank Waterhouse Irriga

Feature:

1: Widely used

2: Simple and easy to understand

3: Easy to use

4: Standby current 9MA

5: Working current 40MA

Specifications:

1 Working voltage: DC 12V (DC 10-15V)

2 Standby current: 9MA

3 Working current: 40MA

4 Dimensions: 44mm X 29mm X 19mm

5 Weight: 19 grams

6 Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

There are two purposes for connecting the NO and NC ports of the relay:

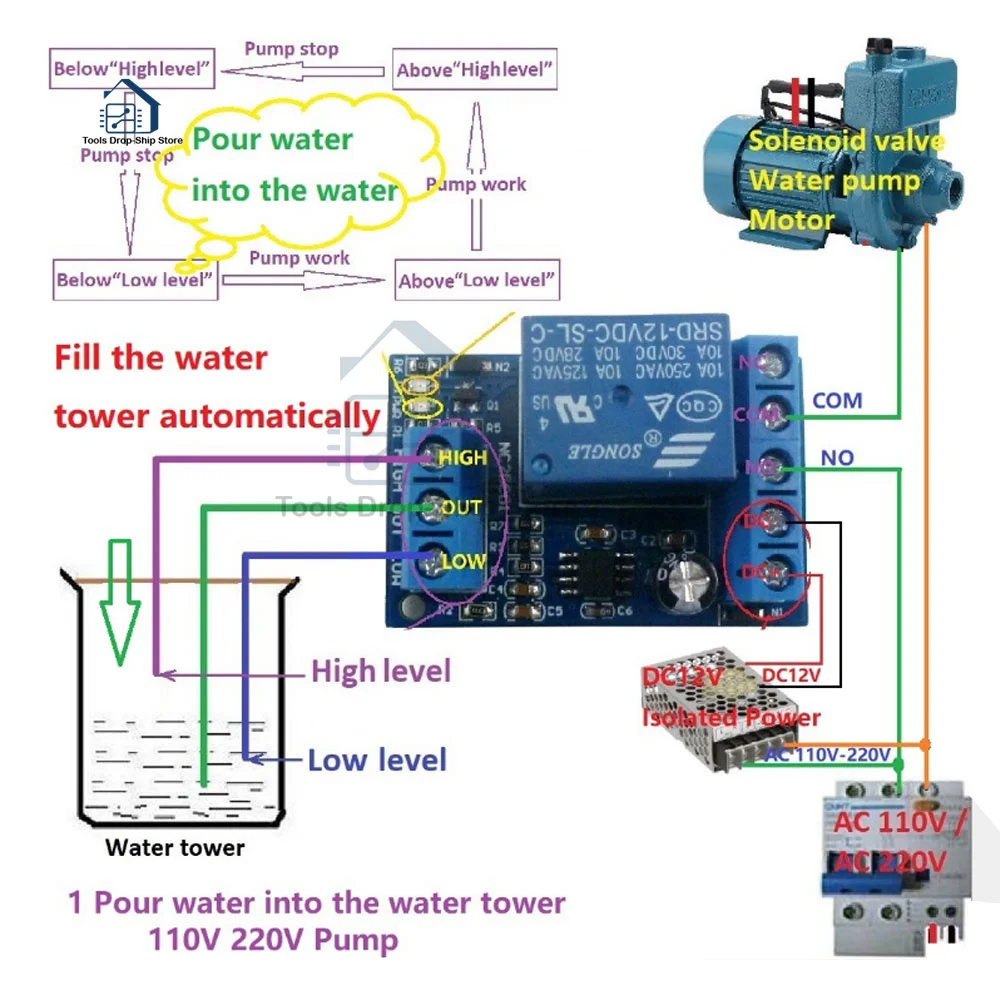

The water pump is connected to the automatic water injection tower at the COM NC port

The water pump is connected to the COM NO port and automatically pumps water from the water tower

Application:

Automatic water supply system for household water tower

Aquarium fish tank water changing system

Automatic filling of water tower

Automatic pumping of water tower

Conductive liquid automatic control

Automatic feeding system for poultry and livestock

Farm automatic water supply system

And other occasions that require automatic water supply and water change.

Solenoid valve water pump motor automatic control

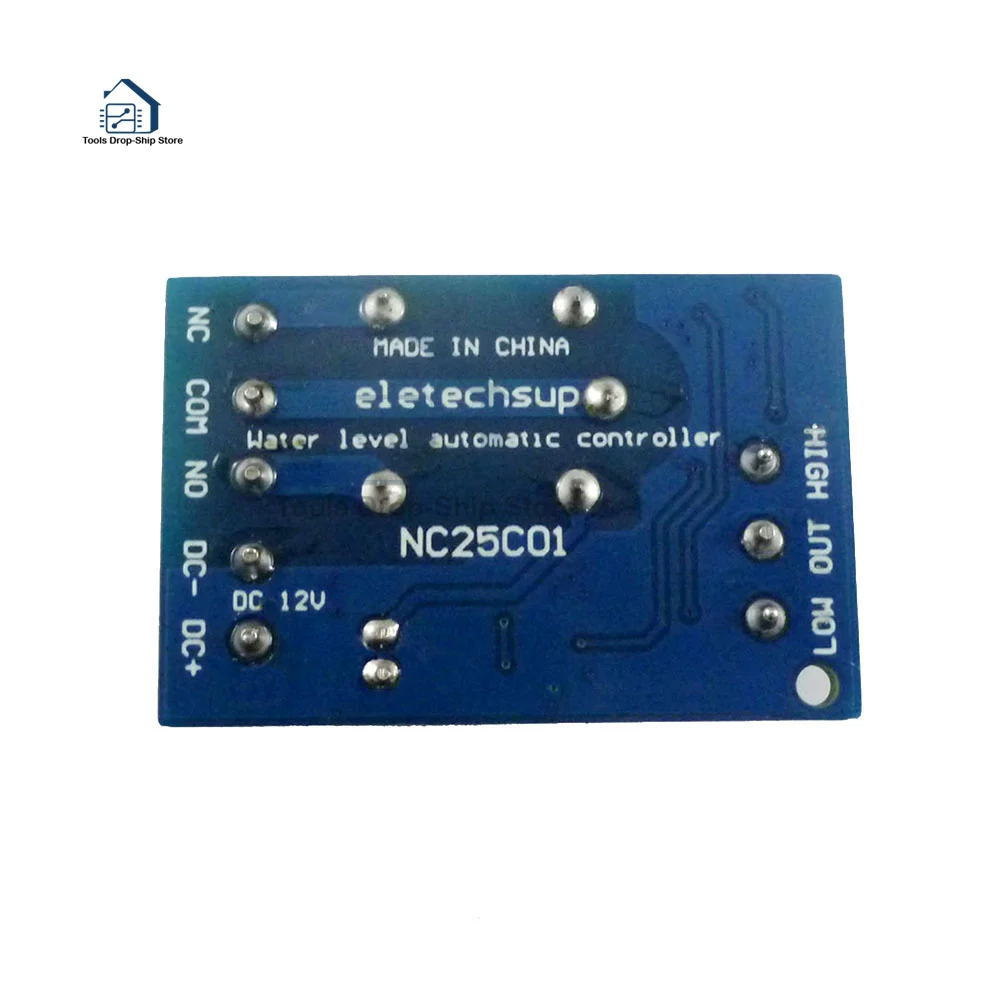

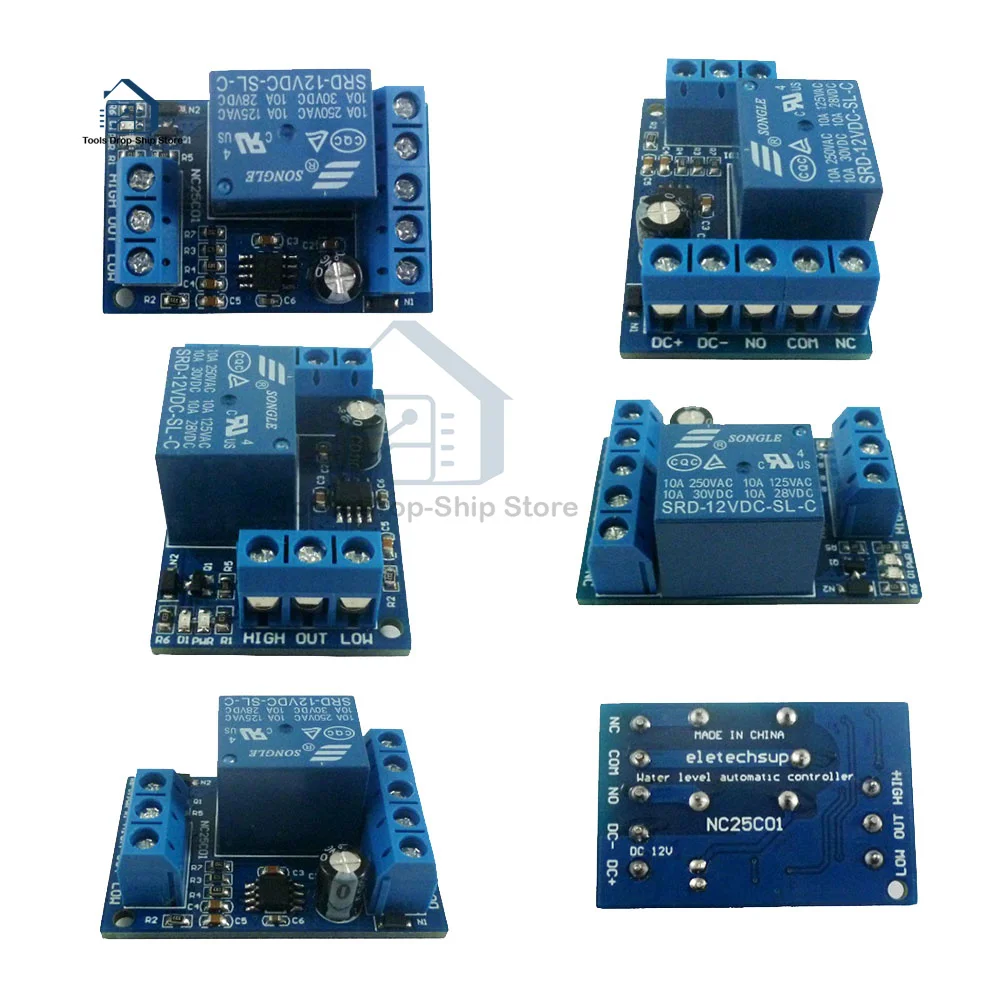

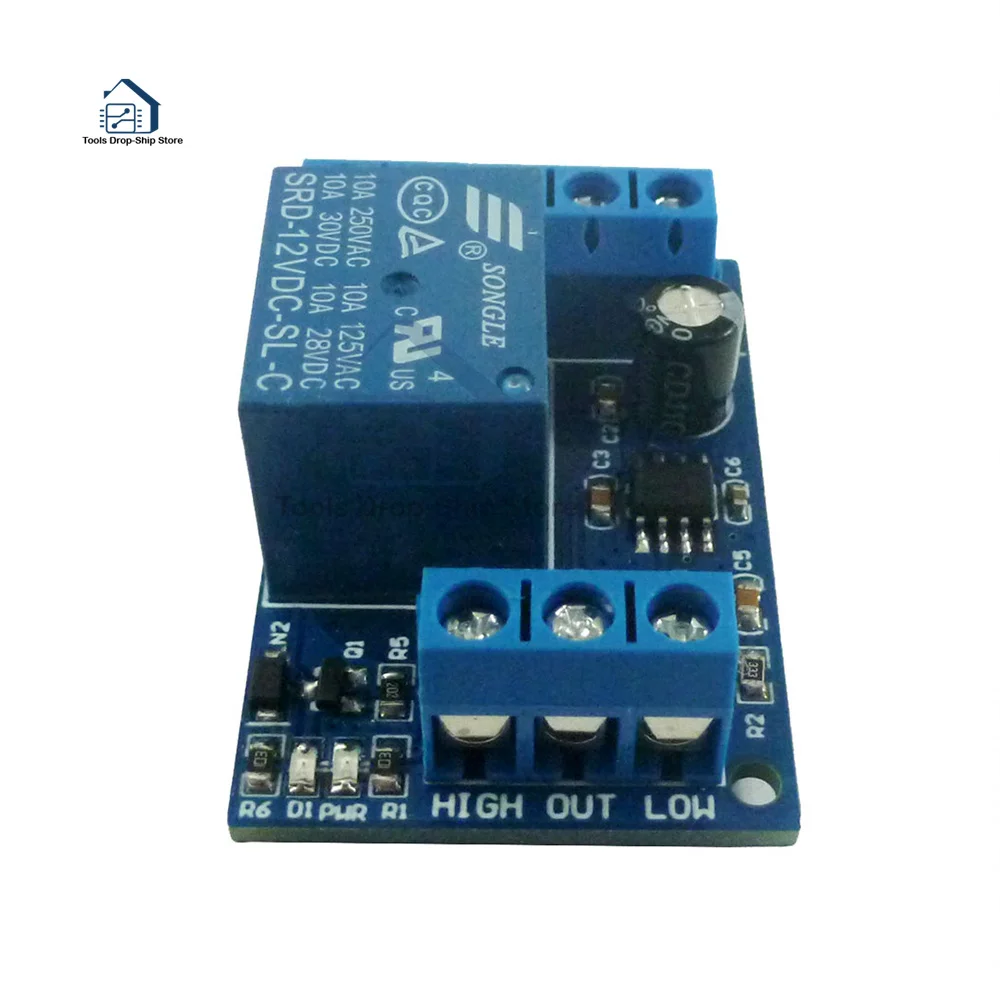

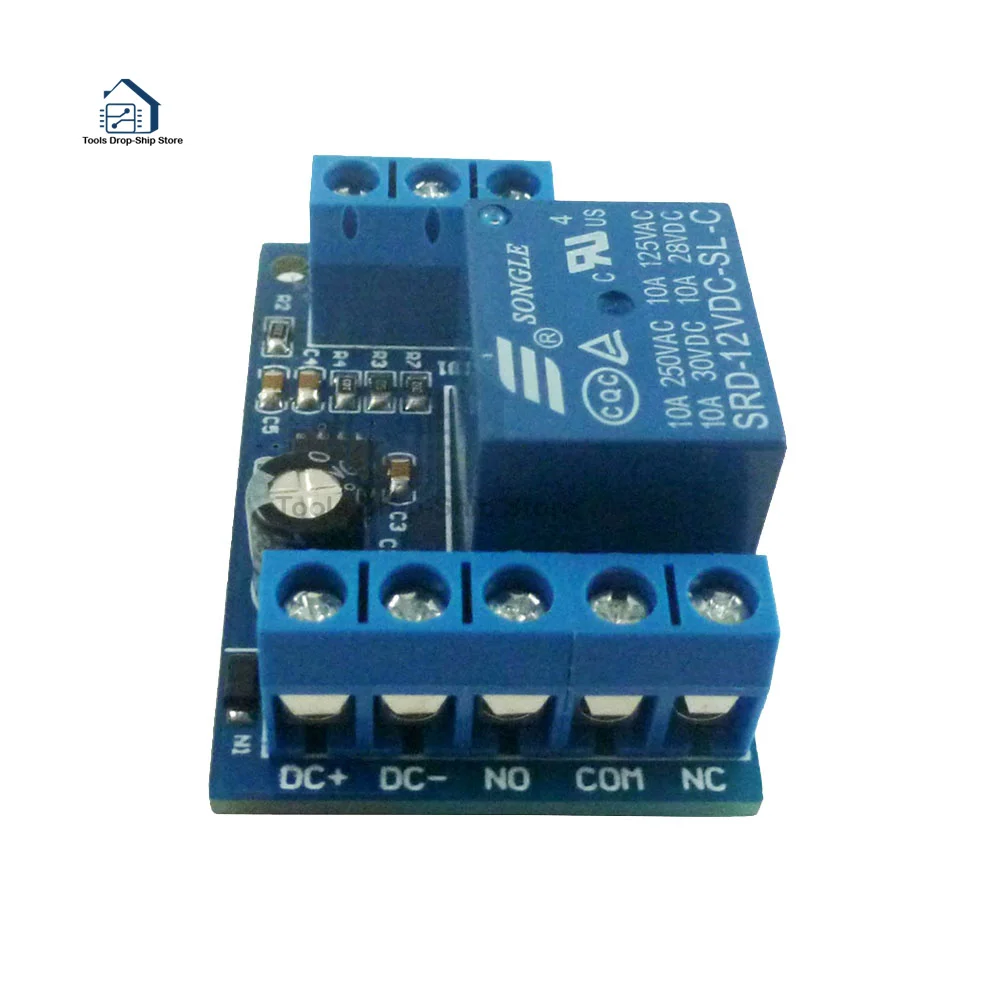

Interface Description:

HIGH: Upper limit probe

OUT: output probe

LOW: Lower limit probe

DC+: positive power supply

DC-: Negative power supply

NC: Relay normally closed contact

COM: Relay common contact

NO: Relay normally open contact

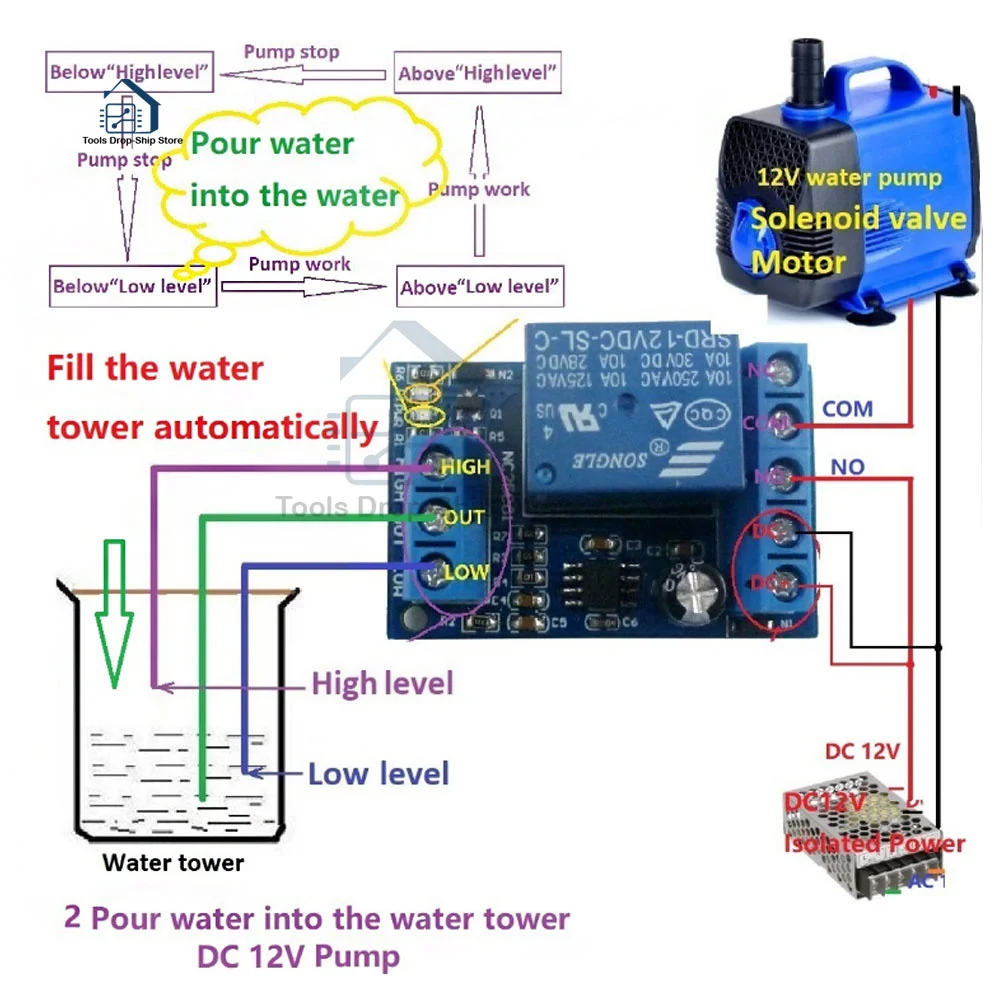

Working principle (automatic water injection tower):

The water level rises: when the water level is lower than the "low level", the water pump starts to supply water to the water tower; when the water level is higher than the "high level", the water pump stops water supply.

The water level drops: When the water level is lower than the "high level", the water pump does not work and the water level continues to drop. When the water level is lower than the "low water level", the water pump starts to supply water to the water tower.

Working principle (automatic pumping of water tower):

Contrary to "automatic filling of water tower"

Package Included:

1*controller module

Notes:

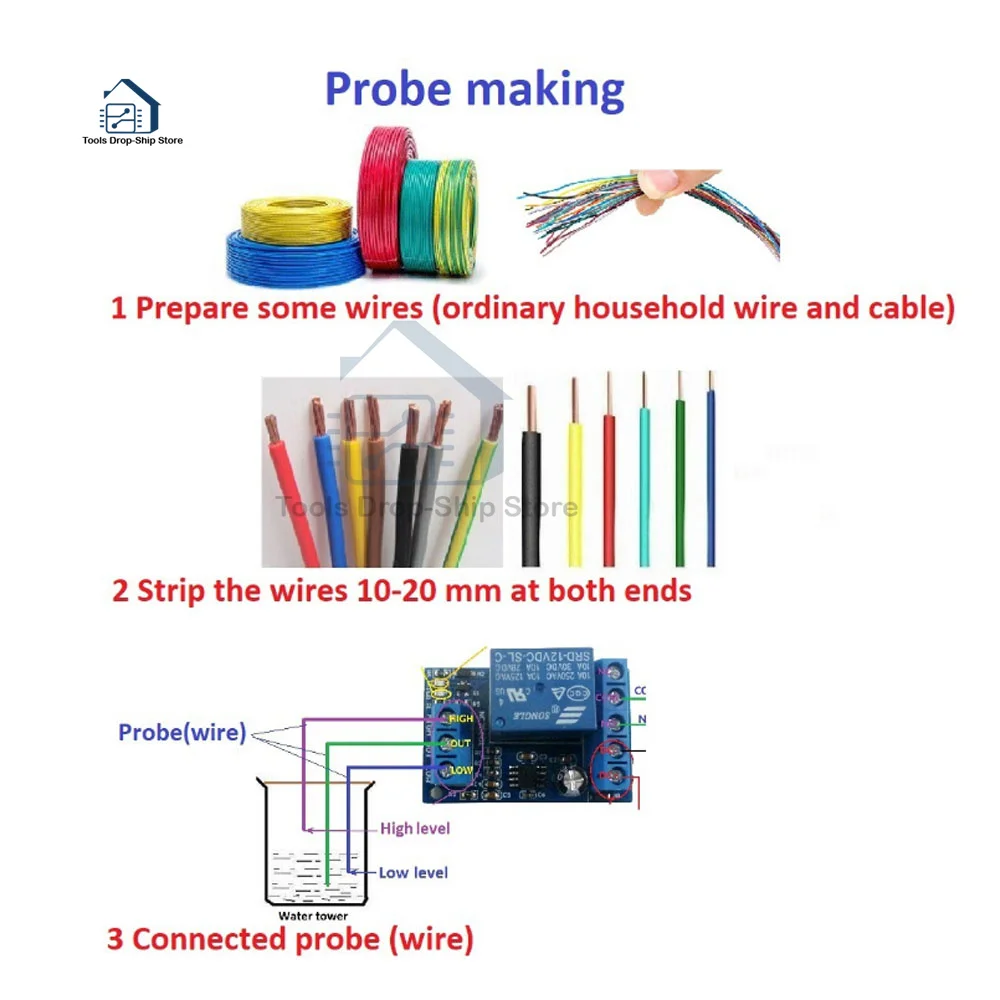

The probe (wire) is not included in the package. No need to use special probes, use household wires to make probes

For safety, please use a well-isolated DC power supply

4PCS for IPhone 12 11 13 Pro Max Full Cover Hydrogel Film Screen Protectors Protective Film for IPhone X XR XS Max 6 6S 7 8 SE

>>>

Brand Name Arvin

Origin CN(Origin)

Features Clear

Features HD Film

Features Anti-Fingerprint

Features Anti-Scratch

Features Anti-Shatter

Type Hydrogel Film

Compatible Brand APPLE

Feature 1 Soft Hydrogel film

Feature 2 Easy to install

Feature 3 Full Coverage

Feature 4 Anti-fingerprint

Feature 5 Explosion proof

Model For iPhone series

Color

For iPhone 6

For iPhone 6S

For iPhone 6 Plus

For iPhone 6S Plus

For iPhone 7

For iPhone 8

For iPhone 7 Plus

For iPhone 8 Plus

For iPhone SE2020

For iPhone X

For iPhone XR

For iPhone XS

For iPhone XS Max

For iPhone 11

For iPhone 11 Pro

For iPhone 11 ProMax

For iPhone 12Mini

For iPhone 12

For iPhone 12 Pro

For iPhone 12ProMax

For iPhone 13Mini

For iPhone 13

For iPhone 13 Pro

For iPhone 13ProMax

For iPhone SE3 2022

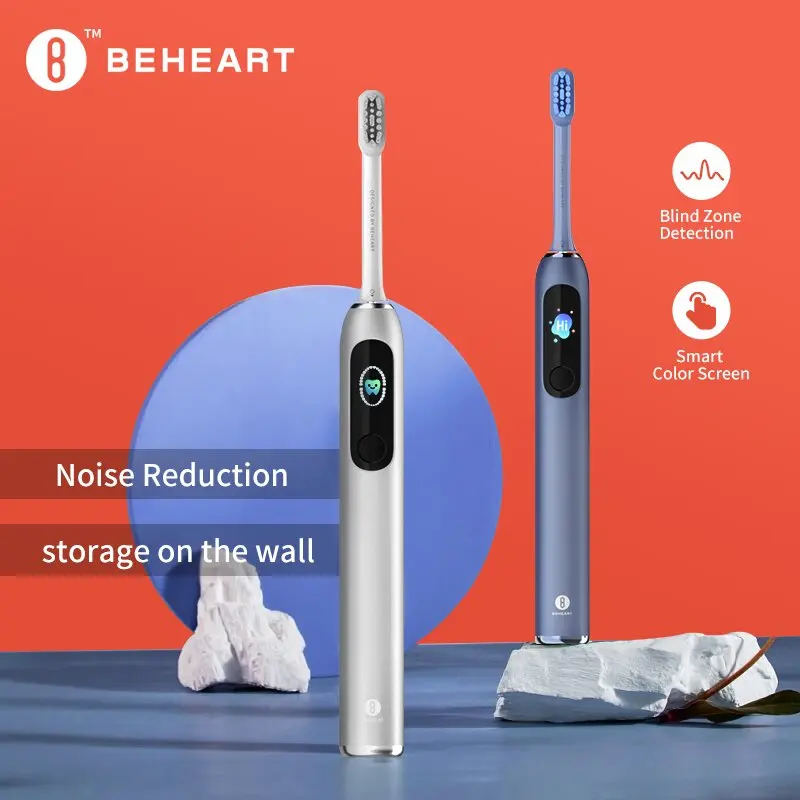

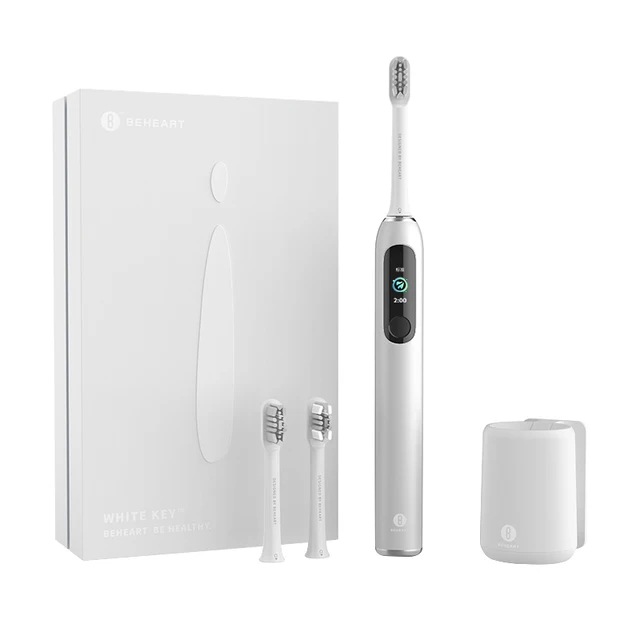

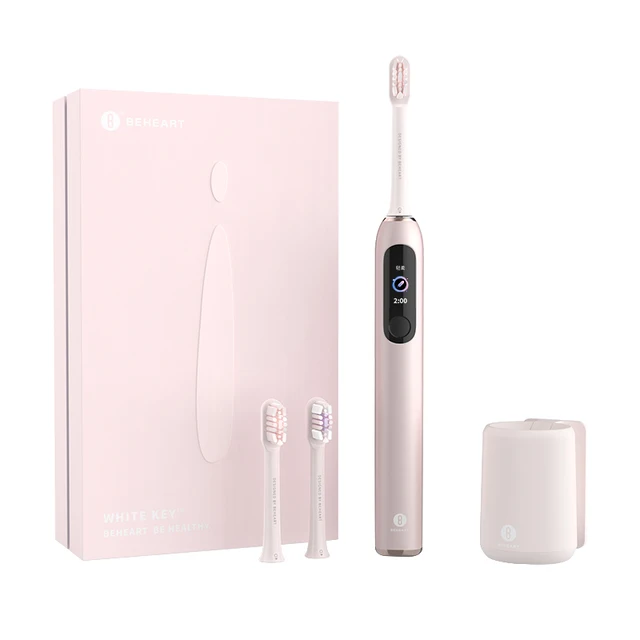

BEHEART W1 Sonic Electric Toothbrushes Touchscreen Whiten Intelligent Toothbrush for Adult Original Brush Tips Replacement Heads

>>>

Brand Name BEHEART

Origin CN(Origin)

Commodity Quality Certification ce

Certification CE

Age Group Adults

Size 251.7x24.5x25.2mm

Item Type Electric Toothbrush

Model Number Sonic W1 Electric Toothbrush

Quantity 1

Type Acoustic Wave

Material Plastic

Feature 1 Sonic W1 Electric Toothbrush

Feature 2 IPX7 Waterproof

Feature 3 USB Fast Rechargeable

Feature 4 Smart Tooth Brush

Feature 5 High Cleaning Frequency

Feature 6 Quick Charging

Feature 7 Intelligent Color Screen

Feature 8 5 cleaning modes

Color

Main Features● High cleaning frequency: max 44000 times/min● Built-in 6 gyroscopes, collect brushing data in real time, track brushes tooth path, accurately detect the blind spot of oral cleaning. Remind to re-brush in time, without leaving dead ends,Comprehensive cleaning for healthier gums● Round brushing head + arc brushing surface: avoid hurt, deep cleaning includes dead corner● IPX7 full body waterproof level for direct washing● About 60 days duration ( More than 90% of electric toothbrushes on the market )● 5 cleaning modes: Clean,Massage,White,Soft, Deep● Battery Information: 1200mAh● Charging Time: about 2 hour● Net weight:117g● Package Include:Toothbrush host * 1, brush head * 2, toothbrush holder * 1Manual * 1. USB charging cable * 1

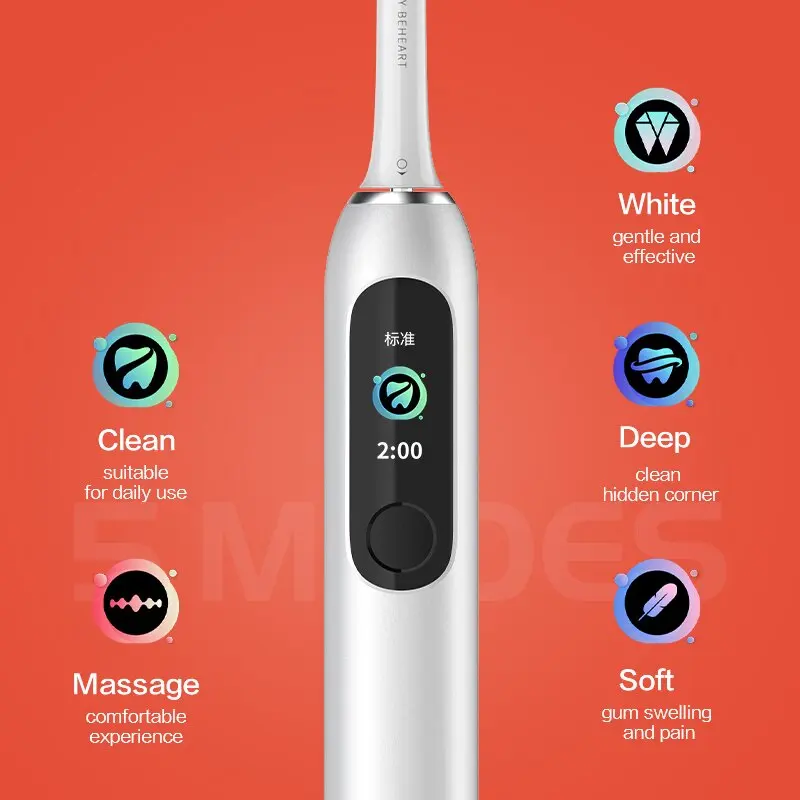

Smart Color Screen

Large-sized color touchscreen5 cleaning modes: Clean,Massage,White,Soft, DeepMode setting:long press the button for 1s and the second second to directly switch to the next mode screen at the same timeSwitch the corresponding gear icon and restart the 2min countdown. The product continues to work.

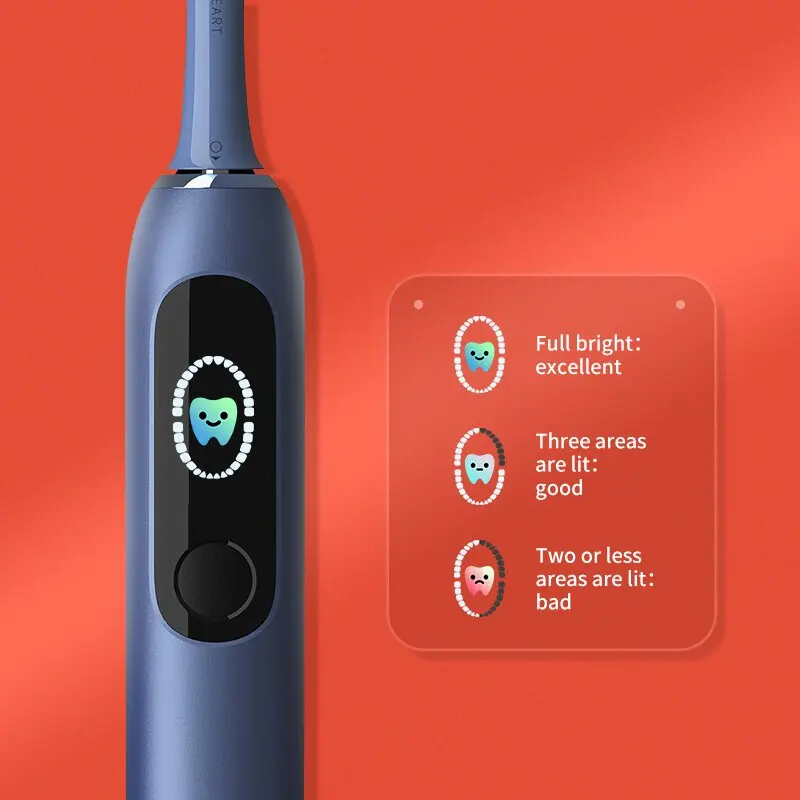

Blind Zone Detection
