Brand Name STONE
Origin CN(Origin)
Display Mode 500:1

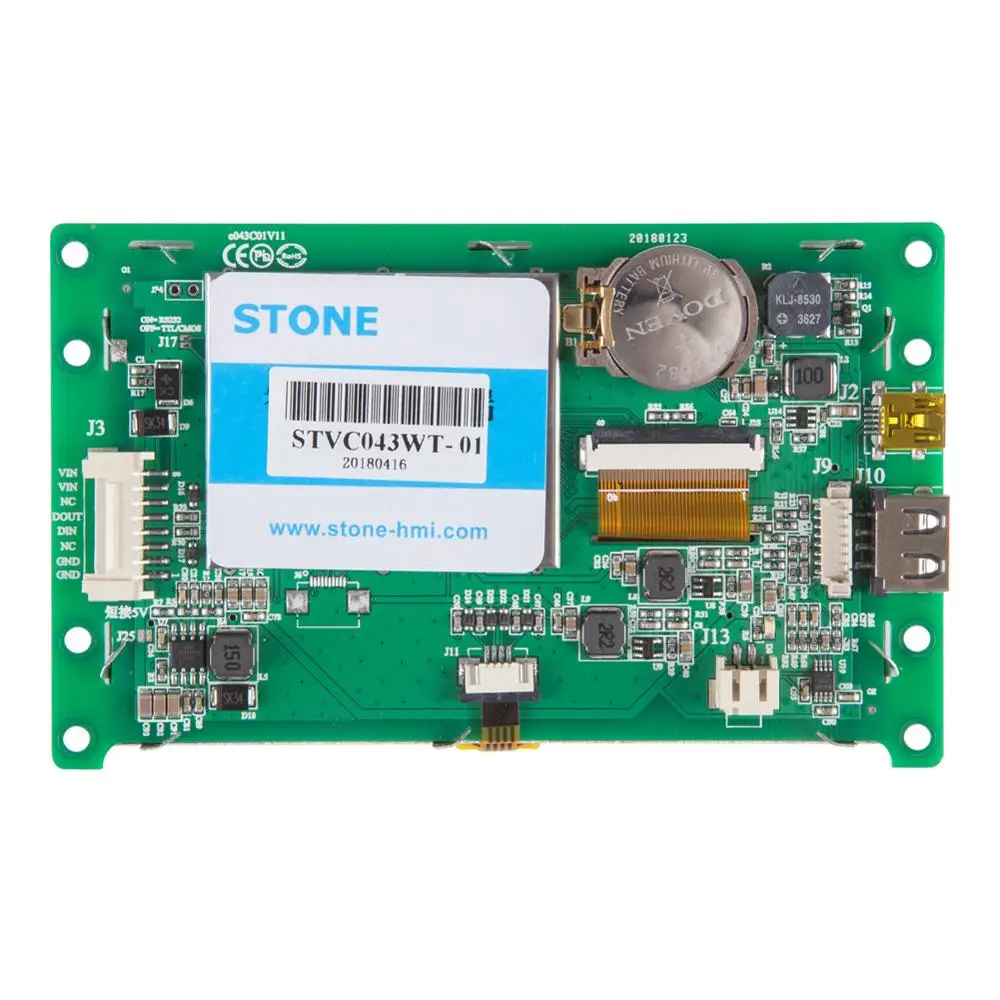

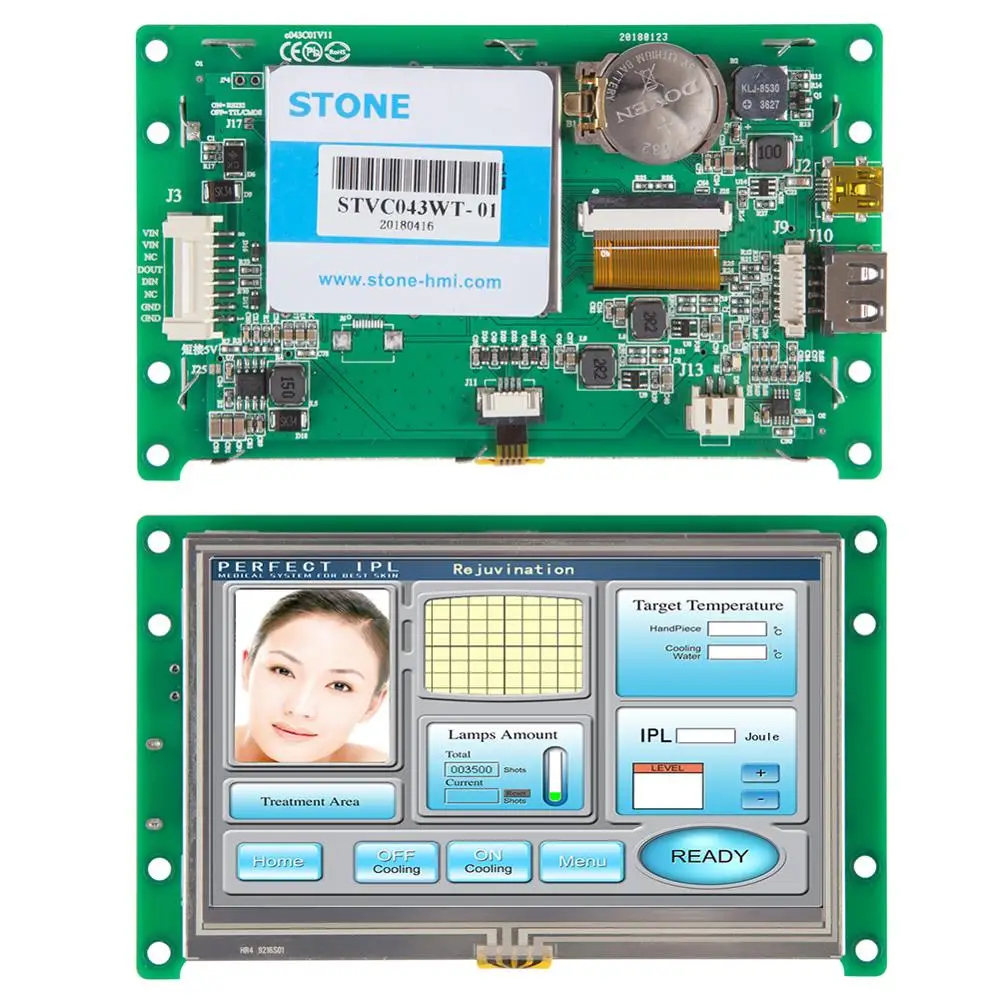

Model Number STVC043WT-01
is_customized Yes
Type TFT

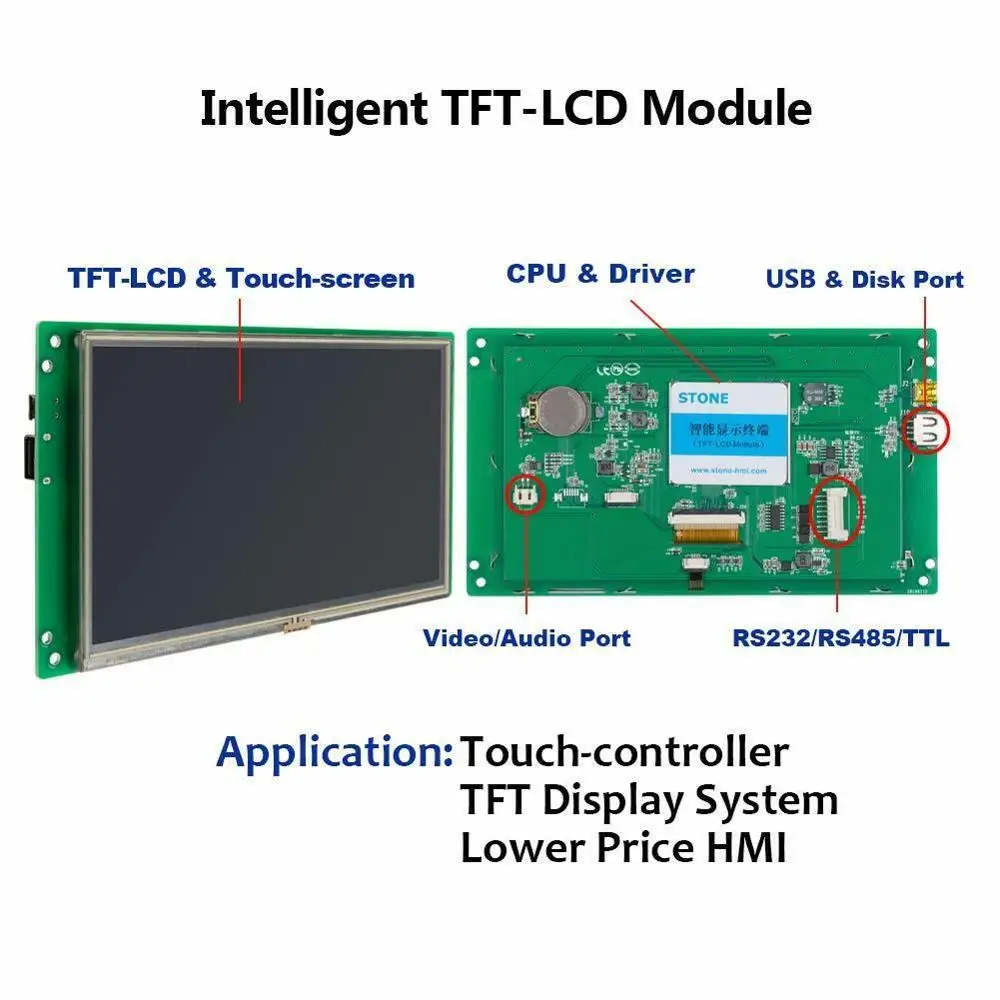

4.3" Touch LCD Display Module with CPU & Serial Interface for Industiral Automation
Product Parameters
Physical Parameter
Model
STVC043WT-01
Size (Inch)
4.3"
Resolution
480×RGB×272
Color
65536 colors (16 bit)
Viewing Area
95 mm × 53.9 mm
Pixel Spacing
0.1905 mm × 0.0635 mm(H×V)
Overall Dimension
121.9mm×74.7mm×13.8mm(N)/15.4mm(T)
Net Weight
115 g(N)/ 155 g(T)
TFT Panel
A+ Class Industry Panel
Touch Screen
Industry Level 4 wire resistance Or without touch screen is optional.
Backlight Parameter
Backlight Type
LED
Brightness
350 cd/m2(Brightness can be adjustable in 100 levels.)
Contrast
500:1
Backlight life
50,000 hours
Viewing Angle
70°/ 70°/ 50°/ 70° (L/R/U/D)
Working Temperature
-20°C ~ +70°C
Working Humidity
55°C, 85%
Storage Temperature
-30°C ~ +85°C
Screen Mode
Digital
Performance Parameter
CPU
CortexM4
LCD Controller
CPLD EPM240
Refresh Rate
200MHz
Picture Switching Speed
19 ms/picture (53 pictures/s)
Flash Memory
Standard 128m, Extension 1GB
Memory Amount for picture
According to the capability of the image, Suggest "JPG" format

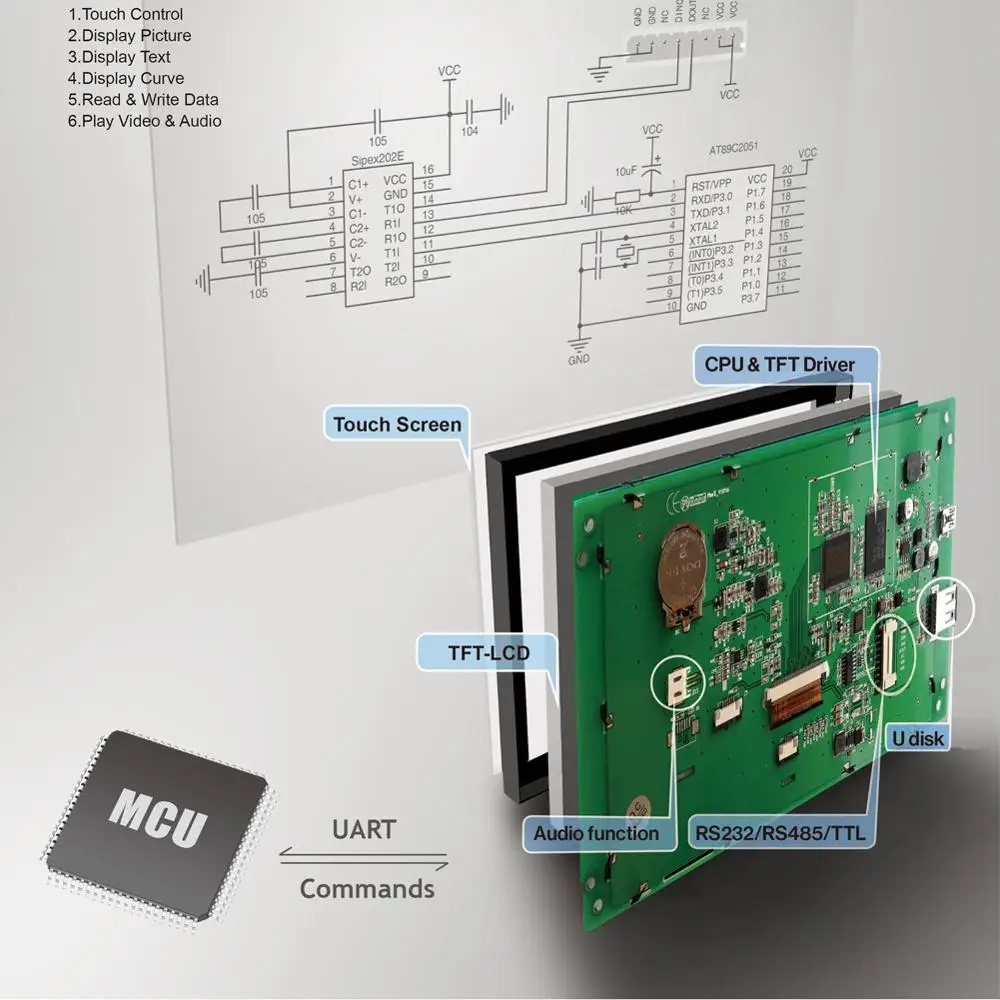

Interface
RS232/ RS485/TTL/USB Interface
Pictures downloading
USB2.0 (12Mbps) & U storage Disk downloading
Voltage Range
DC6.0V ~ 35V (typical value: 12V)
Power
1.0W
Test Report
MTBF
4,250,000H
Working Temperature
-20°C ~ +70°C
Air Humidity
60°C, 90%
Continuous Vibration Testing
10-55Hz, 1.5mm, 10G
Impact Acceleration Testing
6ms, 100G
ESD Testing
10KV
Radiation Reliability Testing
44W
Main Size of TFT LCD Module
Size
Resolution
3.5''
320*240; 320*480
4.3''
480*272
5''
480*272; 640*480; 800*480
5.6''
640*480
5.7''
640*480
7''
800*480; 800*600; 1024*600
8''
800*600; 1024*768
9.7''
1024*768
10.1''
1024*600
10.4''
800*600
12.1''
1024*768
15.1''
1024*768
