Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

TV Receivers>>>Consumer Electronics

Brand Name ONLENY

Origin CN(Origin)

Certification None

Package No

High Definition Yes

FTA(Free To Air) No

With USB Wifi no

Type DIGITAL

Model Number HD Satellite Receiver

Input :10.7-12.75GHZ

L.O. :9.75/10.6GHZ

Noise :0.3dB

Gain :60dB

Ships From

China

Poland

United States

Australia

Color



Universal Ku-Band Single LNBF 9.75/10.6KU Dual Output Full HD Digital KU LNB

Satellite Receiver High Band Low Band



Features:

Mininum output power 0dBm (at 1dB gain compression)

Mininum Image Rejection 40dB

Input: 10.7-12.75GHZ

L.O.: 9.75/10.6GHZ

Noise: 0.3dB

Gain: 60dB







Descriptions:

Support Low/High band switching

Satellite universal single LNBF

Single Ku Band

Full HD Digital KU-BAND

9.75/10.6 Dual output



Specifications:

Input Frequency Range: Low Band:10.70~11.70GHz / High Band:11.70~12.75GHz

Output Frequency Range: Low Band:950~1950MHz / High Band:1100~2150MHz

Noise Figure: Low Band: 0.6dB(Typ.) / High Band:0.6dB(Typ.)

Conversion Gain: 60dB(Typ.)

Gain Flatness: ±0.5dB/26MHz

Cross POL. Isolation: 25dB(Typ.)

L.O. Frequency: Low Band: 9.75GHz / High Band: 10.60GHz

L.O. Frequency Stability: ±1.0MHz (Max.)@+25° / ±2.0 MHz (Max.)@-30°~+70°

L.O. Phase Noise: -50dBc/Hz@1KHz & -75dBc/Hz@10KHz & -95dBc/Hz@100KHz

Image Rejection: 40dB(Min.)

Output VSWR: 2.0:1(Max.)



Output Power: 0dBm (Min.)(at 1dB gain compression)

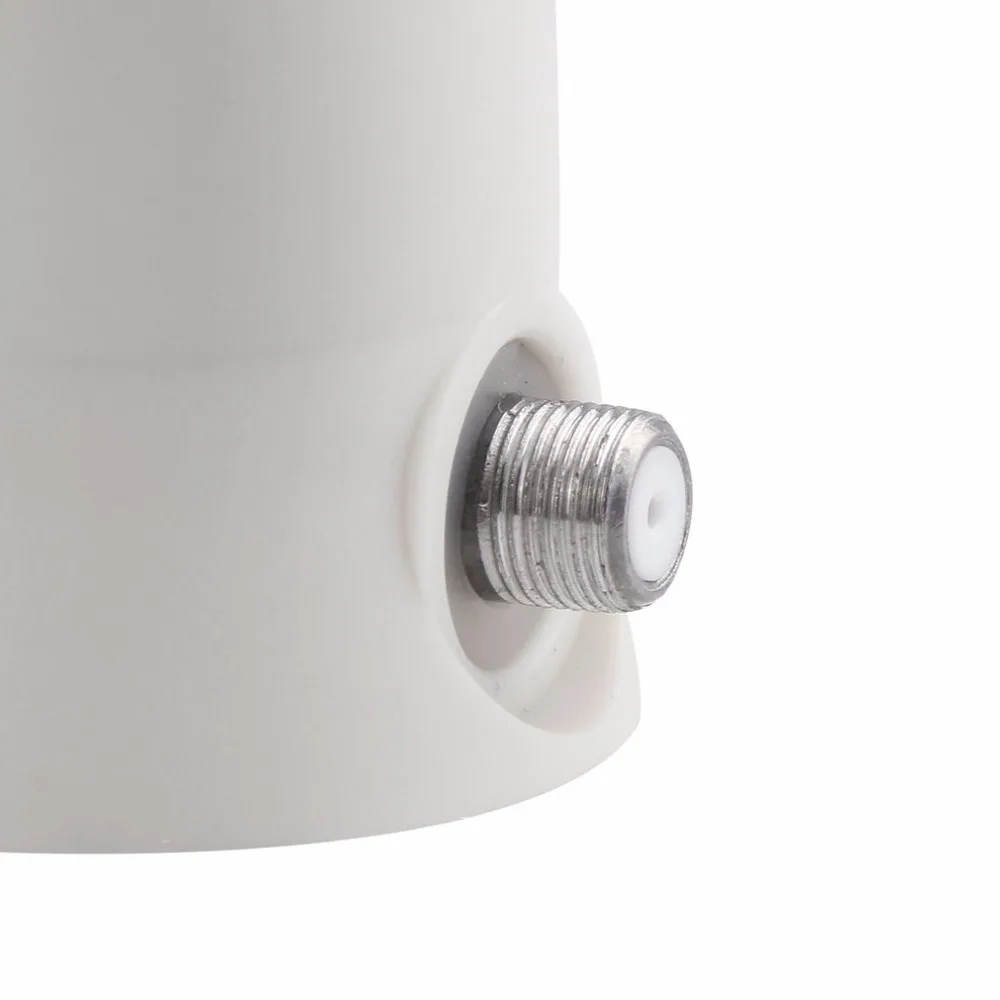

Connector Type: 75Ω Female Connector

DC Current Consumption: 80mA(Typ.)

Low/High Band Switching: Low Band:0Hz / High Band:22KHz±4KHz

POL. Switching Voltage: 10.5~14.0V @VP / 16.0~20.0V @HP





Package included:

1 x Satellite Receiver

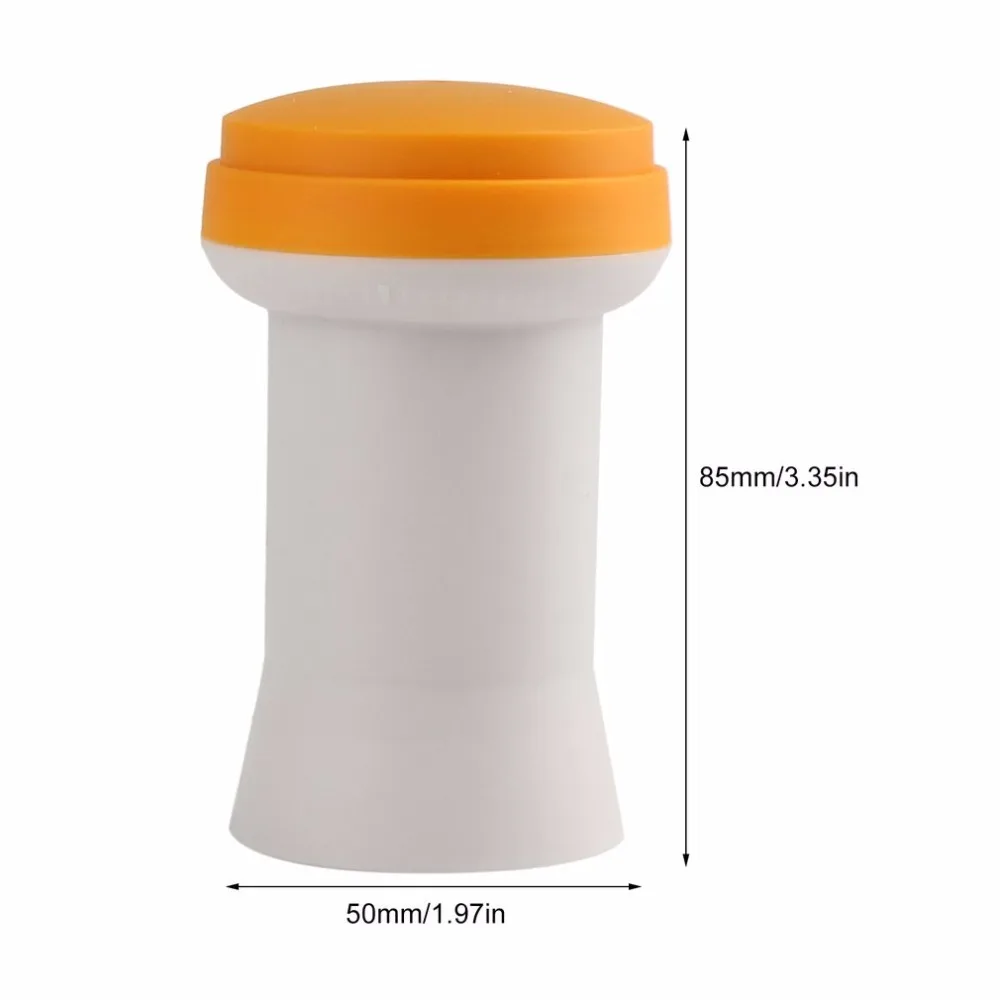

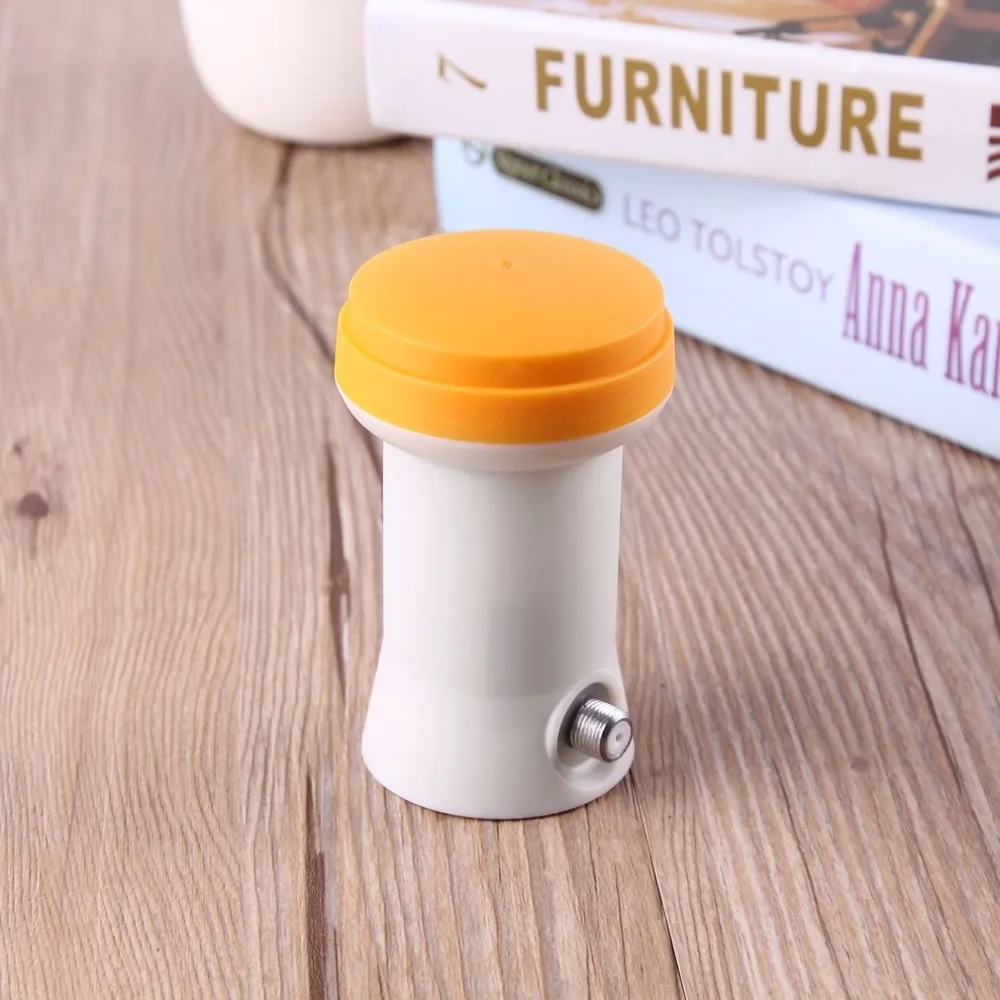

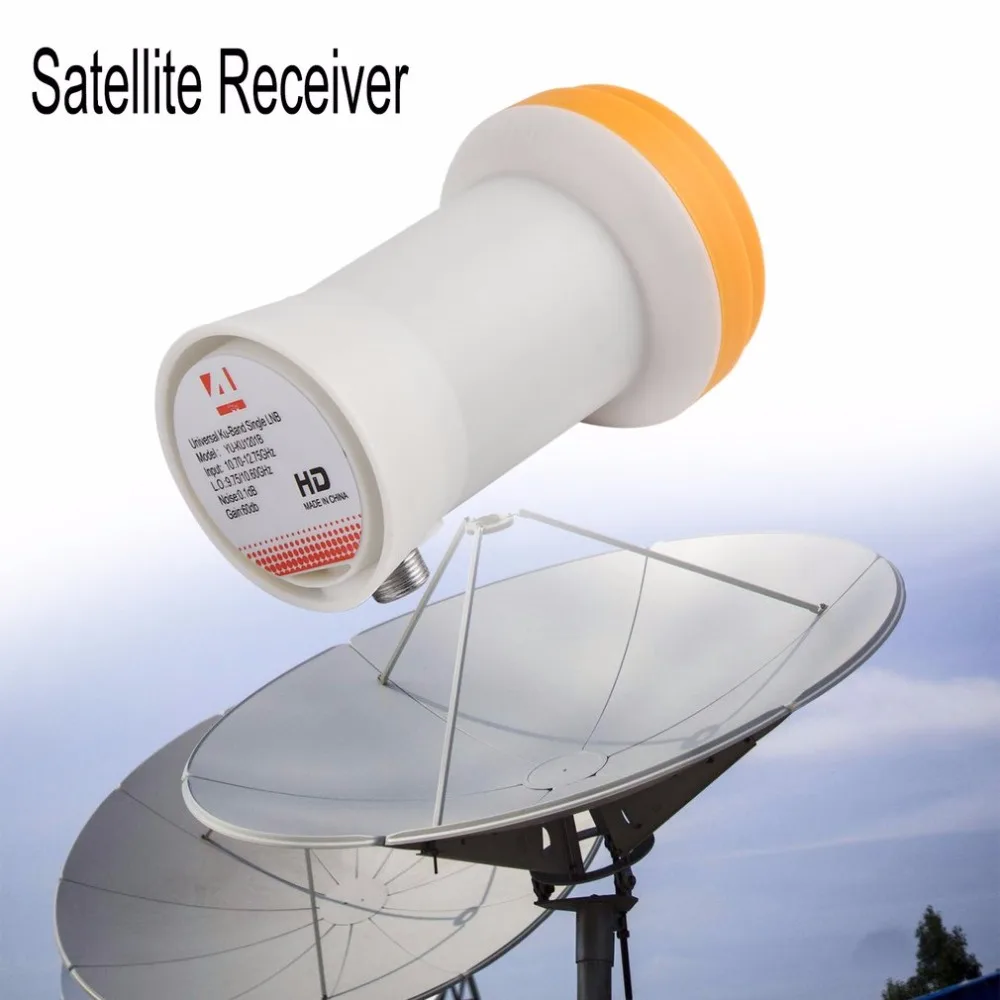

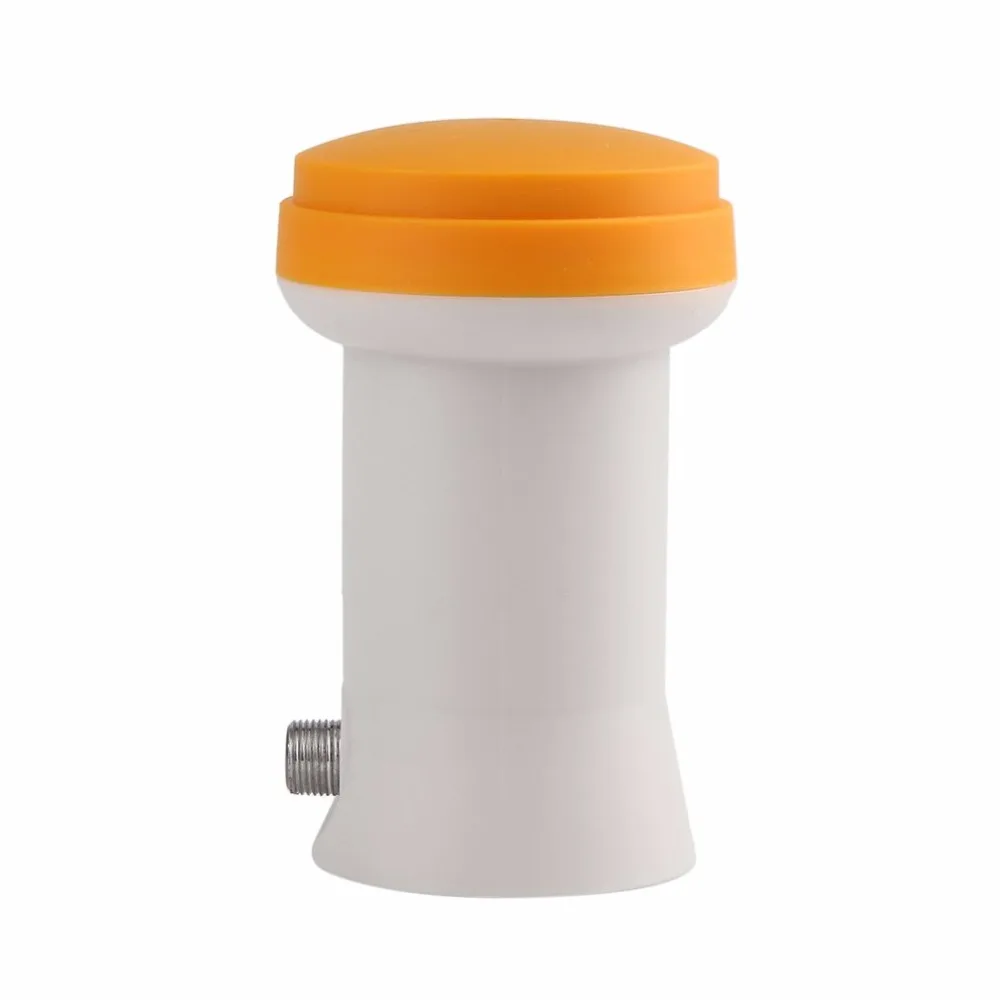

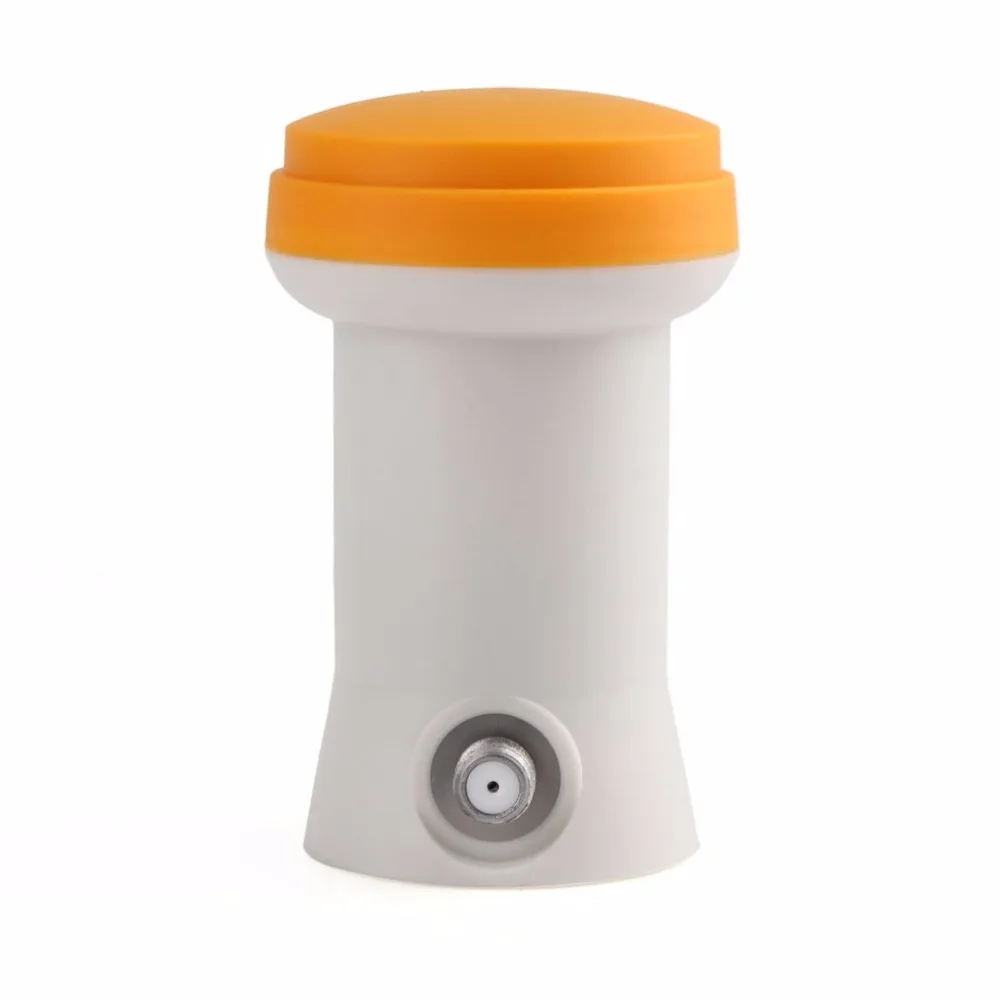

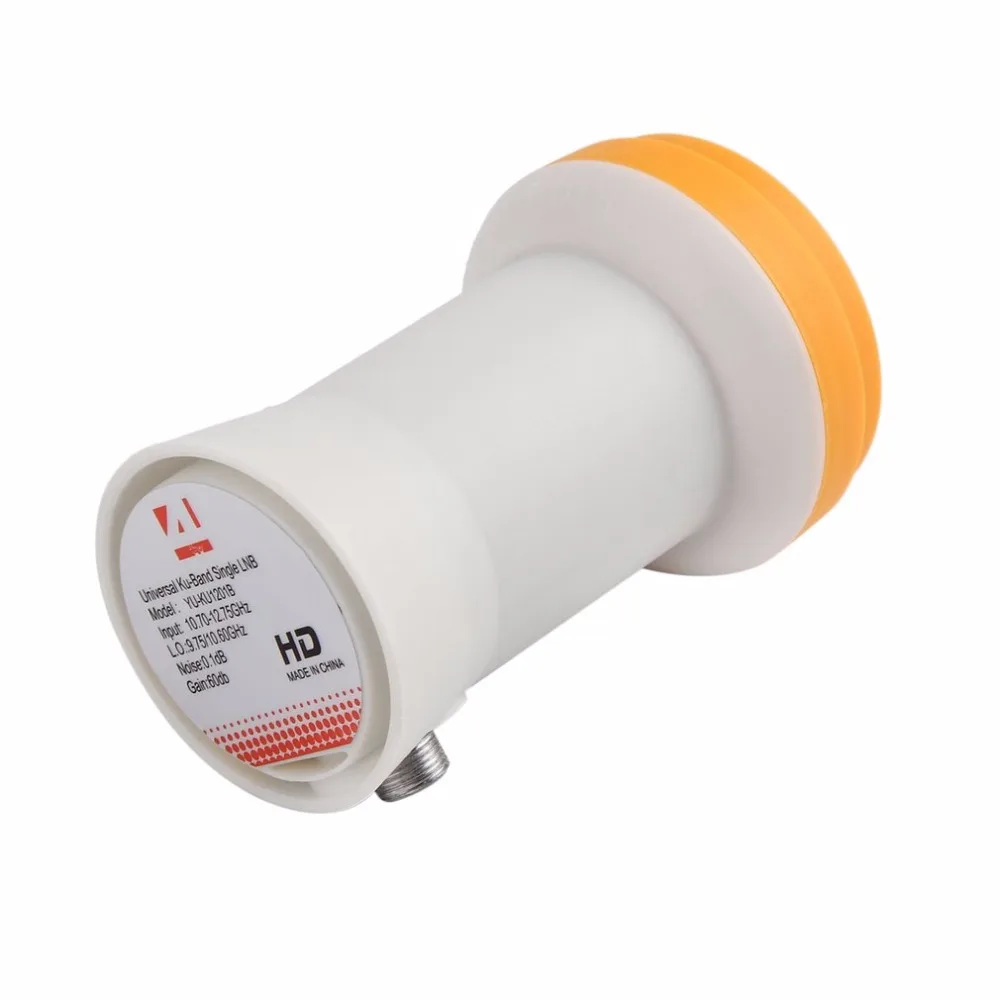

Product  Pictures:
