2pcs Point to point 1KM long range stable transmission outdoor CPE 300Mbps wireless bridge AP wifi repeater antenna Nanostation

Wireless Routers>>>Computer & Office

Brand Name comfast

Origin CN(Origin)

With Modem Function No

Type wireless

Certification CE

Certification FCC

Wired Transfer Rate 150 Mbps

WAN Ports 1 x10/100Mbps

Number of USB Interfaces eSATA

Wi-Fi Supported Frequency 2.4G

5G Wi-Fi Transmission Rate None

Package Yes

Supports WDS Yes

Max. LAN Data Rate 300Mbps

Model Number CF-E130N V2

Standards And Protocols Wi-Fi 802.11b

Standards And Protocols Wi-Fi 802.11n

Standards And Protocols Wi-Fi 802.11g

Wi-Fi Transmission Standard 802.11n

2.4G Wi-Fi Transmission Rate 300 Mbps

LAN Ports 1

Supports WPS Yes

Function Firewall

Application Multi-service

color white

is_customized Yes

Max. LAN Data Rate 300Mbs

Wifi extender long range Power 19dBm

outdoor wifi antenna Poe 9~24V 0.5A POE power supply

CPE bridge chipset Qualcomm QCA9531 650Mhz CPU

Point to point Transmit Reach 1KM stable Transmission

Feature 1 300Mbps outdoor Mini CPE briage

Feature 2 Application for Elevator / warehouse

Feature 3 Application for Community / Driving school

Feature 4 Application for Parking / School

Feature 5 Repeater mode / Client Mode / Bridge mode

Ships From

China

Russian Federation

Bundle

EU Plug Version

US Plug Version

UK Plug Adapter

AU Plug Adapter

2pcs Point to point 1KM long range stable transmission outdoor CPE 300Mbps wireless bridge AP wifi repeater antenna Nanostation



Specification:Brand: COMFASTModel: CF-E130N V2Colour: White

Operating mode ：AP / Client

Chipset:Qualcomm QCA9533 CPU ,RAM : 64MB Flash : 8MB ;Wireless Standard：EEE802.11b/g/n standard

Antenna : 5dBi Directional antenna ；RF Parameters:Transmit Power: 80mW(19dBm)Acceptance Sensitivity: -96dBmWorking Frequency: 802. 11b/g/n: 2.3GHz-2.7GHzTransmission Rate:2.4GHz: 300Mbps

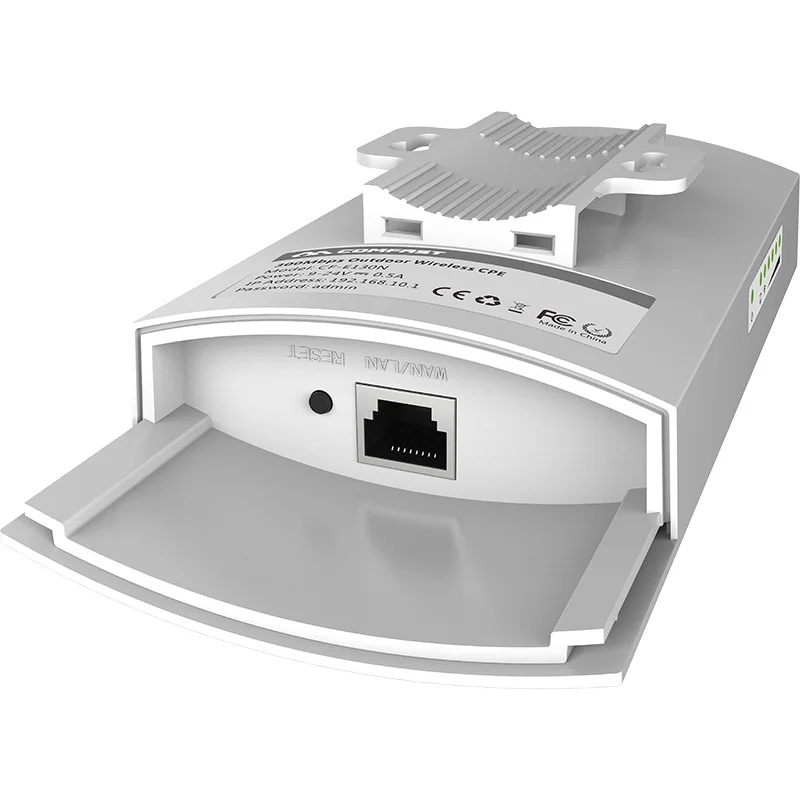

Physical interface : 1*10/100Mbps LAN RJ45 Ethernet port ,1*10/100Mbps WAN RJ45 Ethernet port , 1*RESET Button ,1*POE Toggle Switches ；Modulation Technology:DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5 .5/1 1MbpsOFDM: BPSK@6/9Mbps, QPSK@ 12/18Mbps, 16-QAM@24Mbps,64-QAM@48/54MbpsMIMO-OFDM: MCS 0-15POE Power Adapter:15V

Power supply ：Support 15V POE power supply ；Power Consumption:<=8WIP Index:2KV Lightning protection; IP65 LevelMTBF:>250000HPole installation, wall installation, bracket installationProduct Size: 165*85*43.5mmCase:ABS engineering plastic + aluminum antennaWorking Environment:Working Temperature: -40'C~65"CStorage Temperature: -50"C~75'CWorking Humidity: 10%~90%RH No-condensing

Storage Humidity: 5%~90%RH No-condensing

Suggestion:

The distance "1KM" mean 2pcs CPE based on point to point bridge mode.

There are many factors that affect distance, such as obstacles(trees, walls, buildings, trucks, etc.), raw network signals, etc

If you want the good signal, we suggest you buy 2pcs!

Feature:

New generation monitoring CPE Stay away from engineering problems Harsh environment available Engineering installation convenient easy to install POE power supply Low-power & energy saving SSID hiding anti rubbing net provide against other people to get free wifi SSID Hiding, High Security Qualcomm chipset Excellent Performance Auto channel selection

Package included :

With Retail Box

1*CF-E130N CPE

1*Poe Adapter1*Quick install guide2*Stainless Steel Ring
