Network Cards>>>Computer & Office
Brand Name TEROW
Transmission Rate 300Mbps
Certification CE
Certification FCC
Origin CN(Origin)
Kind External
Type wireless
Lan Transmission Rate ETHERNET
Application Desktop
Wireless Protocol 802.11n
Adapter Socket USB
Interface Type USB2.0
Wi-Fi Supported Frequency 2.4G
Package No
Chip RTL8192EU
1.1 Product overview

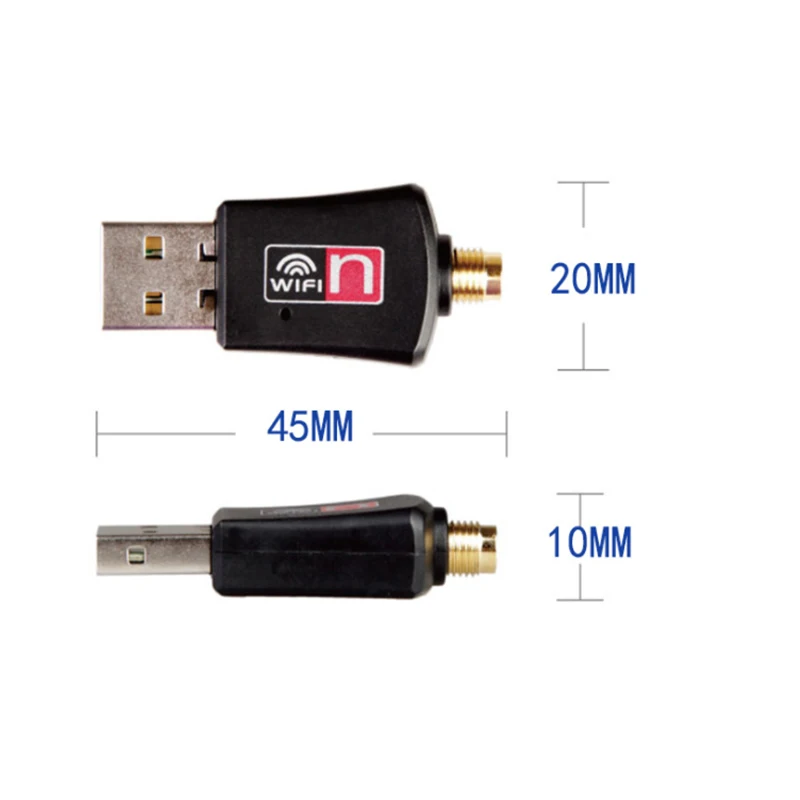

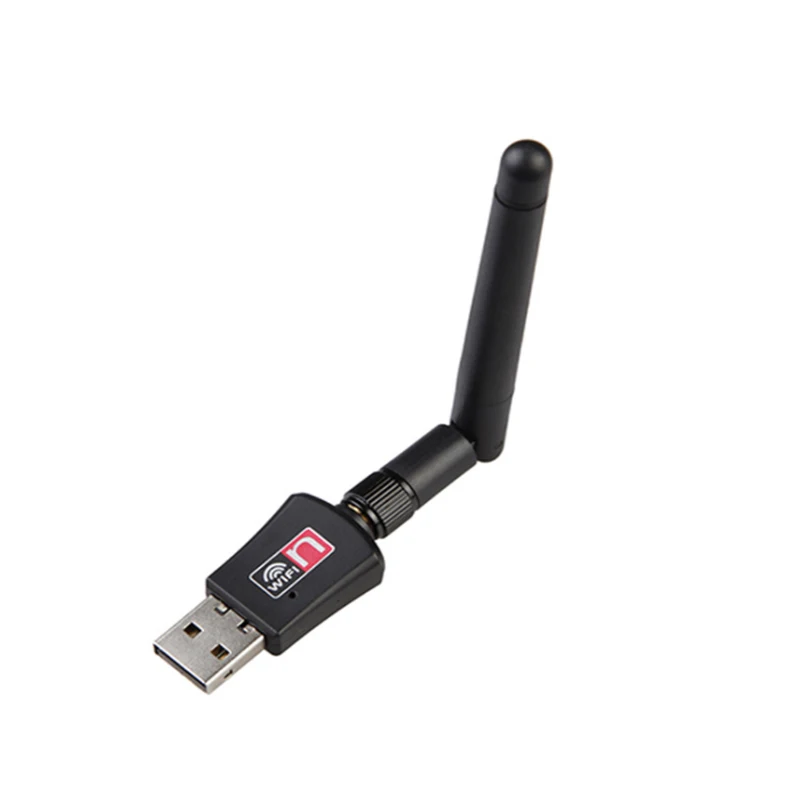

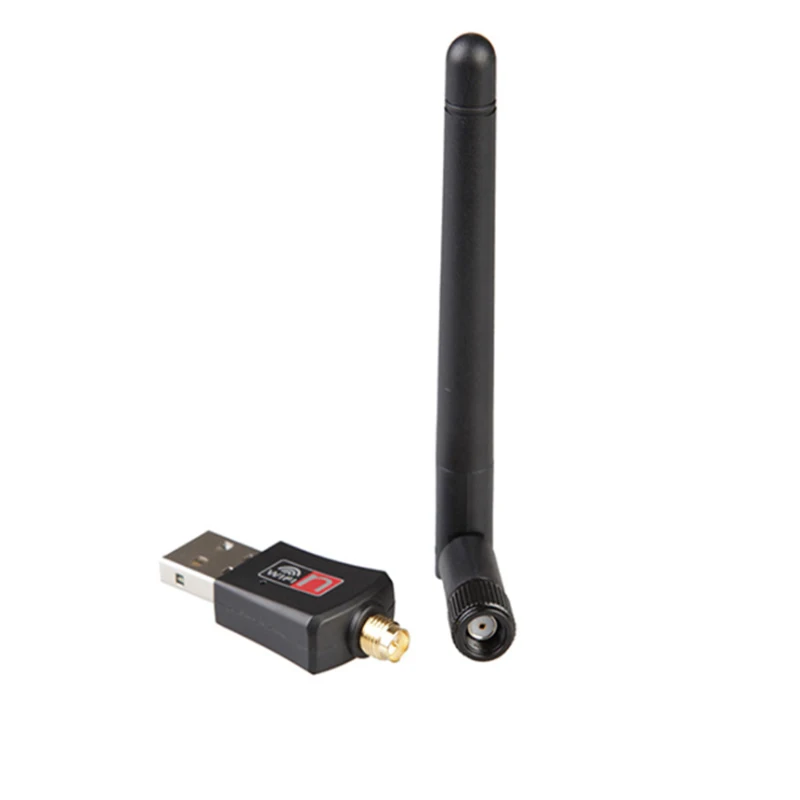

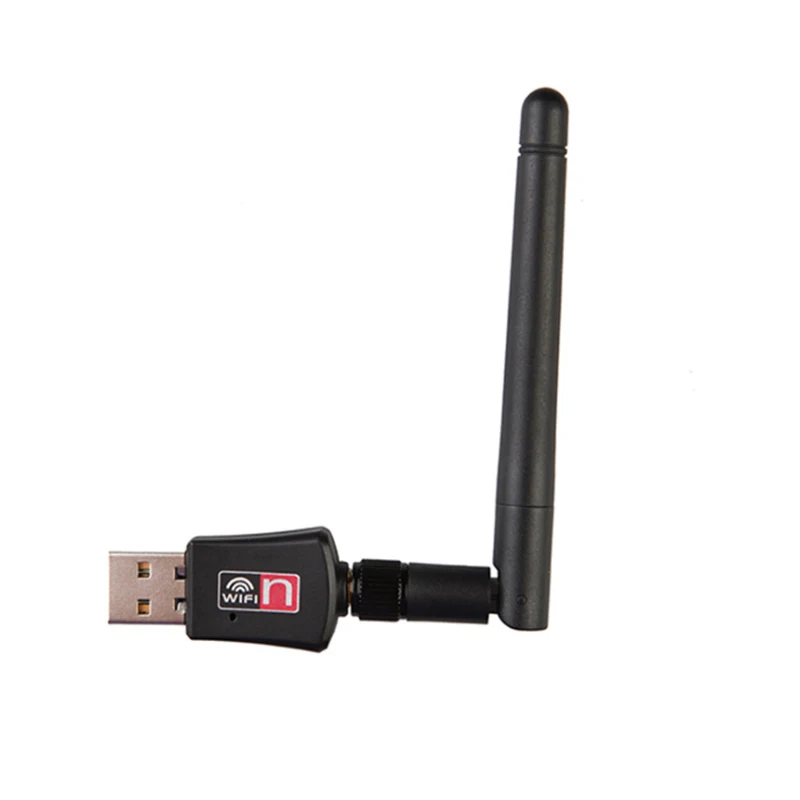

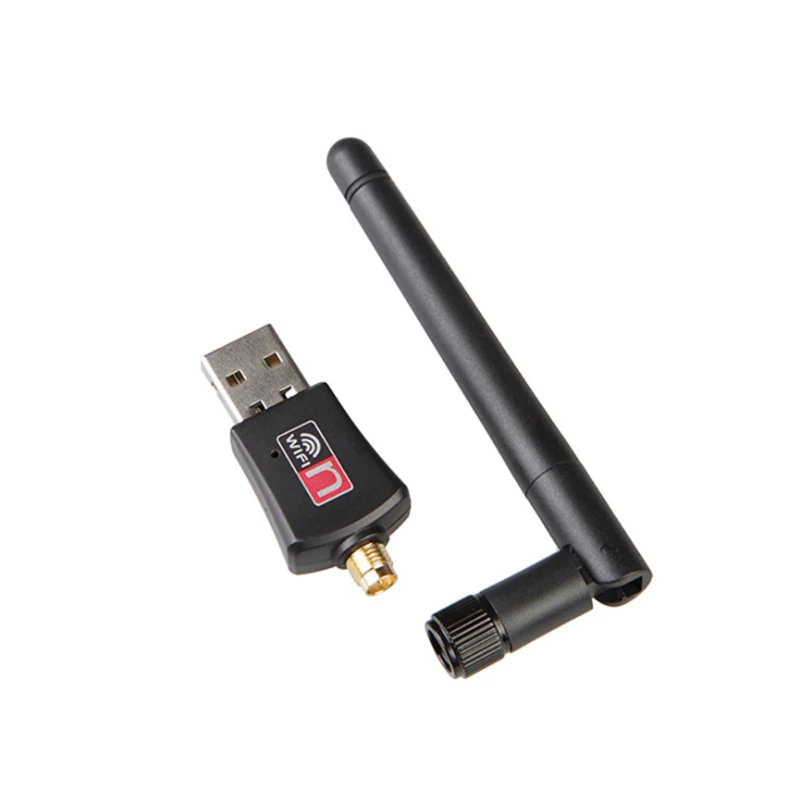

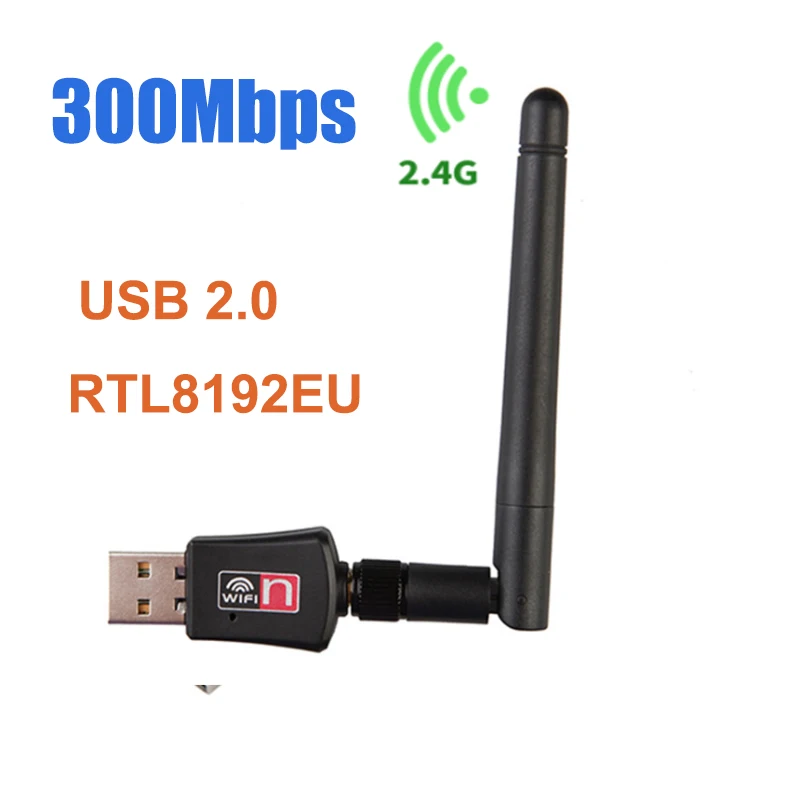

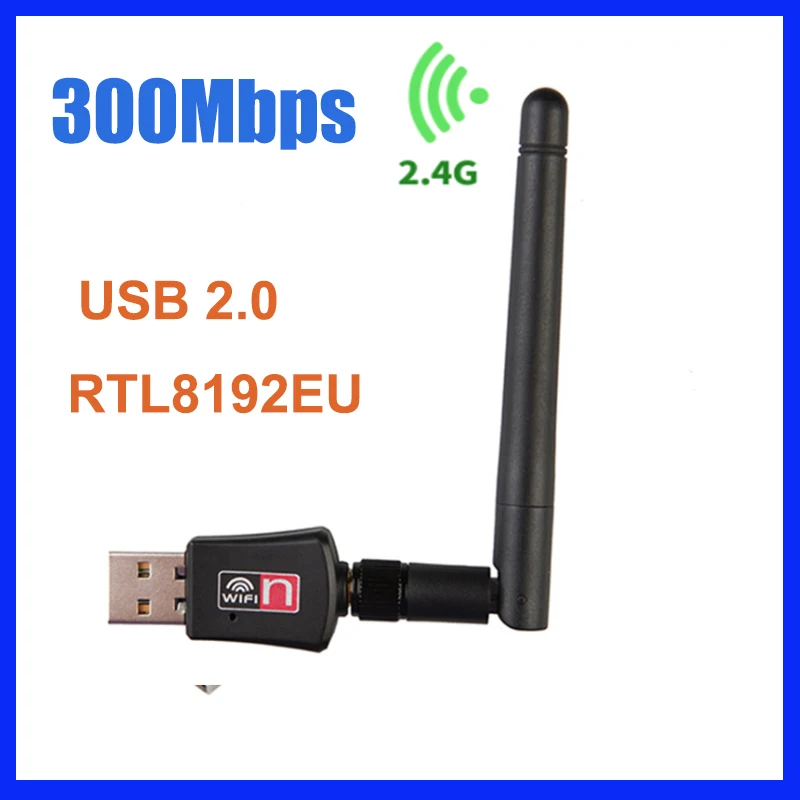

It is a 300M USB wireless network card, 11N wireless technology, 300M wireless rate. MIMO architecture has a built-in smart antenna and an external 2dBi omnidirectional antenna, which increases signal coverage, improves signal penetration, and eliminates blind spots
In terms of wireless security, it supports WPA/WPA2/WEP/802.1X/WMM encryption, allowing you to quickly implement wireless encryption to ensure wireless network security.
1.2 Main features of the product
l Support 802.11n standard Wi-Fi
l Backward compatible with 802.11b/g wireless devices
l High wireless transmission rate 300Mbps
l Two working modes: centralized control (Infrastructure) and peer-to-peer (Ad-Hoc)
l Support wireless roaming (Roaming) technology to ensure efficient wireless connection
l Support WPA/WPA2/WEP/802.1X/WMM data encryption
l Compatible with Windows XP/Vista/7/8/10, Linx2.6X; Mac OS X and other operating systems
l Has a strong anti-interference ability
l Provide simple configuration and monitoring program
1.3 Speicifications
Main chip: RTL8192EU
Wireless standard: IEEE802.11 n/g/b
Interface: USB 2.0
Transmission distance: Indoor MAX: 100 meters (depending on the environment)
Working frequency: 2.412~2484GHz (according to region)
Transceiving status: 220mA (max)
TX state only: 220mA (max)
RX state only: 180mA (max)
Operating system: Windows XP/Vista/7/8/10, Linx2.6X; Mac OS X
Wireless security support: WPA/WPA2/WEP/802.1X/WMM
