25meter/Roll 8mm 10mm 12mm 20mm Width Transfer Tape Double Side Thermal Conductive Adhesive Tape for Chip PCB LED Strip Heatsink

Adhesives & Sealers>>>Home Improvement

DIY Supplies ELECTRICAL

Origin CN(Origin)

Model Number AT007

Type Tape

is_customized Yes

Tape Type Electrical Tape

Certification CE

Certification RoHS

Length 5m/10m/25m

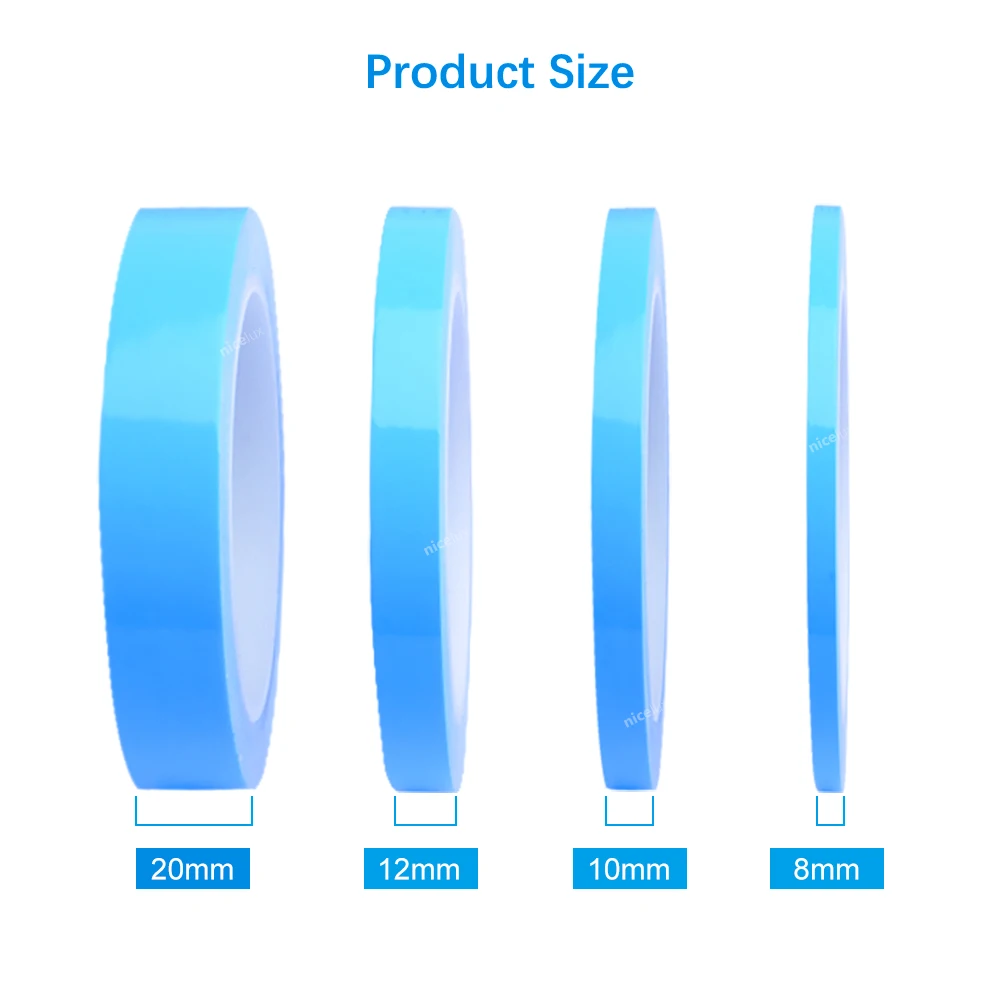

Width 8mm/10mm/12mm/20mm

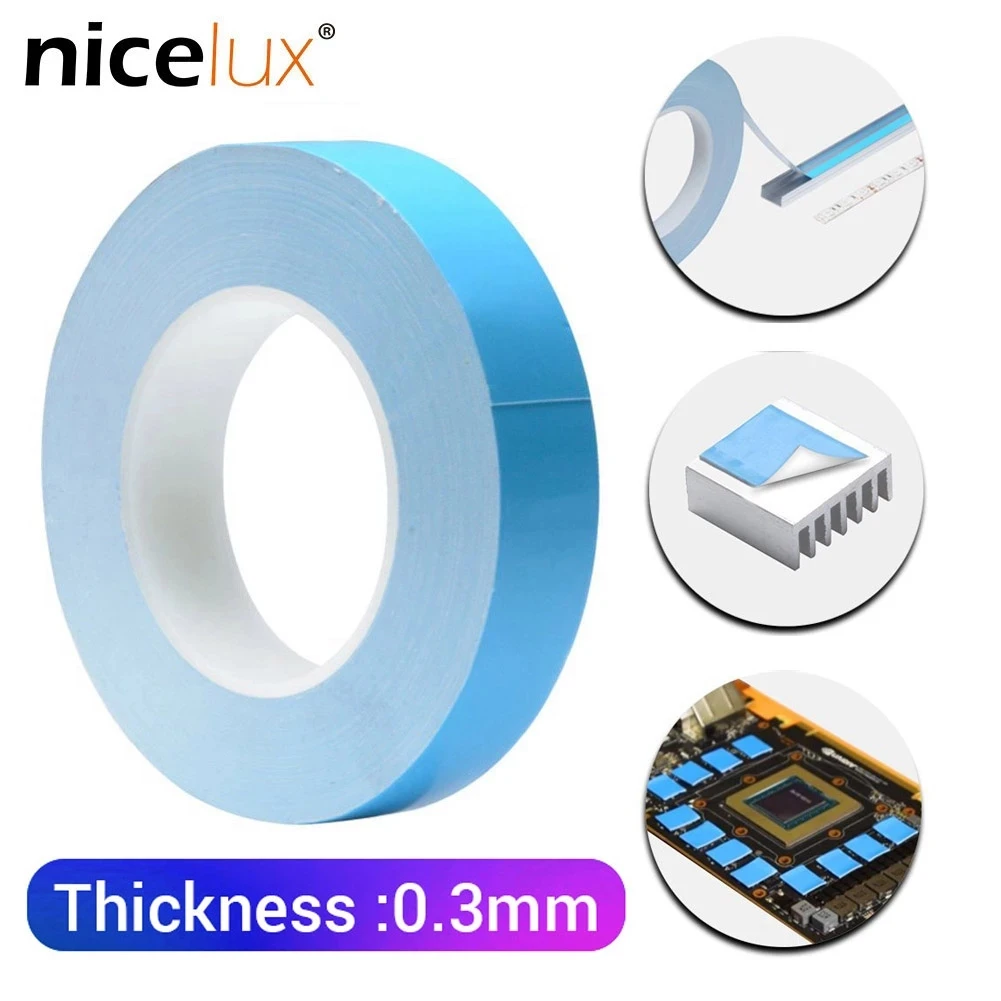

Thickness 0.3mm

Thermal Conductivity 1.2W/m-k

Adhesion 12~18N/25mm

Voltage Resistance 3.5~8.0KV/mm

Temperature Resistance(Short Term) 120°/248

Temperature Resistance(Long Term) 80°/176°

Width

8mm

10mm

12mm

20mm

Length

5M

10M

25M

5m 10m 25m/Roll 20mm Width Transfer Tape Double Side Thermal Conductive Adhesive Tape for Chip PCB LED Strip Light Heatsink

 Technial Data

Length:5m/10m/25mWidth:8mm/10mm/12mm/20mmThickness:0.3mmThermal Conductivity:1.2W/m-kAdhesion: 12~18N/25mmVoltage Resistance:3.5~8.0KV/mmTemperature Resistance(Short Term):120°/248°Temperature Resistance(Long Term):80°/176°

Application

LED Trip, Cooler, MotherBoard,Assembly of LED light bar module and metal frame bezel.Assembly of DDR-RAM module and heat sink.Electronic components: IC, COP, CPU, MOS, etc.M/B, PS, PCB, LCD, PDP , PC, etc.

\ Product Features

* High tacky thermal conductive PSA. Only pressure is needed to form an excellent bond and thermal interface.

* The performance of thermal conductivity, insulation, buffer and high tacky make it as the best choice for electronic application.

* Flexible and conformable. Ideal for uneven surfaces.

* Stable and economical with different thicknesses and constructions.

 Application Ideas

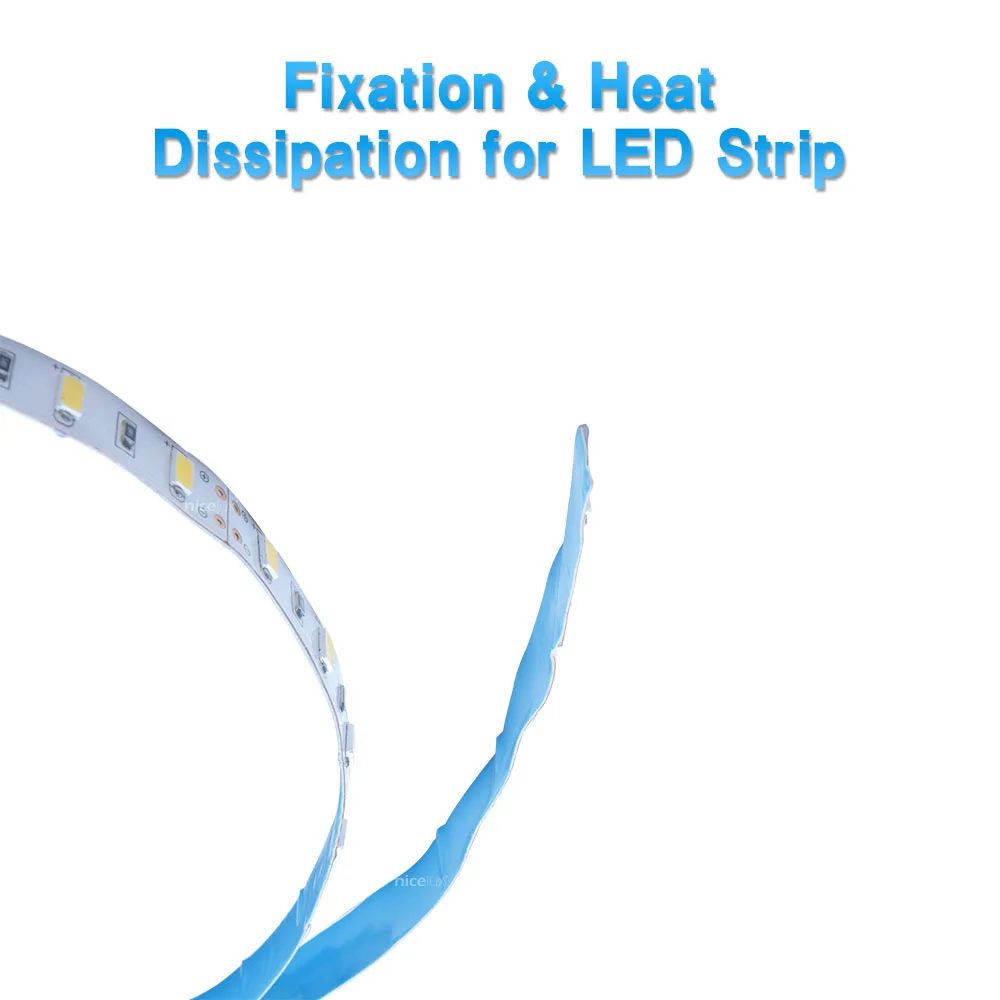

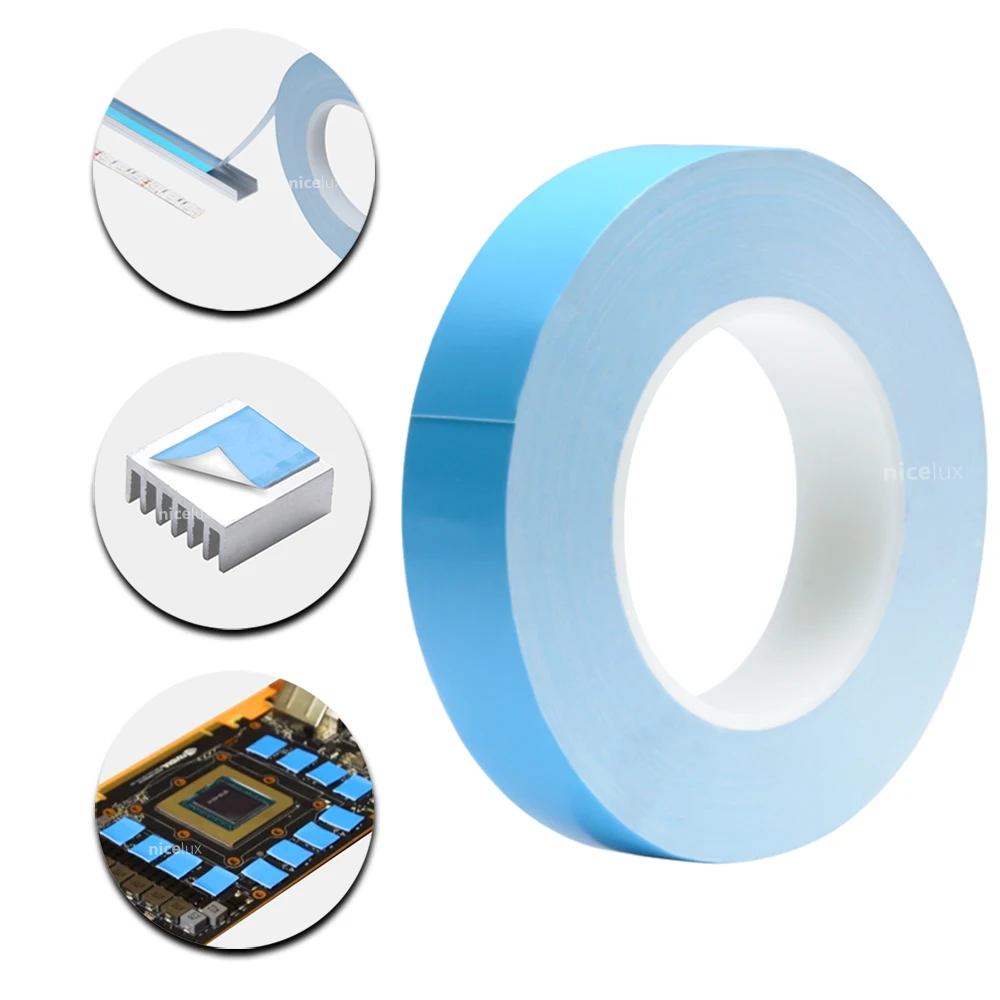

Assembly of LED light bar module and metal frame bezel.

Assembly of DDR-RAM module and heat sink.

Electronic components: IC, COP, CPU, MOS, etc.

M/B, PS, PCB, LCD, PDP , PC, etc.

 Product Construction  Package Include 1x Thermally Conductive Adhesive Tape Rleated Products >>>If you need 5meter / 10meter length Thermal Conductive Adhesive Tape, Please click here<<<

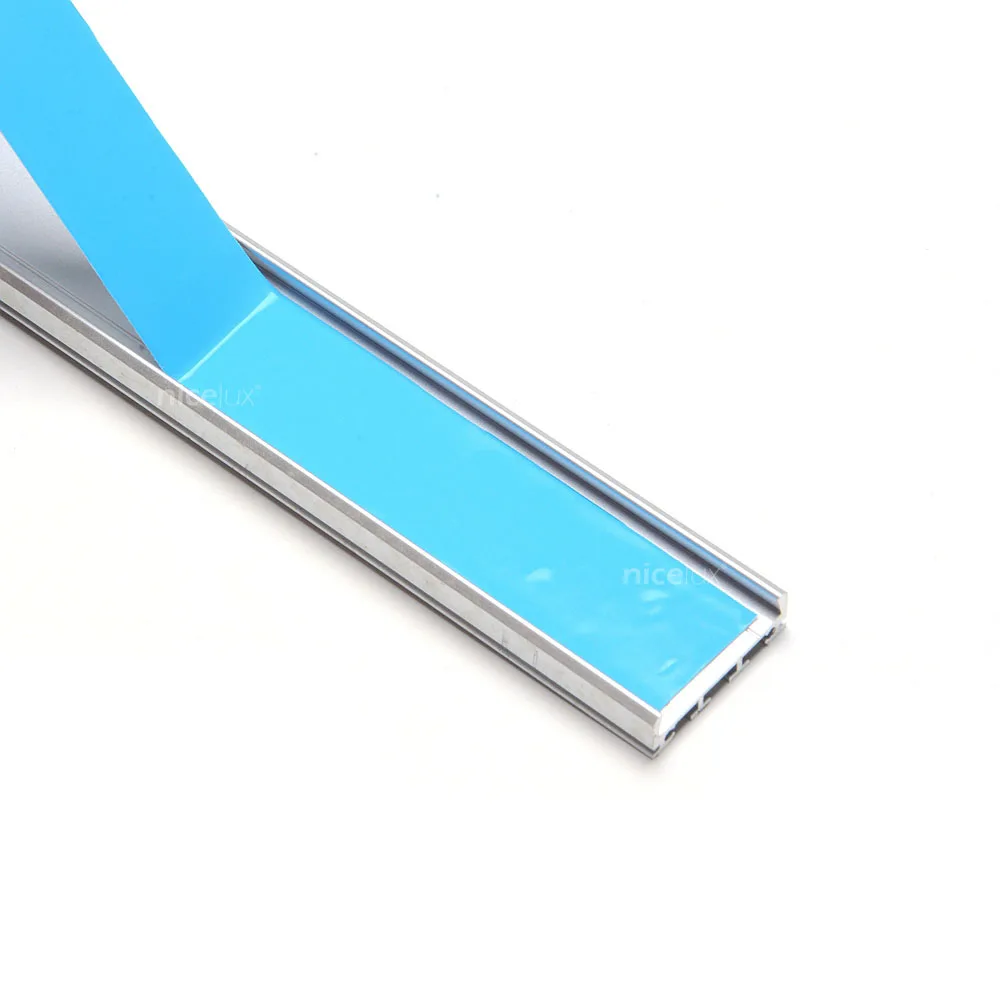

For LED Alu

Profile Use:
