STONE 4.3-10.1 Inch Graphic TFT LCD Module Intelligent Control Board HMI Smart Touch Screen Display with UART Port

LCD Modules>>>Electronic Components & Supplies

Brand Name STONE

Origin CN(Origin)

Model Number STWC

Type TFT

Display Mode 500:1

is_customized Yes

Color

4.3 inch

5 inch

10.1 inch

7 inch

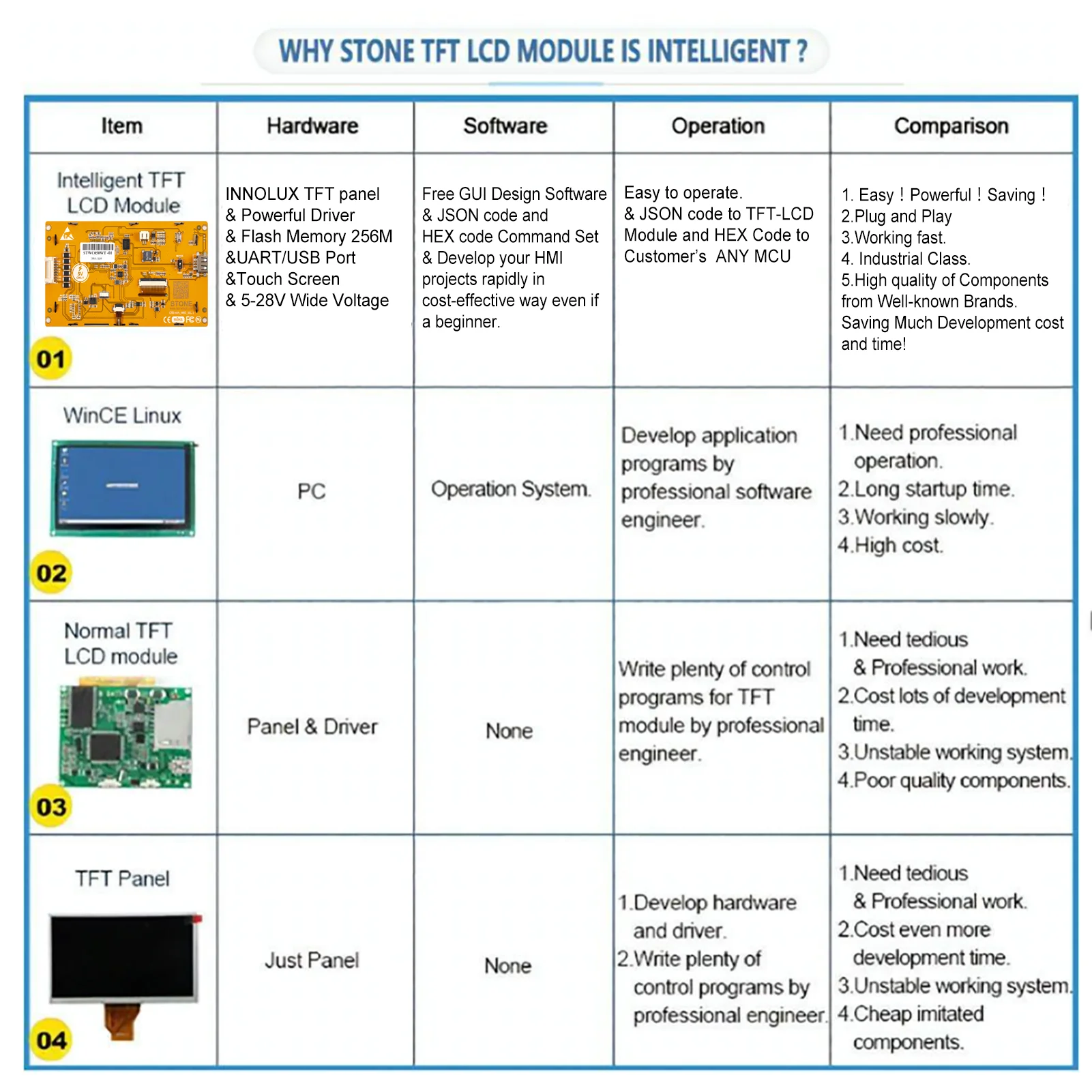

New Launch intelligent C-Series 3.5 inch-10.1 inch TFT LCD Display Module

SCBRHMI products has been conceived as TFT monitor & Touch controller. It includes processor, control program, driver, flash memory,RS232/ TTL /USB, touchscreen, power supply etc，so it is a whole display system based on the powerful & easy operating system, which can be controlled by Any MCU.(Very suitable for your Arduino and Raspberry Pi projects.)

They can be used to perform all basic functions, such as text display, image display,curve display as well as touch function, Video & Audio function etc. It hasfree GUI design softwareto offer an easy way to create an intuitive and superb touch user interface even for beginners, the User Interface can be more abundant and various. And the128M flash memory can store your data, configuration files, image file, font file, video file and audio file etc.

Ultra Compatible with Multiple Interfaces

-Fully compatible withRS232/TTL UART Interface & USB port.

-Medical grade electromagnetic interference

-You can also design your new project file for Intelligent tft lcd screen on Windows system PC or MacOS PC

Included GUI Design Software Makes Programming Fast & Easy

-Our HMI TFT LCD module is a whole display system that comes withno-cost GUI design software(STONE Designer).

-This offers an easy way to create an intuitive, superb touch user interface even for beginners.

-This willreduce 90% of your development time and cost. It makes designing a GUI a piece of cake.

Only 3 steps to use our TFT-LCD Module:

1. Build a GUI project by STONE designer GUI editor with png/jpg/bmp/svg/gif image files.

2. Connect with customer’s MCU through RS232,TTL directly.Plug and play.

3. Write a simple program for MCU to control the TFT-LCD Module via Command Set.

(JSON code to TFT-LCD Module and HEX Code to Customer’s MCU ).

That’s all.

CPU and Flash:

1GHz Cortex-A8 standard 256MB, expandable 1GB or 2GB

Audio interface:

External audio playback, support 720P 30Hz high frame rate video / WAV lossless audio playback

UART interface:

Serial communication, support RS232/RS485/RS422 interface

USB interface:

Plug and play, when the external device, plug the USB can be used

STONE Designer（Free GUI Designer Software）

» Drag-and-drop components with rich property

» PNG/BMP/JPG/GIF/SVG image format support

   (alpha channel, transparency support)

» Simulation and debugging of HMI projects

» Cloud support (remote updates, remote upgrades)

                  » Vector fonts and text styles

                  » Generic character encoding, command control

                      using JSON code and HEX code

                  » ASCII-based control logic and commands

                  » Media resource support

Simple and fast component functions

1. text  2. scrolling text  3. numbers  4. buttons 5. progress bar 6. images 7. cropping 8. meters 9. waveforms 10. image switching 11. keyboard 12. progress bar 13. slider 14. clock 15. USB download 16. video 17. audio, etc.

Component Property Settings

The component property settings provide you with a wealth of design options.

Example:Value property settings for the slider component slider1

Custom font styles

The font creation component can customize the value of any text property.

Example:Font color: #444444, type: framd, size: 18, position: centered on x-axis, centered on y-axis

Support for multimedia materials such as images, fonts, videos, and audio.

Easily add audio, video, and animation resources to your HMI projects. Edit the properties of these resources to achieve the HMI video presentation you want.

Simulation Debugging

Youcan debug your HMI project at any time, even without the STONE Display.The command input area allows you to send any STONE command to checkthe system feedback and HMI interaction.

ASCII-based control logicand instruction set

Simple ASCII text-based commands will greatly reduce your HMI project development effort.

Example:Set text:ST<{“cmd_code”: “set_text”, “type”: “label”, “widget”: “label1”, “text”: “Hello STONE”}>ETGet the text:ST<{“cmd_code”: “get_text”, “type”: “mledit”, “widget”: “mledit”}>ET“set_text”represents the command function code“type”: “label” means the type of the control is label“widget”:” label1″means the actual name of the control is label1“text”:” Hello STONE”means that the text is Hello STONE

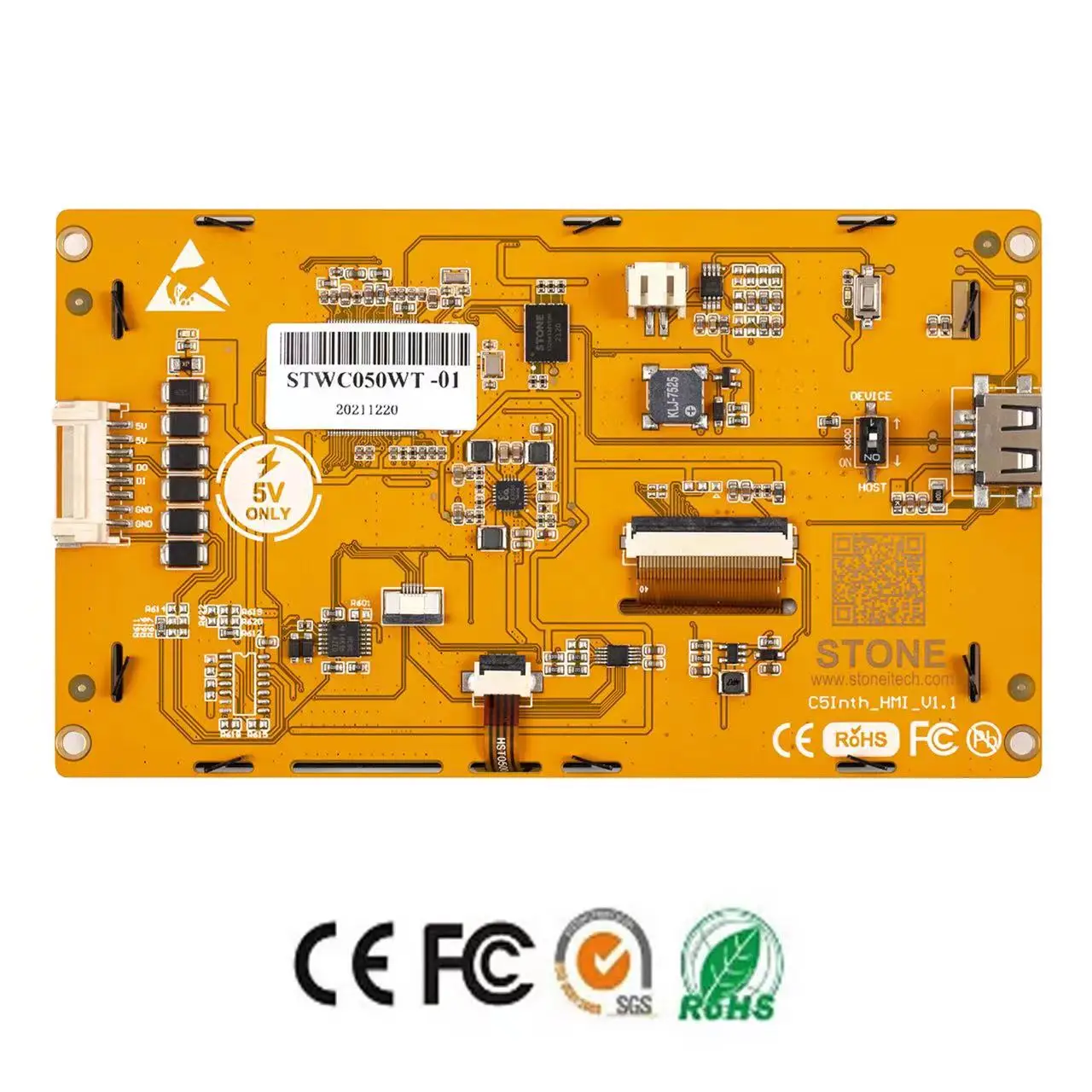

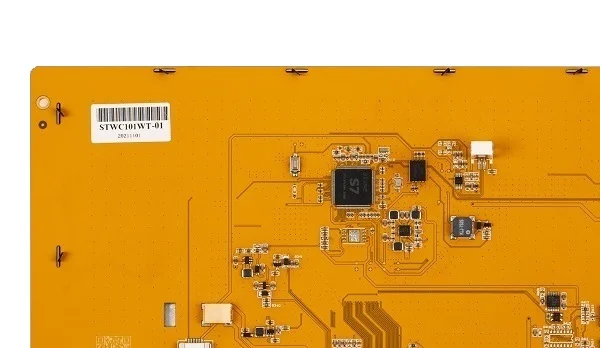

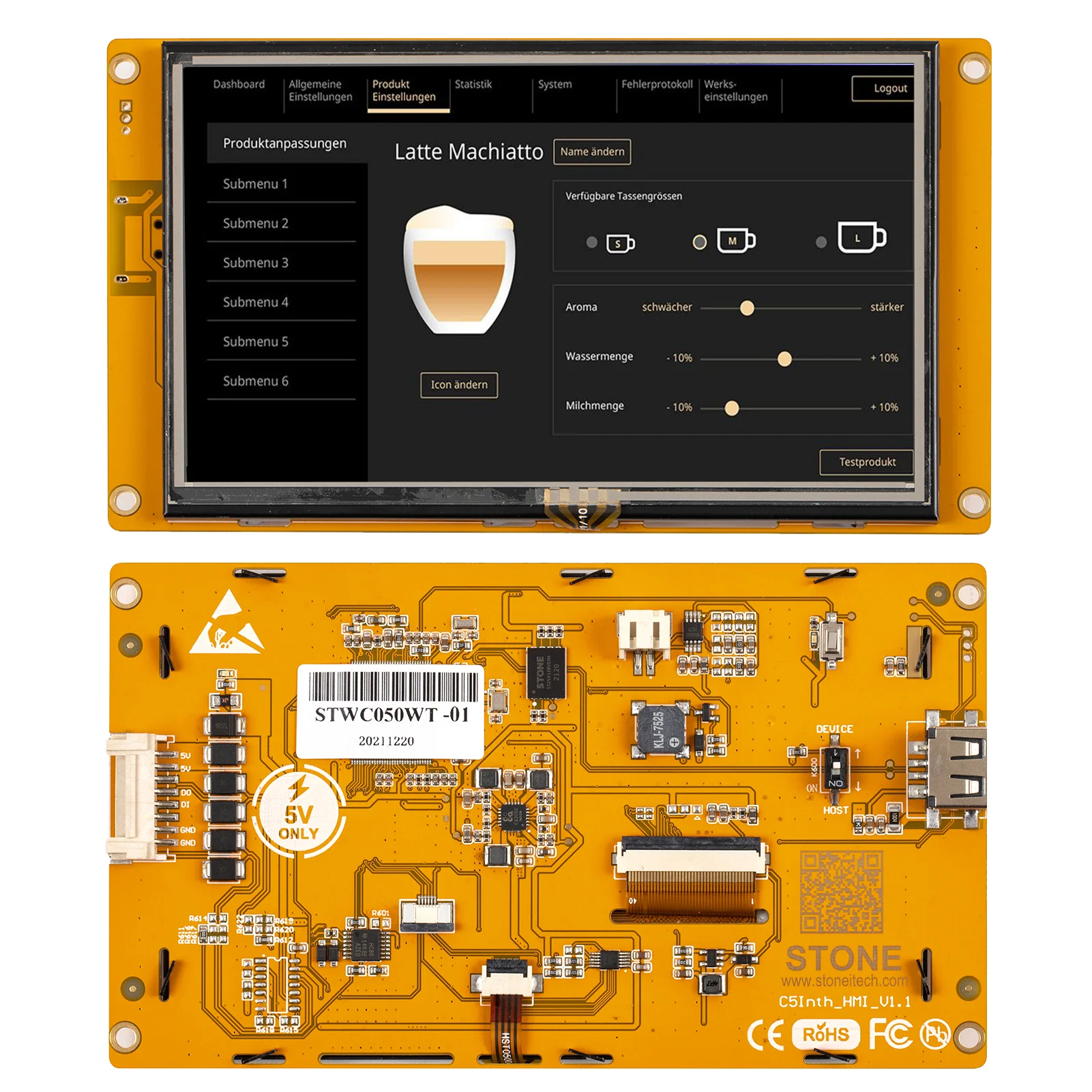

Sub-black advanced motherboard

PCB thickness and color: thickness 2.0mm more reliable,advanced sunken gold process, in line with ROHS, industrial motherboard level materials.

STONE Designer is compatiblewith multiple operating systems

Support cross-platform, support Windows, macOS, Linux operating systems.

Working temperature:industrial-grade -30 ° C / +80 ° C

High strength to adapt to the environment,-30° low-temperature normal operation,80° high-temperature normal operationhigh strength to adapt to the working environmentso that you work production worry-free.

HD display fine natural

The 3.5-inch Display Module screen adopts the original screen imported from Qunar.Color 18 bit (262K), TTF format vector font,saturated color Even display brightness, fine screenTo present you with a higher quality visual experience.

operating principle

STONE Smart TFT-LCD module communicates with the customer’s MCU/CPU/FPGA/PLC.It communicates with the customer’s MCU/CPU/FPGA/PLC through commands (JSON commands and HEX codes),and the MCU will control the work of its connected devices according to the commands received.

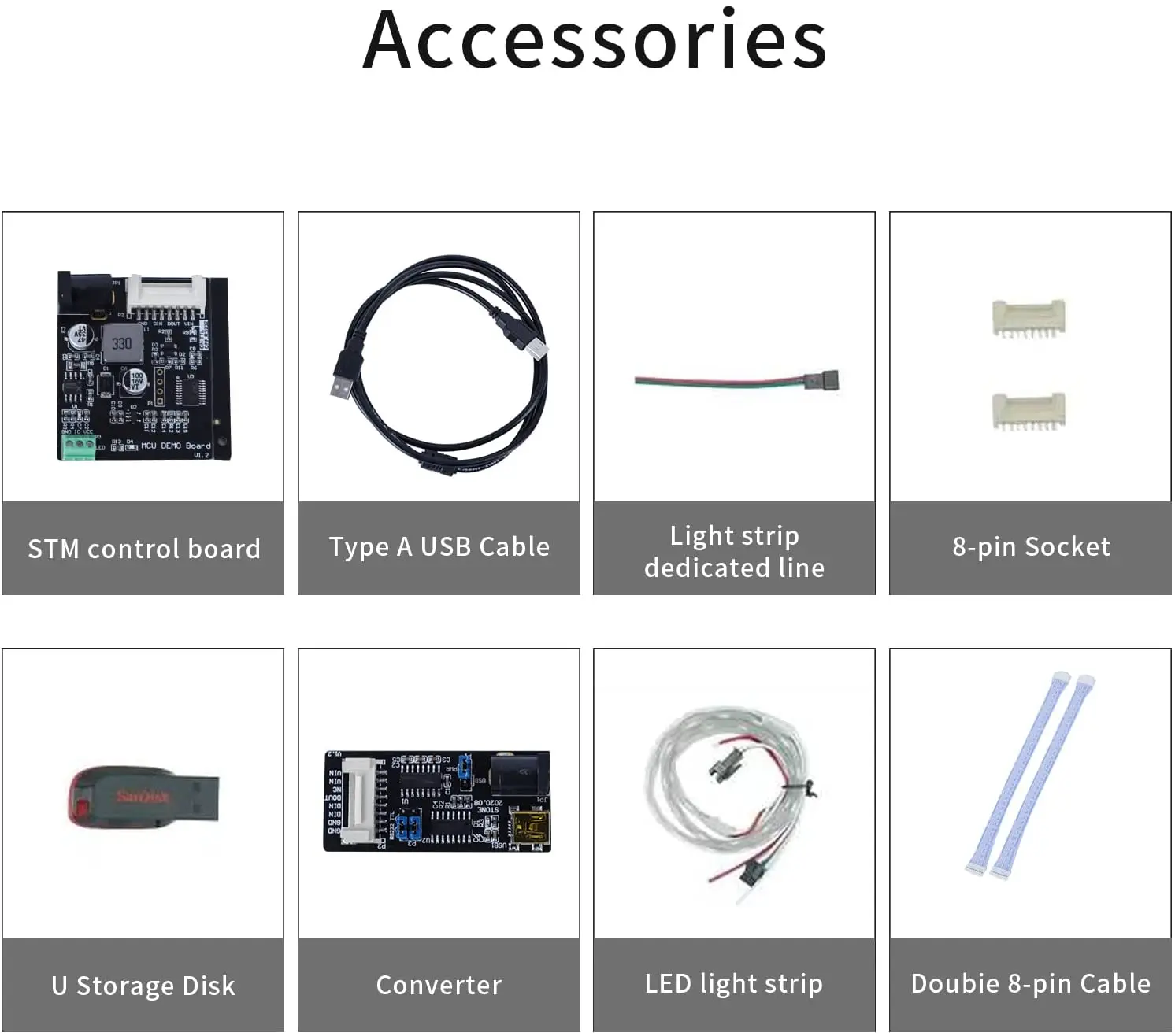

Accessories

Notice:Working under insufficient power supply condition will damage the STONE Module easily.STONE C series products require a 5V operating voltage.A series and I series products are also need to used at the voltage specified on the detail page.
