BW Three Jaws D25L30 Coupler Aluminium Plum Flexible Shaft Coupling Motor Connector CNC Flexible Couplings 5/6/6.35/8/10/12mm

Power Transmission>>>Home Improvement

Brand Name KANDE BEARINGS

Origin CN(Origin)

Certification NONE

Structure Jaw / Spider

Material Aluminium

Model Number Three claws

Standard or Nonstandard Standard

Flexible or Rigid Flexible

structure three Jaw

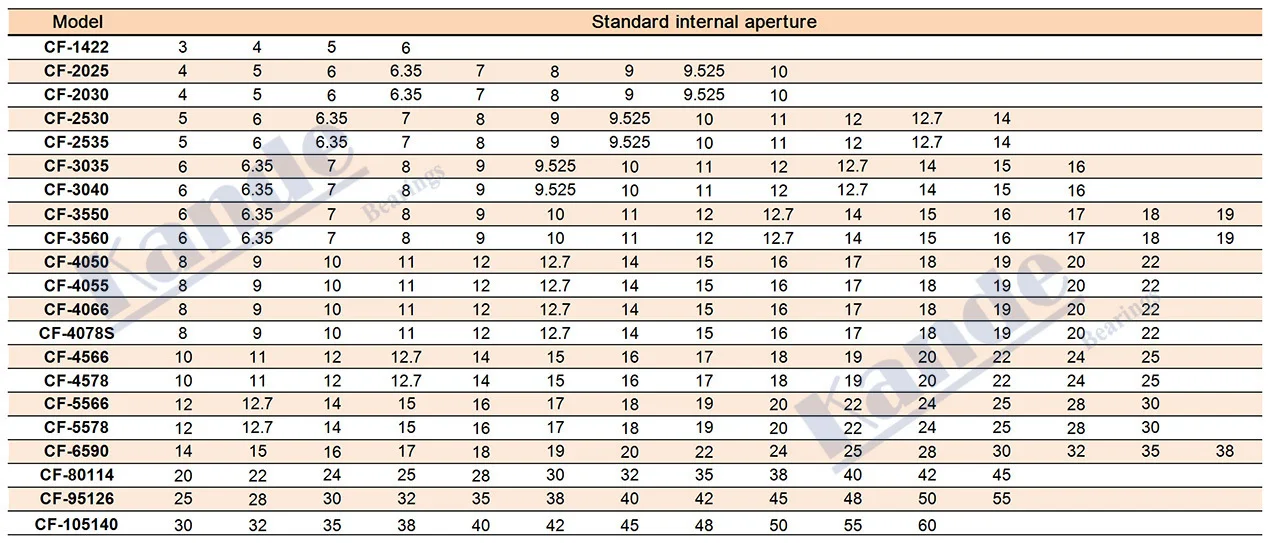

Inner Diameter

5x5

5x6

5x6.35

5x8

5x9.525

5x10

5x12

5x14

6x6

6x6.35

6x8

6x9.525

6x10

6x12

6x14

6.35x6.35

6.35x8

6.35x9.525

6.35x10

6.35x12

6.35x14

8x8

8x9.525

8x10

8x12

8x14

9.525x9.525

9.525x10

9.525x12

9.525x14

10x10

10x12

10x14

12x12

12x14

14x14

Polyurethane pad

Machining keyway

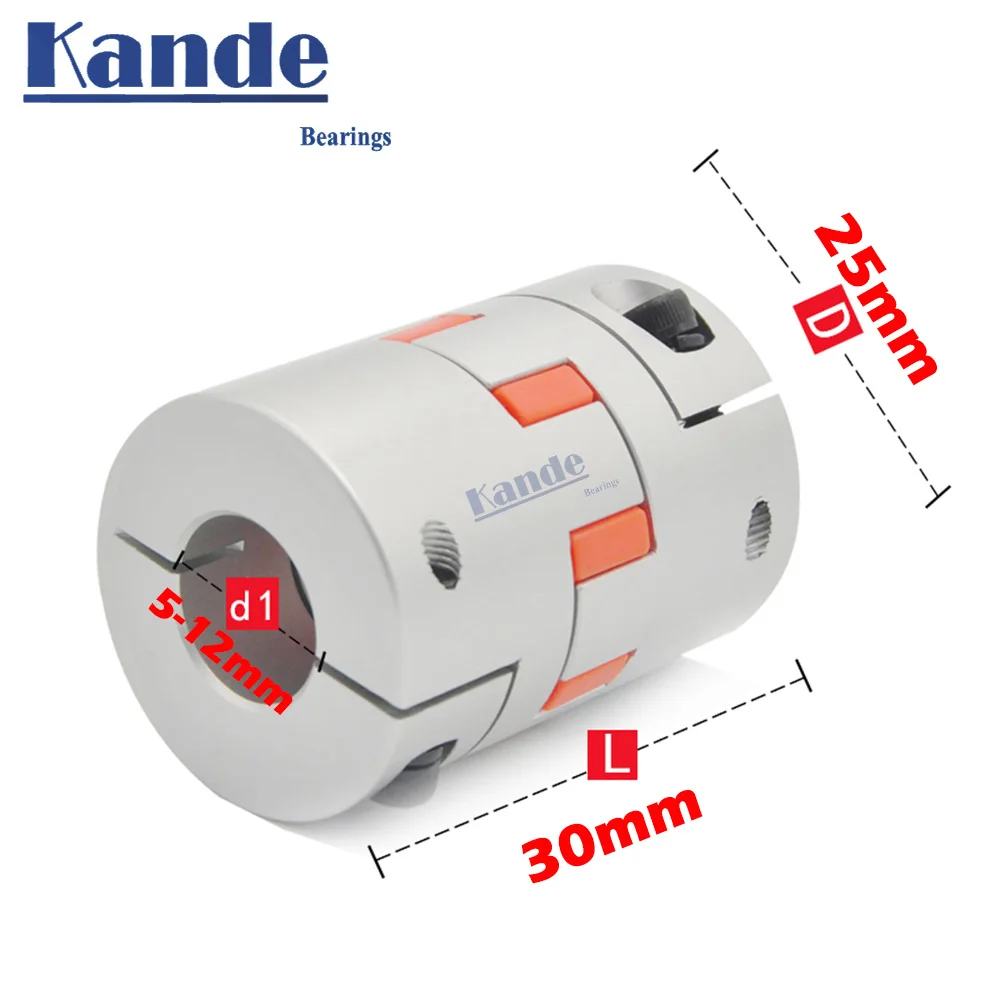

Notice!In order to facilitate the purchase, we have added the option of separately purchasing the polyurethane pad and the option of processing the keyway. If you only take these two options, you will not get a complete coupling.Including:OD:25mm   Length :30mm  CF flexible couplingDescriptions:D (Outside diameter): 25mmL (Inside Length): 30mmMaterial:Auminium alloySleeve Material: Polyurethane
