Connectors & Terminals>>>Home Improvement
Brand Name W.DE
Certification CE
Certification RoHS
Origin CN(Origin)
Type Spring
Number of Contacts 1 - 10

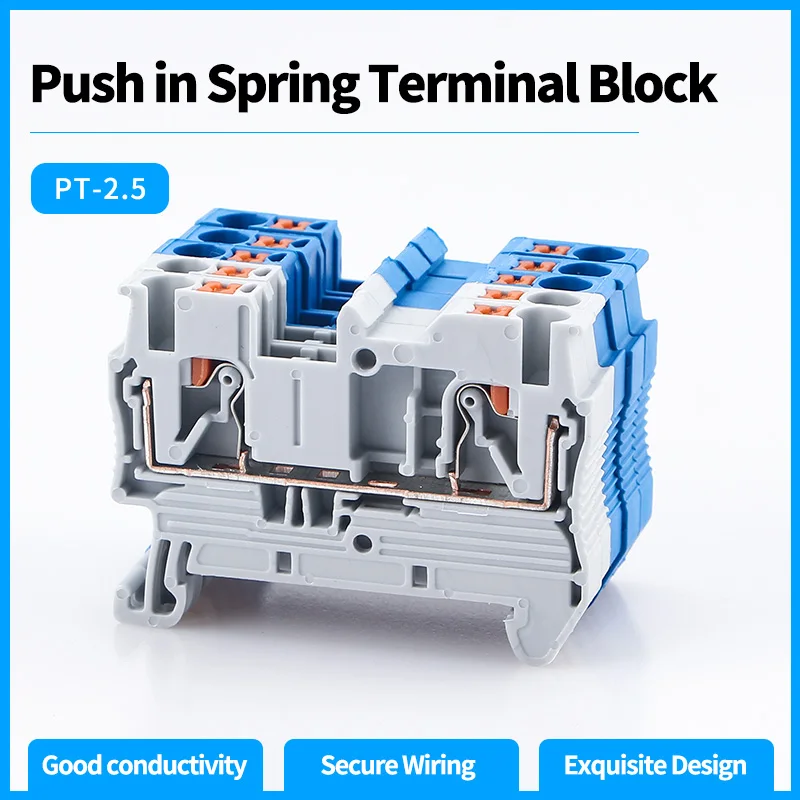

Model Number PT-2.5
Conductor Size 24-12AWG
is_customized Yes
Usage Electrical Wiring
Application Distribution Cabinet/panel
Connection Method Push in
Conductor size 24-12AWG
Cross section solid cable 0.2-4mm2
Cross section soft cable 0.2-2.5mm2

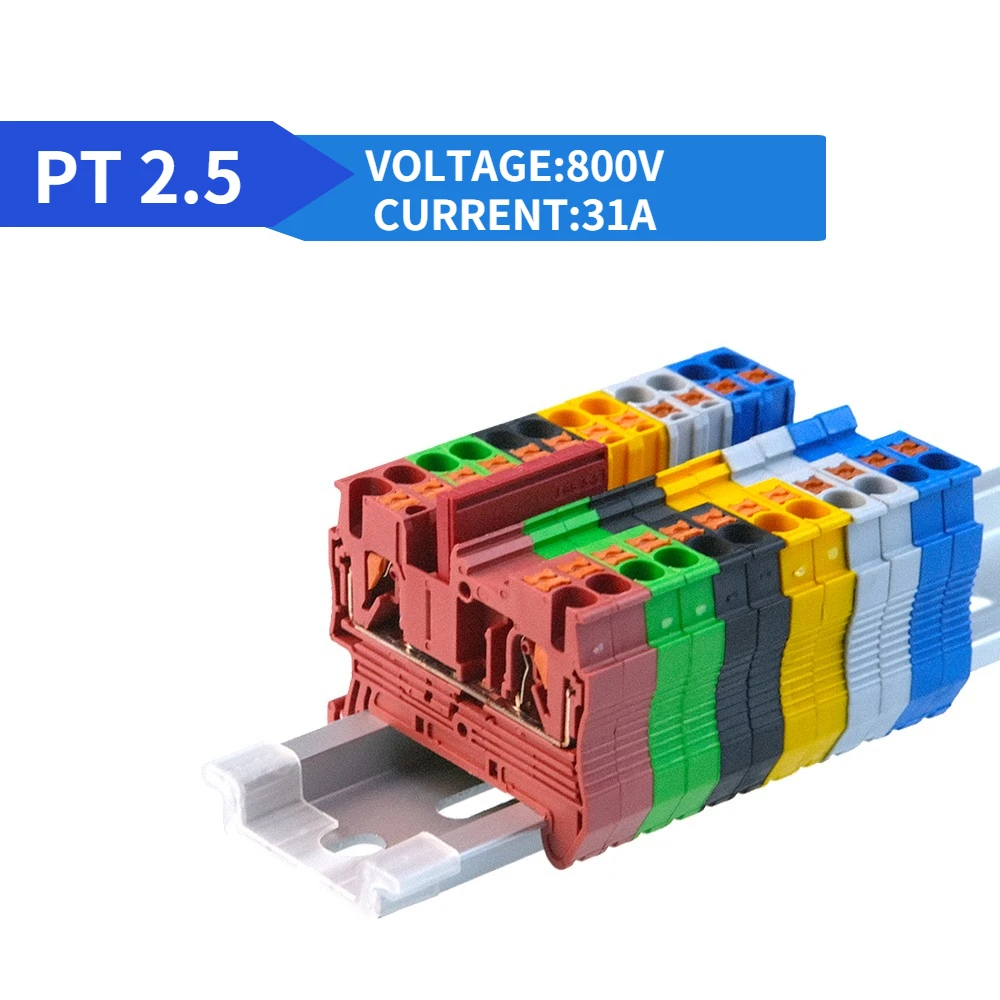

Voltage 800V
Current 31A
Mounting Type Din Rail
item1 JST wire comductor
item2 Push-in connector
item3 Universal Compact Wire Wiring Connector
item4 Din Rail Terminal Block
item5 Terminal block
item6 Din rail terminal
item7 Bornier
item8 Din blocks
item9 Panel mount terminal
item10 Electrical connector
item11 Terminator
item12 Wire Connector
item13 din rail universal terminal blocks
item14 Terminal block connector
item15 Terminal block wiring
item16 CE Terminal Block

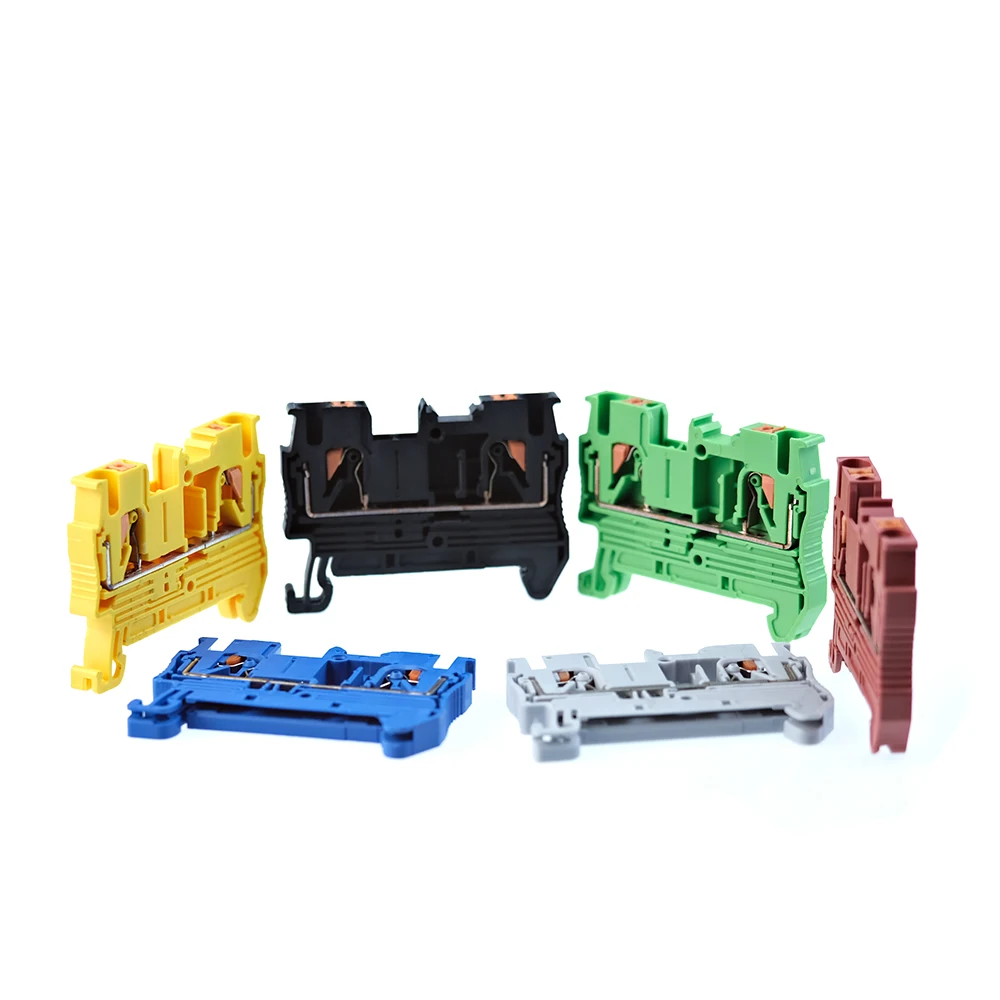

Color
red
gray
blue
green
yellow
black
If you need more types , please feel free to contact meon Aliexpressor Email:hugh@xuchendq.comWhatsapp:0086-18367781100More contact information is at the bottom ...Accessories(Click the picture to buy)End coverD-ST1.5-2.5
Jumpers BridgeMarker stripZB5End stopE-UK
Type No.
Details
Accessories

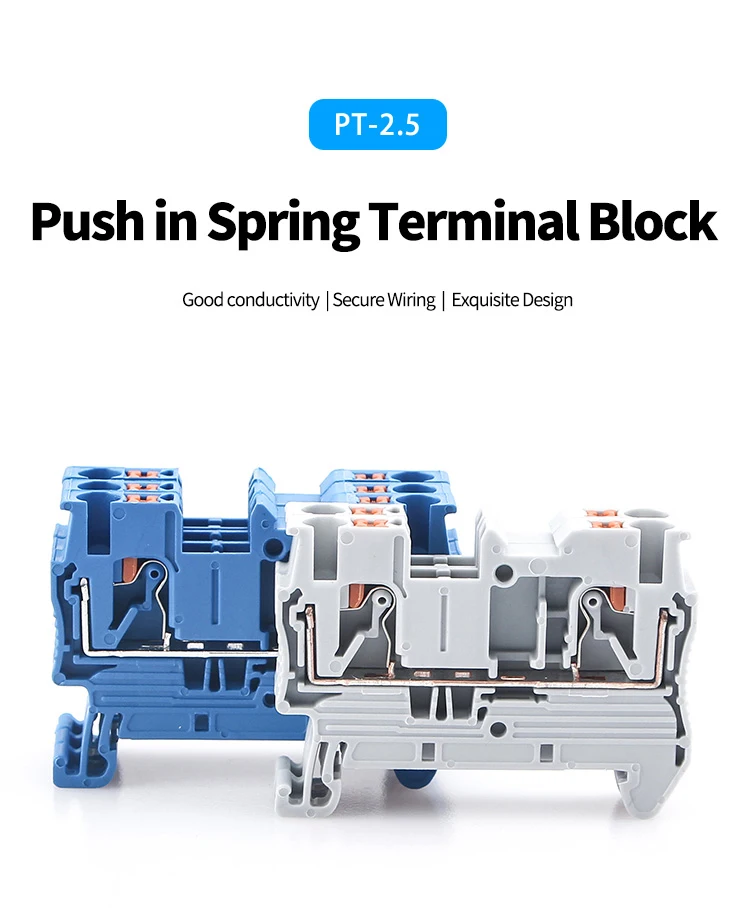

PT 2.5
800V/31A0.2-4mm2/0.2-2.5mm2L48.5/H35.5/W5 mm
End cover:D-ST1.5-2.5
Fixed bridge:FBS 2-5,3-5, 4-5, 5-5, 10-5
Insertion bridge:NONE
Marker strip:ZB5

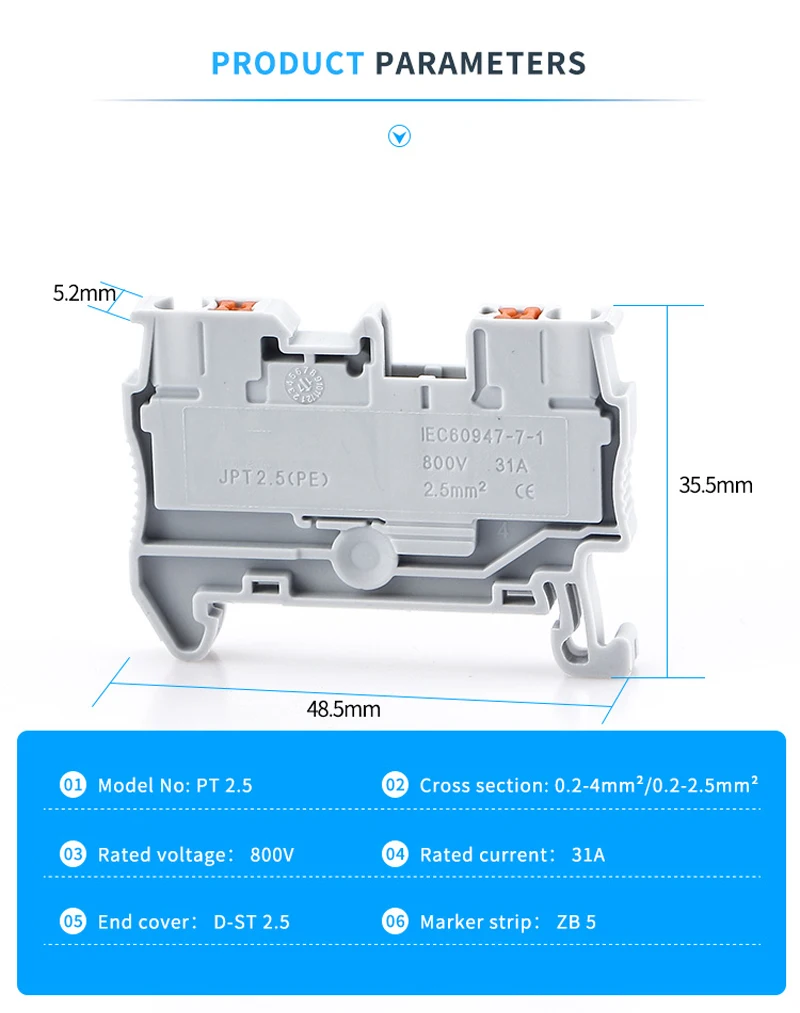

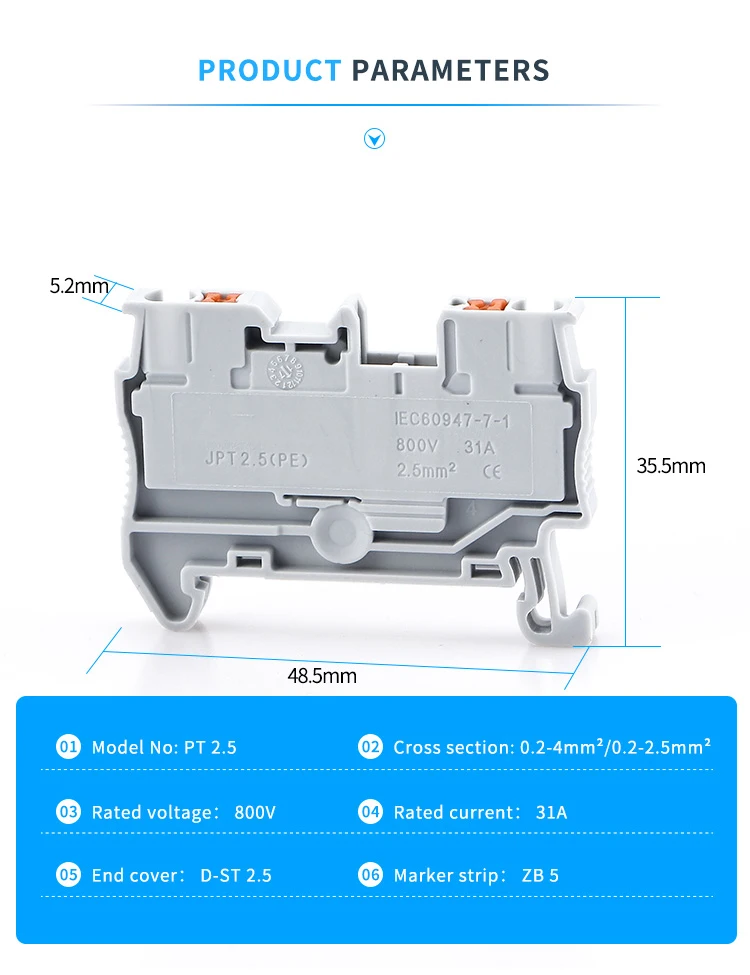

TECHNICAL PARAMETERS
Model Number
PT 2.5
Color
Grey, Blue, other color can be customized
Length/Wide/Height (mm)
48.5/36/5
Connection method
Push-in connection
Material
Nylon PA66
Rated Voltage/Current
800V/31A
Cross section, solid/soft Cable
0.2-4mm2 / 0.2-2.5mm2
Conductor Size
24-12 AWG
Mounting Type
NS 35/7.5
RecommendType No.
Cross section solid/soft Cable
Voltage/Current
Click it
UK2.5B
0.2-4mm²/0.2-2.5mm² L42.5/H41/W6.2 mm
800V /32A
Buy
ST2.5
0.2-4mm²/0.2-2.5mm² L49/H35.5/W5.2 mm
800V /31A
Buy
PT2.5
0.2-4mm²/0.2-2.5mm² L48.5/H35.5/W5 mm
800V /31A
Buy
PTTB2.5
0.14-4mm²/0.14-2.5mm² L68.8/H46/W5.2 mm
500V /22A
Buy
UK5-HESIfuse holder
0.2-4mm²/0.2-4mm² L73.5/H56.5/W8.2 mm
800V /6.3A
Buy
DIKD1.5
0.2-4mm²/0.2-2.5mm² L73/H54.5/W6.2 mm
250V /32A
Buy
