Wifi Wall Touch Switch EU No Neutral Wire Required Smart Light Switch 1 2 3 Gang 220V Tuya Smart Home Support Alexa Google Home

Smart Home>>>Consumer Electronics

Brand Name GIRIER

Certification CE

Certification RoHS

Origin CN(Origin)

State of Assembly Ready-to-Go

Model Number JR-SEU01

Compatibility All Compatible

Camera Equipped No

Standard EU Light Switch

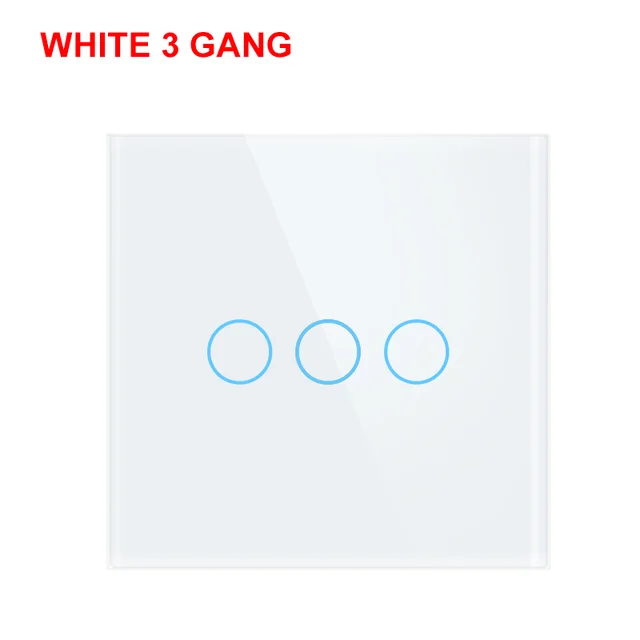

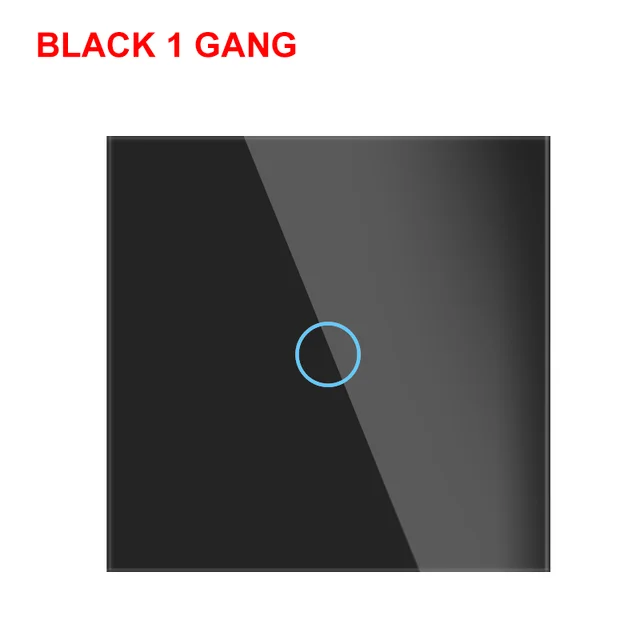

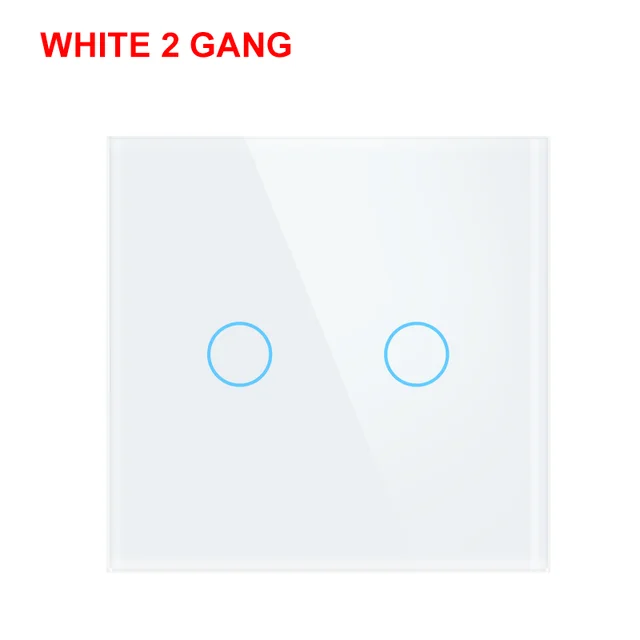

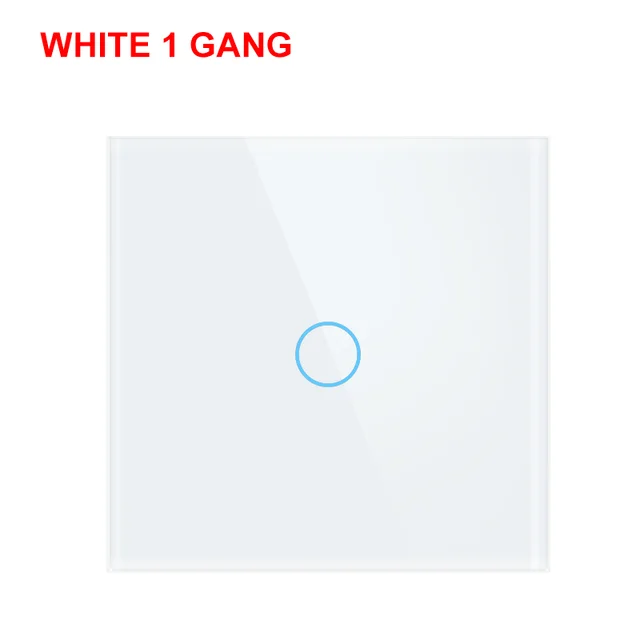

Gang 1/2/3 Gang EU Touch Switch

Color White/Black Remote Light Switch

Size 86*86mm

Material PC+ Toughened Glass Panel Switch

Voice Control Support Google Home&Amazon Alexa

Application Home, Office, Small business Touch Switch

Voltage 100-250V 50/60Hz

Current 10A

Rated Load 5-150W/Gang

Power Consumption ≤0.5W

Working Temperature 0℃~40℃

RF Receiver 433MHz

RF Control Range ≤20M

WiFi Standard IEEE 802.11bgn 2.4GHz

App Tuya Smart&Smart Life

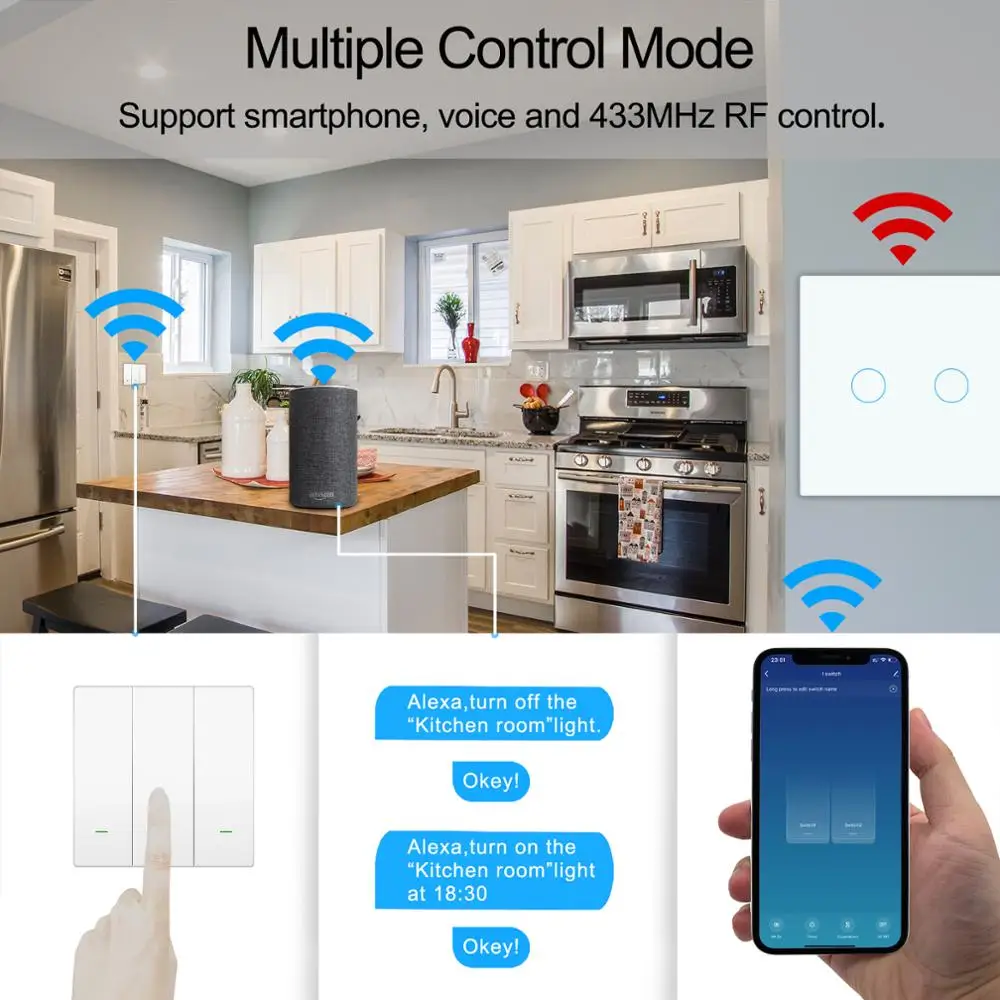

Control Mode App/433MHz RF/Manual

Certification CE, RoHS

Dimmable No

Bundle

Wifi Wall Touch Switch EU No Neutral Wire Required Smart Light Switch 1 2 3 Gang 220V Tuya Smart Home Support Alexa Google Home

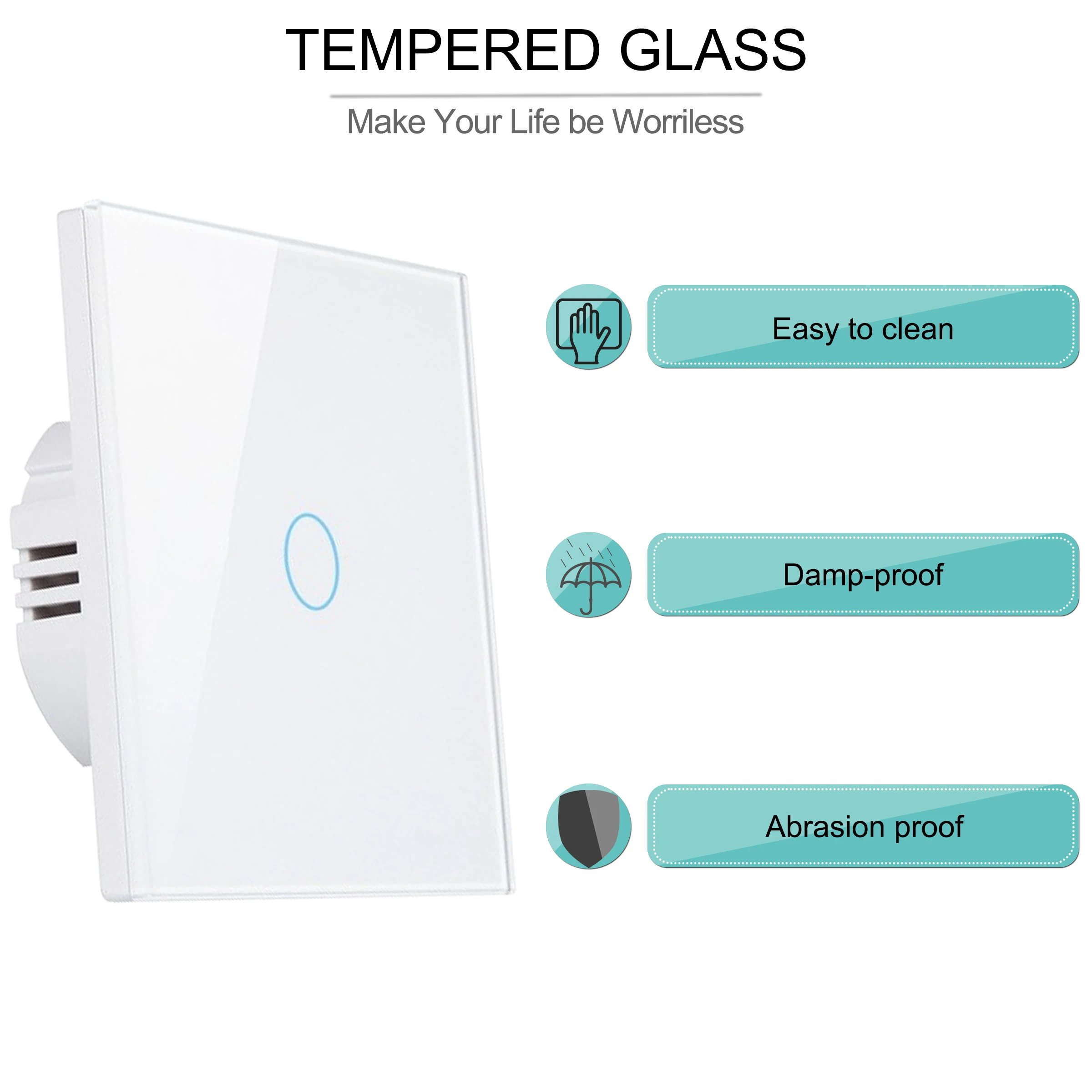

GIRIER EU wall touch switch made of toughened glass and flame-retardant PC. It doesn’t need neutral wire for installation, which allows you save a lot of time to install. The sturdy and durable toughened glass is very easy to clean that makes your life be worriless.

New Version

1. Upgraded SCR to relay, which has better heat resistance and safety. Also, it works with 100~250V.2. Upgraded capacitor, which is more powerful and stable.

NOTE

1. Support most of lamps. We suggest to use over 5W LED lamp for L1. Not support dimmable lamps.2. The capacitor must be connected with L and N of the lamp of L1. Not behind the switch.3. This switch is single-pole, and it only supports 1 way control.

MAIN FEATURES

RF 433MHz Remote Control

The smart wifi switch could pair with any of 433Mhz RF transmitters. Even if there is no wifi signal at home, the device still could be controlled by RF transmitter.

App Remote Control

As long as your smart phone or tablet has 4G or WIFI network, you can control your lights by the App “Tuya smart or Smart Life”.

Voice control

Perfectly Compatible with Alexa and Work with Google Home. Turn on/off lights with voice commands when your hands are full.

Timer Setting

Setting a schedule or timer on/off your lights on night and morning, and then your will never go back to a dark house when you go back home at dusk. Moreover, you could quietly waked up by scheduled light on every morning.

Share Function

Sharing devices with your family members to eliminate extra steps for connection.

Smart Scene

Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.

Safety and Certification

The wall switch adopts premium materials, such as fire-resistant shell, phosphor bronze connects and advanced PC+TEMPERED GLASS, can provide fire prevention, overload protection to protect your family.Our all products certificated by CE, FCC, and RoHS. Without using any harmful chemical substances, please fell relived about usage.

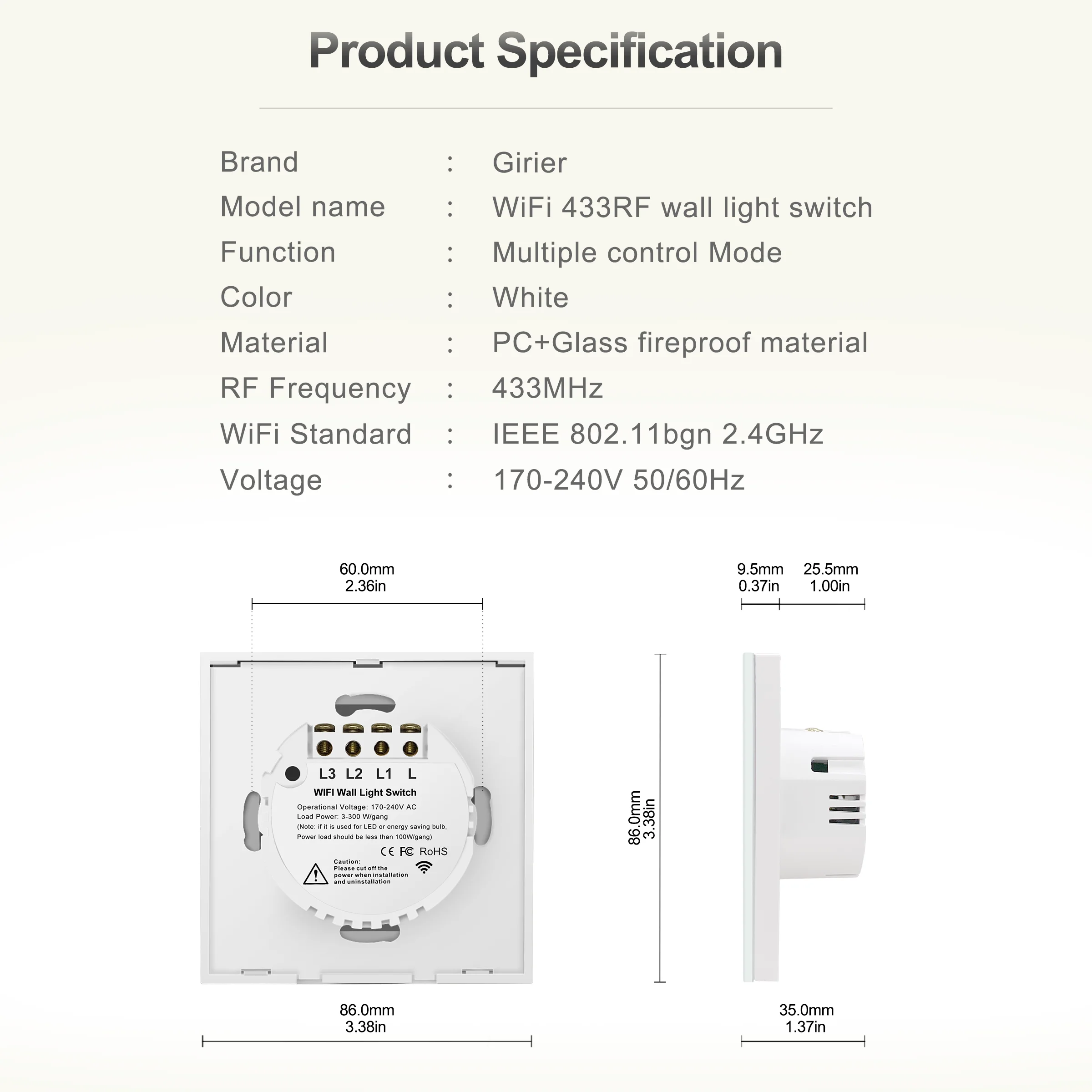

Specification

Brand: GIRIERItem No.: JR-SEU01Color: White/BlackMaterial: PC+ Toughened Glass Panel Voltage: 100-240V 50/60HzCurrent: 10ARated Load: 5-150W/GangPower Consumption: ≤0.5WWorking Temperature: 0℃~40℃RF: 433MHzRF Standard Code: 1527WIFI Standard: IEEE 802.11bgn 2.4GhzSupport System: Above iOS 8.0 or Android 4.3Hub Requirement: NoNetwork Security: WPA/WPA2”Control Mode: APP/RF/ManualCertification: CE, RoHSAPP: Tuya Smart/Smart Life

RELIABLE AFTER-SALES SERVICE

Our friendly and reliable after-sales service team can provide the most professional solutions for any of your problems. Please rest assured for shopping.All orders will be shipped out within 48 hours, except order placed in Chinese holidays.

Package Content

1*Smart Wifi Switch1*Capacitor2*Screws

How to use it?

RF Link MethodStep 1: Long press the any of button of the switch until the indicator flash and it will make a sound “di” 1 time.Step 2: Press any button on RF transmitter to finish pairing, then you will be able to control the light by RF controller.Reset Method: Press and hold on touch button about 10~15 seconds until hear sound “di” 2 times.WIFI Link MethodStep 1: Search “Smart Life or Tuya Smart” on APP store, Google Play or scan the QR code on user manual to download and install it.Step 2: Long press any button on the switch until the indicator light blink. You will hear “di” sound as well. Step 3: Open “Smart Life or Tuya Smart App”, discovery and add device in the app, and then finish configuration according to the guide.Reset Method: Press and hold on touch button about 10 seconds until the red indicator light flash and the switch will make a sound “di” 2 times.

Note: If you want to use both of controll methods, please connect the RF in advance. Otherwise, it will affect WiFi connection.

How to connect to Alexa?

1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.2. Use Alexa App or Computer to set up your Amazon Alexa.3.In the menu bar, go to 'Skills' and search for 'Smart Life'. Enable Skill, then type in your login info from your app account to finish the account linking.4. Ask Alexa to discover devices. Then you can control your devices using voice through your Amazon Alexa product.
