Video Intercom>>>Security & Protection
Brand Name JEATONE
Connection Method Wired
Certification CE
Smart home platform Tuya
Origin CN(Origin)
Answering Mode Hands-free
Camera Sensor type CMOS
Display Size 7
Display Screen Type color
Material Acrylic Wire Drawing Panel
Viewing Angle (°) 160
Size 7 Inch
Plug Type EU plug
Plug Type US plug
Plug Type AU Plug
Plug Type UK Plug
Power External power DC12V
Model Number P84218M86714
IP Camera Interface No
Zone Input None
Samrt Home Interface Yes
Kit Configuration One to One video doorphone
Installation Wall Mounting
Resolution > 420 TV Line
Doorbell Yes
Access Control PASSWORD
Sensor Size(Inch) 1/4
Technology ANALOG
Camera color
Type Intercom System
Power 12V
Connection Type Wired
Waterproof Yes
Pixel 960P
Doorbell Material Metal
Doorbell Perspective 160°
Wifi Connection Wireless
Motion Detection Support
Record Mode Screenshots / Video Record
Electronic Locks Connection Support
Infrared Night Vision Support
Doorbell Operating Temperature -40℃ ~ + 60℃
Doorbell Connection Wired
Monitor Type Full Touch
Ships From
China
Poland
SPAIN
Russian Federation
Ukraine
Color
Why Choose Jeatone Video Intercom System?
♦ Support iOS & Android smart phone with Tuya Smart APP. ♦ Digital system, 4 wires cable connection. ♦ 2-way communication between indoor and outdoor unit. Support 2 way communication between monitors. ♦ 1.3MP Camera, wide view angle. ♦ When somebody call at outdoor, your monitor and smartphone will ring at the same time. ♦ Voice message and motion detection, supported Alarm Home System, can add 8 security zones alarm (such as: smoke sensor, gas sensor, PIR sensor...etc) ♦ WIFI Enabled or Wired Router.

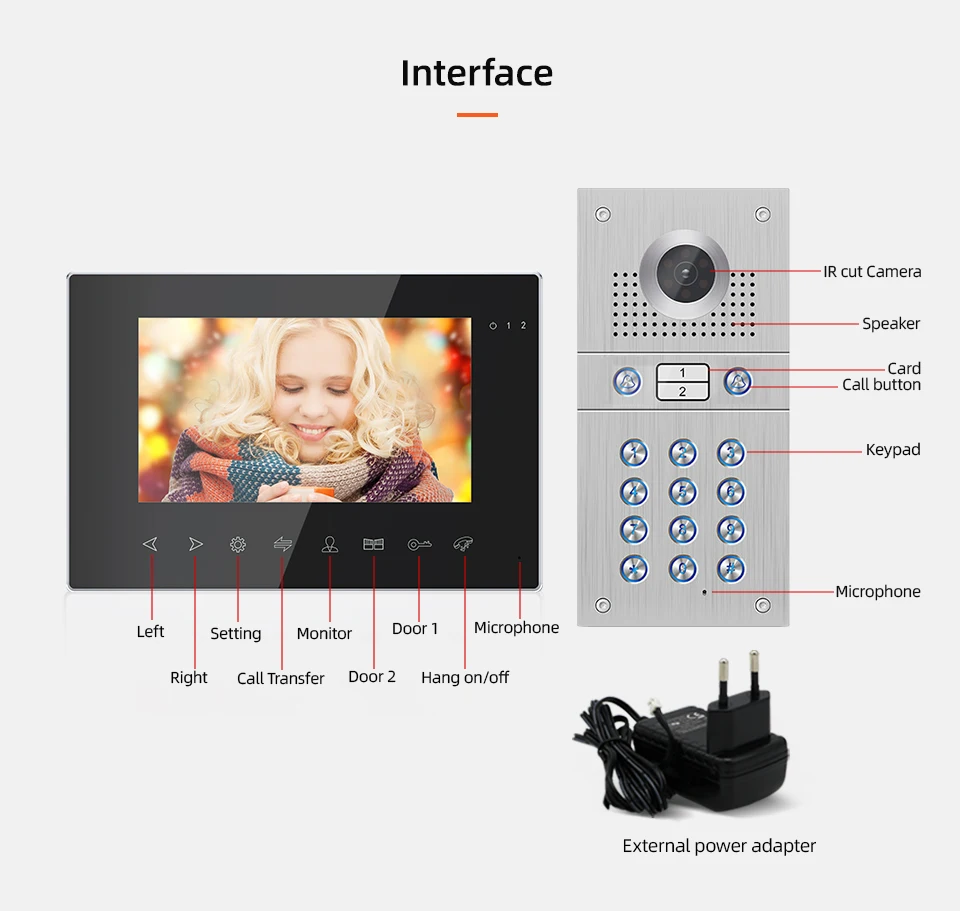

Indoor Monitor
♦ Digital system, use 4 wires network cable♦ Monitor nobody receive call within 30s, the call will transfer to smart phone; or visitor leave a message for 40s transfer to smart phone♦ 2 way communication♦ Same floor or different floor support monitor call monitor♦ PC user as adminitor, can call all monitors♦ 8 smart home security zone supported♦ Support setting un-lock time, suitable for different electronic lock♦ Max. support 3 smart phone to unlock the door account (never miss your call)
Doorbell

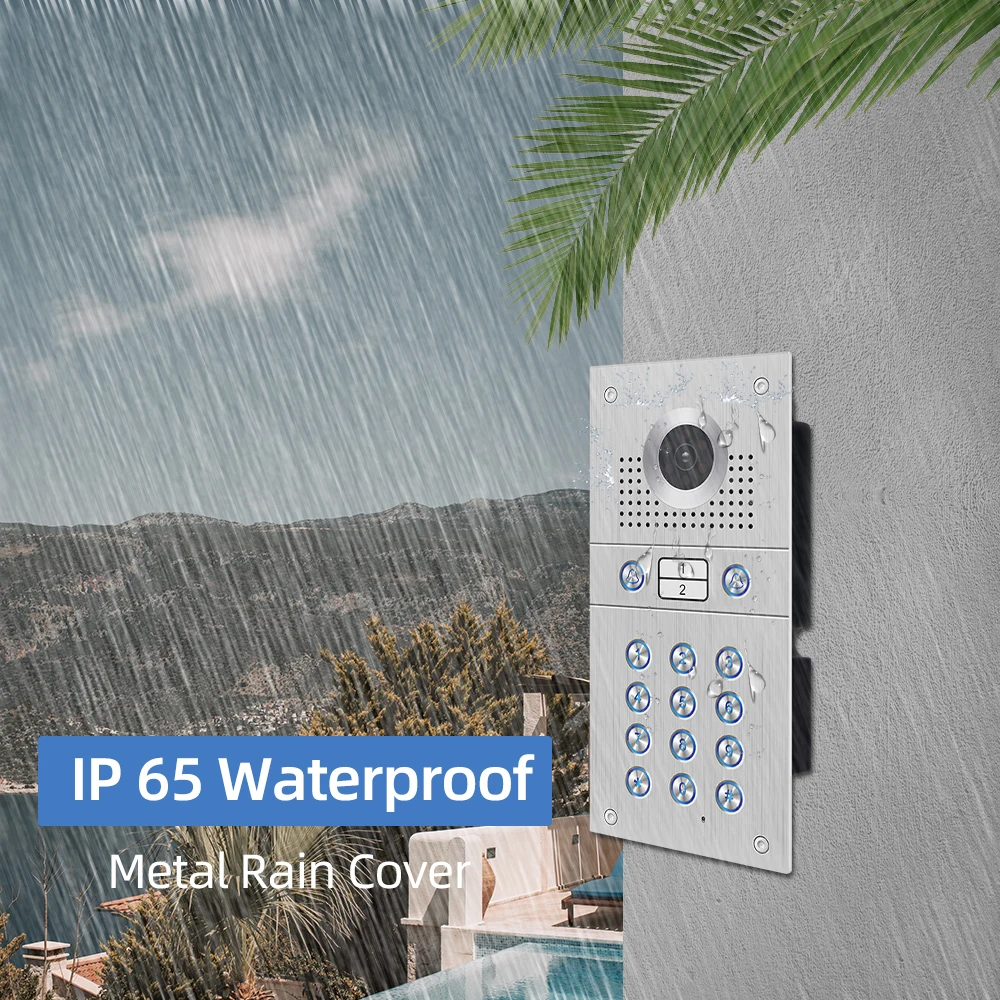

♦960P Camera♦125KHz RFID card + Code Keypad Unlock♦IR LEDs For Night Vision♦Adjustable Intercom Volume♦Dual-way Intercom♦IR Sensor, Turn On/off IR LEDs Automatically♦Easy To Install And DIY Installation♦Rust-proof Aluminium Alloy Anti Vandal Panel♦IP65 Weatherproof
About Wireless WiFi Connection:
Please note the wifi video intercom system does not mean you don’t need wire any cable.The monitor supports wireless connection to WIFI ,but the indoor monitor and doorbell is Wired, which make sure the power,the video work stable and you can extend longer distance
App Notification Push:
With the latest technology,when visitor press the doorbell,your phone will receive the APP notification, you can see,hear and speak to anyone at your door, even remote unlock via your smartphone in everywhere,No matter where you are, you can remotely access the camera to see live streaming and stay connected
Smart Motion Detection:
After setting the detect area for the doorbell camera,If there has something move in front of the doorbell ,the device will start a recording or capture a picture,even though nobody press the doorbell automatically ,start a recording or capture a picture,you can check the recorded video or screenshot on the device, but the premise is that the SD card is plugged into the device

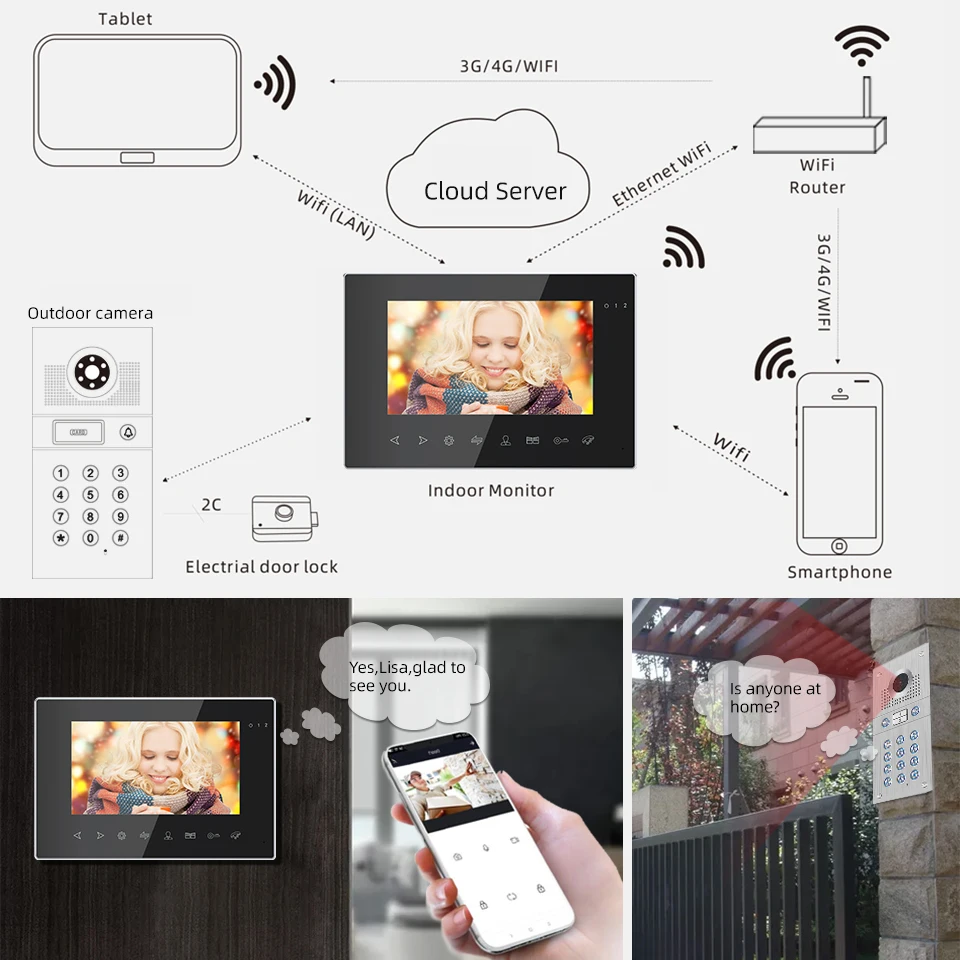

Connection Diagram
The monitor support to connect 5 Indoor Monitor , 2 Locks,2 Call Panel and 2 surveillance Camera mostly,This Item Is Hands-free And Available For Dual-way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.You don't always go downstairs open the door after install the multiple intercom
Remote Unlock
This kit supports to connect 2 electronic lock mostly,after connecting electronic lock,you can use app or monitor to open the door.When you are upstairs, in the garden, or even when you are not home,you can unlock the electric lock door remotely for your friends and family via free APP

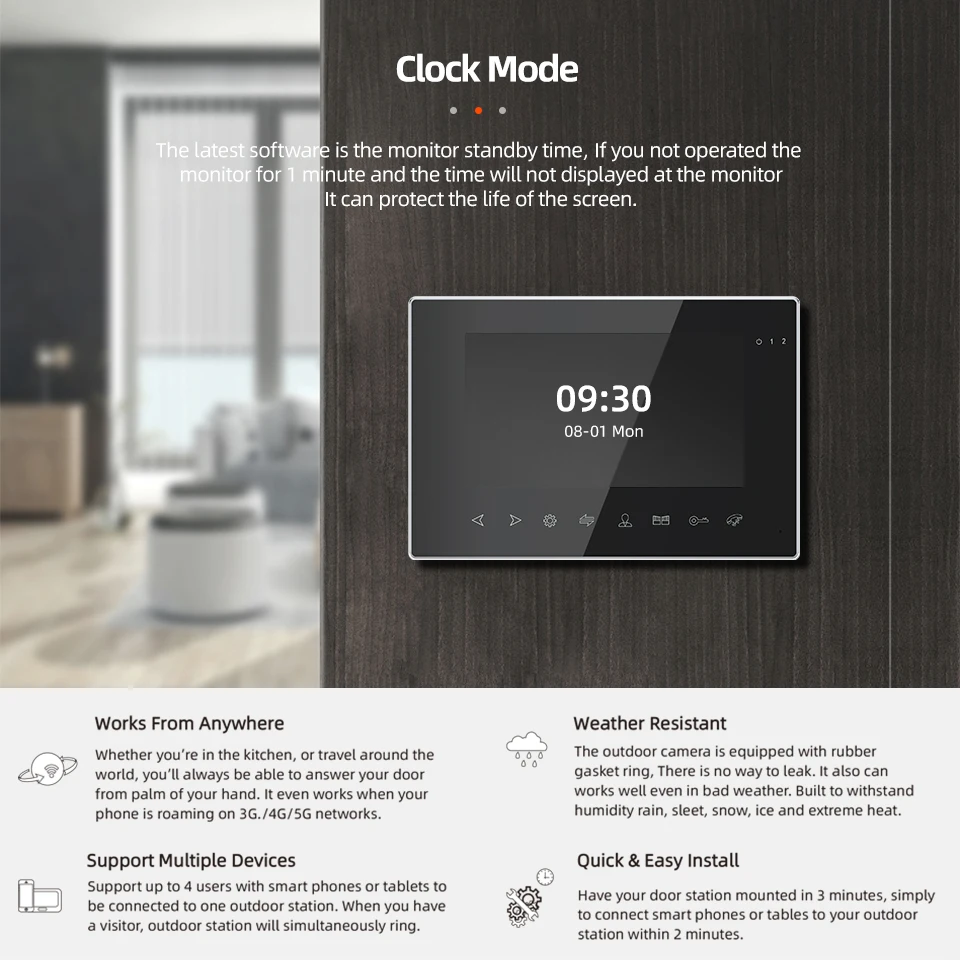

Clock & Date Mode
The latest software is the monitor standby time.If you not operated the monitor for 1 minute and the time will not displayed at the monitor that can protect the life of the screen.
Multi-languages OSD Menu
The System Supports twelve Different Languages: English, Russian, Hebrew, Portuguese, Arabic, French, Polish, Ukrainian, Spanish, Italian, German, Hungarian, Turkish, Azerbaijani

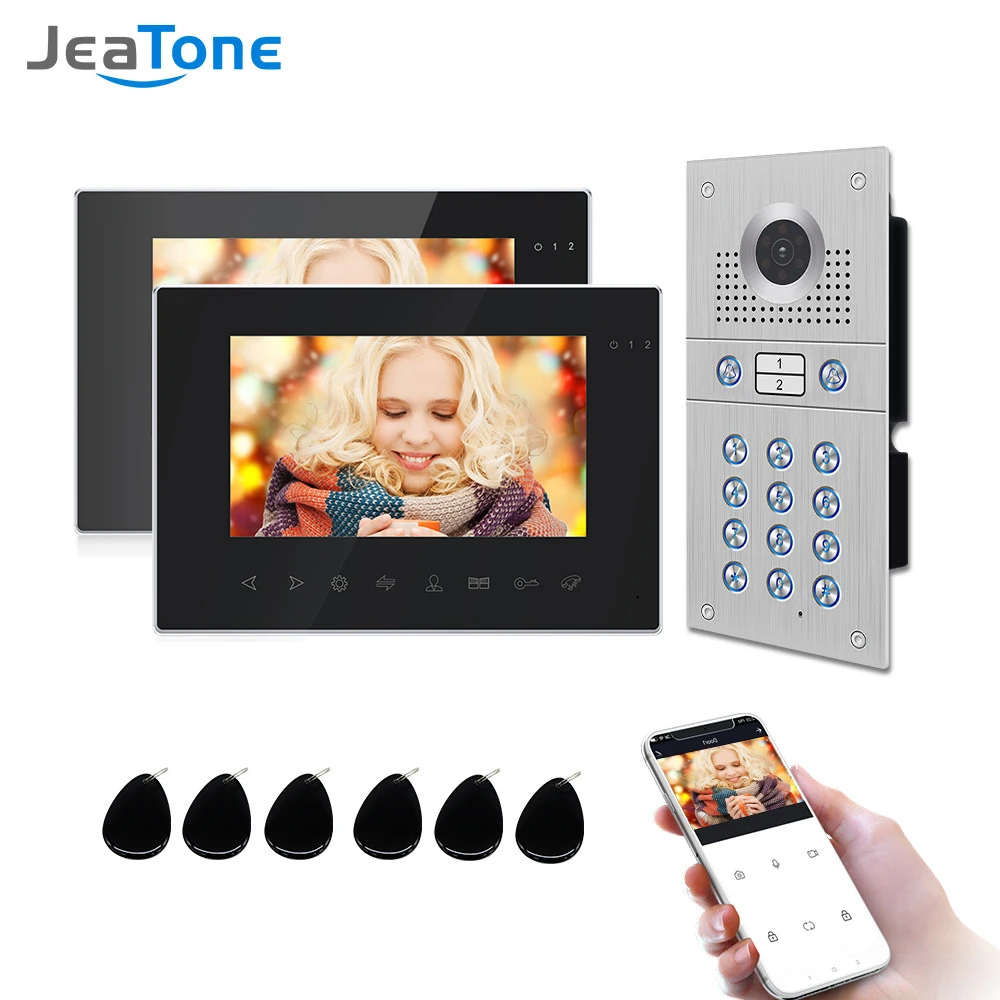

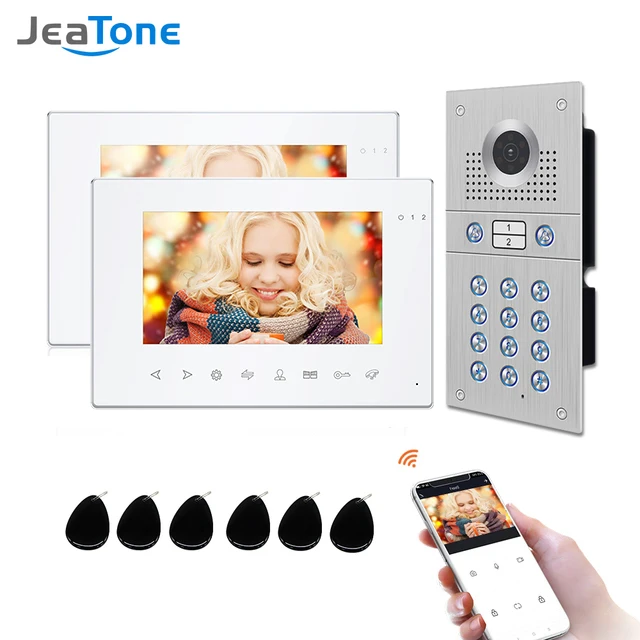

Package Include
2x Indoor Monitor1x Outdoor Doorbell2x Monitor Mounting Plate2x Call Panel User Manual6x PFID Card2x Gurantee Card10x 4pin Connector1x 2pin Connector3x Power Supply
