Electrical Instruments>>>Tools
Brand Name HoldPeak
Certification None
DIY Supplies ELECTRICAL
Origin CN(Origin)
Measuring Capacitance Range 5.12nF/51.2nF/512nF/5.12uF/51.2uF/100uF
Model Number HP-570C-APP

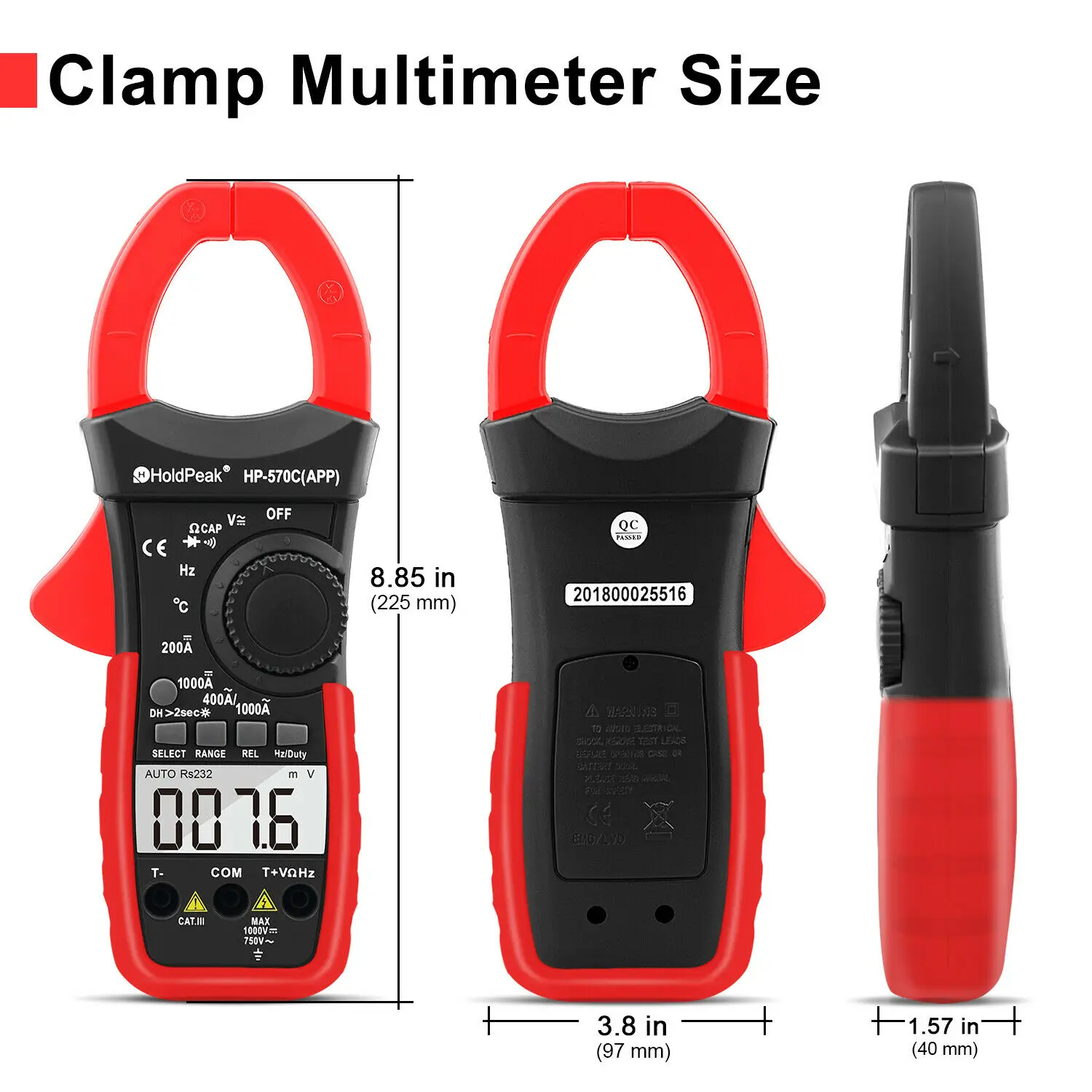

Dimensions 225*97*40mm
Measuring Voltage Range 400mV/4V/40V/400V/750V/1000V
Operating Temperature -20~1000'C
Measuring Resistance Range 400/4k/40k/400k/4M/40M
Measuring Inductance Range NO
Weight 450g
Measuring Current Range 200A/400A/0-800A/800-1000A
Display Type Digital Only
Measuring Frequnency Range 5.12Hz/51.2Hz/512Hz/5.12kHz/512kHz/5.12MHz
Display 4000
Diode Test YES
Continuity Buzzer YES
Date Hold/Back Light YES
Auto Power Off No
Relative Value YES
Dual Display YES
Link to phone App YES
Battery Type 9V(6F220)*1
Ships From
China
United States
United Kingdom
Russian Federation
HOLDPEAK 570C-APP Digital Clamp Meter,Volt Amp Ohm Tester, 4000 Count Multimeter with Auto Range,AC/DC Voltage,AC/DC Current, Resistance, Capacitance, Temperature, Diode Test for Industry or Home

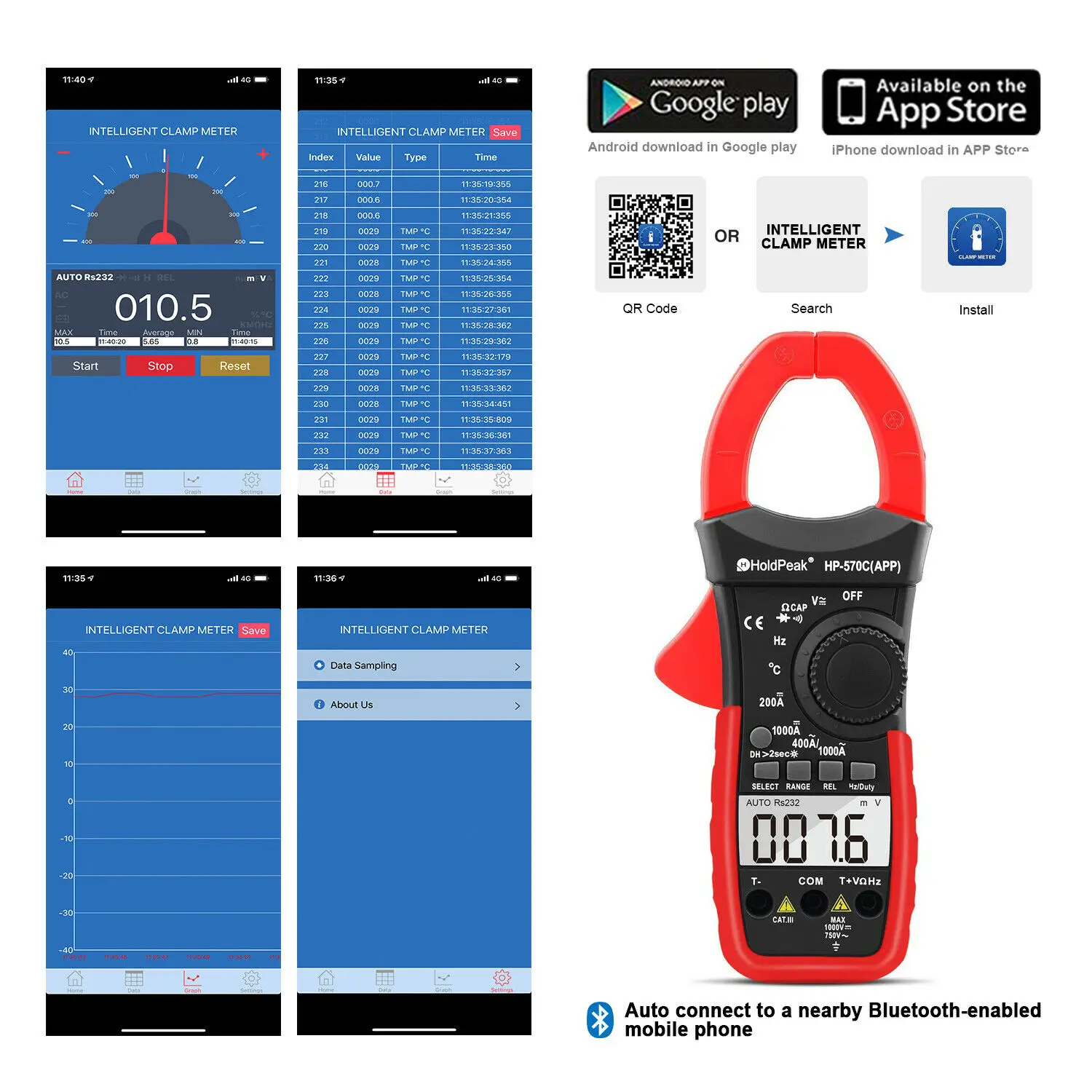

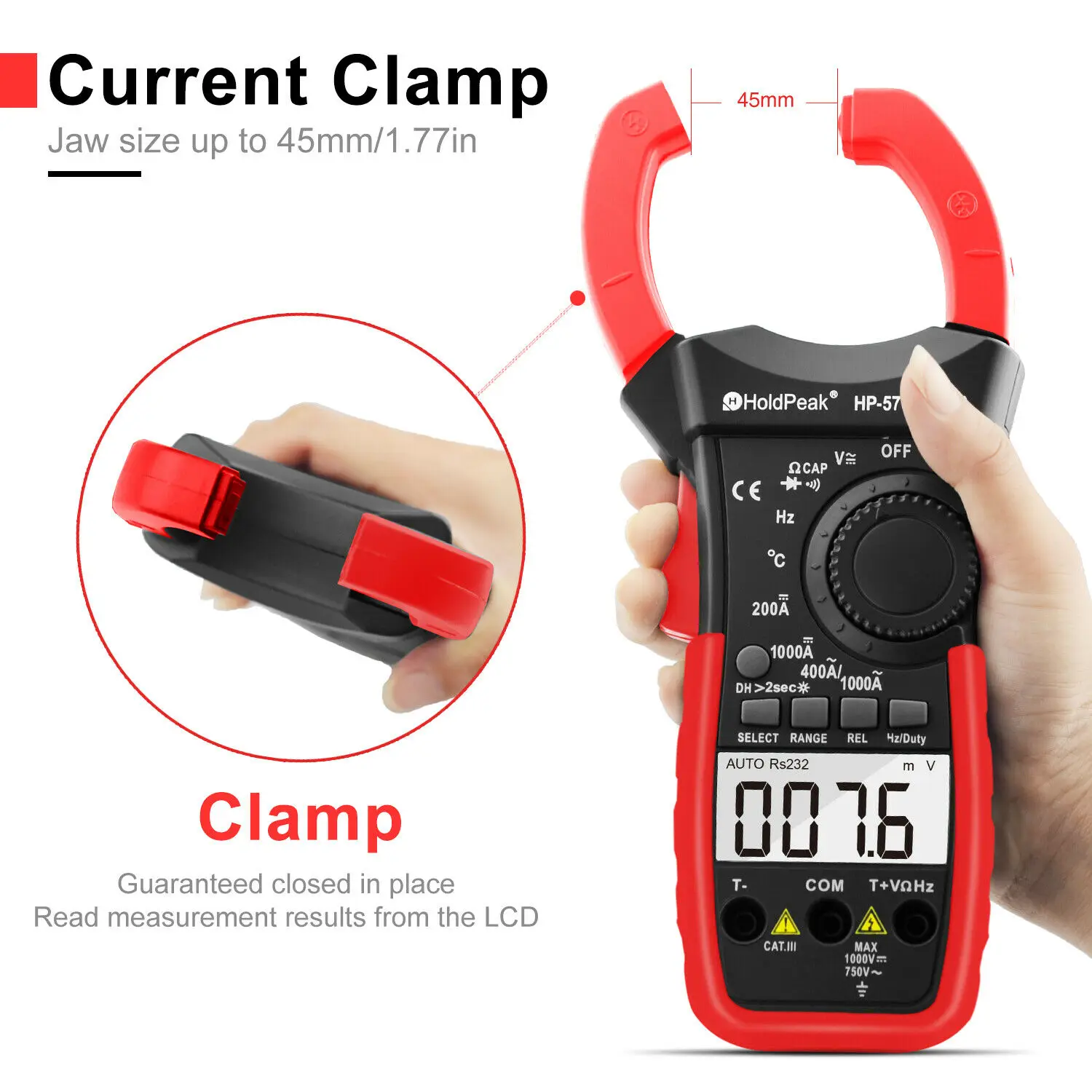

【Wide Range Clamp Meter】 With 4000 counts display, the clamp meter can measure DC/AC voltage;AC/DC current,Resistance,Capacitance,Temperature,Frequency,Diode Test. The clamp meter has manual/automatic ranging which can adjust the operation method according to your usage habits.The jaw size up to 1.77in/45mm to measure a cable which is thick enough【Multi-Function Multimeter】With Data hold, LCD Backlight, Relative value,Continuity buzzer,Connect to Phone by APP. Through the Backlight function, you can measure in the darkness and read the data clearly by the large LCD screen.【Auto Connect To Your Phone Via Bluetooth】HP-570C-APP clamp multimeter come with APP Supported, you can connect to your smart phone via Bluetooth to monitor clamp meter measurement in real time. With this APP-Multimeter, you can transfer the data and analysis it in real time on your phone. The mobile APP can be installed on iPhone 4S iOS or Android 4.30 or higher.【Safety & Over Load Protection】 HP-570C-APP Clamp Meter is up to the standards of IEC1010 Double Insulation, Pollution Degree 2, Over voltage Category Ⅲ and overload protection. It will show "OL" on the LCD if over range.
Product specification
Range Selection: Auto RangingMax Display: 4000Duty cycle:0.1%~99.9%Capacitance:51.2nF~100uFFrequency:5.12Hz~5.12MHz(0.1%+5dgt)Temperature:-20℃~1000℃(-4℉~1832℉)(3%+2dgt)DC Voltage: 400mV/4V/40V/400V(0.5%+2dgt) 1000V(0.8%+2dgt)AC Voltage: 4V/40V/400V(3.0%+10dgt) 750V(1.2%+3dgt)DC Current: 200A(3.0%+10dgt)1000A (0~800：±3.5%+10dgt; 800~1000：±6.5%+10dgt)AC Current: 400A(3.0%+10dgt)1000A(0~800：±3.5%+10dgt; 800~1000：±6.5%+10dgt)Resistance: 400Ω(1.0%+3dgt)4kΩ/40kΩ /400kΩ/4MΩ(1.0%+2dgt)40MΩ(1.5%+3dgt)Features：√ Data Hold YES√ Diode Test YES√ Backlight Display YES√ Overload P rotection YES√ Phone APP Connection YES
Notice:The standard package don't include batteries. Because, the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box. Hope you can understand buy them in your local store or supermarket.Thanks for your support!
