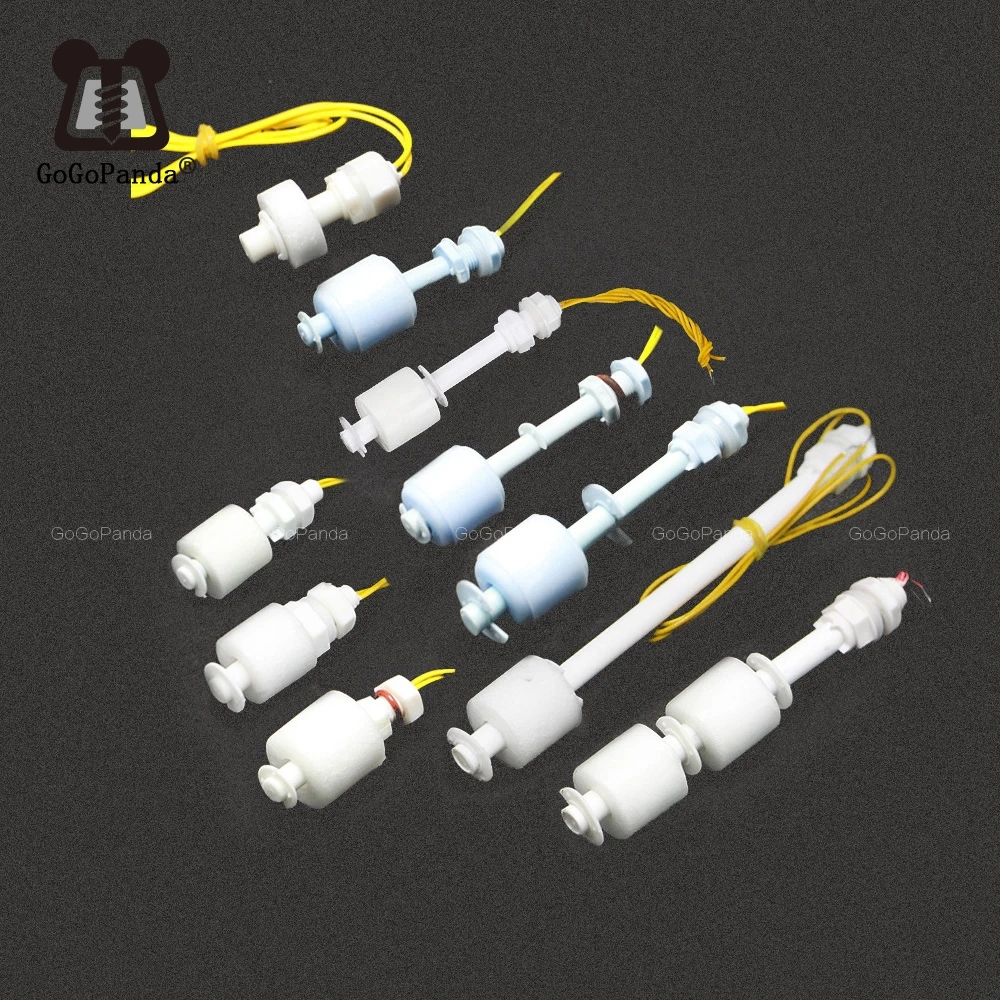

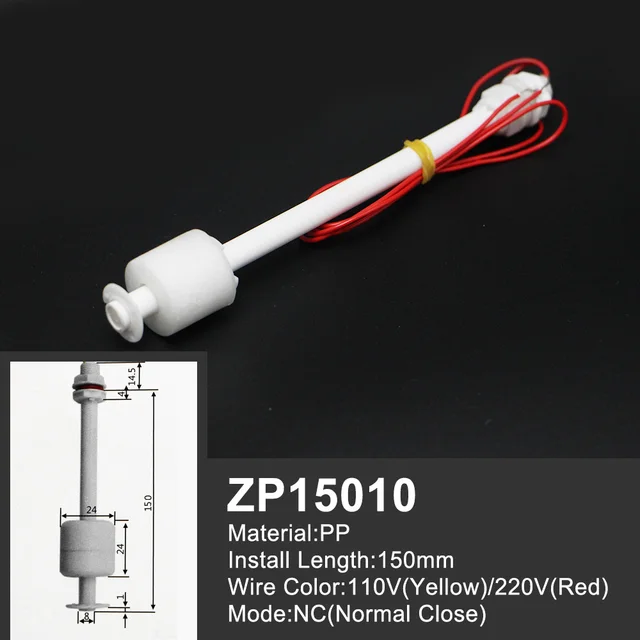

Free Shipping 1 Piece Float Switch Mini Type Poly Propy Water Level Liquid Sensor Normal Close ZP2508-ZP15010

Switches>>>Lights & Lighting

Brand Name GoGoPanda

Origin CN(Origin)

Certification None

Current 3A

Features M8*25

Material Plastic

Item Type Switches

Warranty 1

Model Number ZP2508

Switch Type Pressure Switch

Wire Length 40cm

Material PP

100V Yellow Wire

220V Red Wire

Color

Voltage

110V

220V

63337

If you need a lot.Please contact us for discount





Free Shipping 2pcs/lot Float Switch Mini Type Poly Propy Water Level Liquid Sensor Normal Close ZP2508-ZP15010

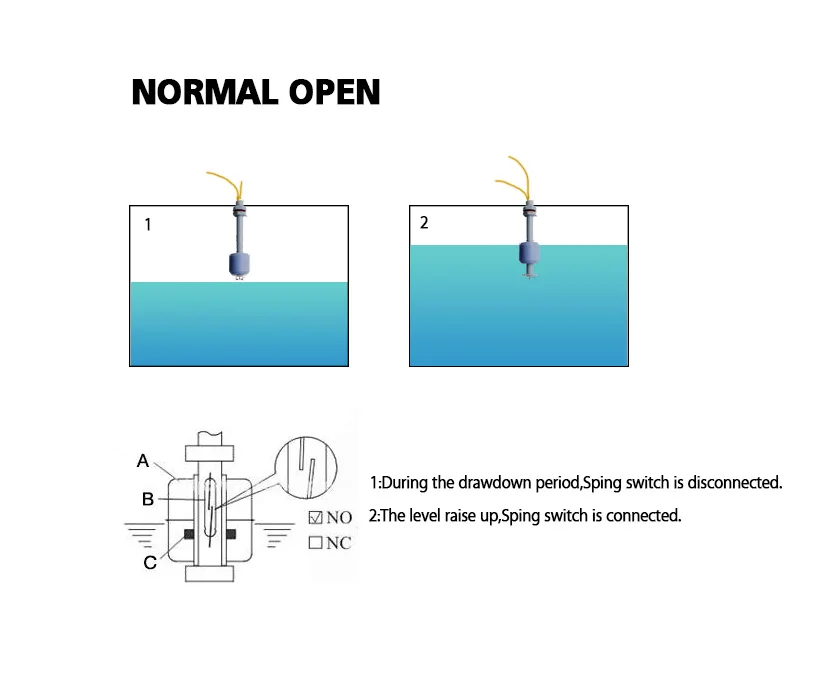

Note:if you need Normal Open type.

10 Pieces is smallest customized quantity

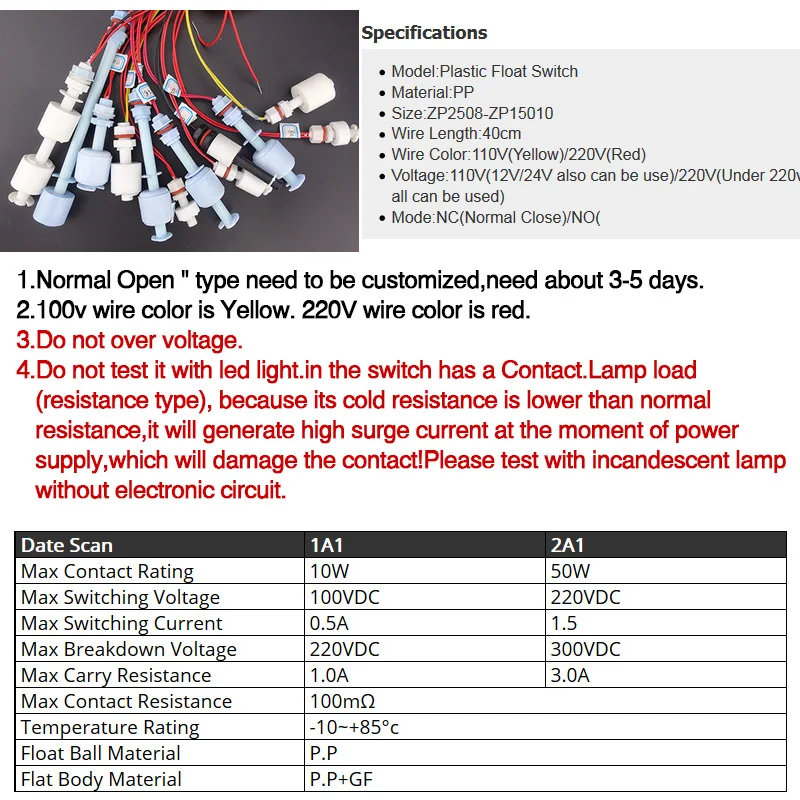

Specifications

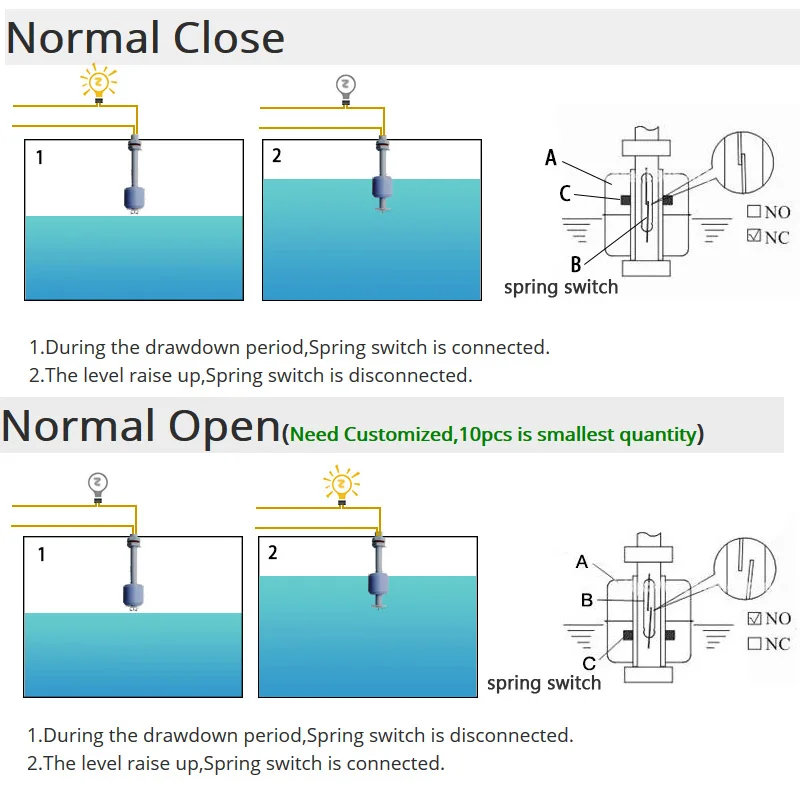

Model:Plastic Float Switch Material:PP Size:ZP2508-ZP15010 Wire Length:40cm Voltage:110V(12V/24V/36V/48V  also can use)/220V Mode:NC(Normal Close)/NO(Normal Open)



You Need Know This  "Normal Open " type need to be customized,need about 3-5 days. 100v wire color is Yellow. 220V wire color is red.

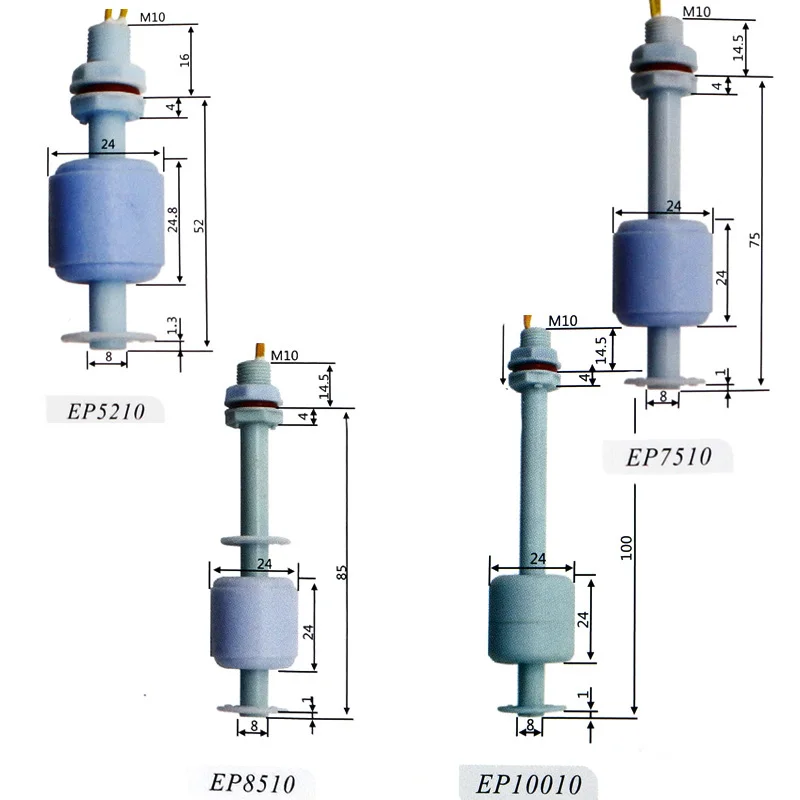

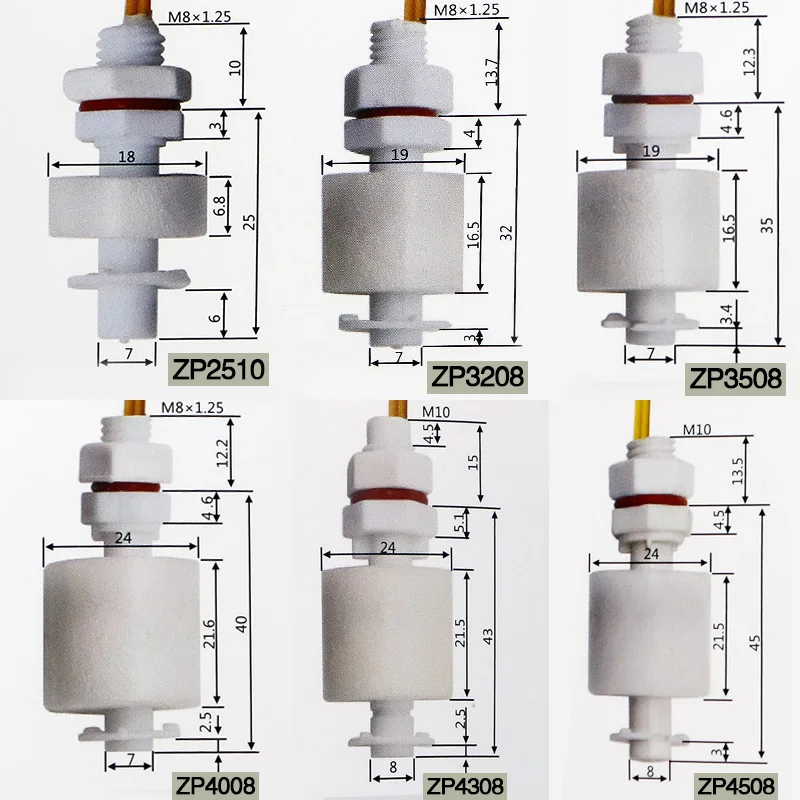

SIZE INFORMATIONS

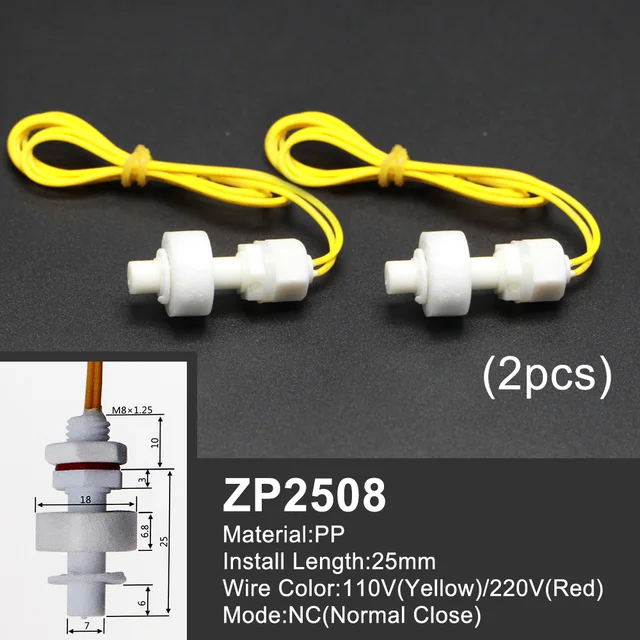

ZP2508

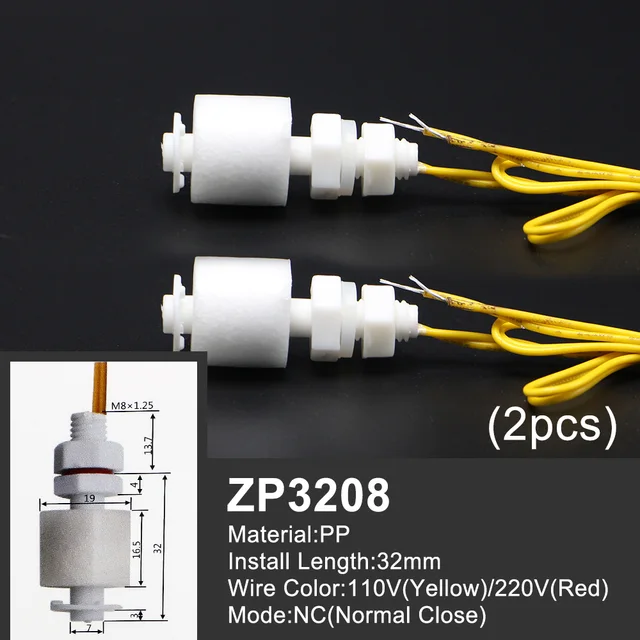

ZP3208

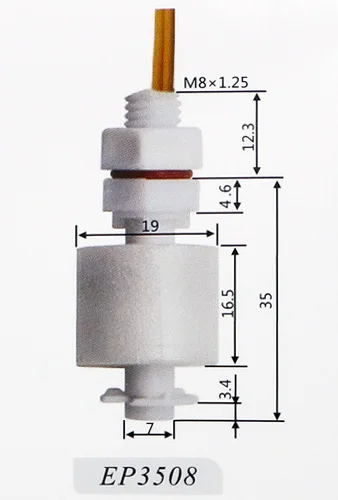

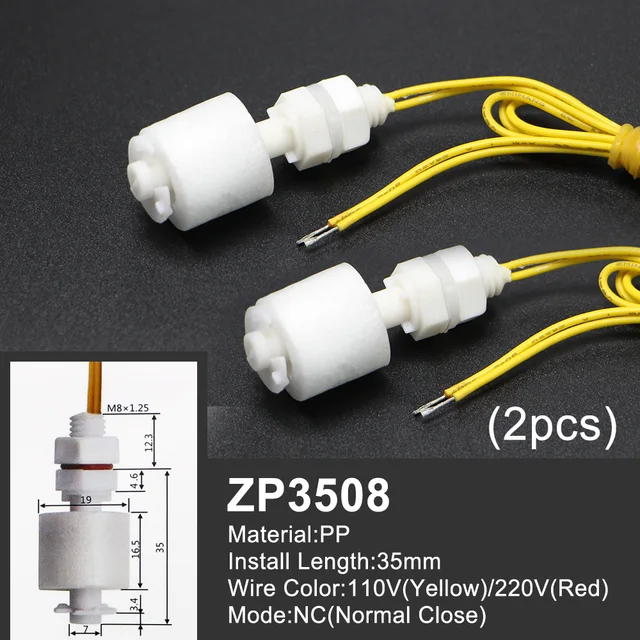

ZP3508

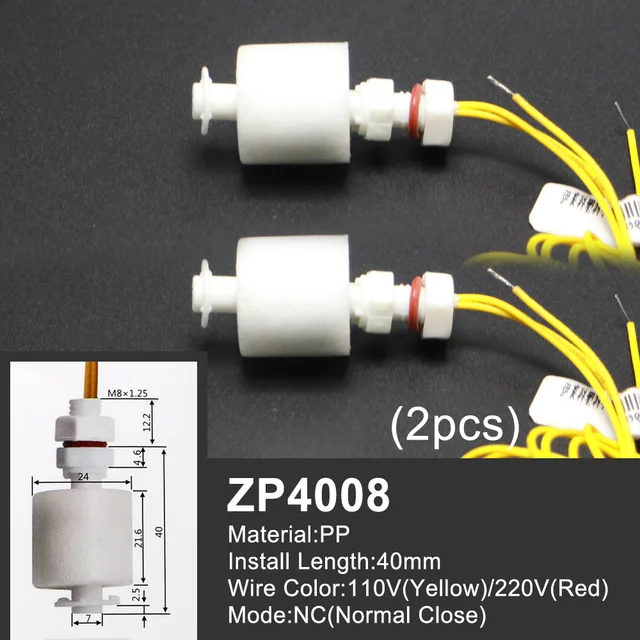

ZP4008

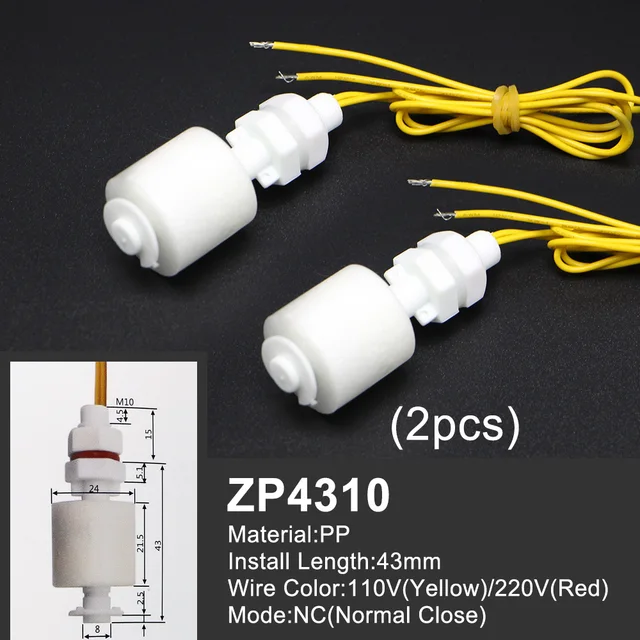

ZP4310

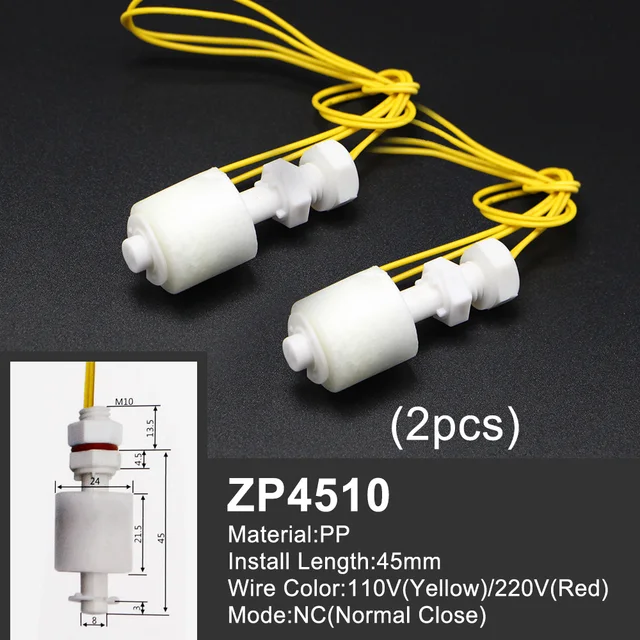

ZP4510

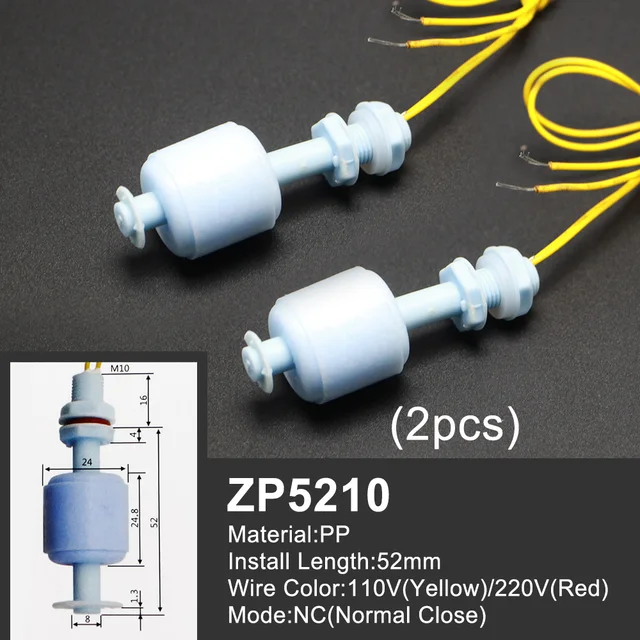

ZP5210

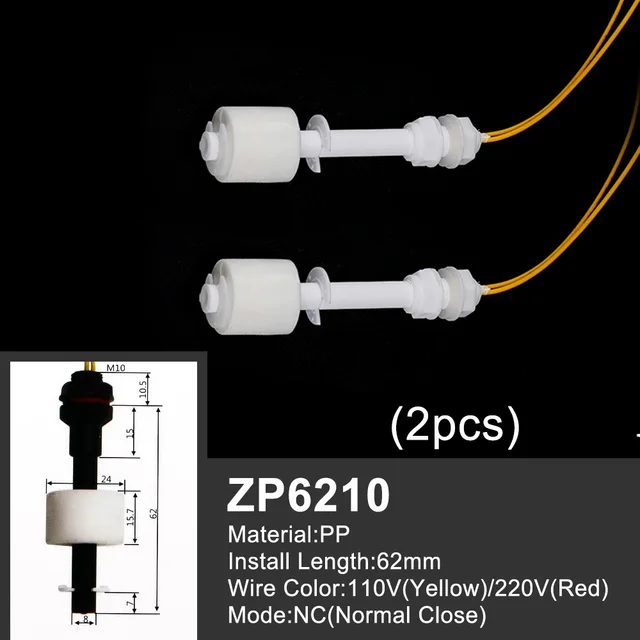

ZP6210

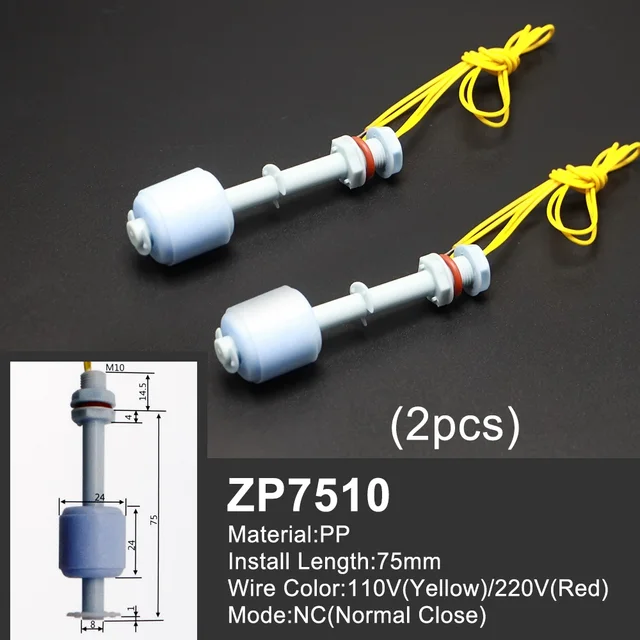

ZP7510

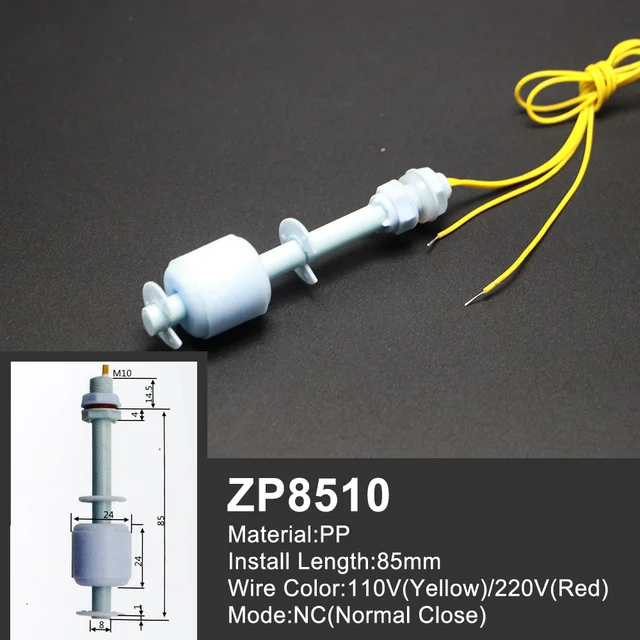

ZP8510

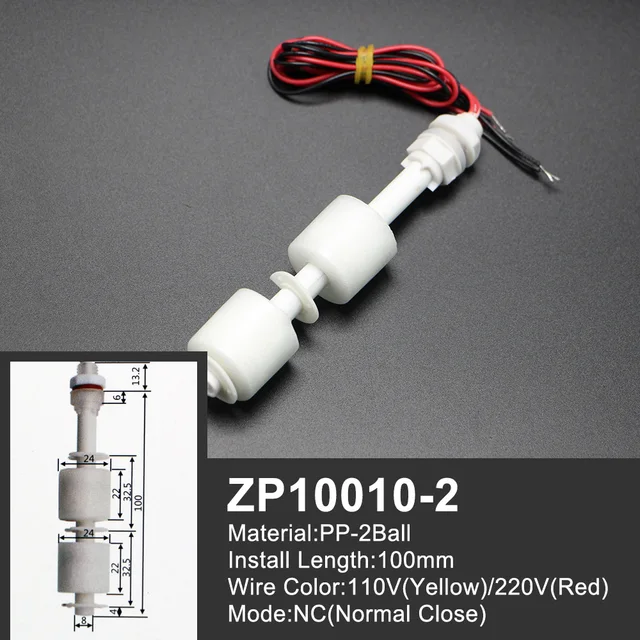

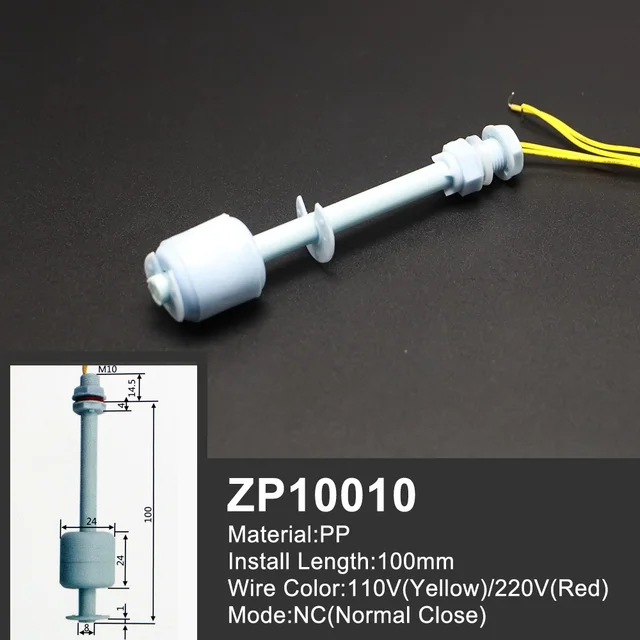

ZP10010











 Choose the one you need.

anymore informations please feel free to ask.



   Date Scan  1A1   2A1   Max Contact Rating  10W  50W  Max Switching Voltage  100VDC  220VDC

 Max Switching Current

 0.5A  1.5A  Max Breakdown Voltage  220VDC  300VDC  Max Carry Resistance  1.0A  3.0A  Max Contact Resistance  100mΩ  100mΩ  Temperature Rating  -10~+85°c  -10~+85°c  Float Ball Material    P.P  P.P  Flat Body Material  P.P+GF  P.P+GF
