Suspension & Steering>>>Automobiles & Motorcycles
Brand Name Орион
Type Rubber Buffer
Item Diameter 110m
Origin RU(Origin)
Item Length 230m
Material Type Rubber
Item Weight 1300kg
Special Features Pneumatic valves with side valve
Color

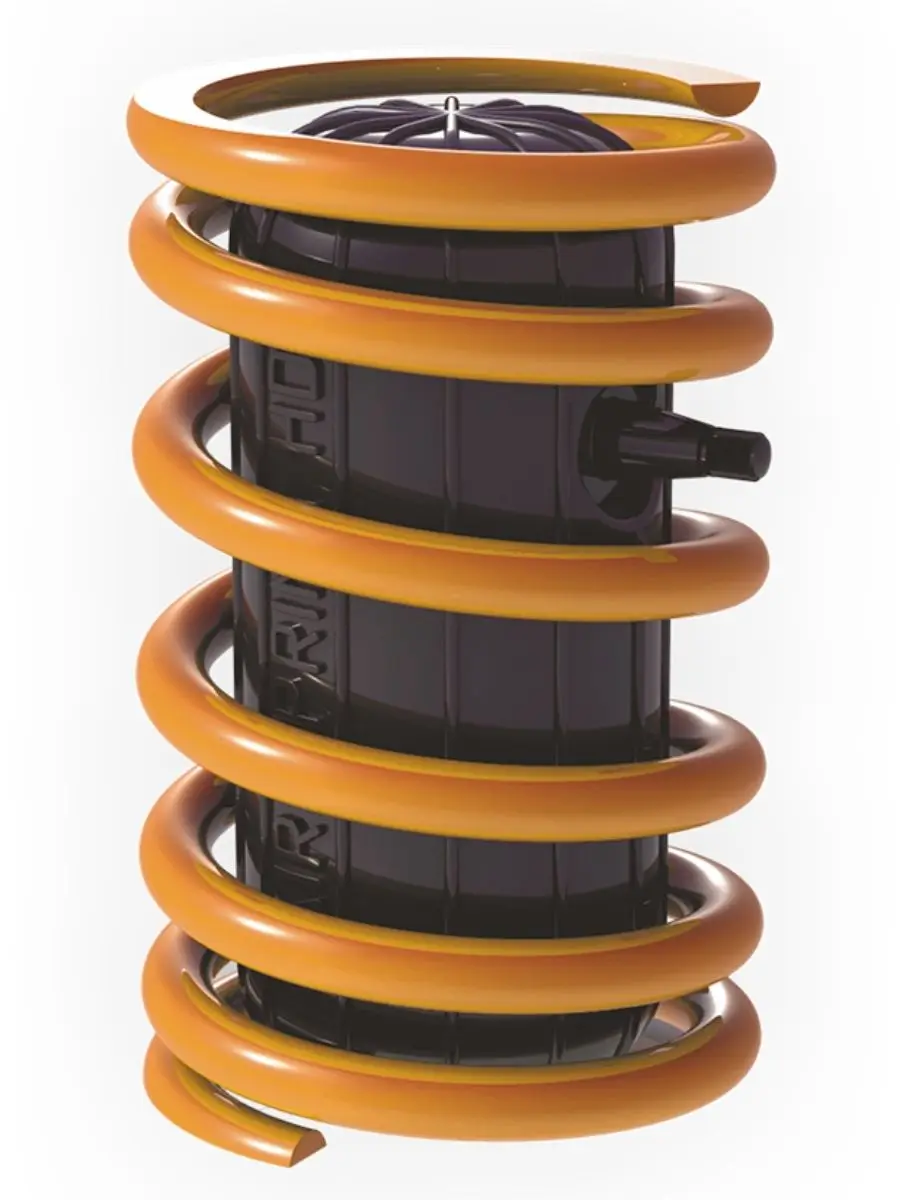

Air Springs in spring size 230*110mm with side nipple (reinforced).
Set: 2 cylinders + 2 flares
The parameters
Included items:Two pneumoballons and two outsiders
The valve:SideWorking pressure: 0,3 to 1,5 ATM
Use temperature:From-55 to + 60 °c
Резиносмесь resistantTo reagents, abrasives and low temperatures.
Warranty: 12 months
Air pads can be used individuallyBy adjusting the required pressure when installed. Installed in Springs in cases where the spring in the suspension is separate from the shock absorber. The kit can greatly improve the control of the car, compensate for increased axle loads and improve comfort when driving.
!!!!! The size of pneumoballon before use may differ +/- 5mm!

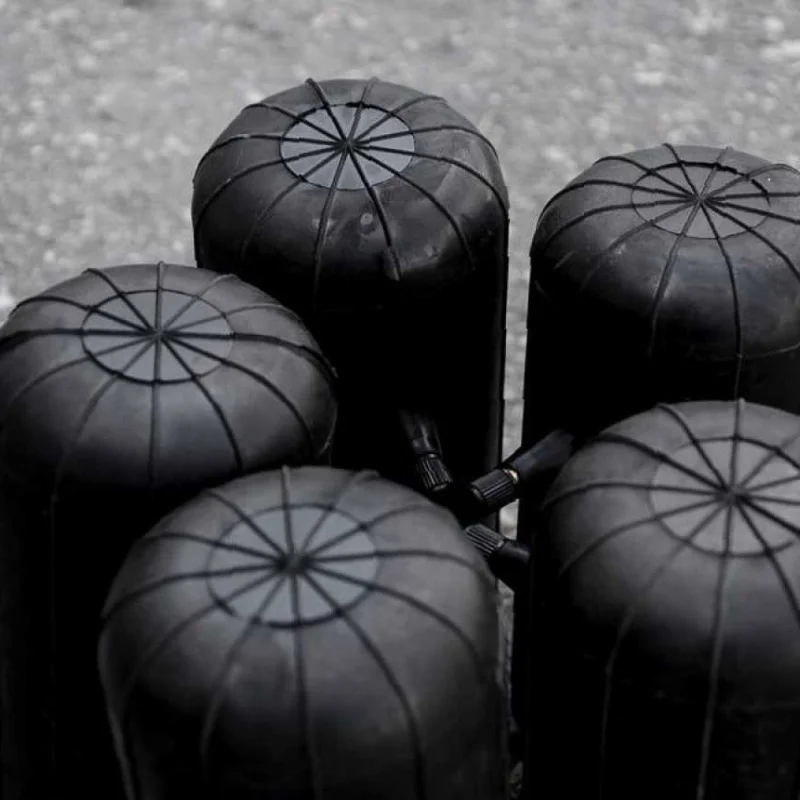

Air Springs-These are air rubber pads (cylinders) that are inserted into the auto spring to strengthen the regular suspension. Manufactured using advanced technology, and combine the maximum strength for rubber and rubber products, increased resistance to loads, friction, and friction. And at optimal pressure, do not give when driving the feeling of excessive rigidity. Pneumoballons can be used exclusively in cars with separate position of spring and shock absorber in rear suspension!
The advantages of
-Increase clearance to 7 cm
-Lower costs for repair and maintenance
-Softness of running and lack of punching
-Load capacity up to + 800 kg
-Protection against creens, clearance adjustment
-Reduce noise and vibration
Recommended installation
Install the suspension compression buffer holes (regular scraps), if necessary (characteristic of its springs) to install additional scraps on the opposite side.
Bleed air

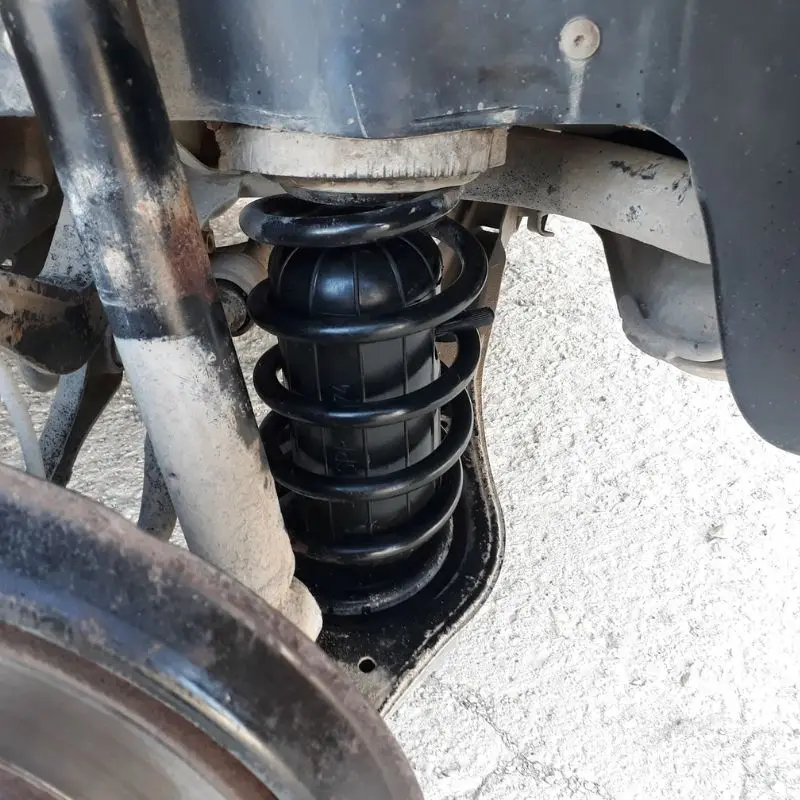

Insert air springs in springs between turns
Lower the car

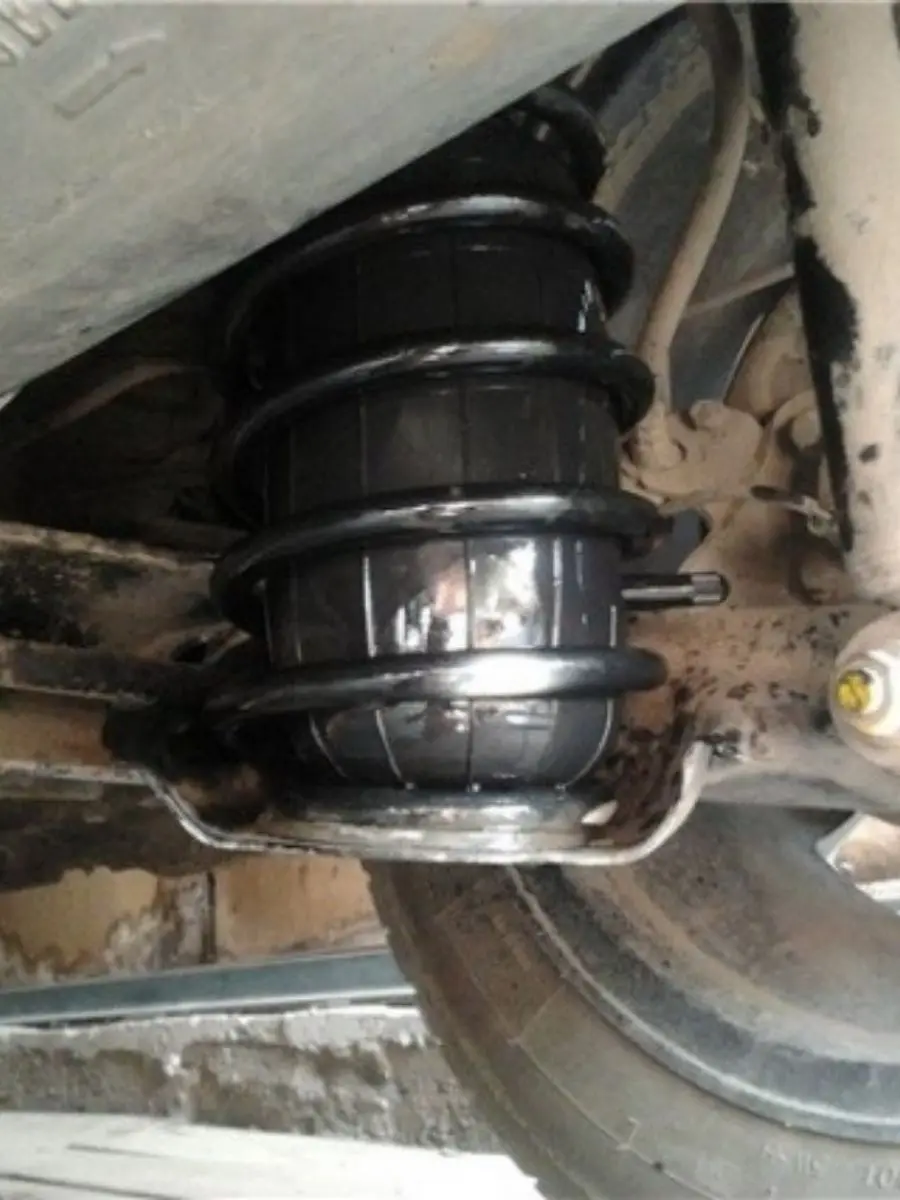

Check the location of the air springs, the nipple should be in the center between the spring turns
Pump Air пневмоподушках-0 4 atmospheres
Turns of springs to clean from dust and dirt
To dismantle (if available) in the inner space of springs of the suspension compression buffers (regular)
Lift the car on the Jack
*Various stretch of pneumoballones due to the features of manual production is allowed.
Maximum working pressure 1.5 ATM, but it may be less (depends on each car from type Spring, the number of turns and the distance between the coils springs). To determine the maximum pressure can be visually on the overpass or by getting to the pit. Pneumoballon should not push between turns beyond spring turns. Also, the valve of the air cushion should be strictly in the middle between the spring turns.
ATTENTION! They may be slightly different!
You can't leave pneumoballons without pressure.
Minimum pressure can be between 0.3 bar
