Car Video Surveillance>>>Automobiles & Motorcycles
Brand Name ZQ
Certification CE
Origin CN(Origin)
Guiding Line Yes
Material Type Abs
Length of Video Cable 6M
Lens Material Glass
Wire or Wireless Wire
Alarm Type Vehicle Backup Cameras
Alarm Type Accessories
Shell Material Plastic
Feature 1 For BMW X1 F48 2018 2019 2020 2021
Feature 2 For BMW X3 F25 2018 2019 2020 2021
Feature 3 For BMW 3 Series F30 F80 F31 F34 2018 2019 2020 2021
Feature 4 For BMW 1 Series(China version) F52 2018 2019 2020 2021
Feature 5 Dynamic trajectory camera/ linear track camera
Pixel 720P 600P
Image sensor MCCD CMOS
Signal mode CVBS
Video format NTSC
Waterproof level IP68
Angle 150-170 degrees
SKU LS308A LS308B LS308D
Color Name
HD Fisheye Lens Rear View Camera for BMW 3 Series F30 F80 F31 F34 2018-2021/ 1 Series(China version) F52 2018-2021/ X1 F48 2018 2019 2020 2021
Important tips:
******************
Dear customers, due to different countries or regions of the same model of the car parts may be different, the purchase must be based on your car license plate lights or the original camera shape and size to decide. If you have any questions, please contact us. Otherwise, we will not bear the responsibility of the product and the original car parts do not match!!!
Reference for suitable car models:
For BMW X1 F48 2018 2019 2020 2021
For BMW X3 F25 2018 2019 2020 2021
For BMW 3 Series F30 F80 F31 F34 2018 2019 2020 2021
For BMW 1 Series(China version) F52 2018 2019 2020 2021
Note:
Due to the system compatibility requirements of the driving recorder, the car rear view camera is not suitable for use with it. If you have any questions, please contact us. Thank you.
Specifications:
LS308B, LS308D
Signal mode: CVBSImage sensor: MCCDVideo format: NTSCPixel: 720PWhite balance: AutomaticViewing angle: 160-170 degreesWorking voltage: DC 12VWaterproof level: IP68Video power cable: 6mWorking temperature(Deg.C): -30 - +80
LS308A
Signal mode: CVBSImage sensor: CMOSVideo format: NTSCPixel: 1024 × 600White balance: AutomaticViewing angle: 150-170 degreesWorking voltage: DC 12VWaterproof level: IP68Video power cable: 6mWorking temperature(Deg.C): -30 - +80 Deg.C

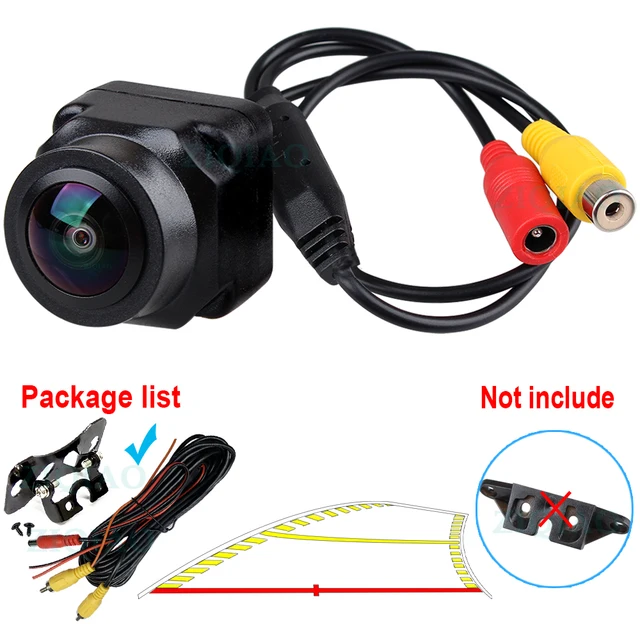

Package list:
1 x Rear view camera,
1 x 6m Video power cable,
1 x User manual.
If you need a filter rectifier, let the video signal output normal. Please click on the pictures below to learn about ordering!
When the engine starts, some German cars and American cars will output voltage interference. The power supply of the reversing lamp is not a pure DC power supply. Due to the very high operating voltage, the camera cannot work normally and the video signal output is not normal, so the host can see that there is serious interference, which can not switch the reversing screen normally.
The differences between linear and dynamic parking guide line
We have two different parking guide lines for you to choose
Static parking line & Dynamic trajectory parking line comparison
Rear View Camera with Static Parking Guide Line Optional

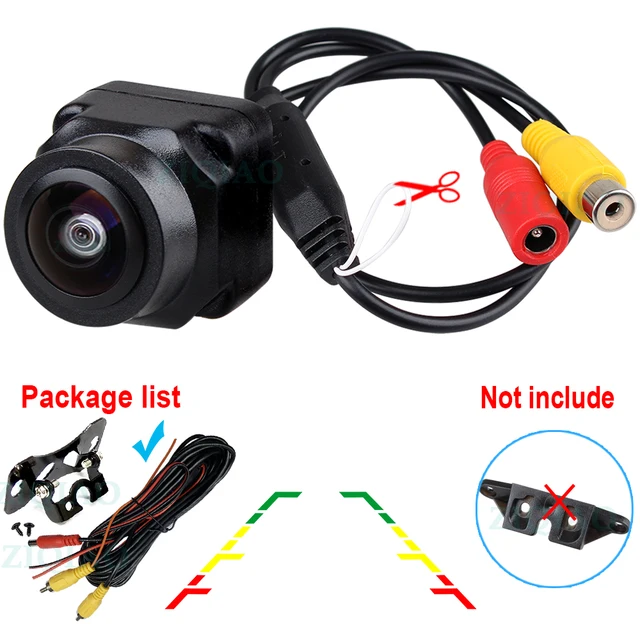

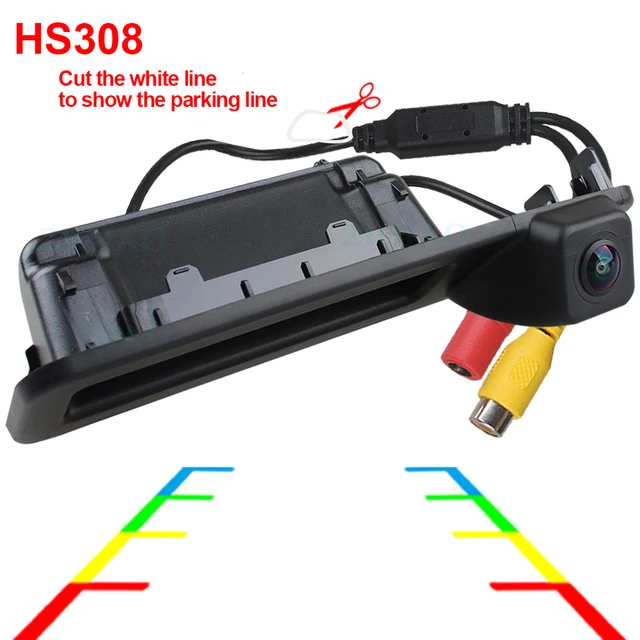

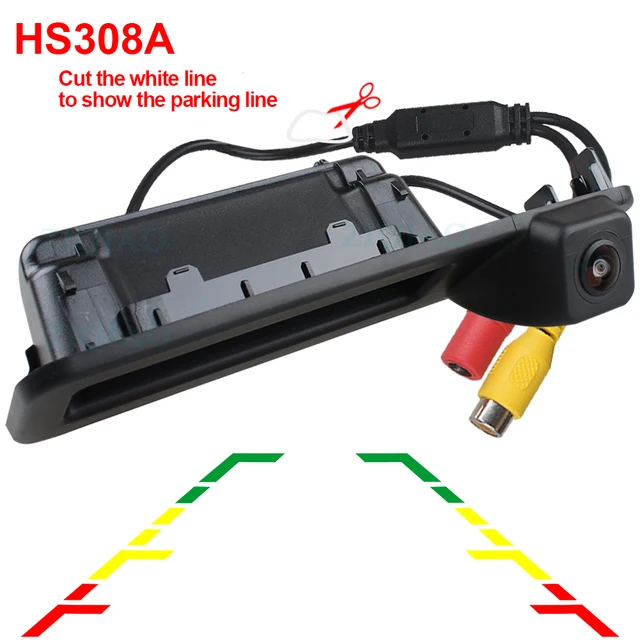

Some monitors have their own parking guide line, which will overlap with the camera's parking guide line and interfere with the line of sight. This camera with switch line design effectively solves this problem.The LS308A, LS308B camera defaults to a rear view camera without parking guide line.. If you need a rear view camera without a parking guide line, do not cut the white wire.. If you need a rear view camera with a parking guide line, cut the white wire.

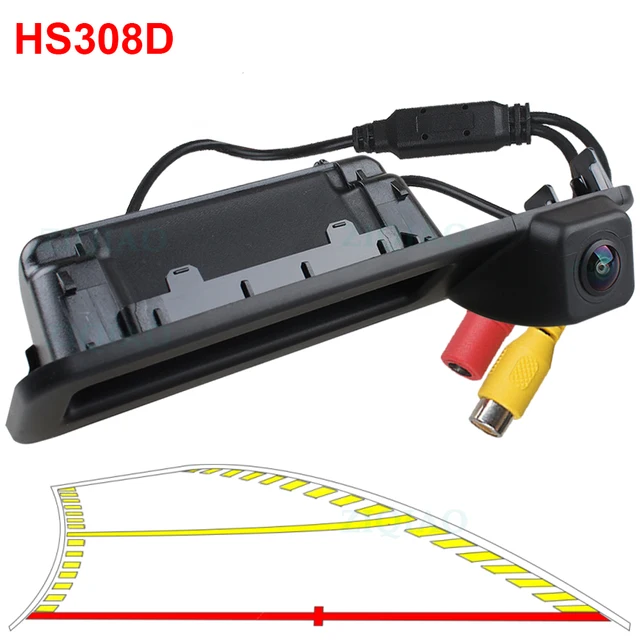

Dynamic Track Rear View Camera LS308D
Dynamic trajectory parking line car rear view camera automatically adjust the angle according to the car's moving position and speed.
Avoid Danger
The HD reverse camera is clearly visible day and night, allowing you to park safely
Product Details
High quality HD chip, HD fisheye lens. Zero-delay, full real-time. Stable signal, the image will not shake.
Wide Angle: 150-170 degrees
Real wide viewing angle, with a wide field of vision. High resolution and wide viewing angle can check the blind spots during the reversing process to ensure your driving safe and avoid accidents.

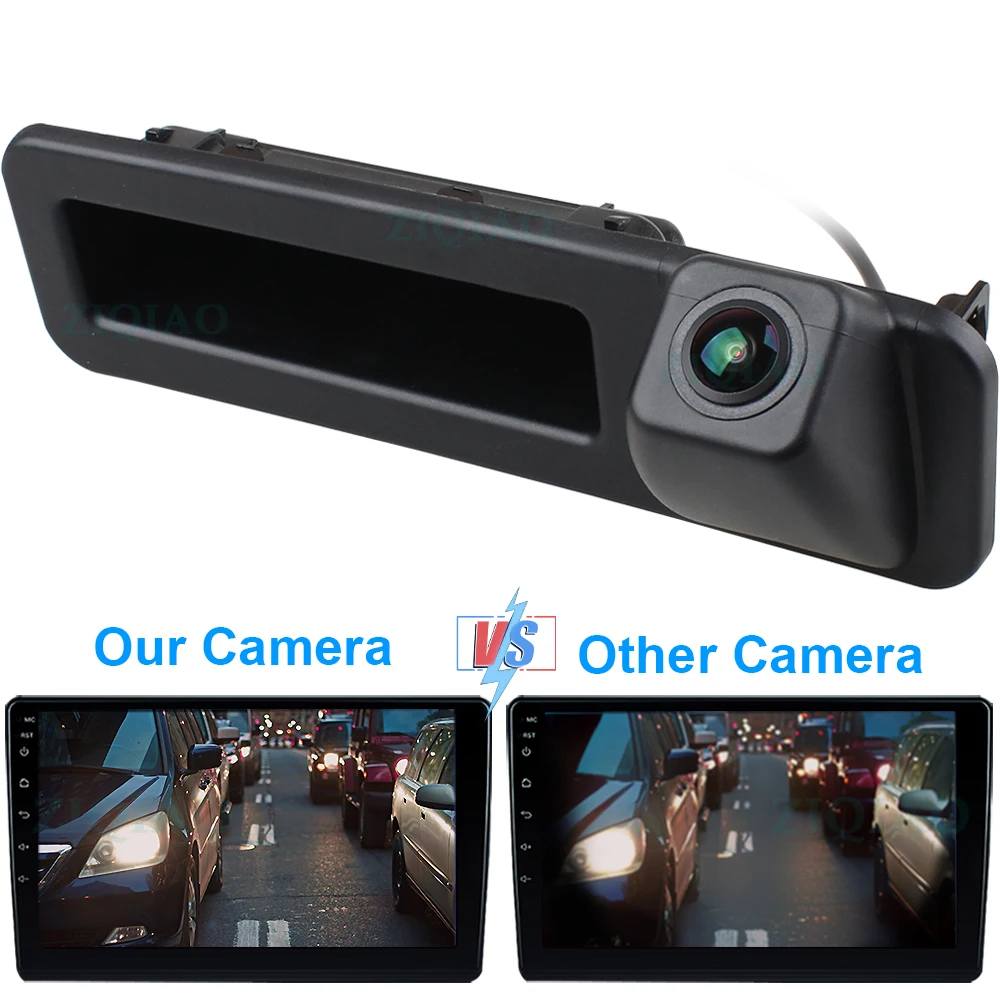

Clear and Comfortable Image
1. Bright color, clear and comfortable image.2. HD night vision rear view camera is clearly visible day and night, allowing you to drive safely.
Product Size
Due to manual measurement, there may be an error of 1-2mm.Please check if the size of the accessories in the following picture matches your car before buying.
Waterproof level: IP68
High waterproof grade, product gaps are all filled with glue so that the rear view camera can work normally under extreme conditions.
If you don't want to use long video cable. We have wireless transmitter and receiver for rear view camera to replace video cable. Click the following picture to order.
Installation Method:
The installation instructions are for reference only. It is recommended that a professional installer install the camera.1. Install the camera in the area of your car's original trunk handle.2. Adjust the lens of the camera to your best position.3. Connect the video output(yellow wire) to the monitor.4. Connect the power cable(red and black) to the power supply of the car's reversing light, while reversing, the reversing monitoring system automatically start working, you can see the condition of the car tail clearly.
If you also need a monitor, you can click the following picture to order.
