Origin CN(Origin)
Certification CCC
Certification ROHS
Continuous Current(A) 550mA
Commutation Brush

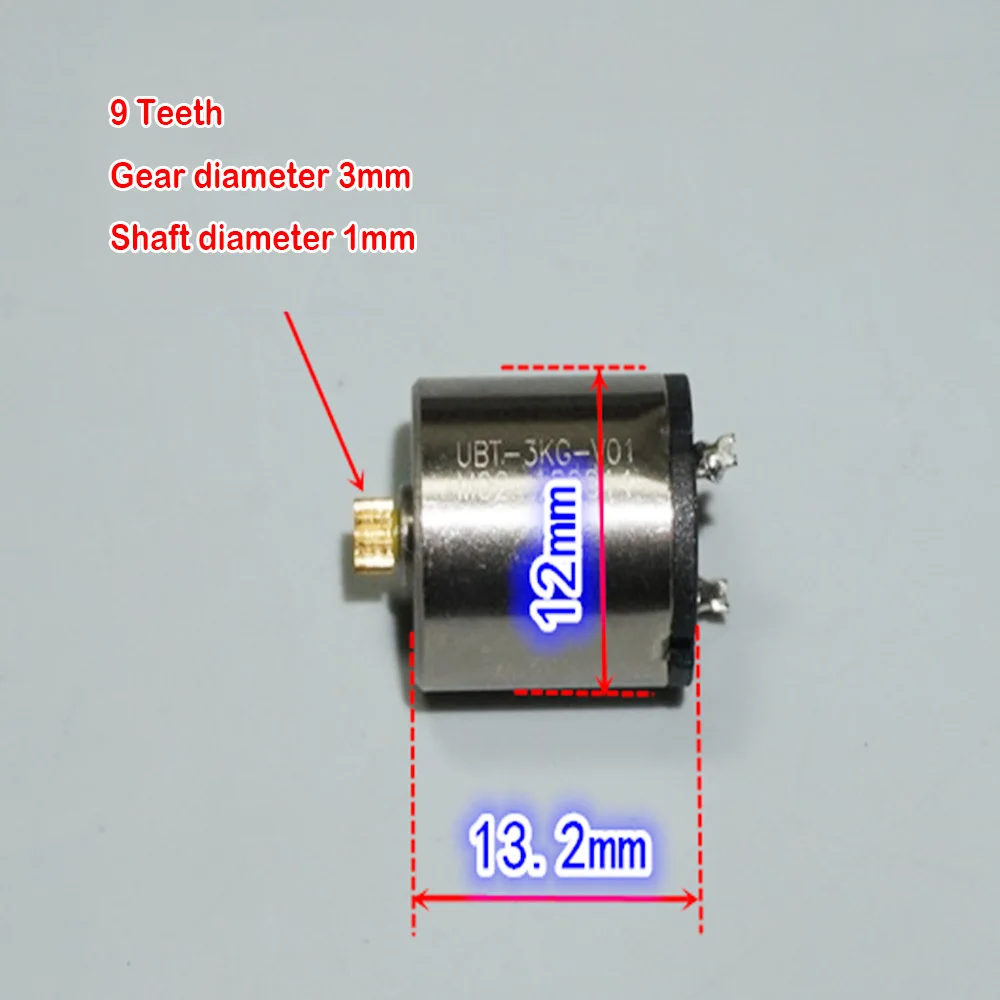

Model Number 12mm Coreless Motor
Type Micro Motor
Protect Feature Drip-proof
Construction Permanent Magnet
Usage Home Appliance
Efficiency IE 1
Speed(RPM)
Motor without Board
Motor with Board

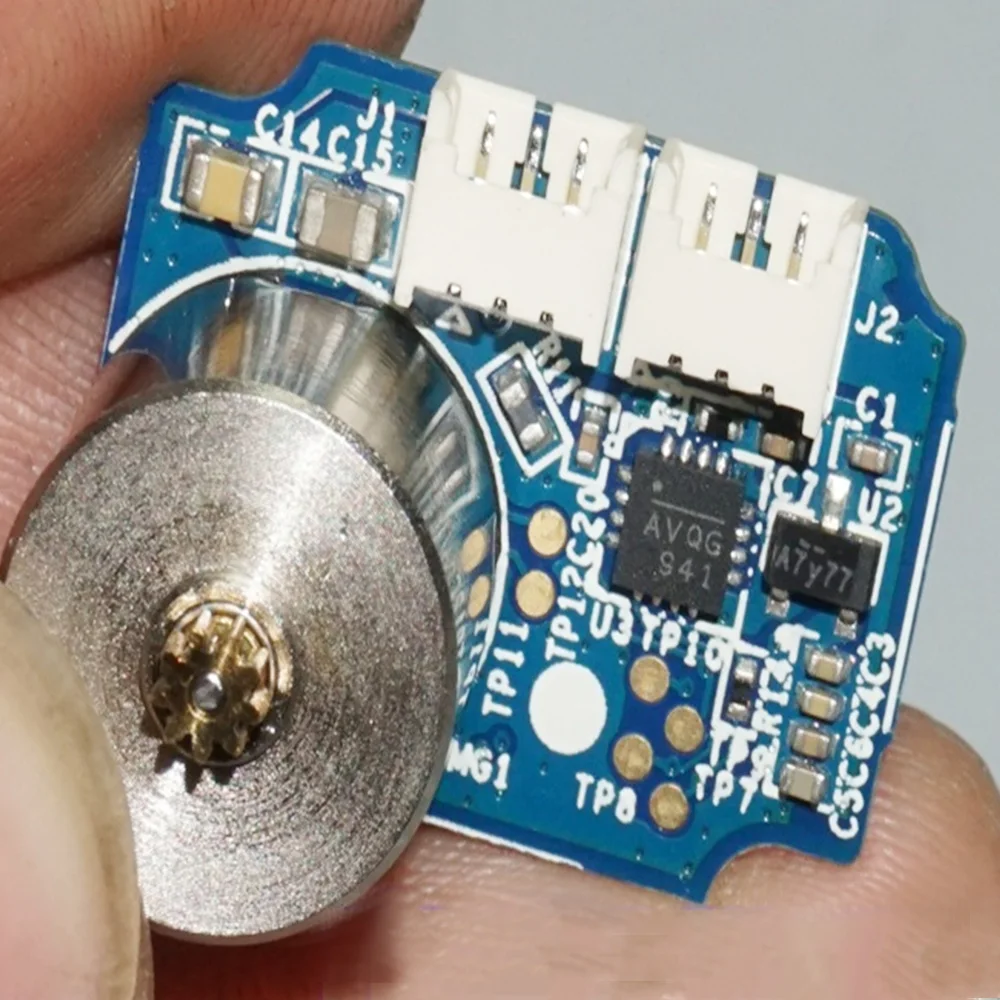

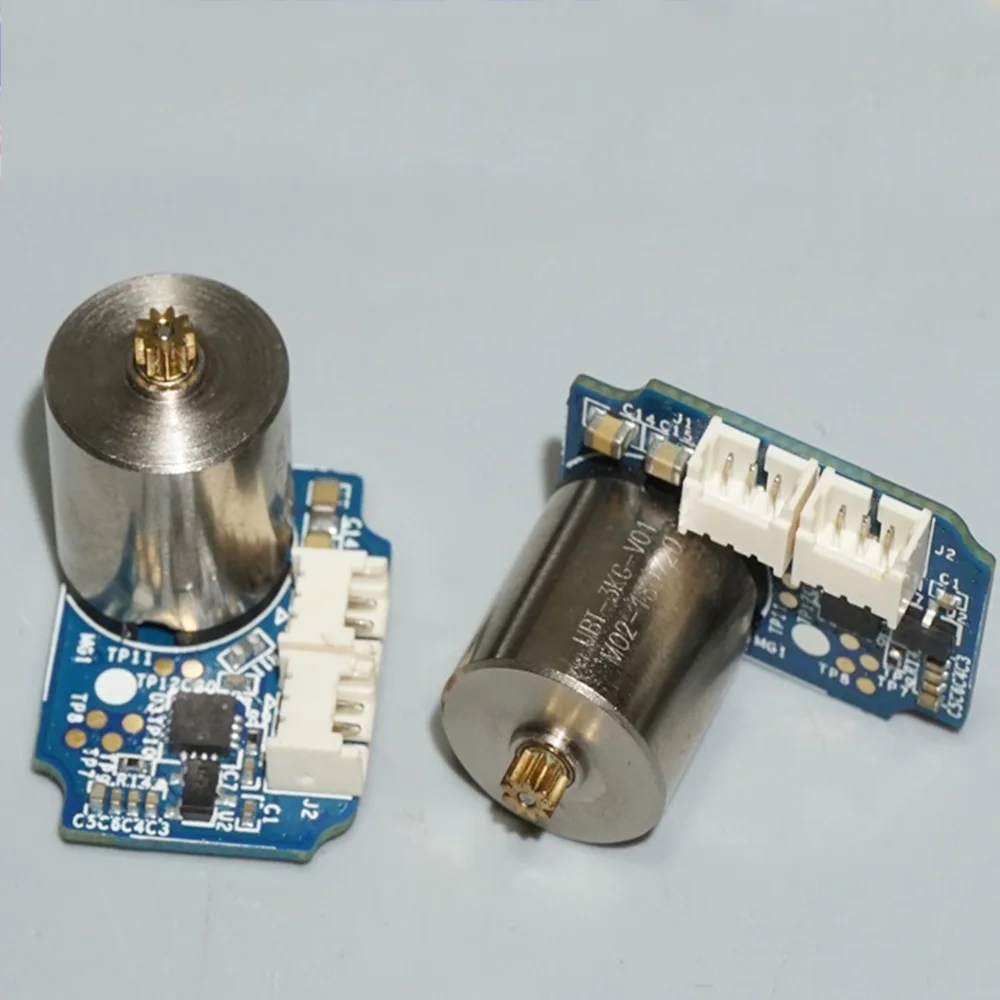

Specification:Stock 12mm hollow cup neodymium strong magnetic high-speed motor,It was originally the drive motor in the high-end robot joint servo,The motor comes with a bus steering board,The material of this driver board is relatively advanced,With Hall magnetic encoder,Originally used in more high-end robots,The driver board currently does not understand how to use it,The driver is not good or bad,The waterproof labels on some motherboards may be in stock for a long time and the storage environment is not good. The labels are a bit red.The appearance of the motherboard motor is very good,When a 12mm hollow cup motor is sold,Very good value.-------------------------------------------------Test data:Voltage 3V, no-load current 5mA, Install current 210mA, no-load speed 7800RPMVoltage 5V, no-load current 6mA, Install current 350mA, no-load speed 13000RPMVoltage 8V, no-load current 9mA, Install current 550mA, no-load speed 21000RPM-------------------------------------------------Weight: 6gPackage Include:1PCS
