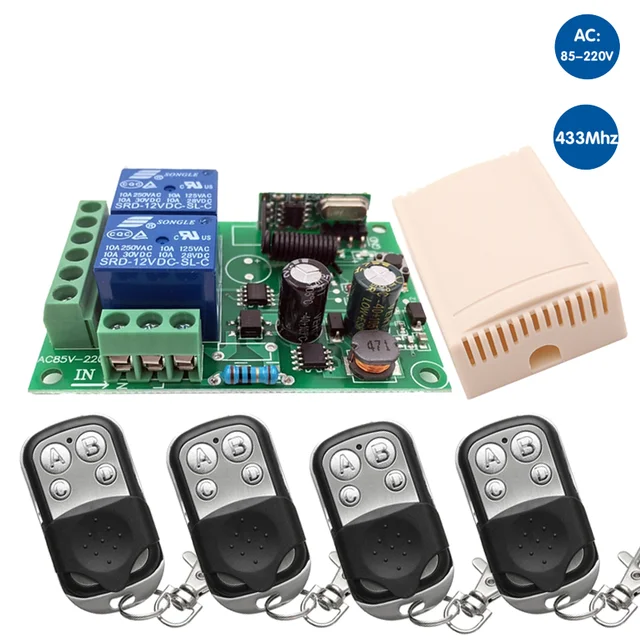

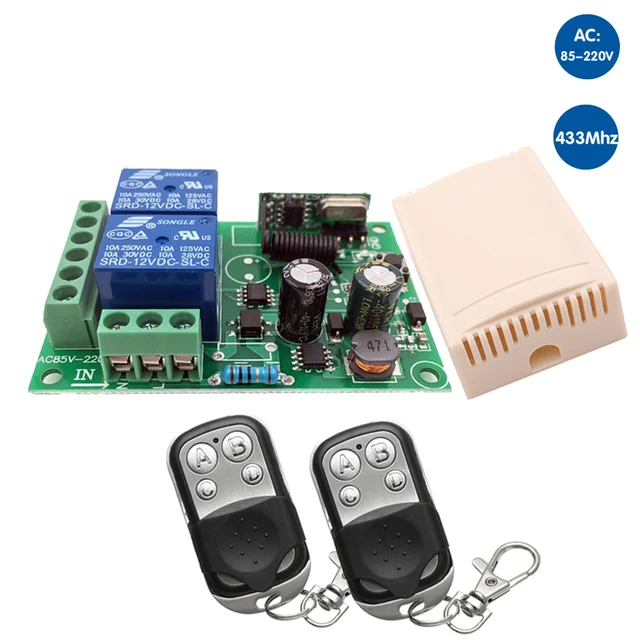

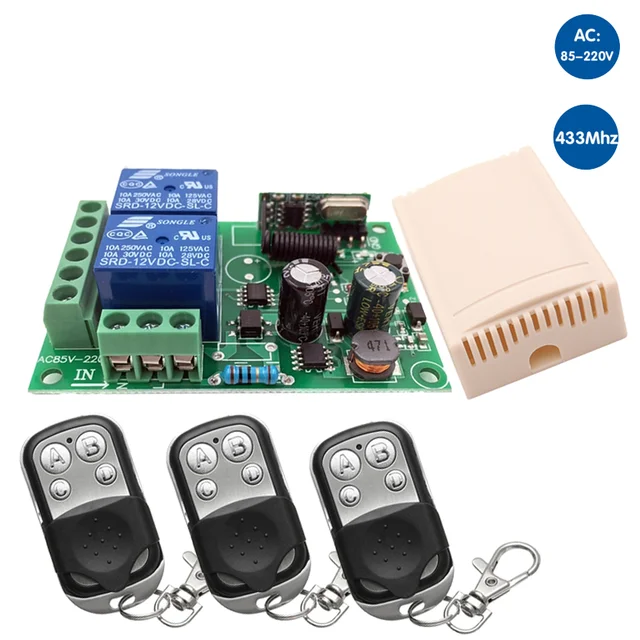

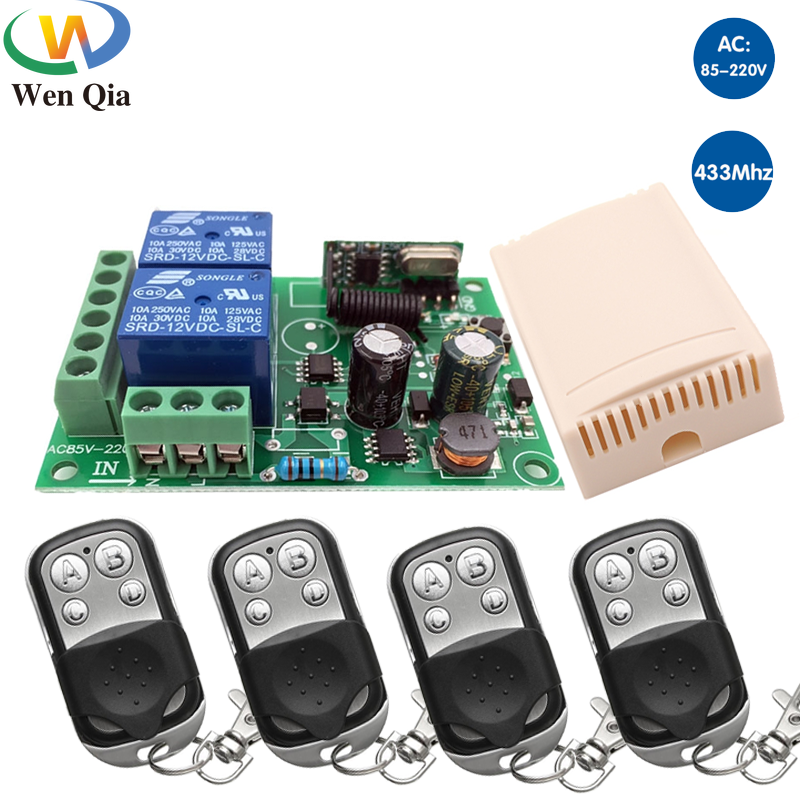

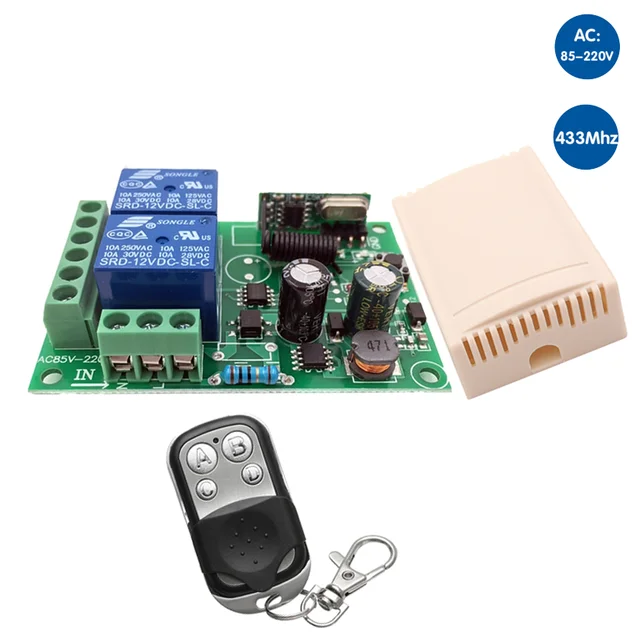

Universal Wireless Remote Control 433MHz AC220V 2CH RF Relay Receiver and Transmitter for Universal Garage door and gate Control

Remote Controls>>>Consumer Electronics

Brand Name WenQia

Use Universal

Use Lighting

Use Electric Door

Use Automated curtains

Use SWITCH

Certification CE

Certification RoHS

Origin CN(Origin)

Wireless Communication RF

Support APP No

Channel 2

Package Yes

Frequency 433 MHz

Model Number 2202+KT1527 , garage door ,car trunk controller.

Working Voltage AC 85V~250V

Input Voltage 1V-250V

Output Voltage 1V-250V

Max current 10A

Max load 2200W

Quiescent Current 5mA

RF frequency 433MHz

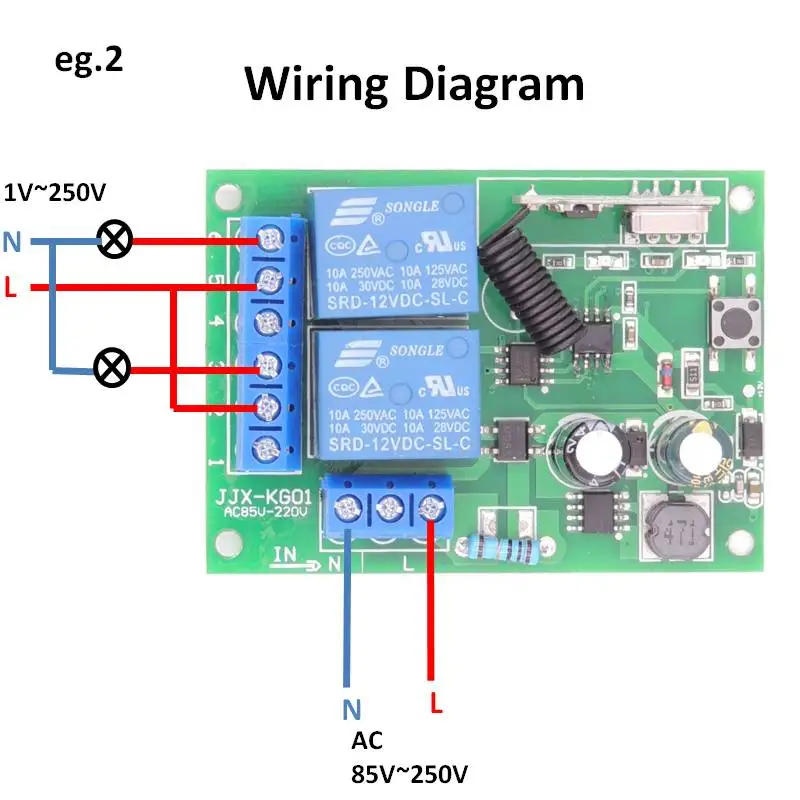

Pin NO / COM / NC

Working temperature -30~+80

Receiving Sensitivity 97dbm

Amount of storage remote controls 25 pieces

Support encoding 1527 Leaning code/2262 fixed code

RF Operating mode ASK superheterodyne wireless reception

Receiving range Open space is more than 50 meters

Remote operating mode Momentary / Toggle/ Latched/ Delay Mode

Application scenario Family, Farm, Factory, Office, Supermarket

Application2 Garage,Motor, Light, Automated curtains, Fan, Door, Gate, LED, Lamps

Color



AC85~250V 10A 2200W 2CH Remote Control Switch Wireless Relay Receiver for rf 433MHz Remote Garage Lighting Electric Door switch

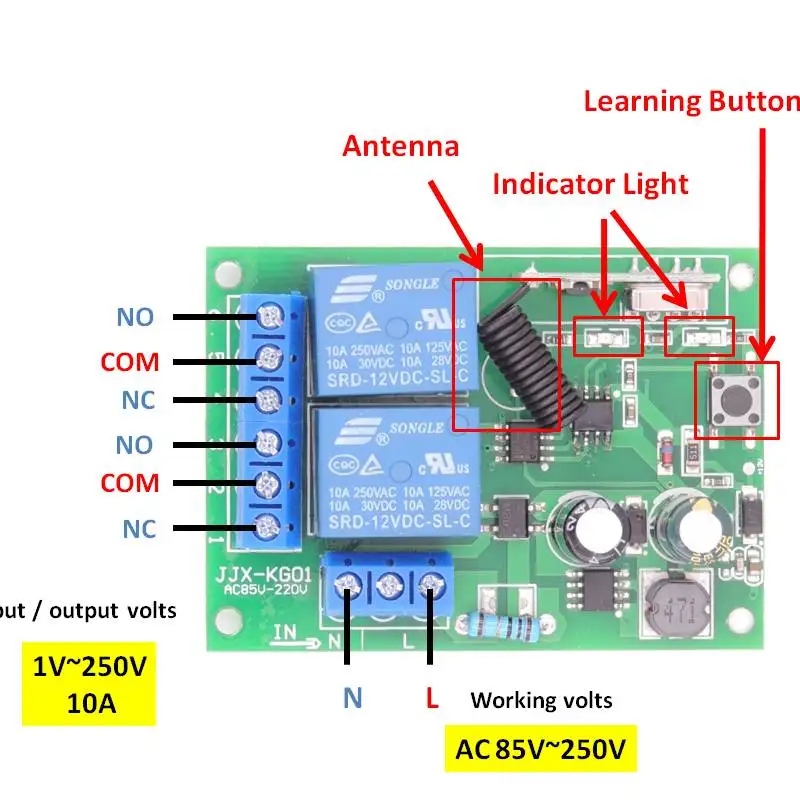

Relay Receiver Board Parameter

Working voltage  :  AC 85V~250V Input vlotage  :  1~250V Output vlotage  :  1~250V Quiescent Current  :  <5MA Max current  :  10A Max load:   2200W RF frequency  :  433MHz Pin  :  NO / COM / NC Working temperature  :  -30~+80 Receiving Sensitivity  :  >97dbm Amount of storage remote controls  :  25 pieces Support encoding  :  1527 Leaning code /2262 fixed code RF Operating mode  :  ASK superheterodyne wireless reception Receiving range  :  Open space is more than 50 meters Remote operating mode   : Momentary Mode / Toggle Mode / Latched Mode

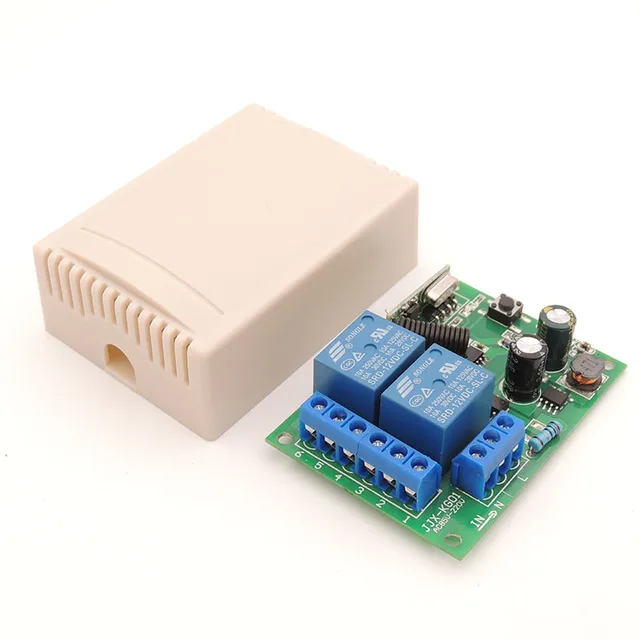

Product Video On Youtube : https://youtu.be/QmaGs1raXtk  Product Application Area Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on. Remote control garage door \  Electric door \ house door \ shutter door \ expansion door \ gate door \ road gate Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission Remote control motor positive and negative rotation \  motor switch \ DIY If you have any questions, please feel free to contact us. Package include Relay Reciever Board (with shell) Remote Control (with battery) Product Manual



Working Modes You can set up in 3 modes: Momentary mode,Toggle mode and Latched mode. Momentary mode: Press and hold A button,this relay will work;Release A button,this relay will stop. Toggle mode: Press A button,the relay will work;press A button again,this relay will stop. Latched mode: Press A button,the relay will work;press B button again,this relay will stop,second relay will work. How to Set up Momentary mode: Press learning button once,press A button once,succeed. Toggle mode: Press learning button twice,press A button once,succeed. Latched mode: Press learning button 3times,press A button once,succeed. Clean data: Press learning button 8times,the data will be cleaned.All remotes cannot control this receiver.



On this products details page, there is a demonstration video available.   *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
