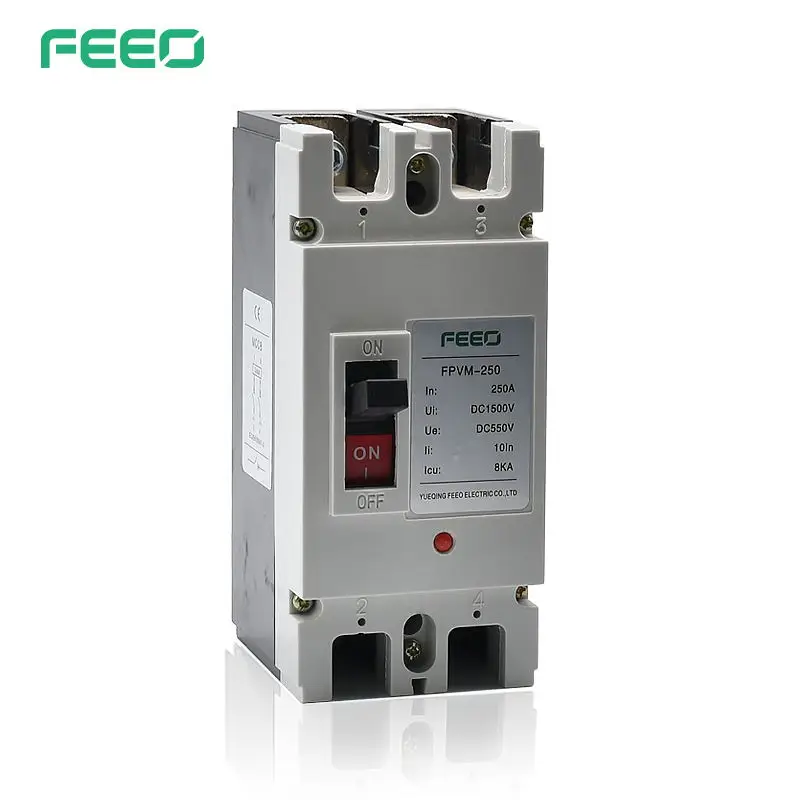

FEEO FPVM Moulded Case Circuit Breaker Switch 2P 550V 160A 200A 250A DC MCCB

Circuit Breakers>>>Home Improvement

Brand Name FEEO

Type Mini

is_customized Yes

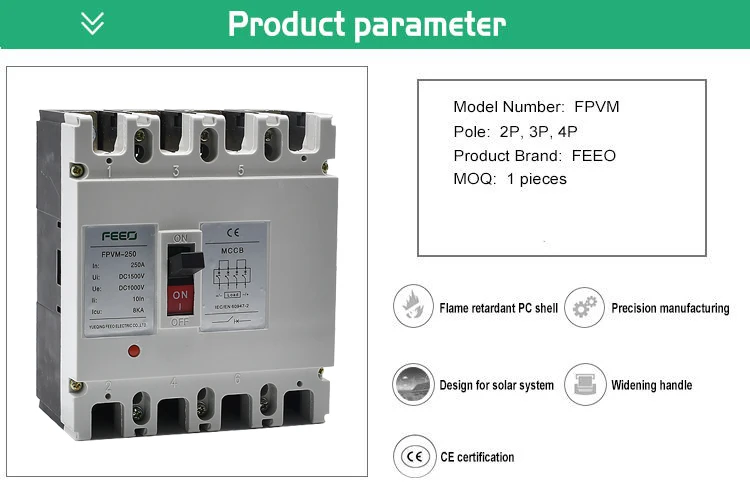

Model Number FPVM

Type Moulded Case

Certificate CE/ISO9001

Another name Moulded Case Circuit Breaker

Breaking capacity 15KA

Mechanical Life 7000 Times

protection degree IP20

Material Plastic,Cooper

Rated Current

160A

200A

250A

FEEO FPVM Moulded Case Circuit Breaker Switch 2P 550V 160/200/250A DC MCCB

DC MCCB Application:

​FPVM series Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 1250A or less,direct current rating voltage 1500V or less.Products according IEC60947-2, GB14048.2 standard.

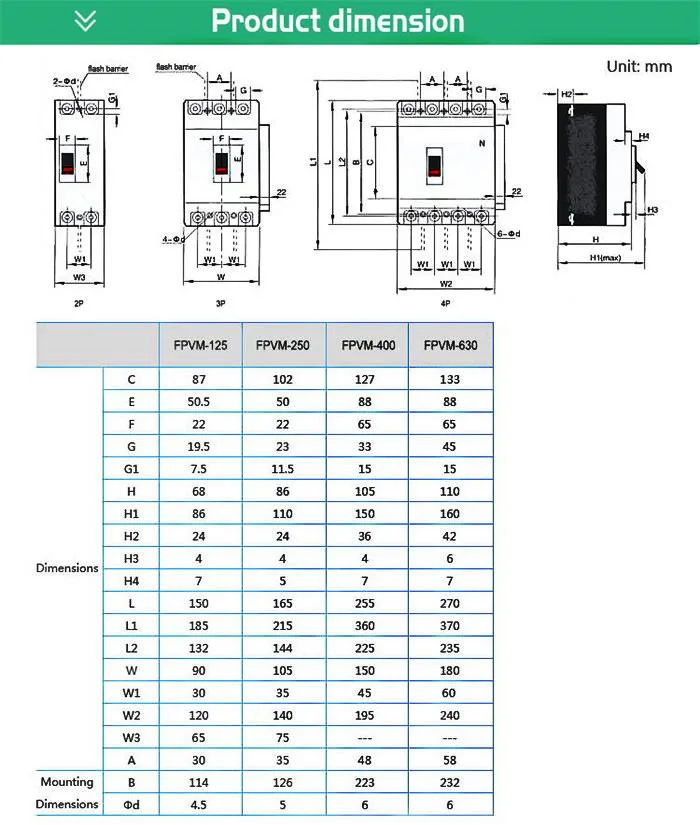

DC MCCB Parameters: Model   FPVM-125 FPVM-250 FPVM-400 FPVM-630 FPVM-800 FPVM-1250 Rated Current ln (A)   16, 20, 25, 32, 40, 50, 63, 80,  100, 125 100, 125,  140, 160, 180, 200, 225, 250 250, 315, 350, 400 400, 500, 630 630, 700, 800 800, 1000, 1250 Rated Operating Voltage Ue (V) DC   500V, 550V, 750V, 1000V Rated Insulation Voltage Ui (V)   1000V  1000V  1500V 1500V 1500V 1500V Uimp (kV)    8kV Breaking Capacity (kA) Icu (1cs=75% Icu) 250V 35 50 50 50 65 65 500V 25 35 35 35 50 50 750V 15 25 25 25 35 35 1000V 10 15 15 15 20 20 Mechanical Life Times 7000 7000 4000  4000  2500 2000 Breaking Times (ms)   20 Detailed Images
