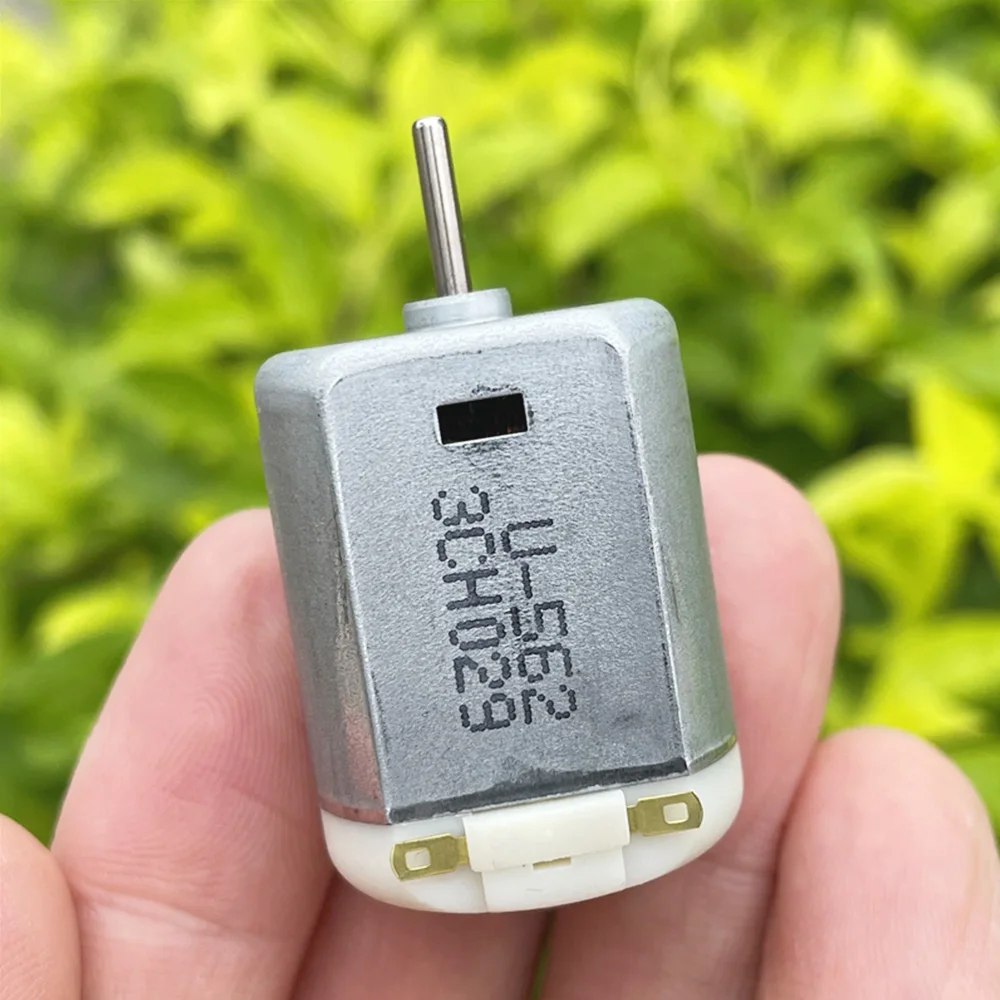

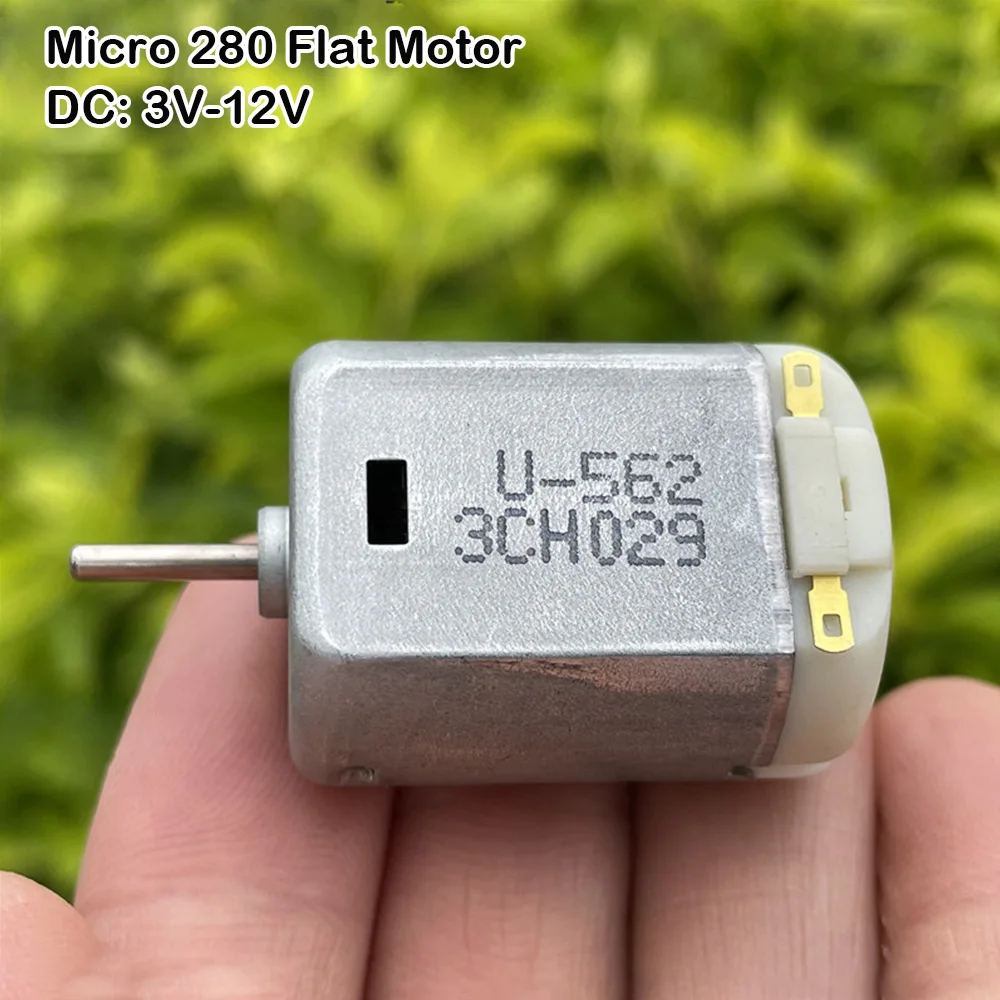

DC 3V-12V 3.7V 6V 9V 11000RPM Motor 280-16170 High Speed Carbon Brush Strong Magnetic 280 DC Motor Electric Toy Car Boat Model

Motors & Parts>>>Home Improvement

Origin CN(Origin)

Certification CCC

Certification ROHS

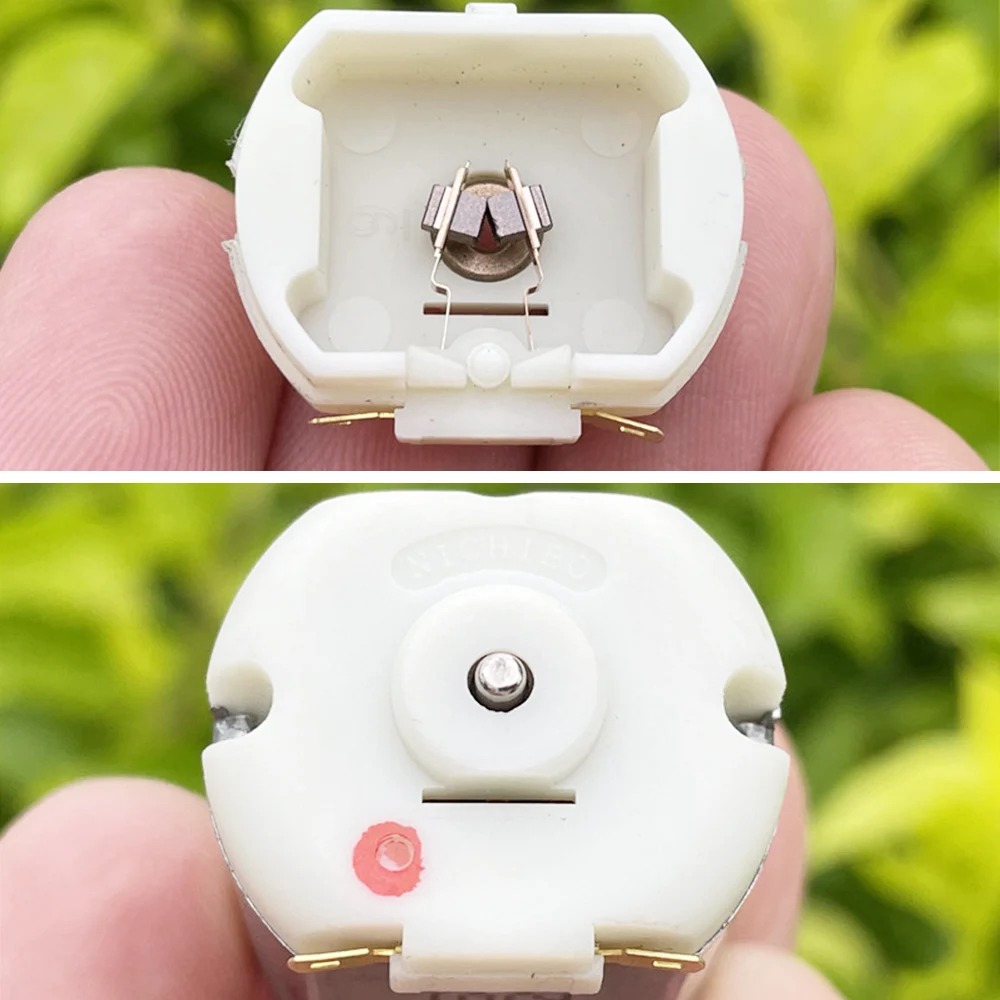

Commutation Brush

Model Number 280-16170

Type Micro Motor

Protect Feature Explosion-proof

Construction Permanent Magnet

Usage Home Appliance

Efficiency IE 1

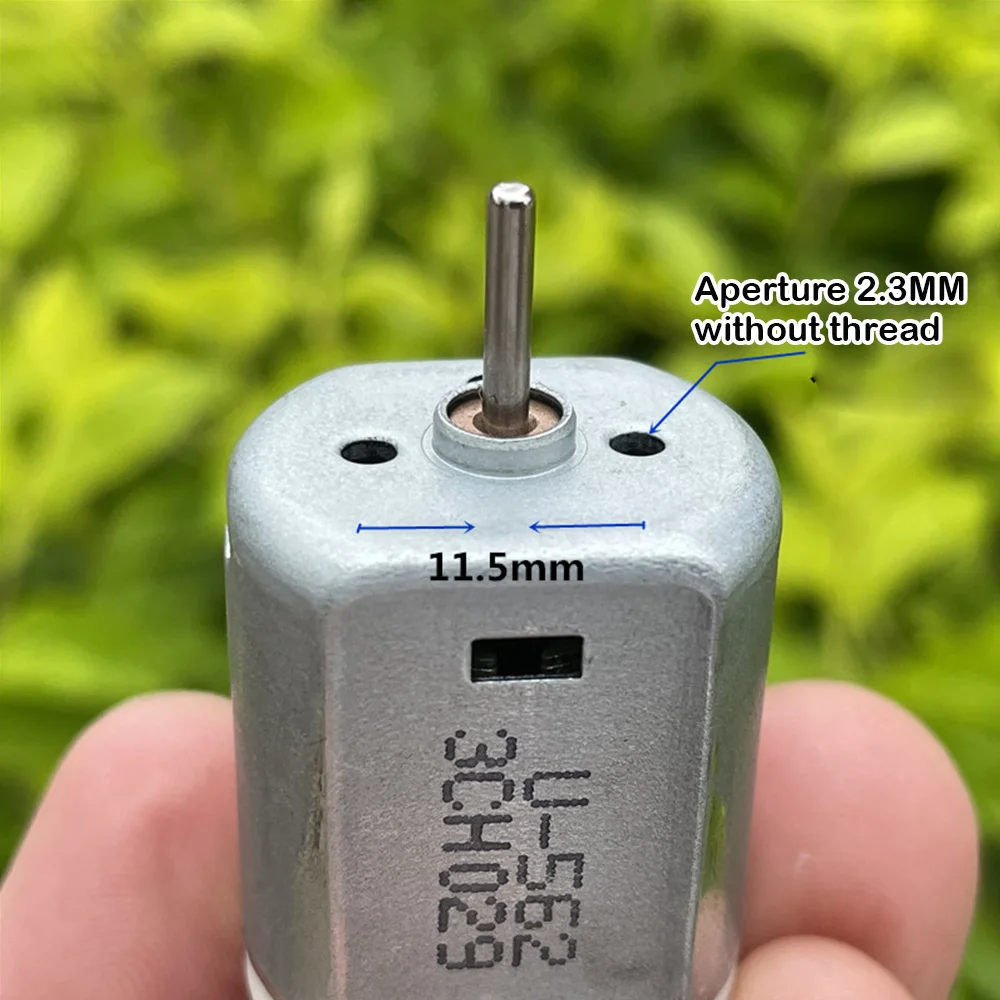

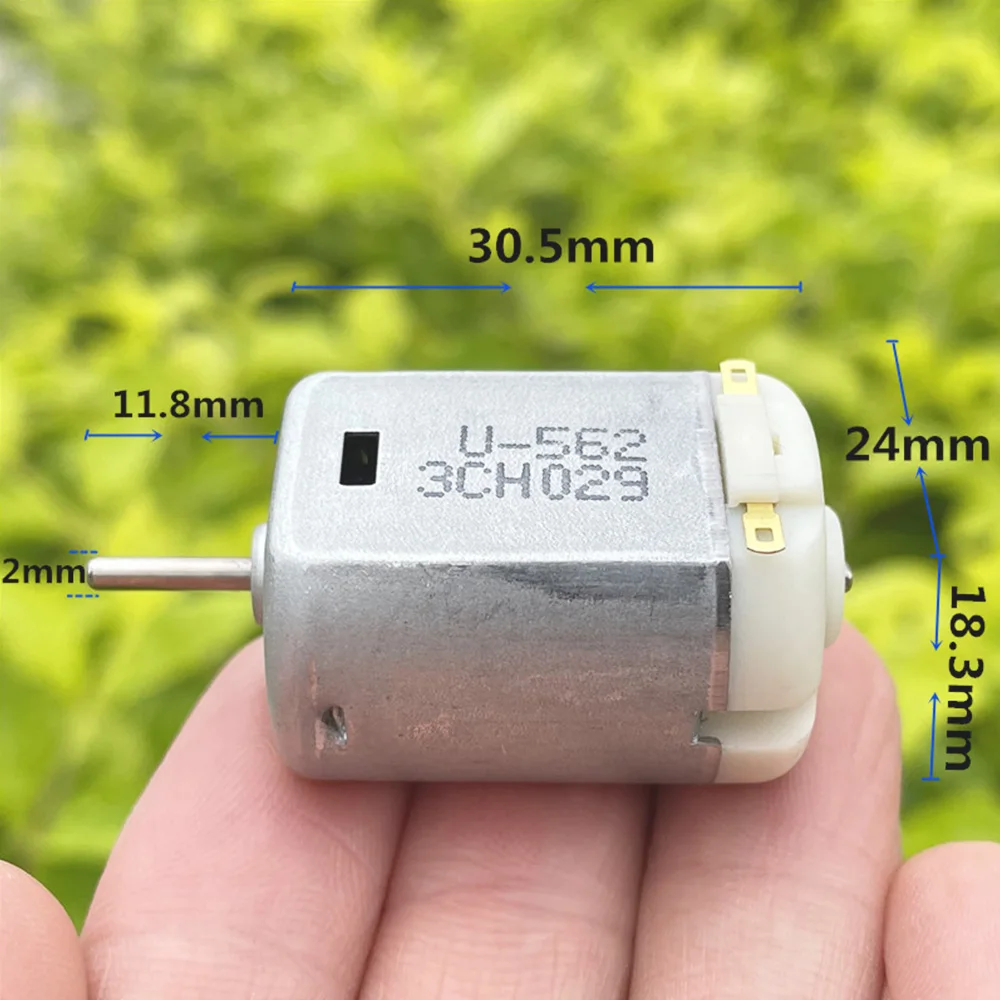

Output Shaft Diameter 2.0mm

Output Shaft Length 11.8mm

Voltage DC 3V-12V

Specification

Brand: NICHIBO MotorModel: 280-16170Output Shaft Diameter: 2.0mmOutput Shaft Length: 11.8mmWeight: 40gVoltage: 3.0V-12V

Test data

Voltage: 3.0V   No-load Speed: 2600RPM  No-load Current: 42mAVoltage: 6.0V   No-load Speed: 5400RPM  No-load Current: 48mAVoltage: 9.0V   No-load Speed: 8200RPM  No-load Current: 55mAVoltage: 12V   No-load Speed: 11000RPM  No-load Current: 65mA

Package Include

Motor x 1PCS
