Car Intelligent System>>>Automobiles & Motorcycles
Brand Name ATOTO
Origin CN(Origin)
Din Double Din
Certification CE
Display Size 7"
Out Power 2v
Max External Memory 512GB
Operating System Android 10.0 OS
Digital Media Format Mp3
Digital Media Format Mp4
Digital Media Format JPEG
RAM 3g
Material Type 5-Touch Capacitive Touchscreen
TF/Micro SD Slot 1
Resolution 1024*600
Item Weight 1.96kg
Special Features bluetooth
Special Features Built-in GPS
Special Features Charger
Special Features FM Transmitter
Special Features Mobile Phone
Special Features MP3 Players
Special Features Radio Tuner
Special Features Touch Screen
Special Features TV
Special Feature Built-In Speaker/Microphone
Special Feature Wifi Function
Special Feature Support Steering Wheel Control
Special Feature Support 3G Network
Special Feature Support 4G Network
Special Feature Support Can-Bus
For Vehicle Brands/Model universal
Voltage 12V
Item Size 173*97mm
ROM 32G
Model Name AE-S8G2B74PM-X
Interface 3
OSD Language Chinese (Simplified)
OSD Language Arabic
OSD Language POLISH
OSD Language German
OSD Language Russian
OSD Language French
OSD Language Korean
OSD Language Dutch
OSD Language Portuguese
OSD Language Japanese
OSD Language Thai
OSD Language Turkish
OSD Language Ukrainian
OSD Language Hebrew
OSD Language Greek
OSD Language Spanish
OSD Language Hungarian
OSD Language Italian
OSD Language Indonesia
OSD Language english
OSD Language Vietnamese
Speed Compensated Volume Control SCVC
6 touch gestures 2-fingers/3-fingers tap
9 EQ modes 32 adjustable frequency bands
Dual Bluetooth BT1 5.0 & BT2 4.1
Mounting style UDH07D
SoC Chip UNISOC 7862 ARM Cortex Octa-Core (up to 1.8GHz)
DSP / Pre-Amplifier Built-in Max 4*49W BTL Amplifier
Phone Integration Link CarPlay & Android Auto Connection
Split Screen Display yes
GPS/Navigation Built-in/install Waze, Tomtom, HereWeGo
Ships From
China
United States
Australia
Italy

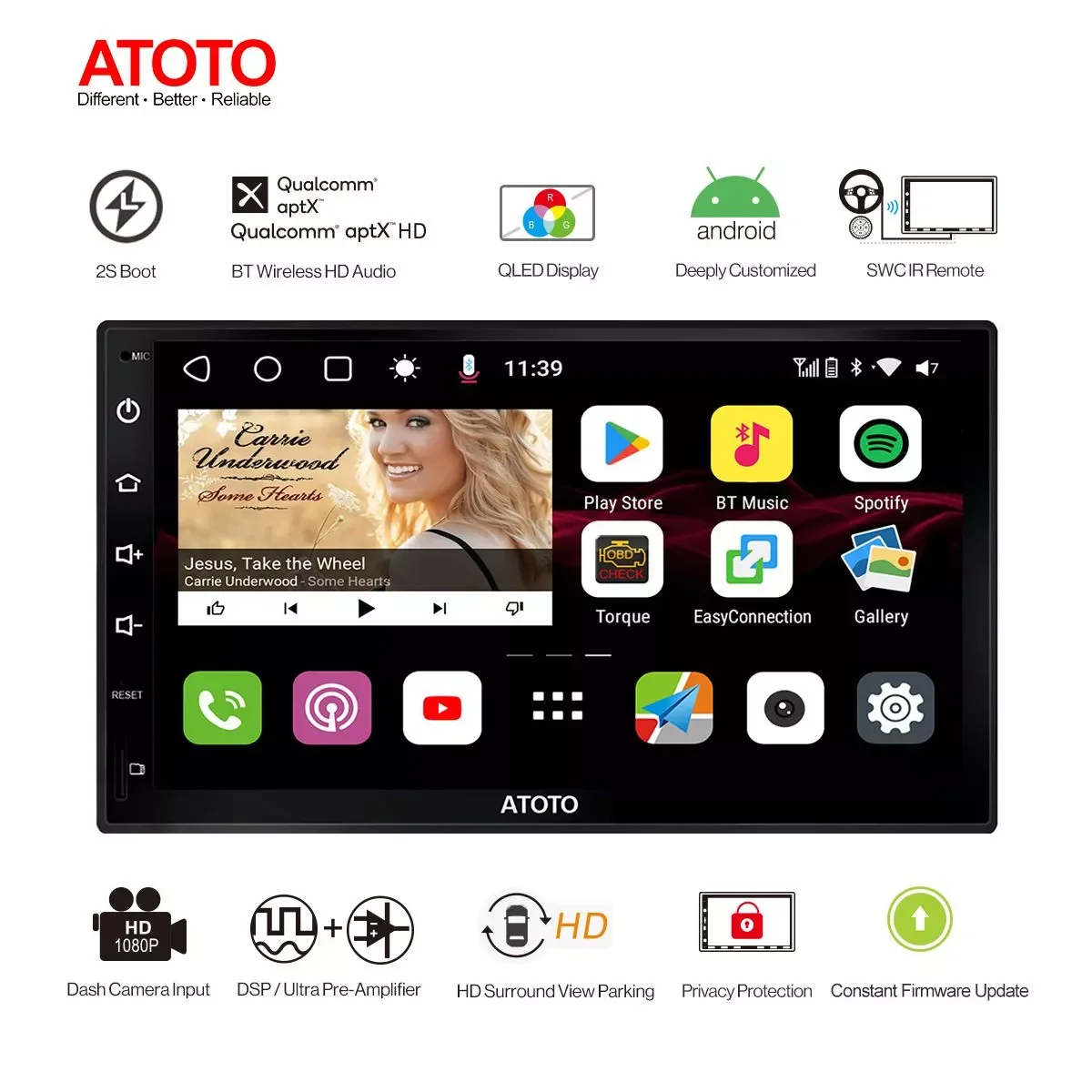

ATOTO S8 Premium Android Car Stereo system - Your Versatile Driving CompanionProduct Information
Product Version:S8 Premium (Gen2); Model No: AE-S8G2B74PM-X (3GB/32GB); Mounting style:UDH07D(Double-DIN Adaptive Head-unit of 7-inch Display); This model adopts the touch panel.
System Information. SoC Chip: UNISOC 7862 ARM Cortex Octa-Core (up to 1.8GHz) CPU with ARM Mali-G52 MP2 GPU, advanced 12nm manufacturing process. System Version:ATOTO AICE UI 11.0, which is developed & customized based on Android Q(10.0); System Language: English, German, French, Italian, Spanish, Portuguese, Japanese, Russian, Arabic, Polish, Korean, Dutch, Thai, Turkish, Ukrainian, Hebrew, Greek, Hungarian, Indonesian, Vietnamese and Chinese.
DSP / Pre-Amplifier: Built-in Digital Signal Processor allows you to set precise equalization, signal delay, bass boost, bass filter. Preset 9 EQ Modes, and 32 adjustable frequency bands (16 bands for front and 16 for rear). Built-in Max 4*49W BTL Amplifier with RMS 4*29W (Vcc=14.4v, THD=10%);

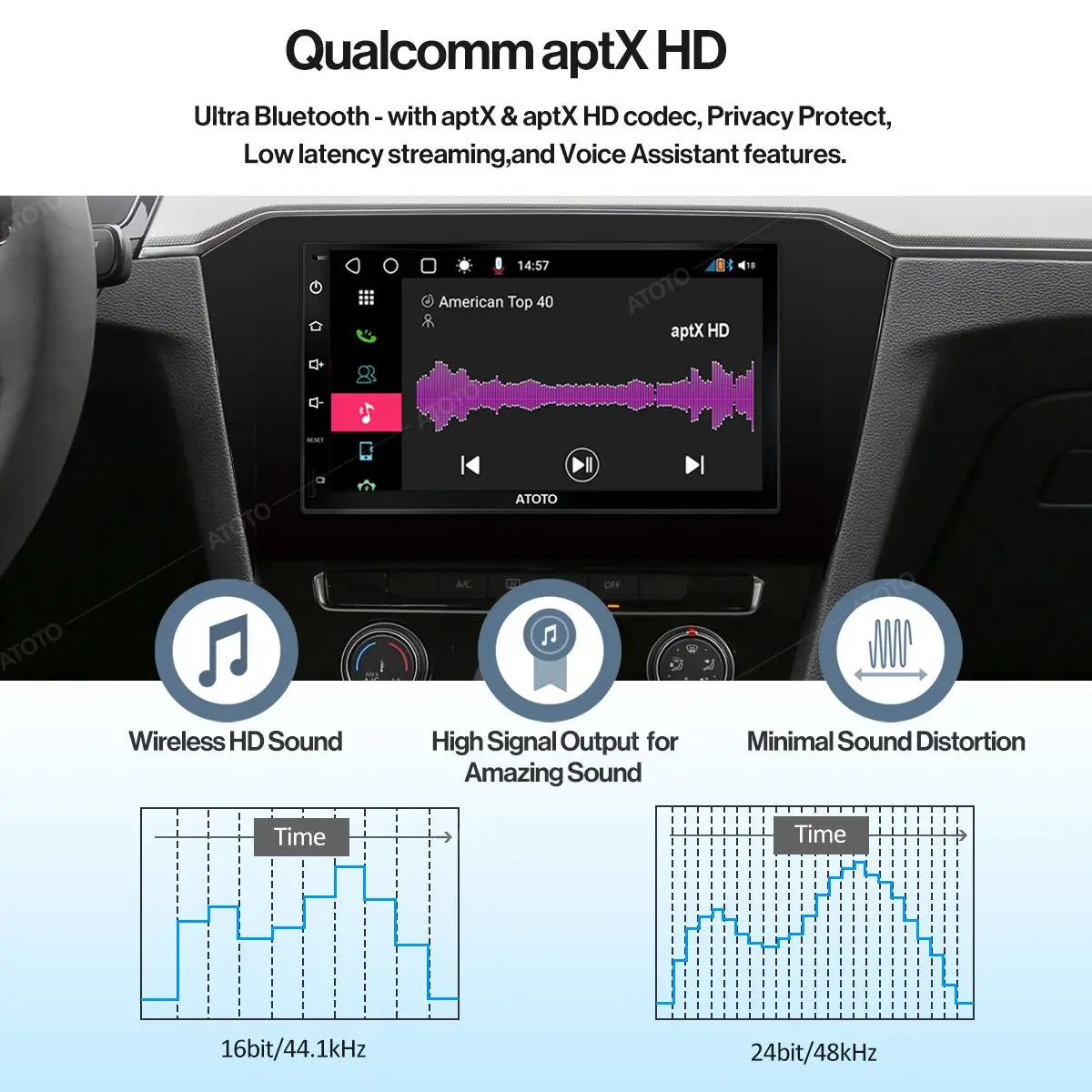

Bluetooth & Radio Tuner:Dual Bluetooth (BT1 5.0 & BT2 4.1). Bluetooth1 is Qualcomm Bluetooth 5.0 with aptX & aptX HD codec (SBC & AAC are also supported), and it supports HFP/HSP/A2DP/AVRCP/PBAP protocols; Radio tuner: Built-in high sensitivity FM/AM radio tuner with RDS/RBDS feature (and the radio station name will be displayed if available);

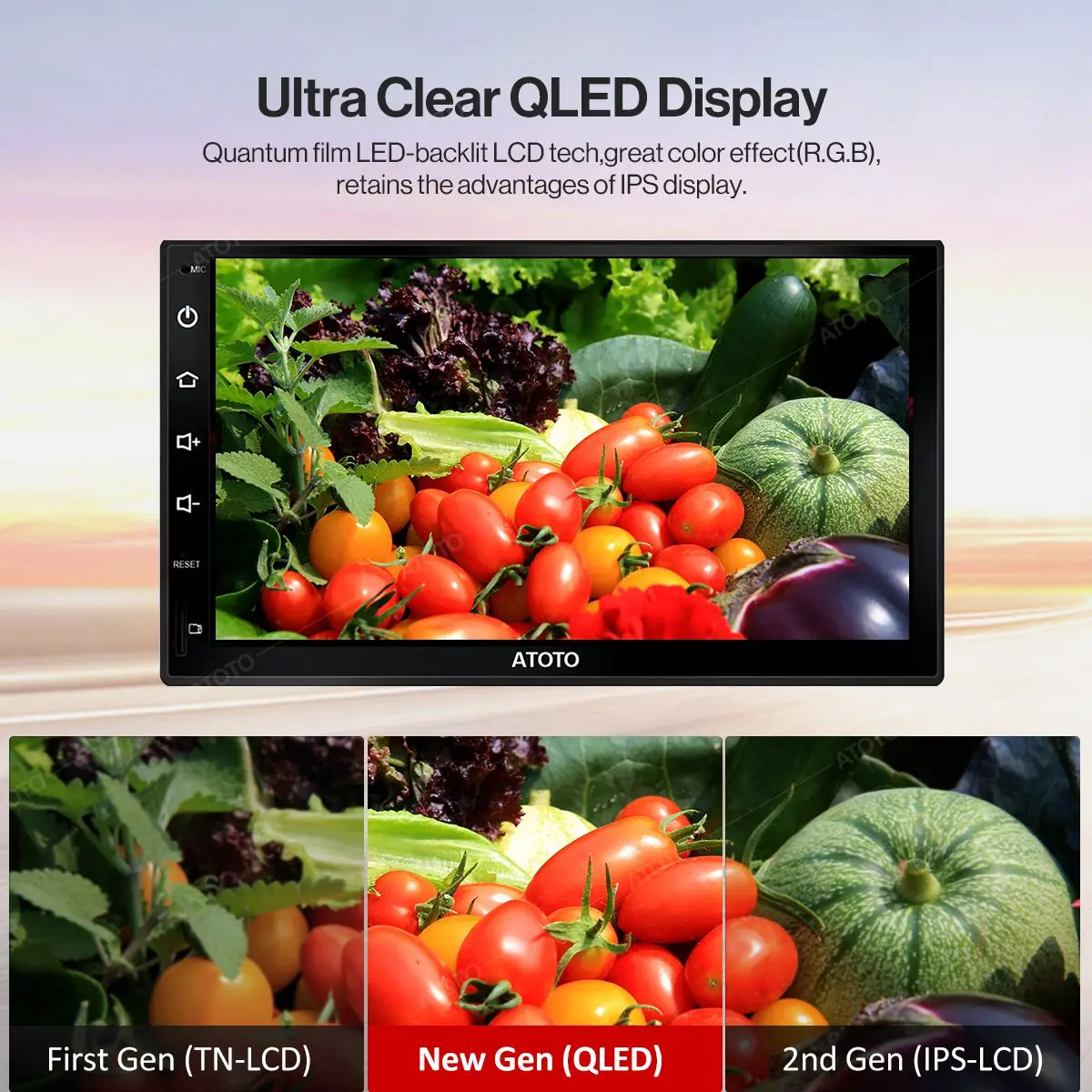

Display:Full HD 7-inch 1024*600 5-Touch Capacitive Touchscreen with 600cd/m2 latest QLED screen;
GPS/Navigation:Built-in GPS Receiver module with an external GPS antenna and Google Maps app is installed as the default GPS map.Users may need to download offline map data for a specific area for offline navigation if preferred. Other maps/navigation apps (Waze, Tomtom, HereWeGo) from Google Play Store can also be installed;
Phone Mirroring & Phone Integration Link:Phone Mirroring- EasyConnect app pre-installed, and it supports working with the latest iOS & Android devices (system firmware update may be required). Two options (USB /WiFi) are all available for connecting to Android smartphone and iPhone;Phone Integration Link(CarPlay & Android Auto Connection) - It seamlessly integrates your smartphone (iPhone & Android) with the S8's built-in display and controls via USB and allow you to make phone calls, access your music, send and receive messages, get directions.

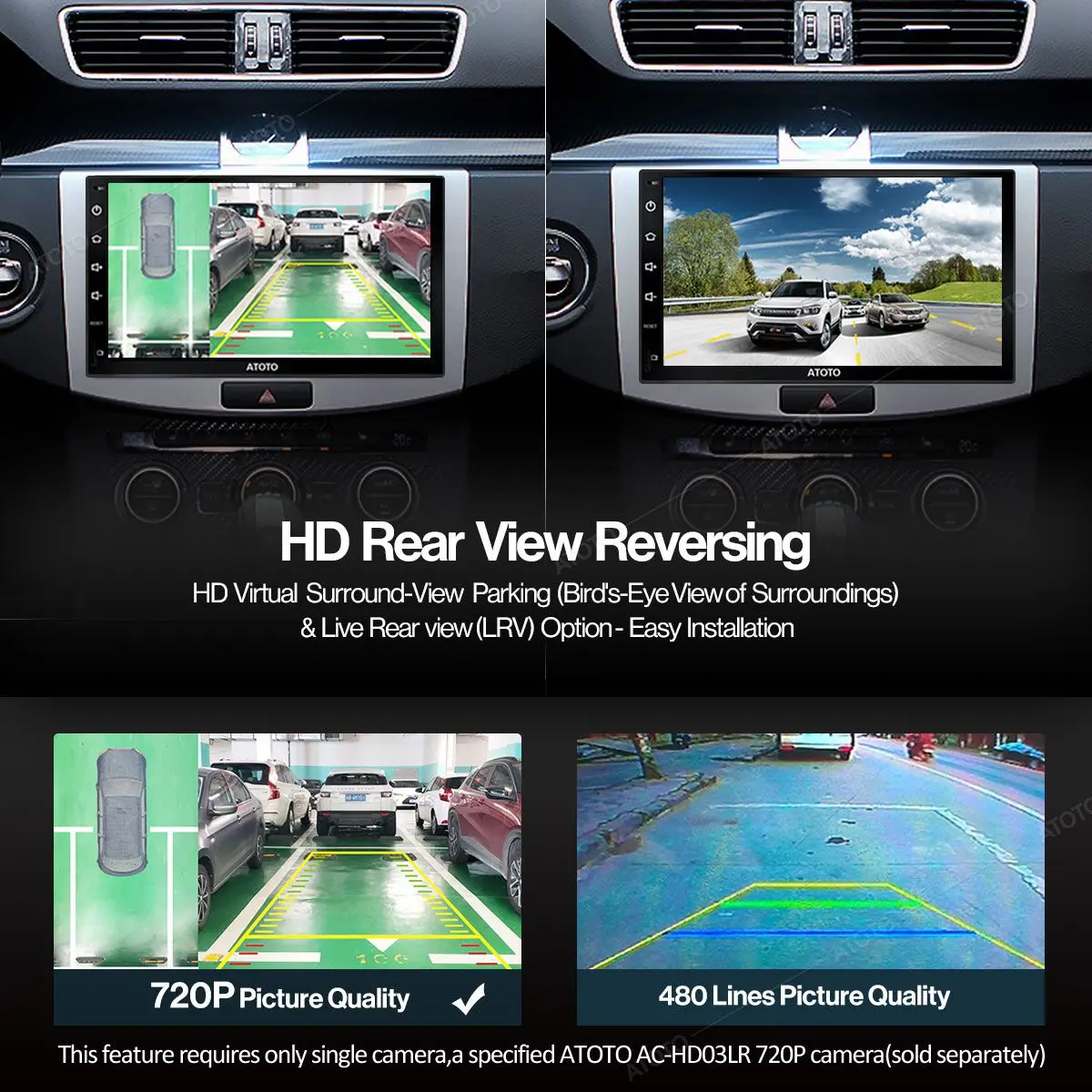

Some Other features:Fast System Boot- Start the car & access system within 2 seconds;Split Screen Display- Run a navigation map and another app (such as Youtube) on the same screen simultaneously;Digital Photo Frame option- Users can put memorable photos in the specified Gallery Folder and let them autoplay on S8's HD big screen with only a tap (or a hand gesture);Speed Compensated Volume Control(SCVC)- When you increased in speed the headunit volume increased a certain percentage and when you slowed down, the volume dropped. This is to compensate for road noise;USB network tethering- sharing your phone data with S8 headunit via USB connection (EasyConnect app);Live RearView (LRV)- Now you can access rearview even if your vehicle in moving ahead. This could remove obstructions caused by passengers, headrests and the vehicle’s roof and rear pillars, thus increasing the field of view and allowing the driver an unimpeded view of the lanes behind and traditional blind-spots
Inputs,Outputs & Slots
AUX Audio(L/R) /Video input; FCAM front camera video input; Rearview camera input (S8 can process 720P HD video signal. So you can connect a specific HD rearview camera to S8 for 720P video display); 4-CH RCA Audio Out (2v) for connecting to factory/aftermarket amplifier; Separate Sub-woof Out (0.8v); For S8 Premium, there is no Optical SPDIF Out, or QC 3.0 Quick Charge interface; To connect to a headrest monitor, you need to get an extra ATOTO USB-to-HDMI or USB-to-RCA video output adaptor(not included)
One Micro SD slot - to store media files, and can read up to 512GB storage card; (2 USB) interfacesfor data communication, including reading USB Drive (read unlimited external storage devices, including portable SSD) & optional USB devices, and connecting phone for Mirror casting/EasyConnect or Phone Integration Link;
Vehicle Fit:
Most dashboard mounting frame suppliers from North America may provide a double din mounting frame with 172mm*97mm opening (Metra dash kit, PAC dash kit,etc). ATOTO is the first one to bring an Android 7-inch car stereo with a minimum 172mm*97mm front panel dimension. An extra frame adapter is also included in the package to extend its size to 178mm*101.5mm;.
Notice:
Optional parts for working with ATOTO S8 (Gen2) Premium (sold separately): 1. ATOTO AC-44P2 1080P On-dash DVR Camera; 2. ATOTO AC-44F5 Steering wheel IR Remote; 3.ATOTO AC-4450 Bluetooth OBD II scanner /Code Reader; 4. ATOTO AC-HD02LR HD Live Rear-view Camera or AC-HD03LR Wide-angle HD rearview camera (for Virtual Surround View); 5. ATOTO AC-UTP1 USB TPMS (Tire Pressure Monitoring Sensor);6. ATOTO Video Output Adaptor (AC-AHV68: USB to HDMI adaptor; AC-AHV48: USB To RCA adaptor). Some of them must be connected before installation
More than a car stereo - Install Android Apps, play music online, run online map & get real-time traffic, connect various external devices to expand functions
Access to the internet and install Android apps from Google Play Store

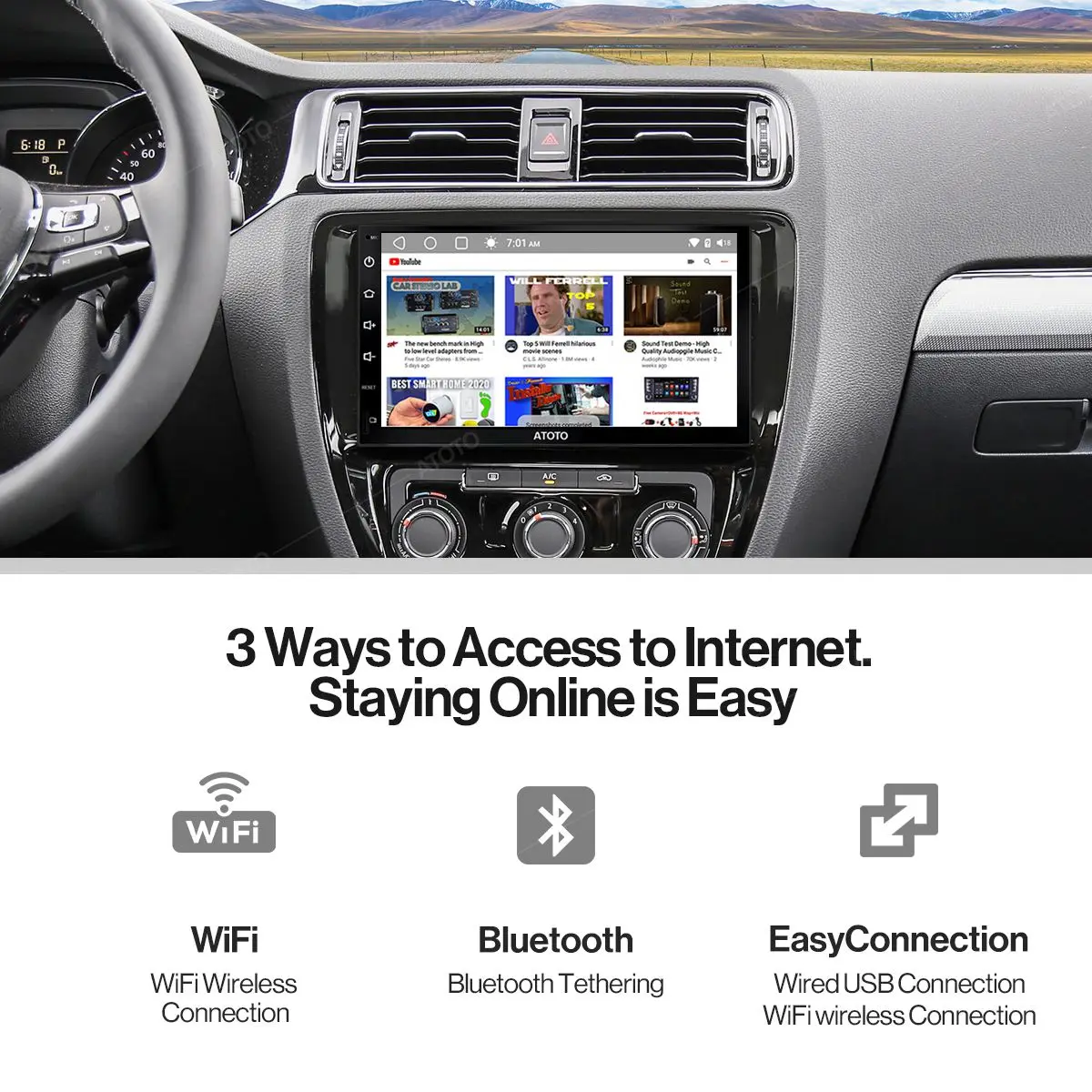

Compared with S8 Gen1(manufactured before Jan 2021),S8 Gen2 can provide up to 4 options for internet access.(1).Connect to the phone's hotspot via 2.4Ghz & 5Ghz WiFi;(2).Connect to Phone Bluetooth and enable Bluetooth tethering option,(3).Use Phone data via USB network tethering feature (an exclusive feature from ATOTO. EasyConnect app is required );(4).Built-in 4G Cellular Modem allows users to insert a SIM card with a data plan for internet access, and this option is only available on S8 Pro, S8 Ultra, and S8 Ultra Plus;
Running online maps or streaming music online on Android car stereo do not need high bandwidth(less than200kb/s), Bluetooth tethering connection is capable of dealing with such demand.
Compared with WiFi connection, Bluetooth tethering has lower power consumption, so phone battery will last much longer while Bluetooth tethering is enabled;
WiFi connection is easier as it requires only one step - enable your phone's WLAN hotspot; Bluetooth connection requires 2 - 3 steps;
USB network tethering is a newly introduced option by ATOTO, and it allows users to share phone data with S8 via USB connection. This could help save phone battery, or even increase slightly; You only need to run the specific EasyConnect application in the background;
More than 1000 apps from Google Play Store have been tested installable on ATOTO S8 Series, especially media/entertainment apps and navigation apps in the category of "Auto & Vehicles". Very few app developers may specify devices/system environments that are allowed to install or run their apps, which results in the inability to install or run on an Android car stereo. Netflix is the case.
Versatile Connectivity - The ATOTO S8 Premium has lots of inputs & outputs customized for working better in a vehicle
Connect to a specific ATOTO USB On dash 1080P DVR camera for recorded video files preview & playback;
Connect to a specific ATOTO USB TPMS tire pressure monitor system. When one or more tires are under-inflated, it will pop up a prompt warning on the S8 screen, and even emit a prompt tone as a reminder;
Connect to a rearview camera with CVBS & HD video signal out for safe parking;

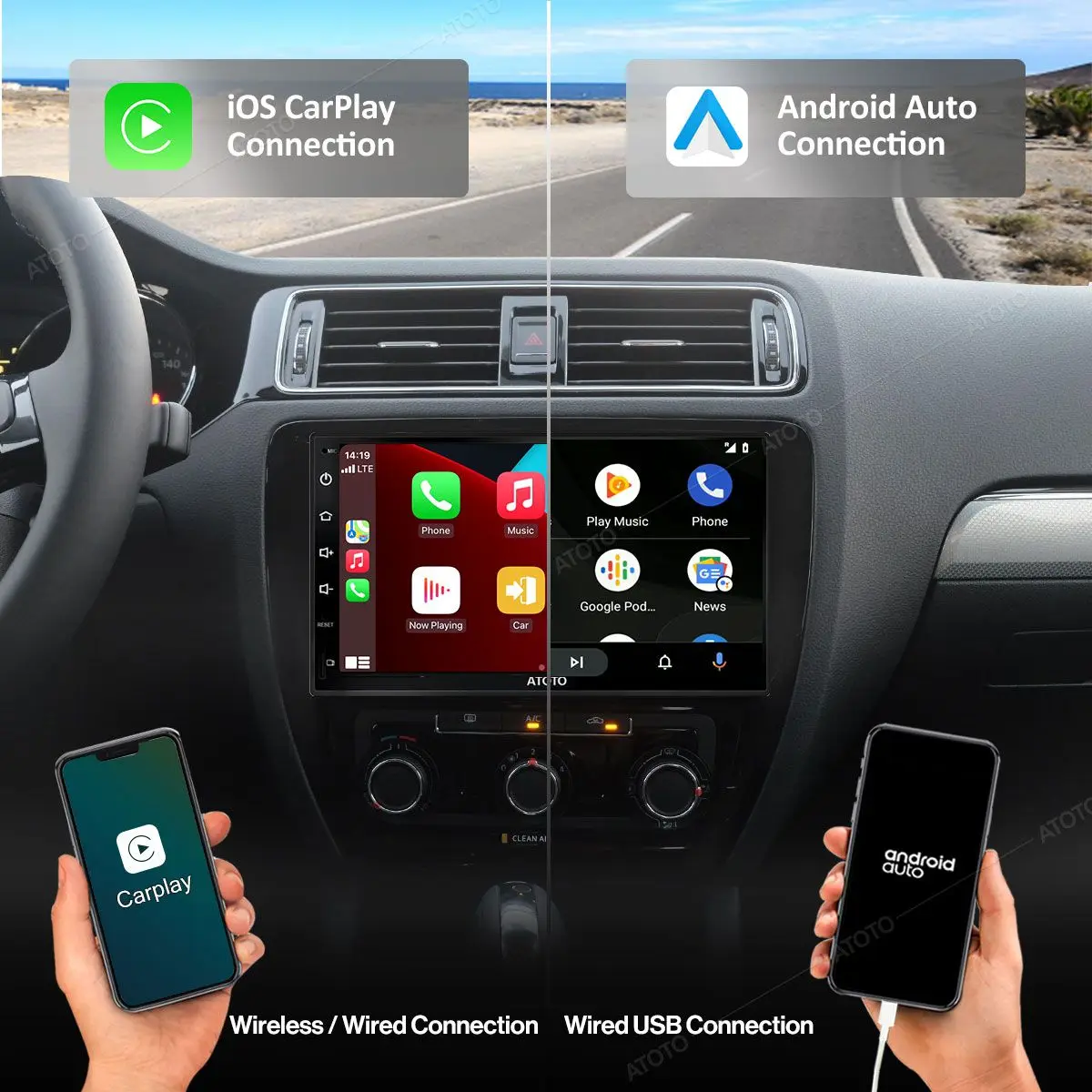

Connect to your Android / iOS smartphone via USB for running iPhone CarPlay / Android Auto feature, which seamlessly integrates your smartphone (iPhone & Android) with the S8's built-in display and allow you to make phone calls, access your music, send and receive messages, get directions;
