5m/roll WS2815 DC12V (WS2812B/WS2813) RGB LED Pixels Strip Light Individually Addressable LED Dual-Signal 30/60/144 Pixels/Led/m

LED Strips>>>Lights & Lighting

Brand Name SAGE LU MEI

Origin CN(Origin)

Certification CCC

Certification ce

Certification ROHS

Occasion Living Room

Strip type SMD

Average Life (hrs) 500000

Power Generation SWITCH

Waterproof Yes

Power Consumption (W/m) 7.36W/m

LED Chip Brand Edison

Voltage 12V

Power Source DC

LED Chip Model SMD5050

Model Number ws2815 led strip

Specifications (light beads / m) 60 pcs/m

LEDs Number/M 30led/m,60leds/m,144leds/m

Emitting Color

White PCB

Black PCB

Color

5m 30leds IP30

5m 30leds IP65

5m 30leds IP67

5m 60leds IP30

5m 60leds IP65

5m 60leds IP67

1m 144leds IP30

1m 144leds IP65

1m 144leds IP67



5m/roll WS2815 DC12V (WS2812B/WS2813) RGB LED Pixels Strip Light Individually Addressable LED Dual-Signal 30/60/144 Pixels/Led/m

White :  White PCB

Black :  Black PCB

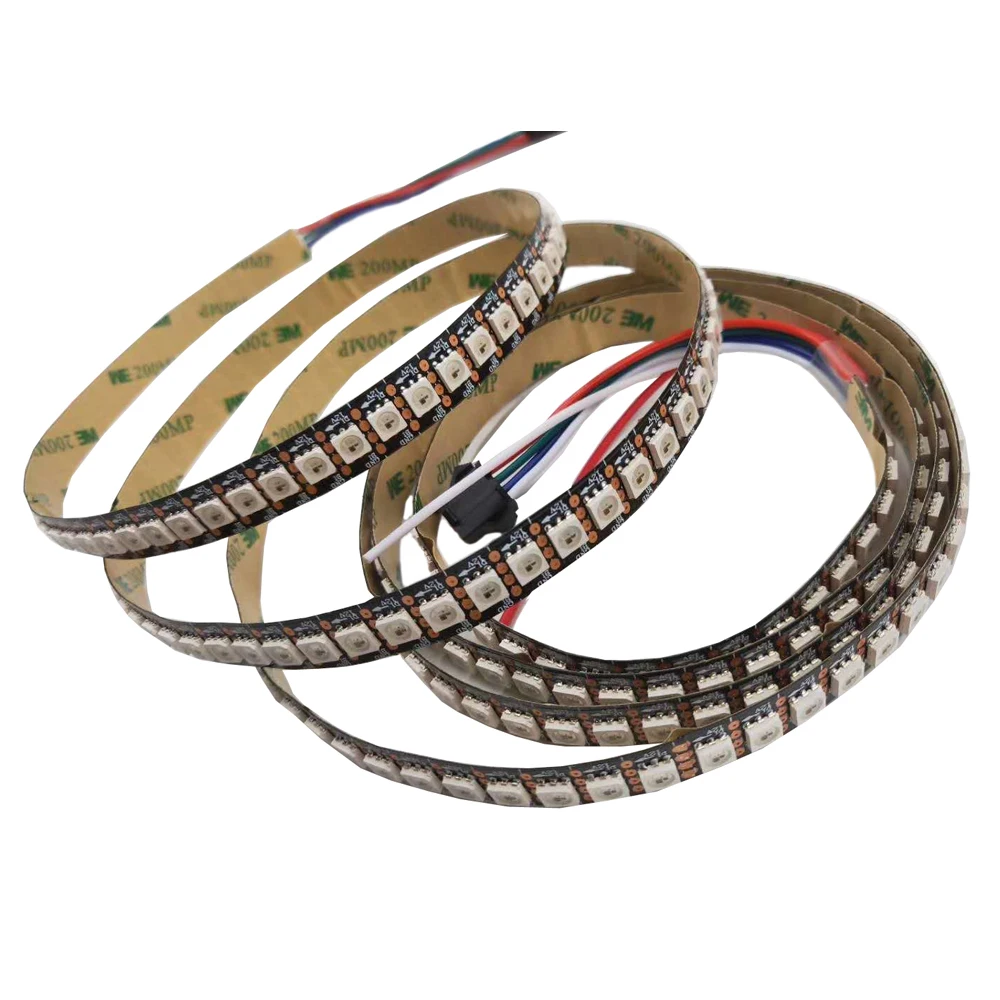

IP30: Non- waterproof

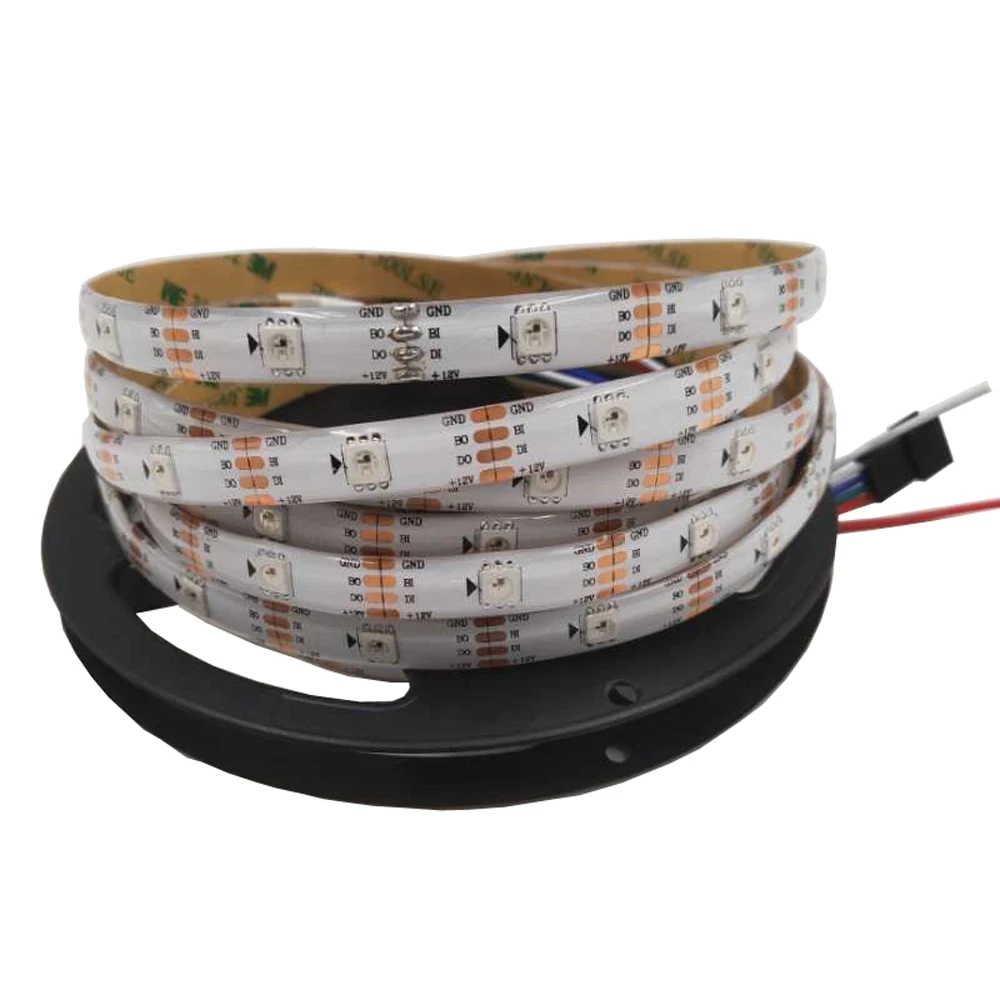

IP65: Waterproof in Silicon Coating

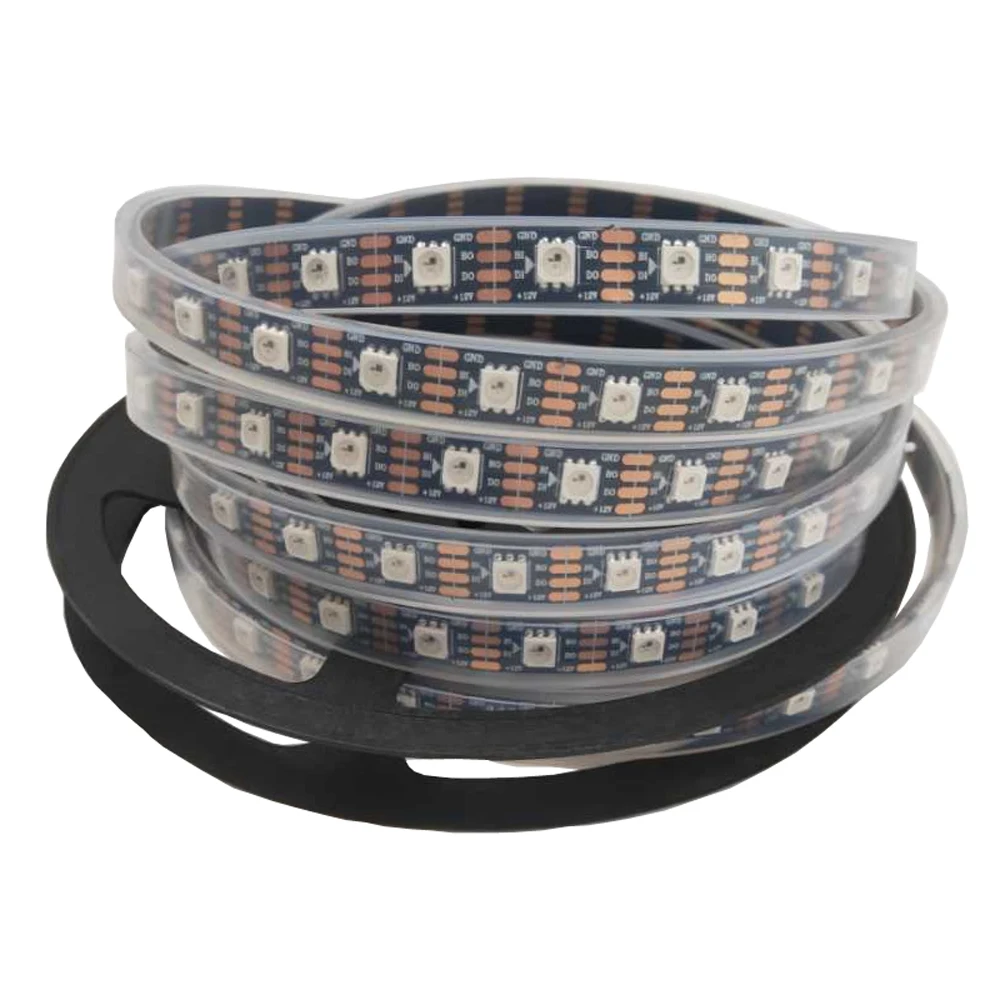

IP67: Waterproof in Silicone Tube



Wide compatibility:Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E etc.

12V WS2812B LED Strip:WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.

Individually addressable:Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.

Dual-signal wires:WS2815 LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

Easy installation:Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED can be cut off at cutting line.There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other and wire up for power.Specifications:IC type :WS2815 ICGray level: 256View angle: 120°Input voltage: DC12VColor: full color 24-bitFPCB board color: White/BlackPower: 0.3W/LED  30/60/144 LEDs/mModel: WS2815 strip 5050rgb chipsStorage Temperature:-30-+95 °COperating Temperature:-20 ~ +85°CLed Qty: 30/60/144pcs RGB SMD 5050 per meterWaterproof level: IP30: Non- waterproof, IP65: Waterproof in Silicon Coating, IP67: Waterproof in SiliconTubePackage includes:1 * 1M/5M 30/60/144leds/m led strip1 * 4pin connectorNote:Power adapter and controller are not included!It is forbidden to light up for a long time when the strip is in the spool.

Pay attention:

White :  White PCB

Black :  Black PCB

IP30: Non- waterproof

IP65: Waterproof in Silicon coating

IP67: Waterproof in SiliconTube

the length as you choose
