Flow Measuring Instruments>>>Tools
Brand Name makerele
DIY Supplies Plumbing
Origin CN(Origin)
Certification CE
Model Number MK-PCFS3
Theory On-Off
Place of Origin Zhejiang, China (Mainland)
Contact Capacity AC220V/1A;DC24V/0.5A
Working Pressure 0.5MPa
Housing Materia PP
Float Materia PP
Wire Length 30mm
Working Temperature -10~85
Ambient temperature range -10~+60
Voltage
110V
220V
A float switch is a device used to detect the level of liquid within a tank. The switch may be used in a pump, an indicator, an alarm, or other devices. Float switches range from small to large and may be as simple as a mercury switch inside a hinged float or as complex as a series of optical or conductance sensors producing discrete outputs as the liquid reaches many different levels within the tank. Perhaps the most common type of float switch is simply a float raising a rod that actuates a microswitch.

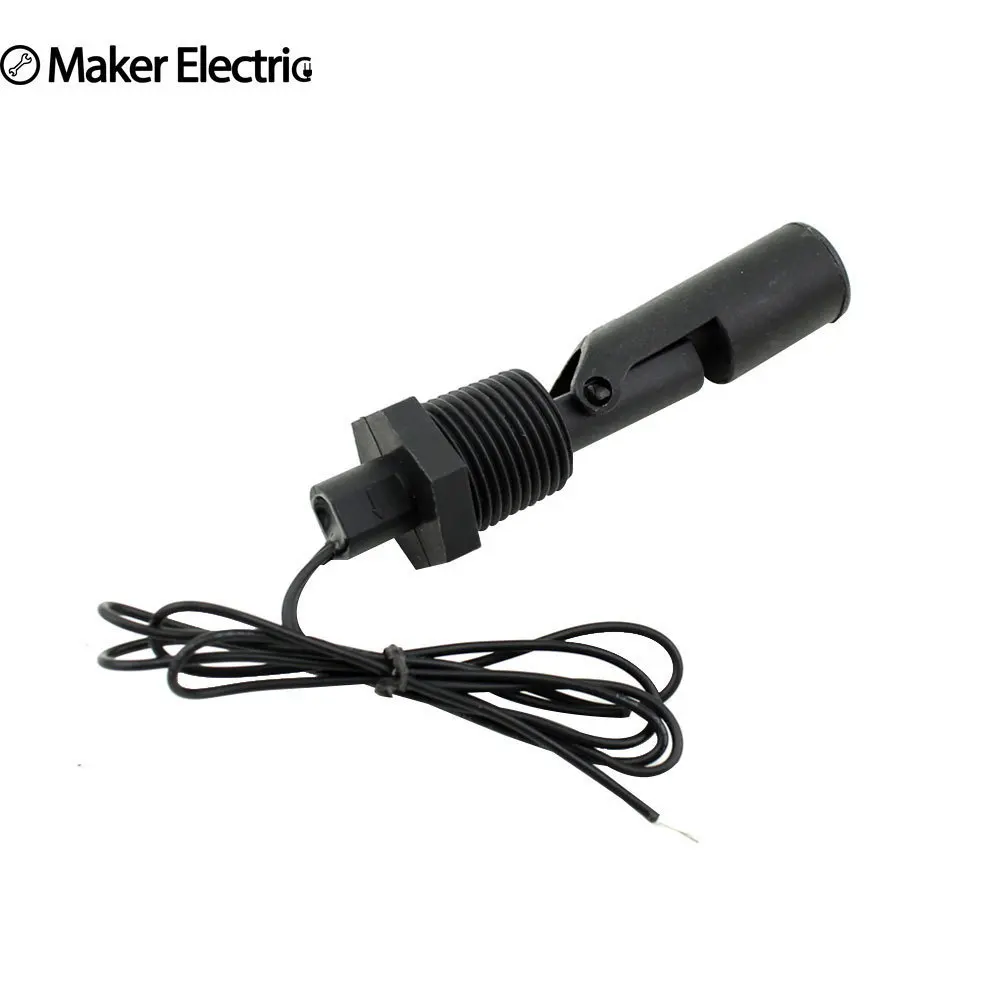

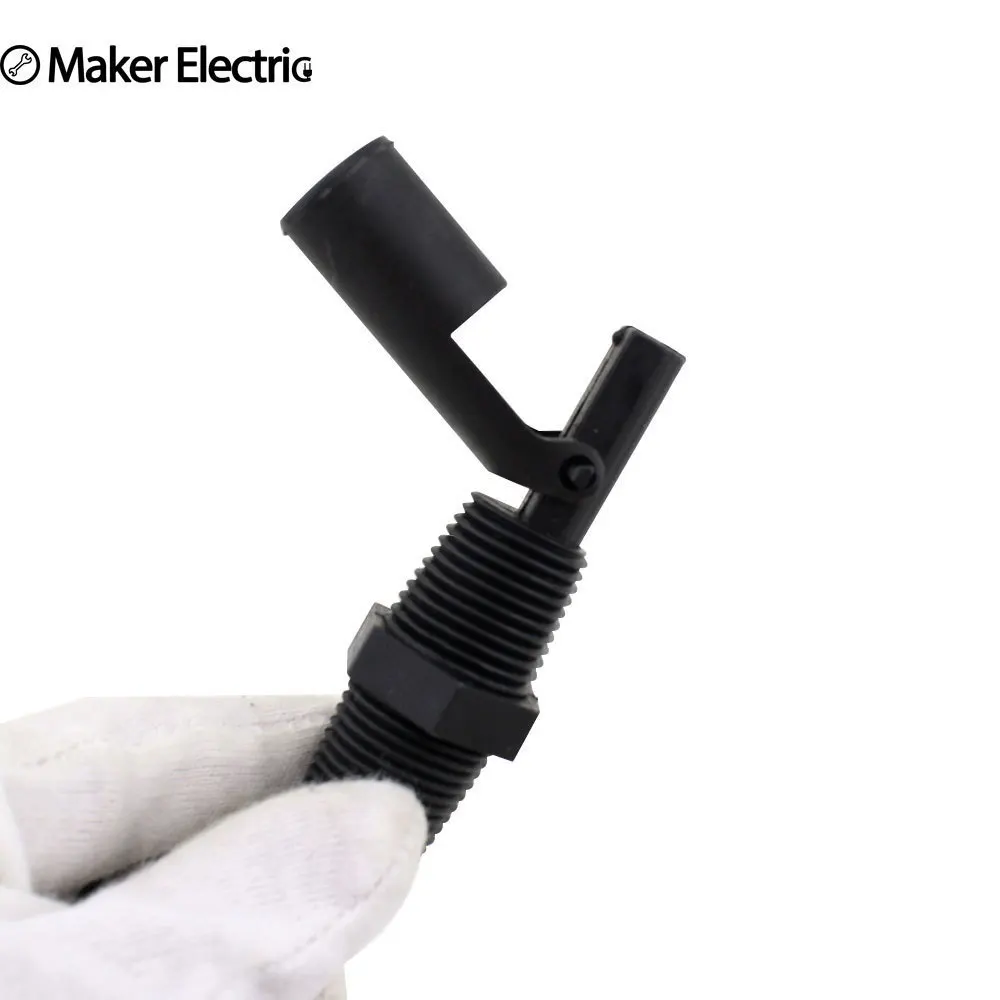

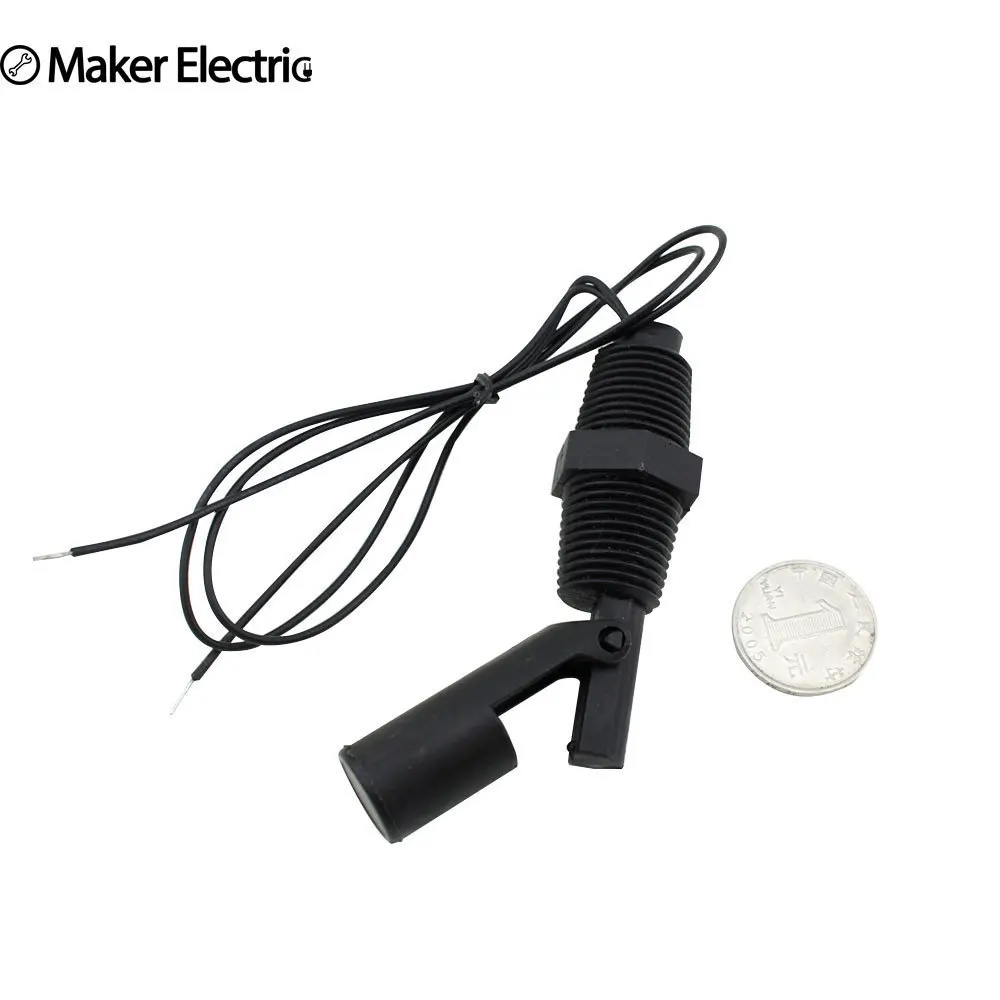

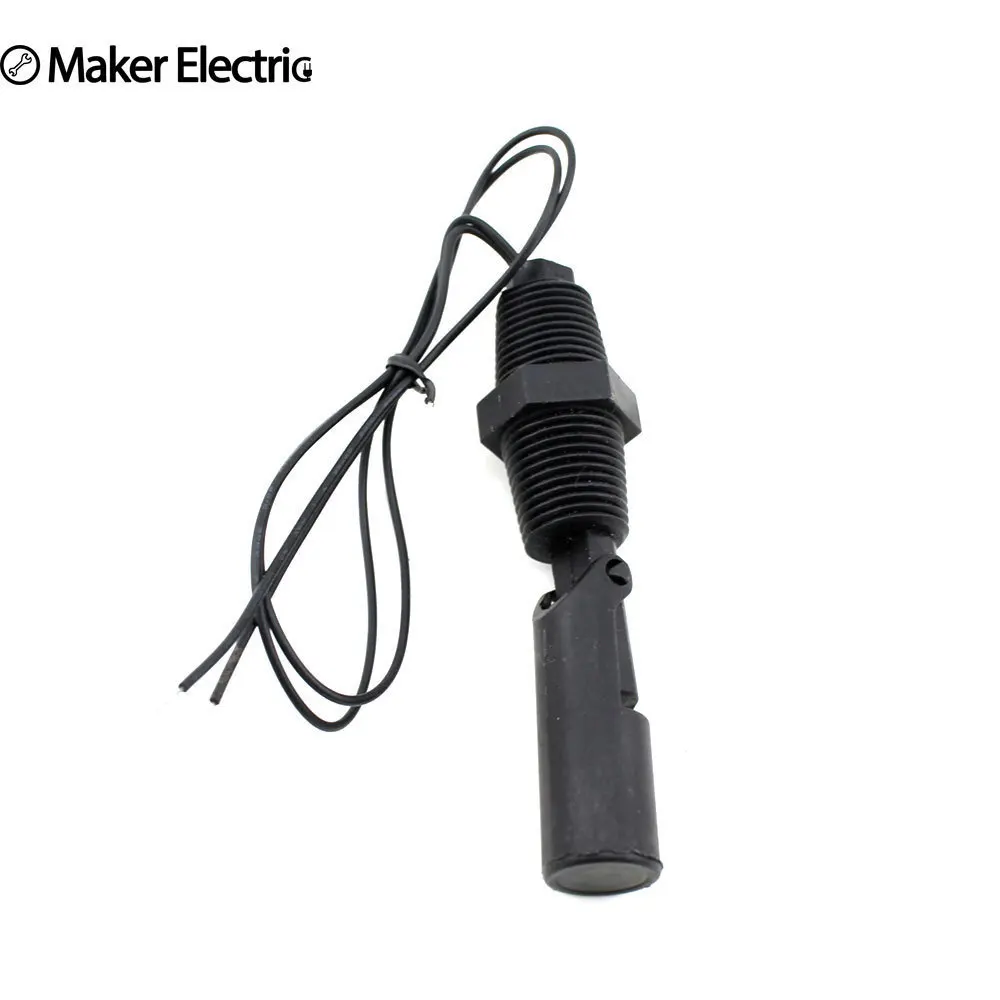

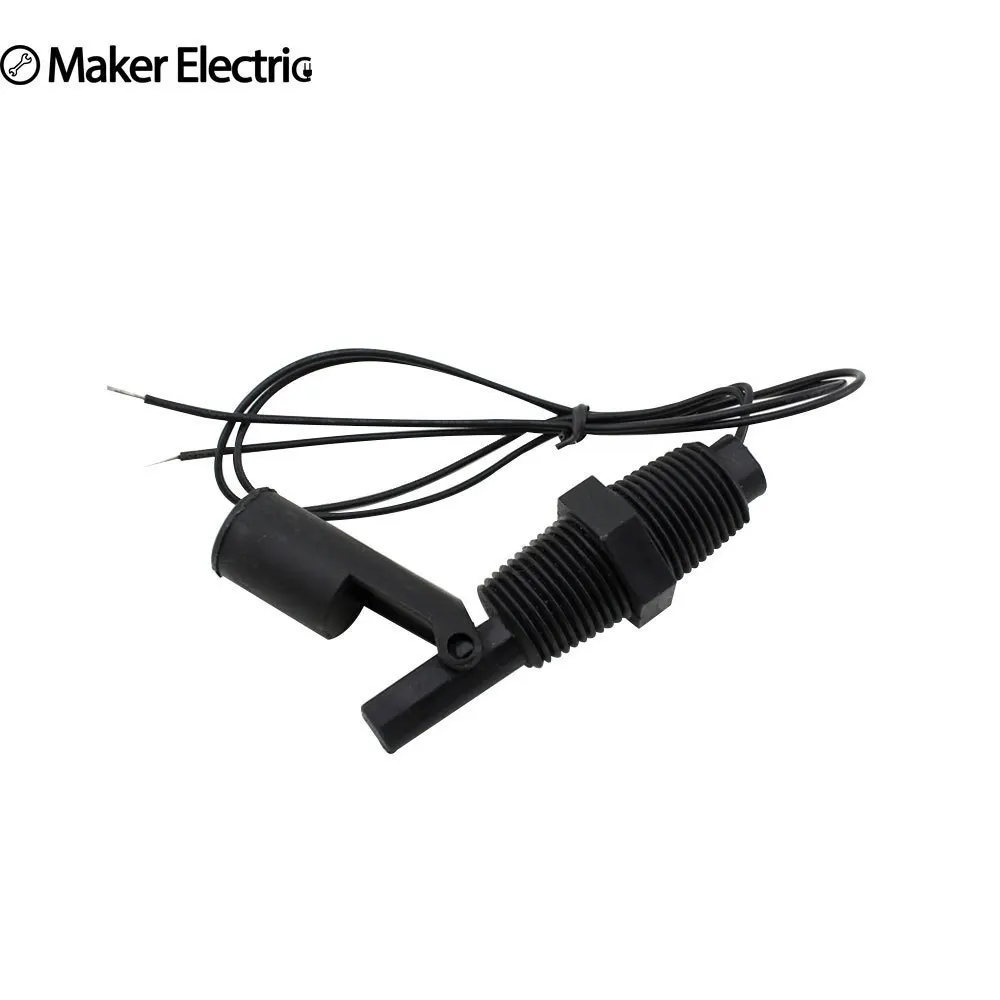

MK-PCFS3 Plastic Level Switches Specification:
Magneti reed type
1A1
2A1
Max Contact Rating
10W
50W
Max Switching Voltage
100V DC
220V DC
Max Switching Current
0.5A
1.5A
Max Breakdown Voltage
220V DC
300V DC
Max Carry Voltage
1.0A
3.0A
Max Contact Resistance
100m
100m
Ambient temperature range
PP material
-10~+60C
Stainless steel material
-30~+125C
Liquid temperature range
PP material
-10~+85C
Stainless steel material
-30~+125C
Drinking fountains, water heaters, solar energy, air conditioners, humidifiers, water, bathroom equipment, vending machines, tanks, chemical liquid level control, automotive, industrial equipment, agricultural equipment, household appliances widespread application prospect.
Other types we can supply:
How to choose suitable float switch for different liquid?
Packaging & Shipping
1. Item will be shipped within 5-7 business days. 2. Delivery Time: ----Via Air: Generally 1-3 working days ----Via Express: Generally 3-7 working days. ----Via China Post Air Mail: Generally 15-25 working days ----Via Sea: According to the order. 3.If you have not received your shipment within 30 days from payment,Please contact with us,We will track the shipment and get back to you as soon as possible with a reply.
Transportation:
1.You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.
2.All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
3.We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from aliexpress. OR, you may choose to have a replacement.
4.We will bear all the shipping cost if the product(s) is (are) not as advertised.
Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and service. If you have any problems, please feel free to contact us firstly before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
