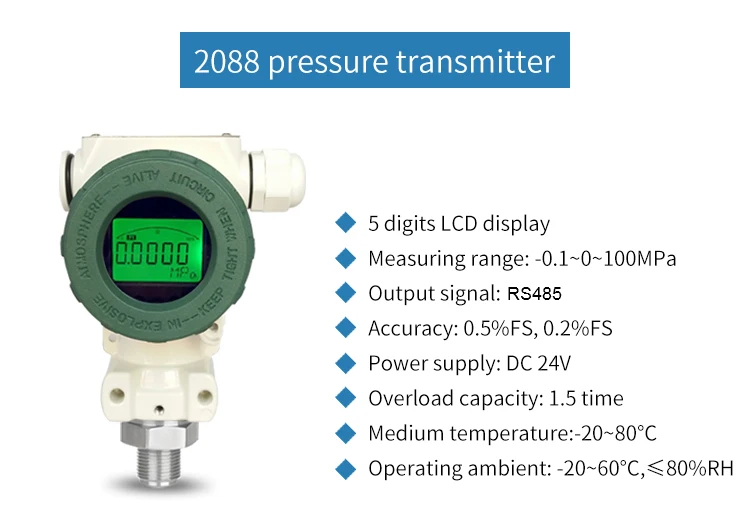

2088 Pressure Transmitters Pressure Sensor Digital display pressure sensor RS485 4-20mA Water pressure Oil pressure

Pressure Measuring Instruments>>>Tools

Brand Name QiROD

Origin CN(Origin)

Certification CE

Certification FCC

Certification RoHS

Max Measuring Range 400 Bar & Above

Model Number QD-L80D

Pressure type Gauge pressure, Absolute pressure

product name 2088pressure transmitter

Input -0.1~0~60Mpa

Output signal RS485,4-20mA

Power supply DC24V

Measuring Range

4-20mA 0-0.1Mpa

4-20mA 0-0.2Mpa

4-20mA 0-1Mpa

4-20mA 0-1.6Mpa

4-20mA 0-2.5Mpa

4-20mA 0-5Mpa

4-20mA 0-6Mpa

4-20mA 0-10Mpa

4-20mA 0-16Mpa

4-20mA 0-20Mpa

4-20mA 0-25Mpa

4-20mA 0-30Mpa

4-20mA 0-40Mpa

4-20mA 0-60Mpa

RS485

Pressure Transmitters Pressure Sensor Digital display pressure sensor RS485 4-20mA Water pressure Oil pressure

Note:

Default thread size is M20*1.5, if you need other sizes, please contact us.

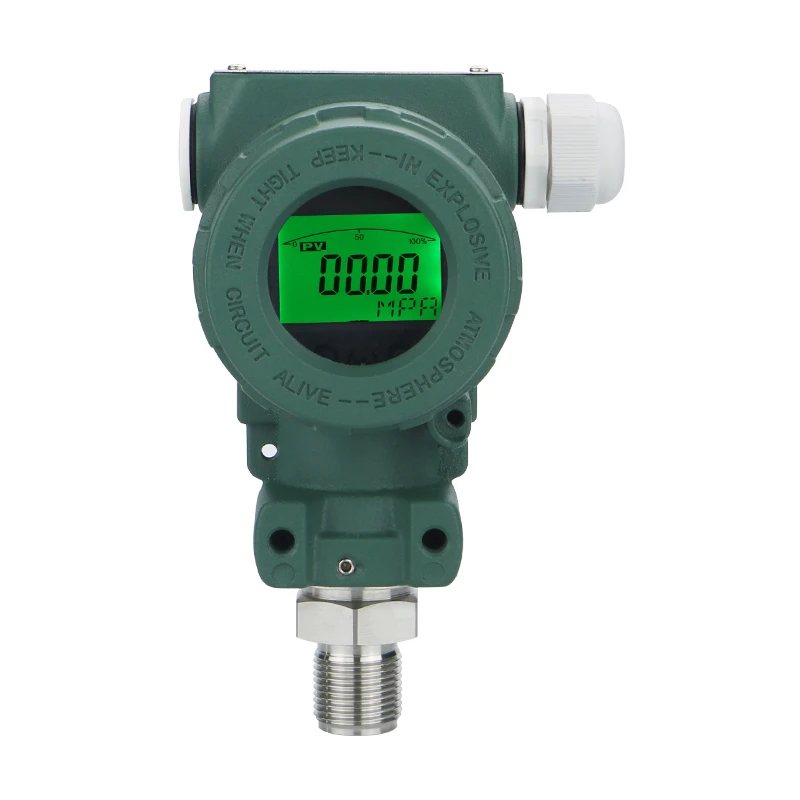

This link is LCD display

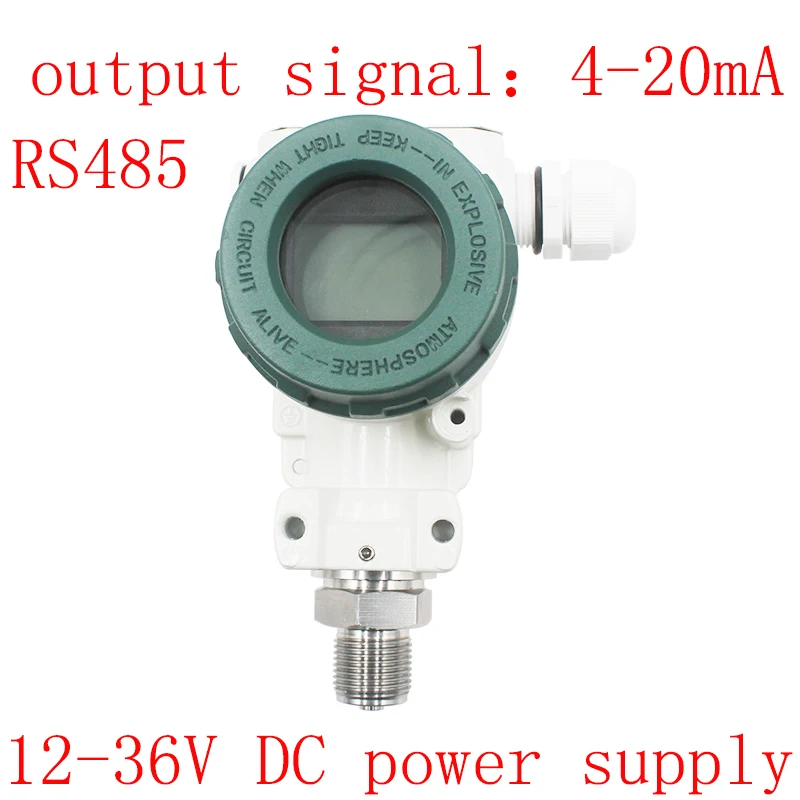

Output Signal: 4-20mA

(0-10v,1-5V ,0-5V price is same as 4-20ma,if you need voltage output ,just note it on the order）

Power Supply: 24VDC

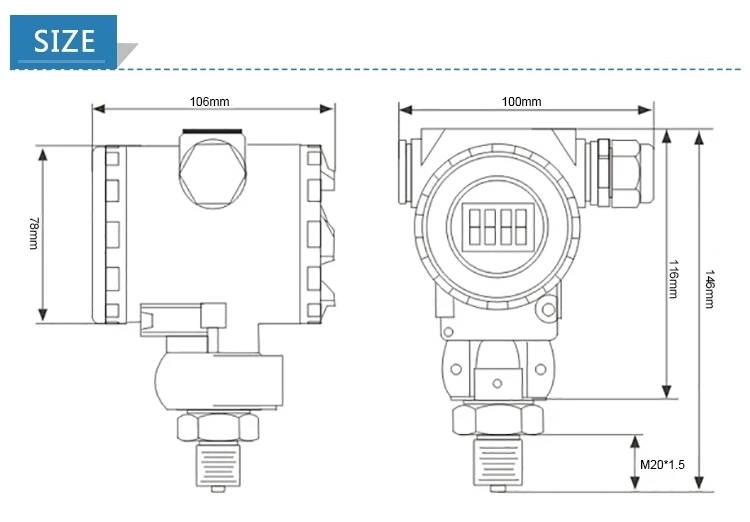

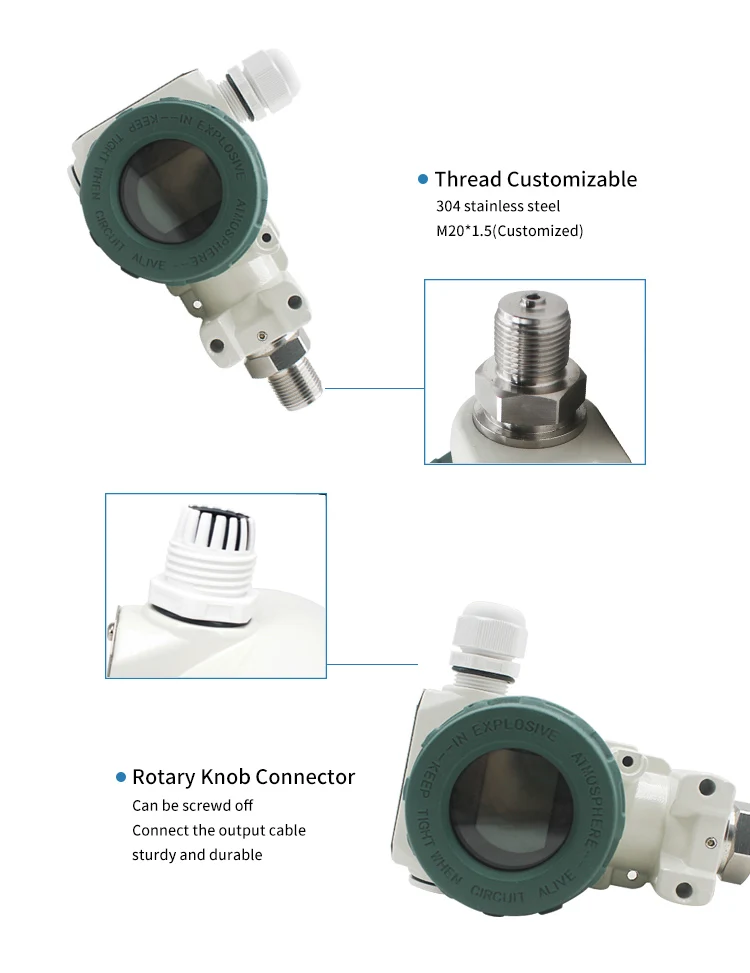

Connection: Thread M20*1.5

if you need RS485 output,pls tell us your pressure range !  TKS

Technical parameter

Measuring Range

-0.1~0~100MPa

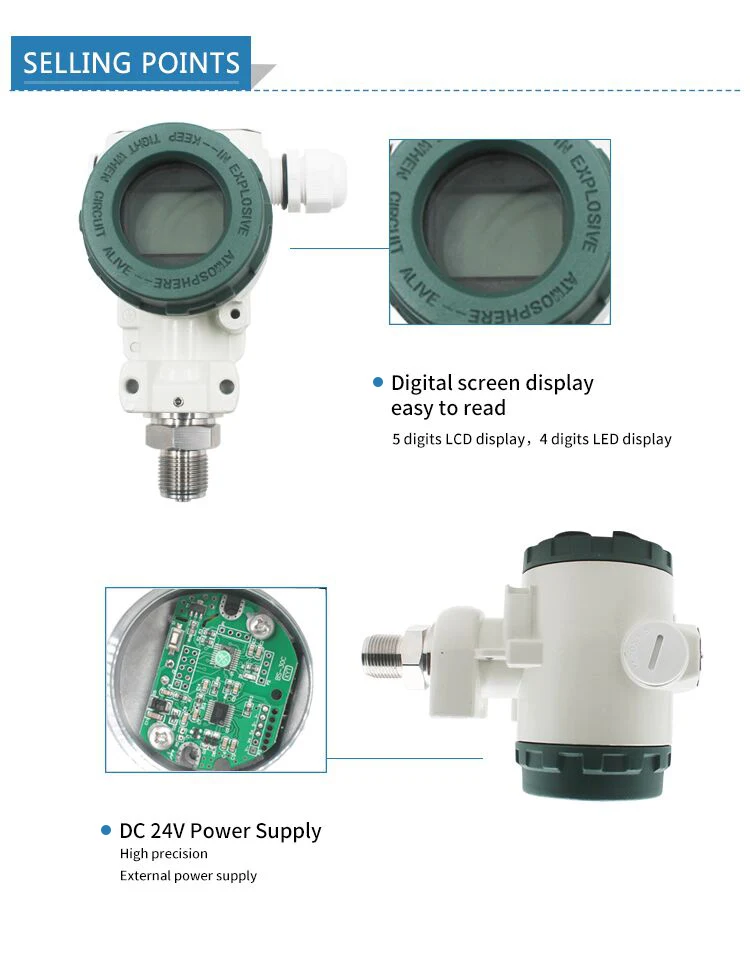

Display Mode

LCD

Power Supply

DC 24V

Output Signal

4-20mA, 0-5v ,0-10v ,RS485 (Customizable)

Thread

Default M20*1.5 (Customizable)

Accuracy

0.5%FS,0.2%FS

Respond Time

<0.1s

Medium Temperature

-20~80℃

OperatingAmbient

-20~60℃,≤80%RH

Overload Capacity

1.5 time

Shell Material

Aluminium alloy

Pressure Type

Gauge pressure;Absolute pressure;Seal pressure

Measuring Medium

Gas,liquid,oil,water
