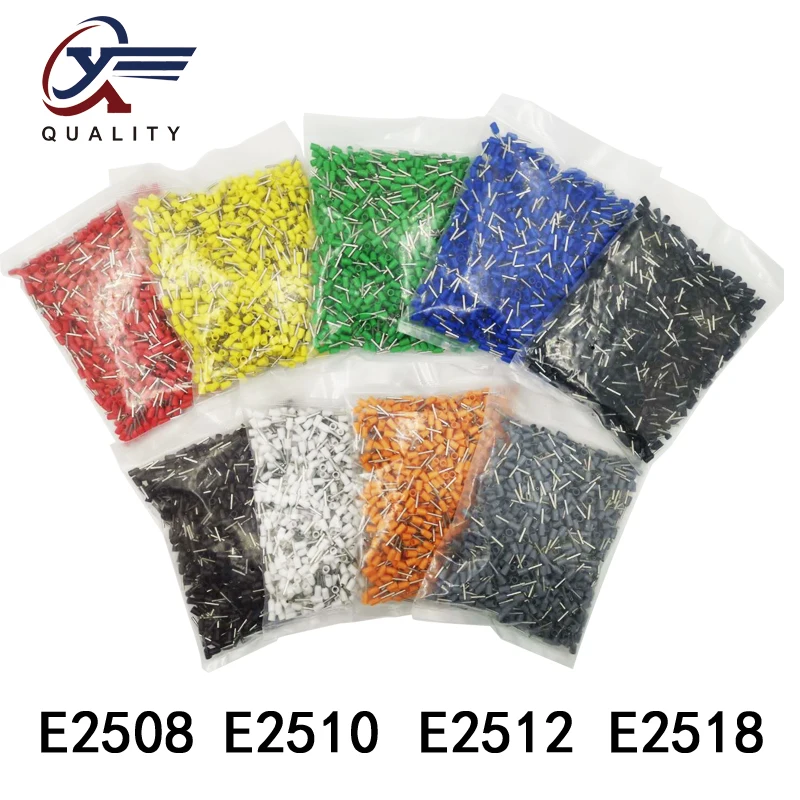

1000pcs/Pack E2508 Insulated Cord End Terminal Crimp Terminal Wire Connector Crimp Ferrules Crimping Terminals Tubular AWG #14

Connectors & Terminals>>>Home Improvement

Type Crimp Terminal

Model Number E2508 E2510 E2512 E2518

is_customized Yes

Brand Name XY QUALITY

Color

Brown

Orange

Red

white

Grey

Blue

green

black

Yellow

Pins

E2508

E2510

E2512

E2518

Product introduction

Product Name: Insulated Cord End Terminal

Item No: E2508/E2510/E2512/E2518

Max voltage:150°C UI=300V

Material:Copper

Insulating Material: PVC.Nylon

Length of Pure Copper: 6mm~12mm

A.W.G: 14

Cable Size:0.25mm~6mm

Plating: Electro-plated tin

Color: Red/Yellow/Blue/Black/Green/White/Gray/Brown/Orange

Specification



ITEM NO

Dimension(mm)

Cable size (mm*mm)

Color

F

L

W

Dф

Cф

A.W.G

(1)French (2)German

E0506

6.0

12.0

2.6

1.3

1.0

#22

0.5

Orange(1)

White(2)

E0508

8.0 

14.0

E0510

10.0

16.0

E0512

12.0

18.0

E7506

6.0

12.4

2.8

1.5

1.2

#20

0.75

White(1)

Blue(2)

E7508

8.0

14.4

E7510

10.0

16.4

E7512

12.0

18.4

E1006

6.0

12.4

3.0

1.7

1.4

#18

1.0

Yellow(1)

Red(2)

E1008

8.0

14.4

E1010

10.0

16.4

E1012

12.0

18.4

E1508

8.0

14.4

3.5

2.0

1.7

#16

1.5

Red(1)

Black(2)

E1510

10.0

16.4

E1512

12.0

18.4

E1518

18.0

24.4

E2508

8.0

15.2

4.0

2.6

2.3

#14

2.5

Blue(1)

Gray(2)

E2510

10.0

17.2

E2512

12.0

19.2

E2518

18.0

25.2

E4009

9.0

16.5

4.4

2.6

2.8

#12

4.0

Gray(1)

Orange(2)

E4012

12.0

19.5

E4018

18.0

25.5

E6010

10.0

18.5

6.3

3.2

3.5

#10

6.0

Black(1)

Green(2)

E6012

12.0

20.5

E6018

18.0

26.5

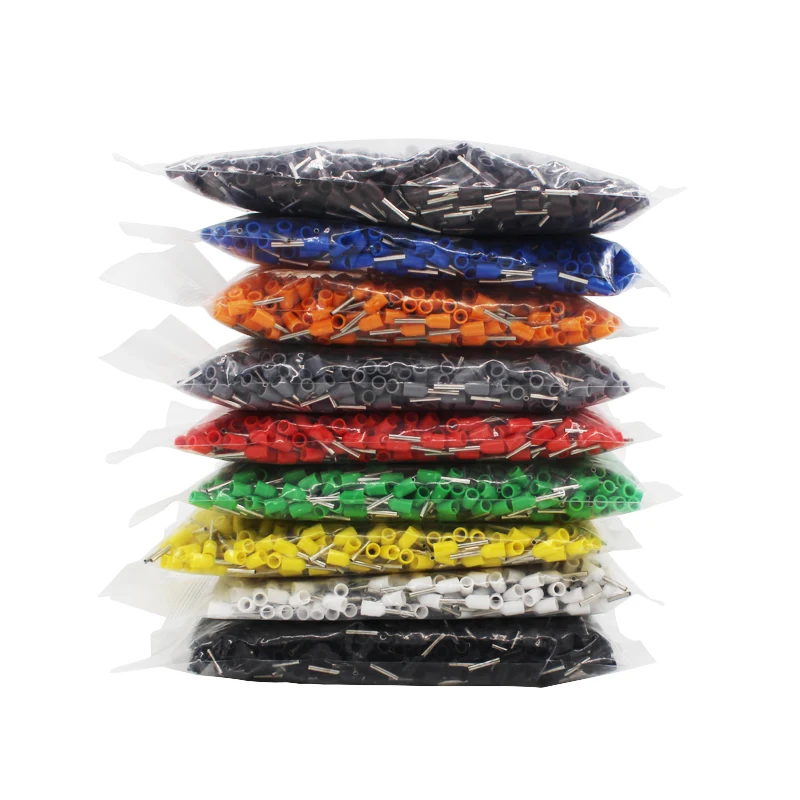

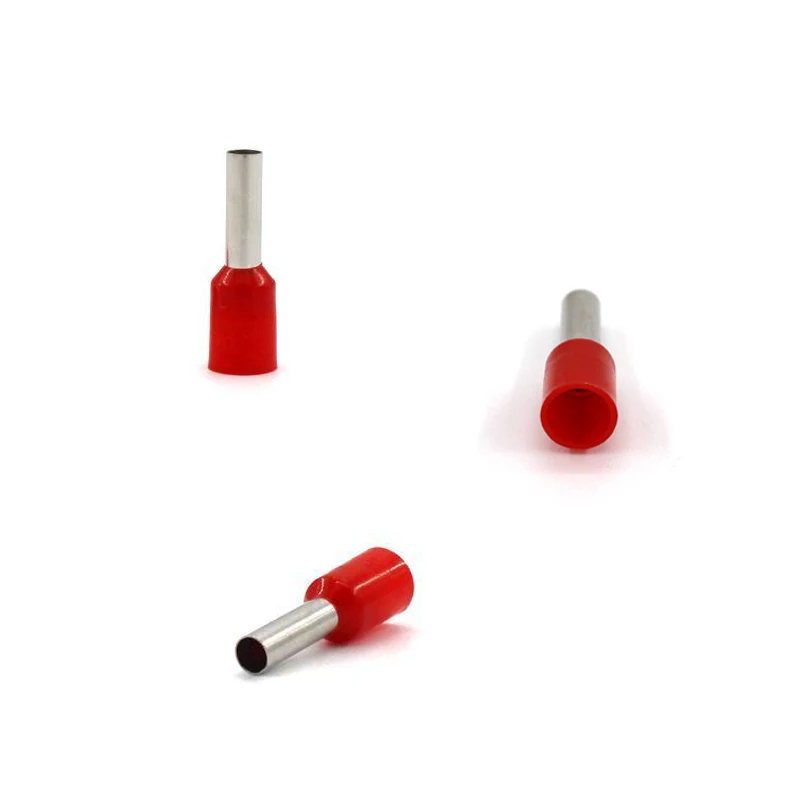

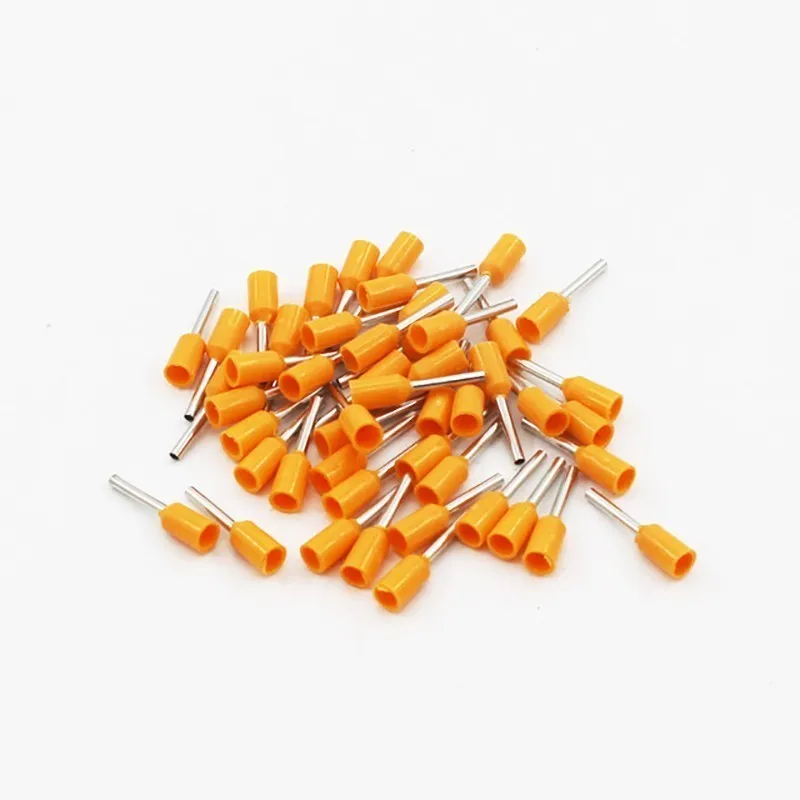

Product Show
