Silver spot led Mini 3W 5W 7W COB LED Downlight Dimmable Recessed Lamp Light best for ceiling home office hotel 110V 220V

Downlights>>>Lights & Lighting

Brand Name LEDSONLINE

Switch Type Knob switch

Certification CCC

Certification ROHS

Certification ce

Warranty 12 months

Power Source AC

Is Dimmable Yes

Light Source Bulb

Body Color Light Grey

Model Number black led spot

Material Aluminum

Voltage 220V

Power Tolerance 5%

Application Dining Room

Emitting Color

Pure White 6000K

Nature White 4000K

Warm White 3000K

Wattage

Mini 3W Dimmable

5W Dimmable

7W Dimmable

Mini 3W No Dimmable

5W No Dimmable

7W Np Dimmable

  NEW Mini 3W 5W 10W COB LED Downlight Dimmable Recessed Lamp Spot Light best for ceiling home office hotel 110V 220V Package

1pcs cob downlihgt      (included power supply)



   Colors:

Pure White 5500-7000k;Nature White 4000-4500k; Warm White 2700-3200k





Specifications

Power

LEDs

Input Voltage

Hole size

Size

Lumens

Mini 3W

COB

AC110V/220V

40-45mm

D52mm*H20mm

270-300lm

5W

COB

AC110V/220V

68-75mm

D85mm*H42mm

450-550lm

7W

COB

AC110V/220V 68-75mm D85mm*H52mm 630-770lm    Long  lifespan  Instant  start, no flashing  Solid  State, shockproof  Save  power more than 90% by ordinary bulbs  Long  time working, 12 hours/day is perfect, produce low heat  No  RF Interference,  No  mercury or other hazardous materials, accord with RoHs  Working  environment -20 centigrade-65 centigrade ,  suitable for unusual climate

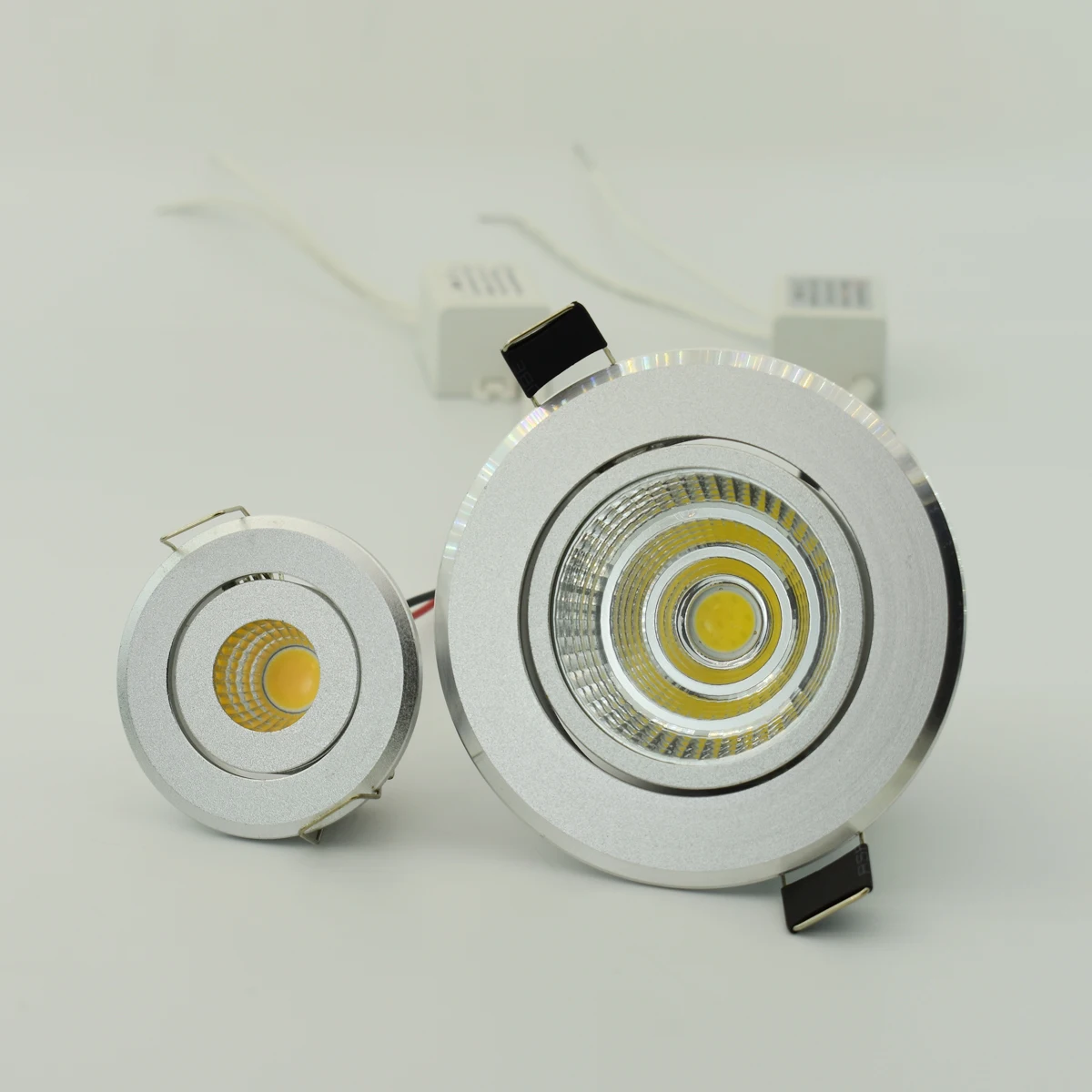

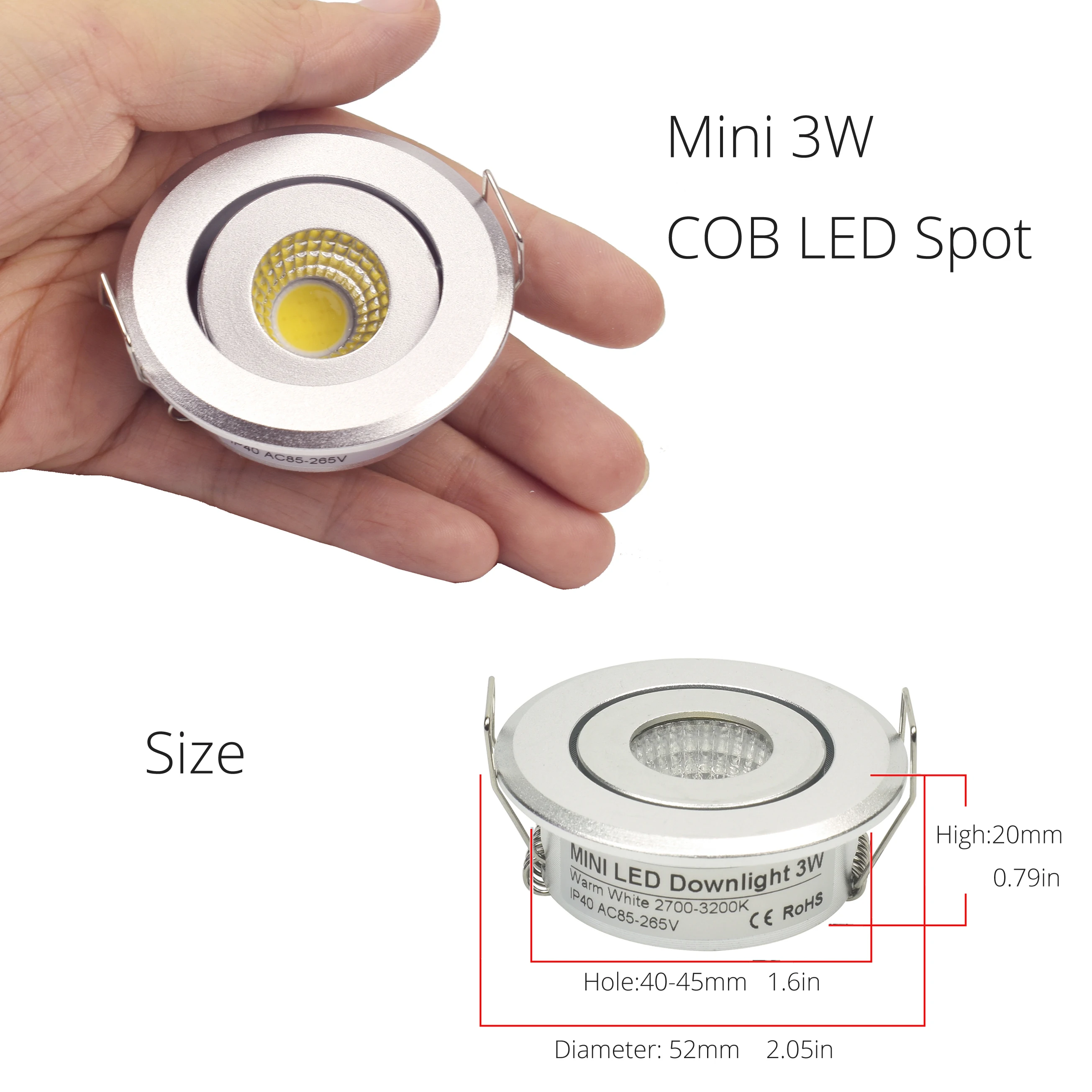

Real Pictures Mini 3W 5W 7W COB LED Spot

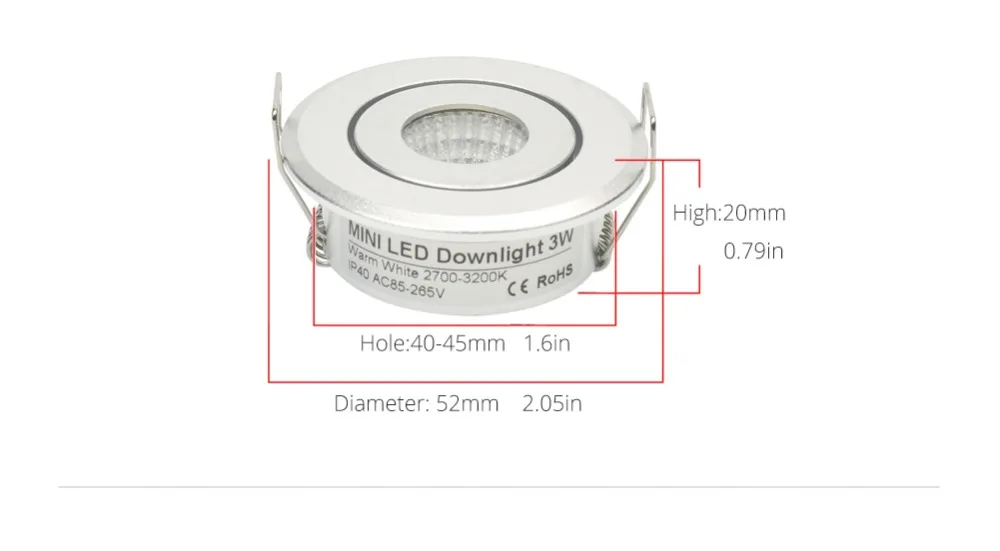

Mini 3W Size

D52*H20mm; Hole Size: 40-45mm

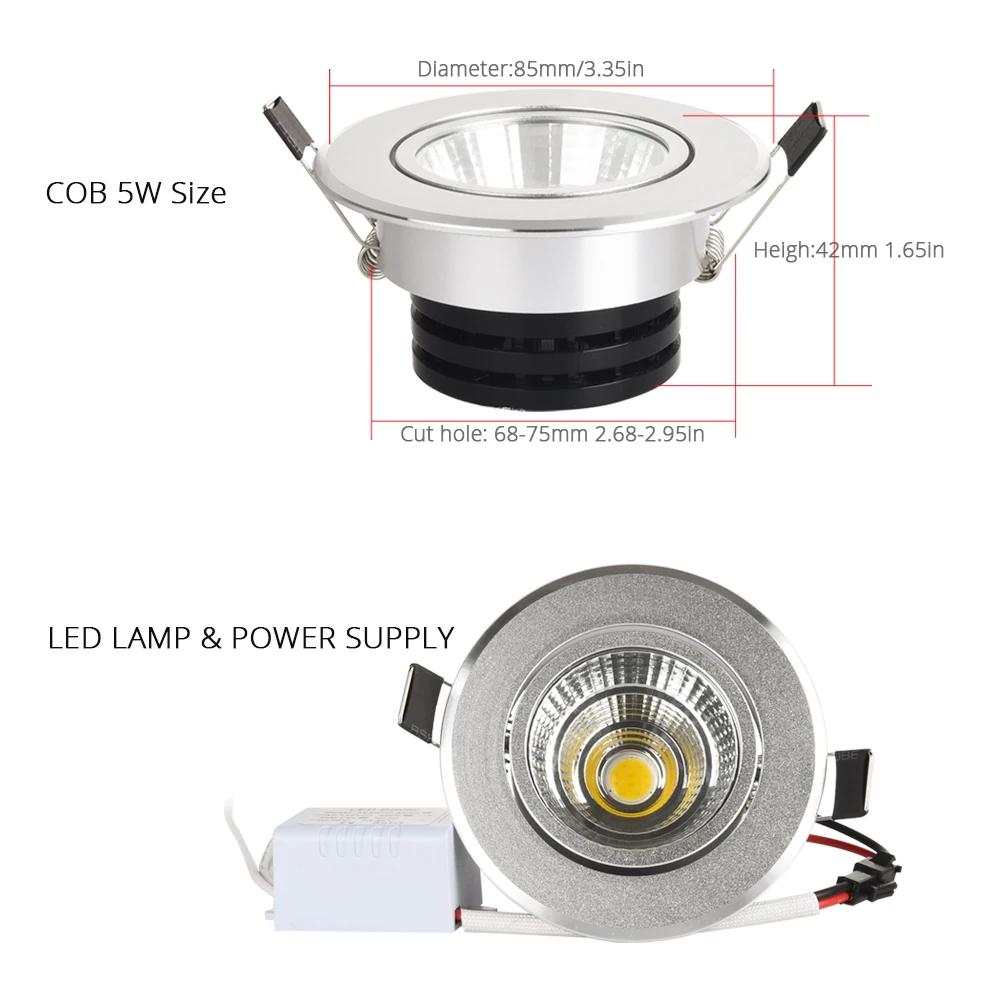

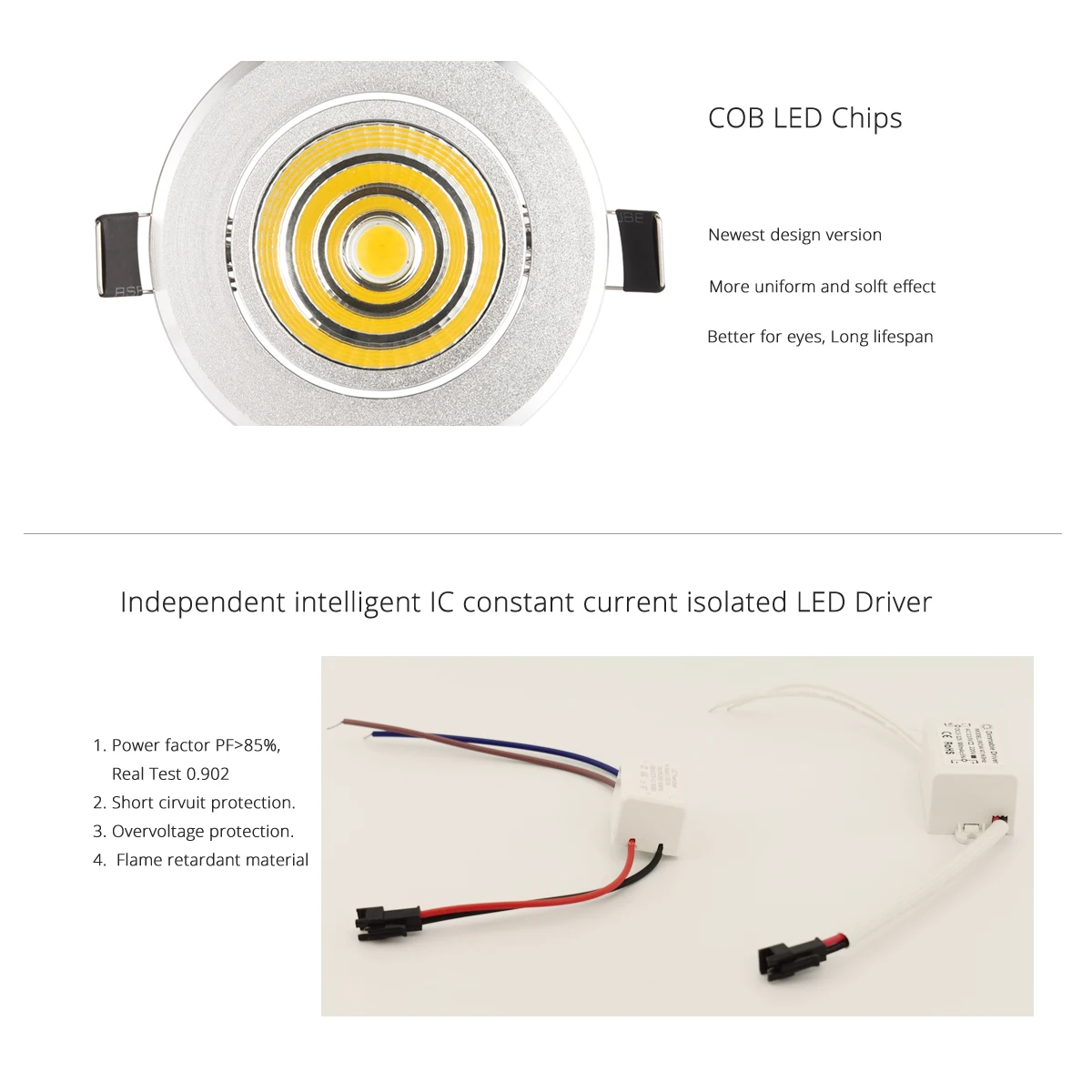

5W 7W Size  (7W heigh:52mm) COB LED Chips

1. Newest design version.

2. More uniform and solft effect.

3. Better for eyes, Long lifespan.

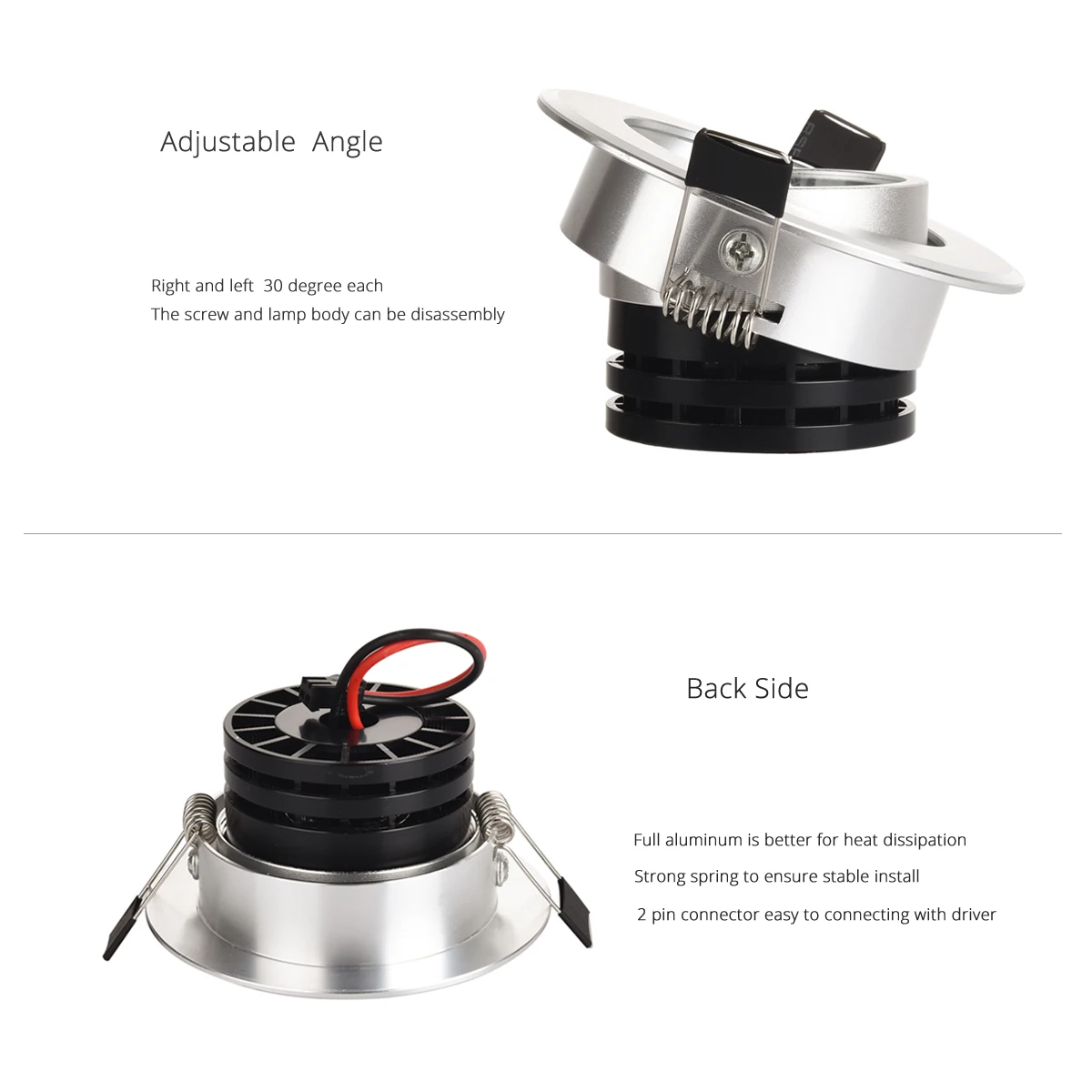

Adjustable angle

1.Right and left side 30 degree each.

2. The screw and lamp body can be disassembly



Back Side

1. Full aluminum is better for heat dissipation.

2. Strong spring to ensure stable install.

3. 2 pin connector easy to connecting with driver.

LED Drivers Design: Independent intelligent IC constant current isolated   Advantage:    1. Power factor PF>85%, REAL TEST 0.902. you can see it in video.    2. Short cirvuit protection, Overvoltage protection is more safety for your home.   3. Support more lamp connections( series/parallel connection)

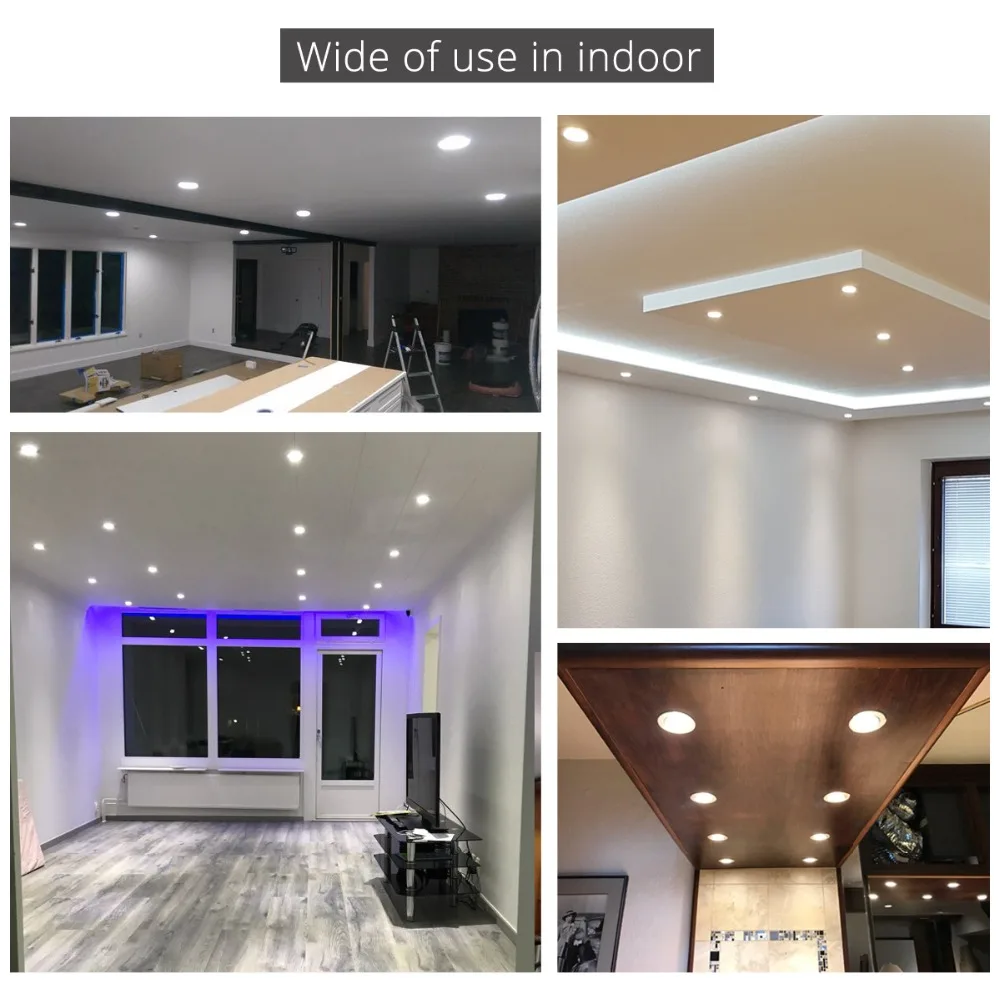

Applications

light  up colorful home life ,DIY household lights for hallways, stairs, trails  ,windows.

light up colorful life hotels decoration use,Theaters,  clubs, shopping malls,  Dining-room,meeting room telephone booth, light box, showroom,studio and  exhibition etc.
