JOYO Guitar Pedal Tuner Power Tune Tuner Pedal 2 in 1 Guitar Power Supply and Tuner True Bypass Musical Instrument Parts JF-18R

>>>

Brand Name JOYO

Origin CN(Origin)

Type Effects

weight 300g

Plug Type None

Model Number JF-18R Guitar Pedal Tuner

Product name JOYO JF-18R Guitar Pedal Tuner Power Tune Tuner Pedal 2 in 1 Guitar Power Supply and Tuner

Color White

Material Metal

Droshipping / wholesale Support

Feature 1 Guitar tuner pedal combines both power supply and tuner into one amazing product

Feature 2 Features a filtered low noise output with short circuit and over current protection

Feature 3 The tuner section features True Bypass circuit to minimise signal loss

Color

EU Plug

US Plug

AU Plug

UK Plug

JOYO JF-18R Power Tune Tuner Pedal Guitar Tuner Pedal True Bypass Combines Power Supply and Tuner Guitar Accessories

JOYO Audio delivers a compact and convenient way to combine the essential tools of the guitarists pedalboard that do not necessarily make a sound, but enable it to all happen. That is the Power tune that combines both power supply and tuner into one amazing product, saving space and eliminating noise.

The POWER section features a filtered low noise output with short circuit and over current protection. Six outputs give you the standard 100ma power for most of your standard analogue pedals on your board, whilst two additional outputs can deliver a whopping 500ma, which will cover even the most demanding digital effects units. The TUNE section delivers via the large LED screen, which is easy to see in any lighting condition. Using a technologically impressive rapid chromatic tuning algorithm, ensuring fast and responsive note detection for any guitar or bass player. Of course you can use the Power Tune independently, the tuner section features True Bypass circuit to minimise signal loss.

Specification:

1. Input: 1/4 mono port

2. Output: 1/4 mono port

3. Tuning Range: 12Hz-4186Hz

4. Working Voltage: DC 9V (Center Negative )

5. Running Current: DC 120mA

Power Parameters:

1. Input Voltage for adaptor: AC 100-240V

2. One DC 9V input, 2A input current(Center Negative )

3. 8 isolated DC 9V outputs, 2 at 500mA, 6 at 100mA (Center Negative )

4. Isolated short-circuit and over current protection

5. Including Adaptor, 8 DC power cords, 2 Polarity reversing cables

6.Dimensions: 21.8 (L) x 14 (W) x 6.7 (H) cm

7.Weight: 0.72KG

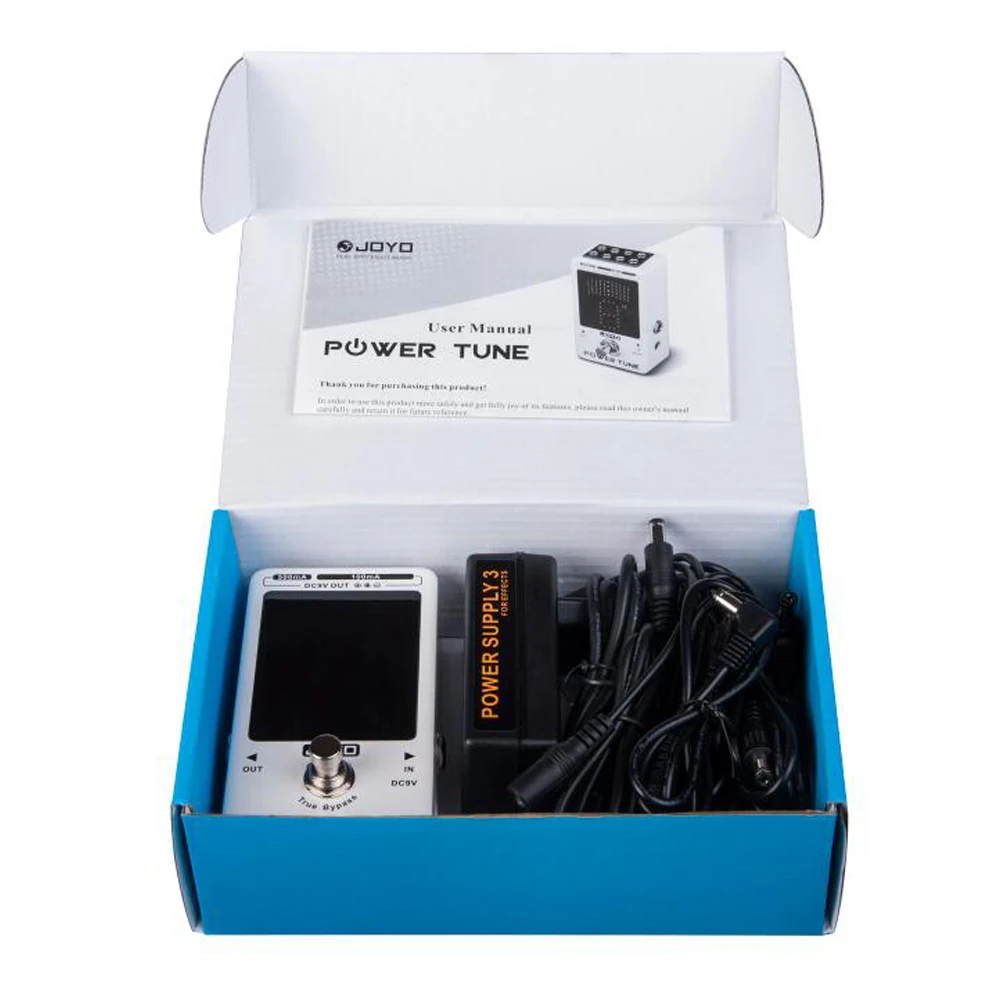

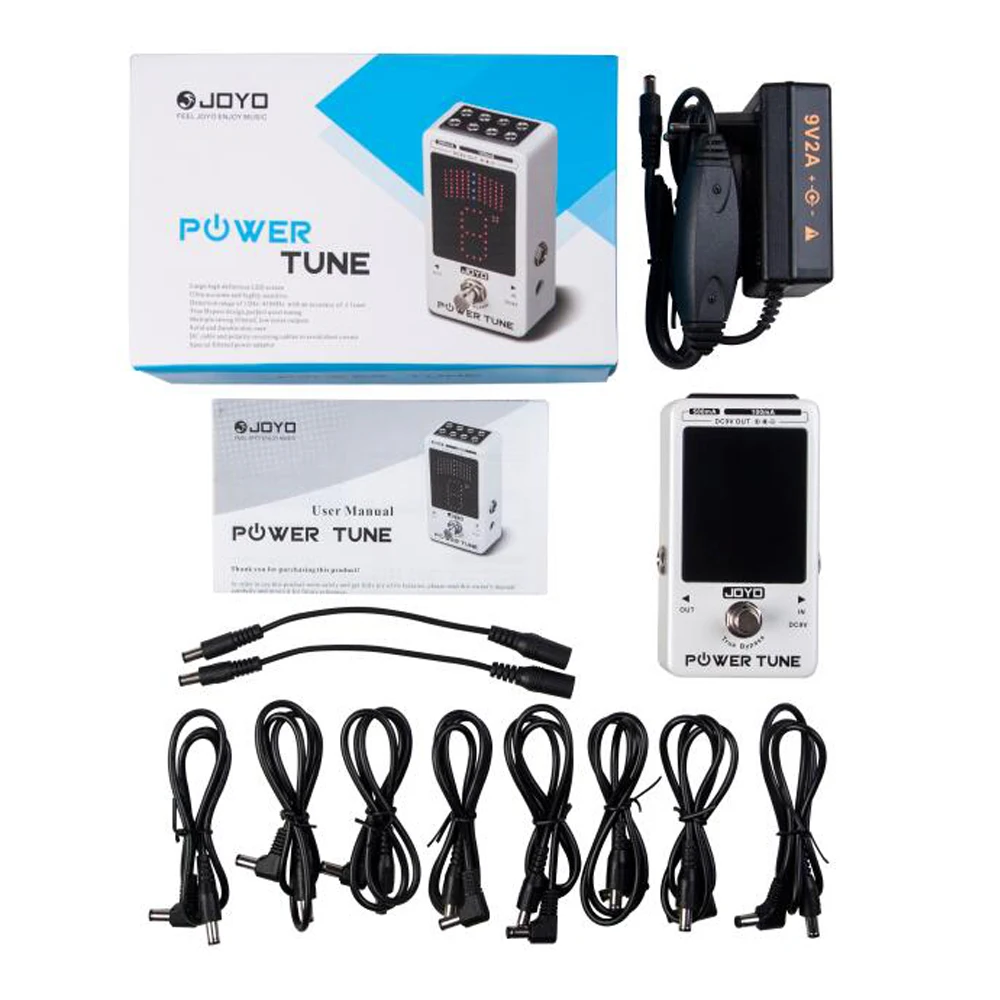

Package List:

1* JF-18R Power Tune tuner pedal

1* Adaptor

8* DC power cords

2* Polarity reversing cables

1* use manual
